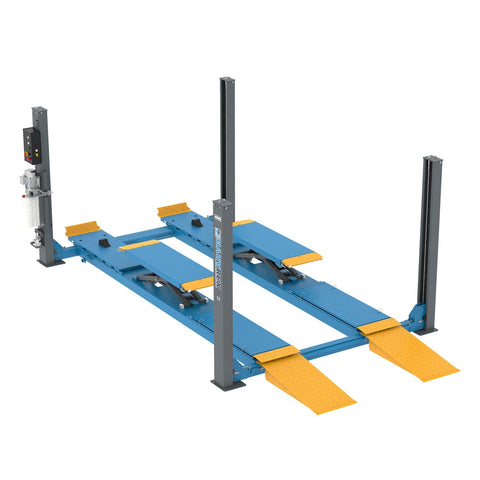

HFL 4340X 4-Ton (8,818 lb) Four-Post Alignment Lift with Wheel-Free Scissor Lift – Pneumatic Lock & 24V Control

🧰 Technical Specifications:

• Lifting Capacity: 4,000 kg (8,818 lbs)
• Min. Height: 235 mm (9.25")
• Max. Lifting Height: 1,900 mm (74.8")
• Overall Length: 5,552 mm (218.7")
• Overall Width: 3,422 mm (134.7")
• Runway Length: 5,000 mm (196.9")
• Runway Width: 560 mm (22")
• Width Between Posts: 2,924 mm (115.1")
• Width Between Platforms: 905 mm (35.6")
• Lifting/Lowering Time: 55 sec / 45 sec
• Motor Power: 2.2 kW (3 HP)
• Power Supply: 220V / 60Hz / 1Ph

✔️ Technical Features:

• Built-in wheel-free scissor lift for tire and brake access

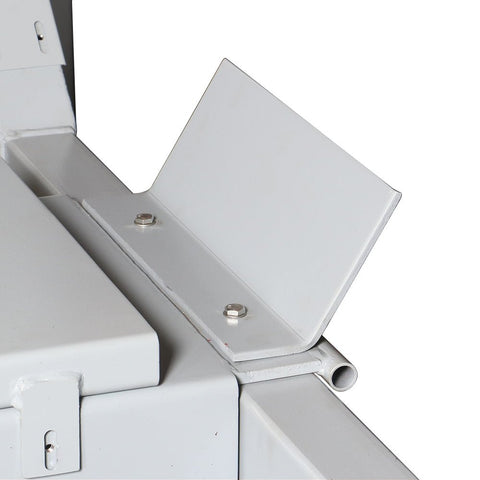

• Front recesses and side slip plates for precision alignment work

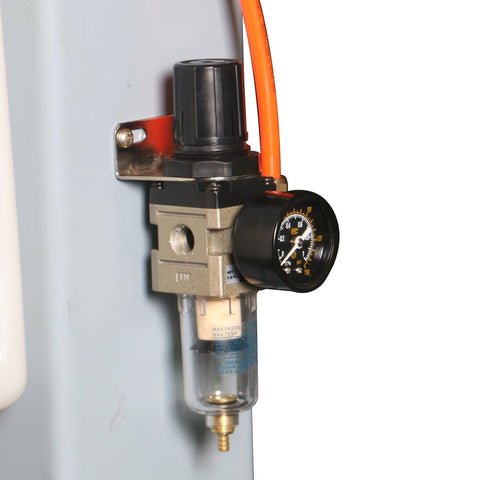

• Pneumatic safety lock release for convenience and security
• 24V low-voltage control system enhances operator safety

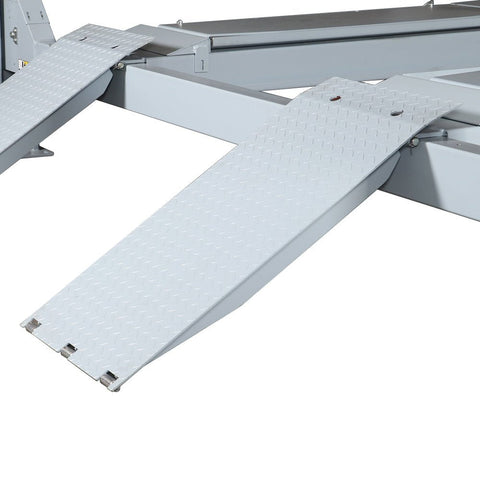

• Non-skid drive-on ramps for added safety and stability

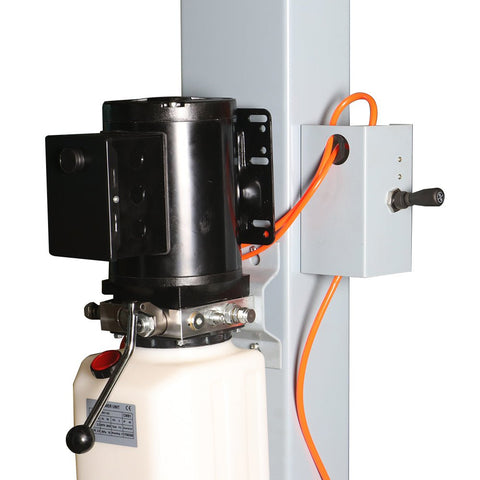

• Aluminum motor power pack with efficient heat dissipation
• Heavy-duty construction ideal for alignment bays and service shops
