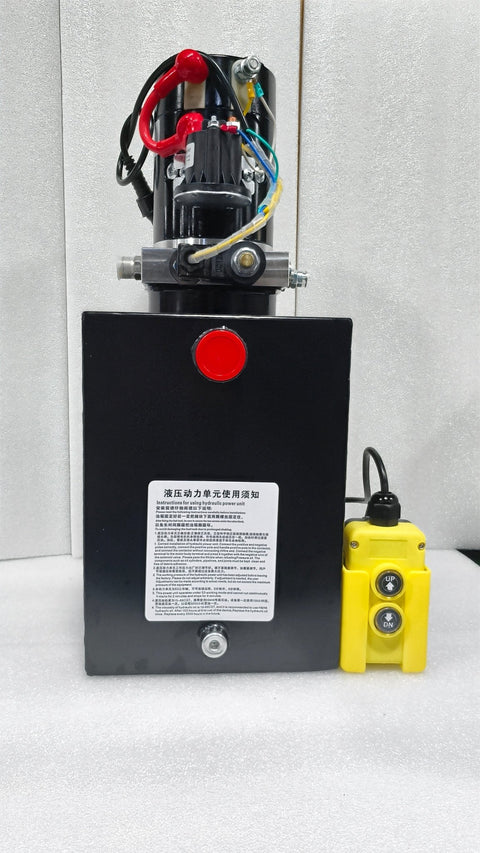

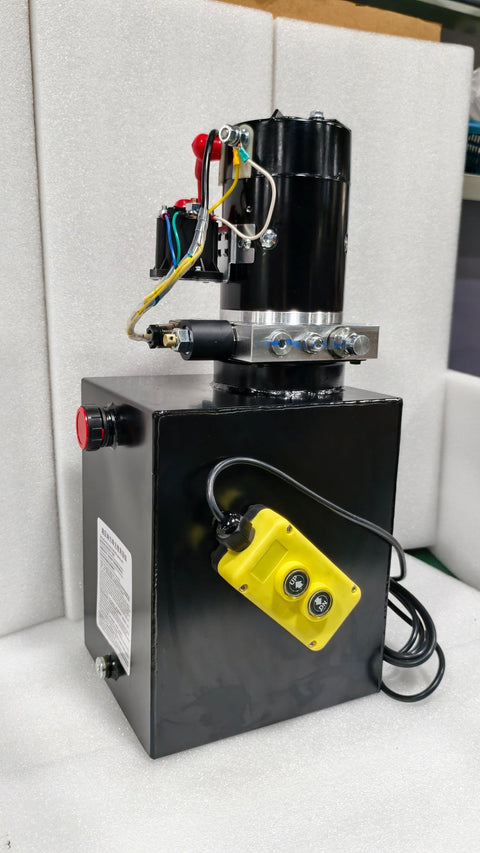

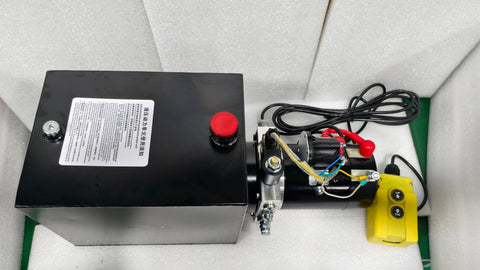

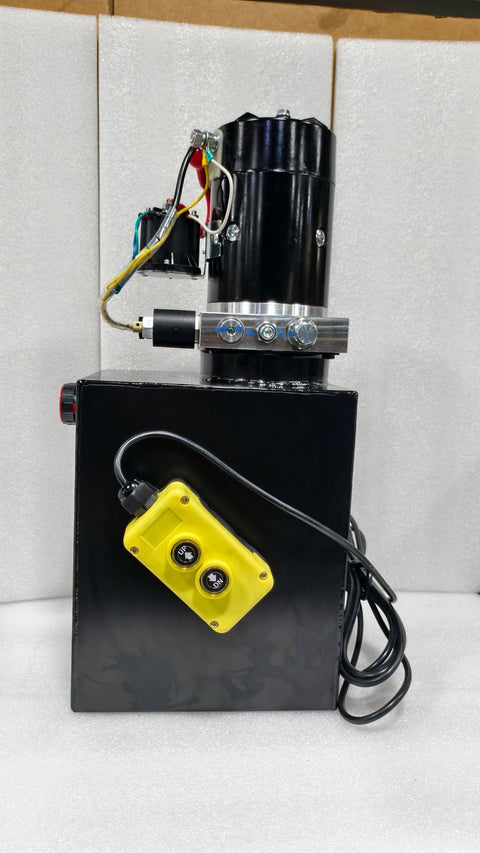

Upgrade your dump trailer, lift bed, or car hoist with this high-performance 12V Hydraulic Power Unit. Built for efficiency and durability, this single-acting 12-quart hydraulic pump is engineered for smooth, powerful lifting with minimal maintenance.

🔩 Key Features:

✅ 12 Quart Steel Reservoir – Built-in robust tank for long-lasting hydraulic performance
✅ 12V DC Motor – Reliable electric operation with strong power output
✅ Single Acting Design – Raises load under power, gravity lowers it for energy savings
✅ Maximum Pressure: 3200 PSI – Handles tough lifting tasks with ease
✅ Flow Rate: 0.91 GPM – Efficient fluid movement for fast lifting cycles
✅ Remote Pendant Control – Simple push-button operation (UP / DOWN)
✅ Pre-installed with safety relief valve for secure operation

📐 Specifications:

• Model: SAP12123200
• Voltage: 12V DC
• Max Relief Pressure: 3200 PSI
• Flow Rate: 0.91 GPM
• Reservoir Capacity: 12 Quart
• Tank Material: Powder-Coated Steel
• Overall Dimensions: 52 × 21 × 26 cm (20.5" × 8.3" × 10.2")
• Control Cord Length: Approx. 15 ft

⚙️ Applications:
Perfect for:

• Dump Trailers
• Tipper Trailers
• Lift Gates
• Utility Beds
• Car Haulers
• Agricultural and Mobile Equipment

📦 What’s Included:

• Fully assembled 12 Quart 12V Hydraulic Pump
• Wired Remote Pendant Controller (Up/Down)
• Pre-wired with standard SAE connectors
• Ready-to-mount steel reservoir unit
