Features:

• Durable split wear-resistant aluminum shell design for long-lasting use.

• Built-in high-speed laser motion control system ensures fast, precise marking.

• High-quality fiber laser beam offers excellent reliability, precision, and stability.

• Capable of fast marking on metals and some hard plastics.

• Powerful 60W fiber laser supports deep engraving and cutting of metal sheets up to ~1mm thickness.

• Ideal for jewelry industry applications including gold, silver, and stainless steel cutting.

Specifications:

• Marking Area: 110 x 110 mm

• Laser Source: JPT (M7 Mopa)

• Laser Power: 60W

• Wavelength: 1064 nm

• Beam Quality: M² < 1.5

• Frequency Range: 1–4000 KHz (adjustable)

• Marking Speed: Up to 8000 mm/s

• Minimum Line Width: 0.01 mm (material dependent)

• Minimum Character Size: 0.2 mm (material dependent)

• Power Supply: 110V, 60Hz (customizable per region)

• Power Consumption: 700W

• Operating Temperature: 0°C – 40°C

• Max Humidity: ≤ 80%

• Cooling Method: Air cooling

• Interface: USB compatible with Windows XP/Vista/7/8/10 (32/64 bit)

• Control Software: EZCAD 2.0 control card

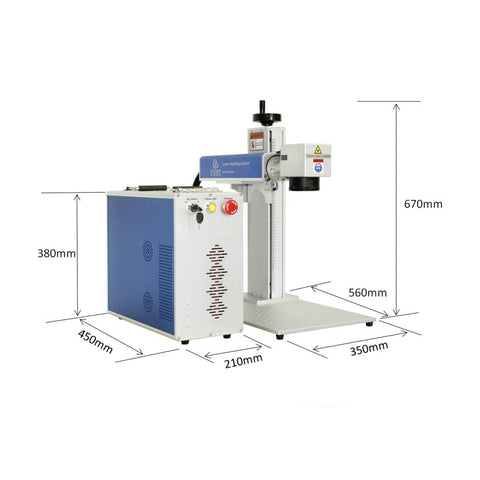

• Machine Height: 550 mm

• Red Dot Pointer for precise laser targeting

Optional Accessories:

• D69 Rotary: For rings, bracelets (diameter 2-93mm) — suitable only for hoop jewelry.

• D80 Rotary: For cylindrical objects like cups (diameter 2-70mm).

• D100 Rotary: For larger cylinders/bottles (diameter 2-90mm).

• D125 Rotary: For even larger cylinders/bottles (diameter 2.5-125mm).

• Cutting Fixture: Secures metal sheets during cutting to reduce deformation.

• Pen Wheel: Mark pens and pen-like objects with up to 20 stations for batch marking.
