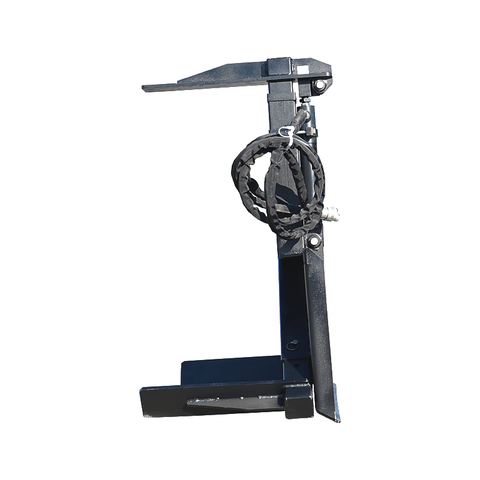

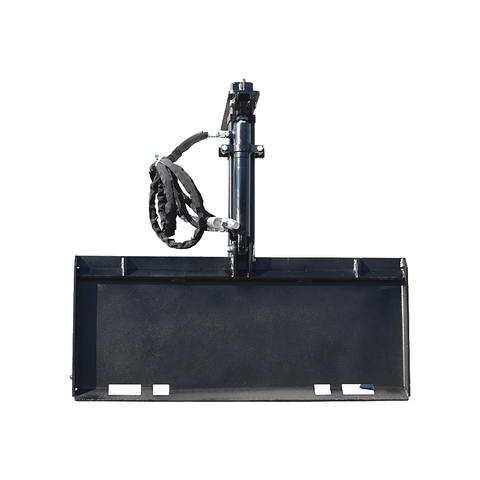

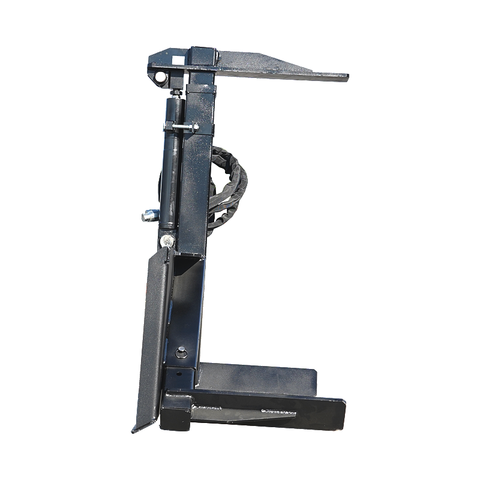

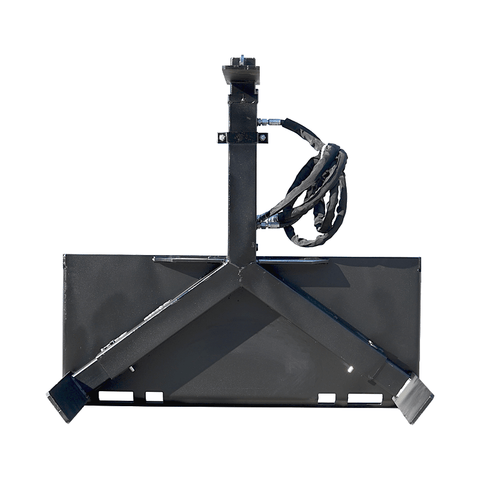

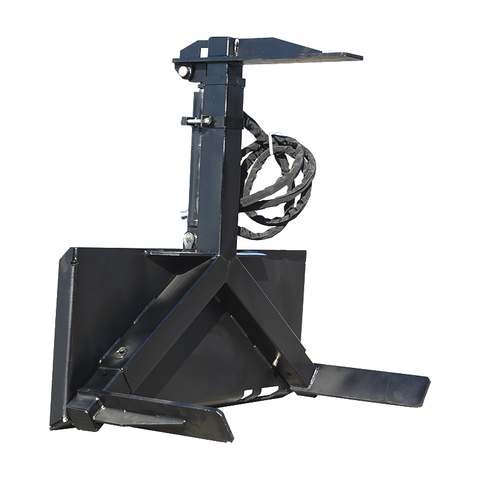

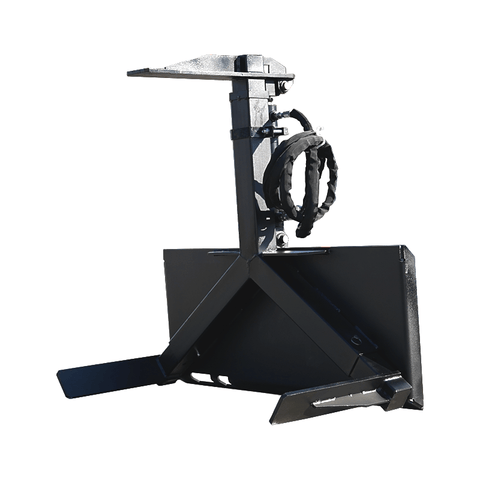

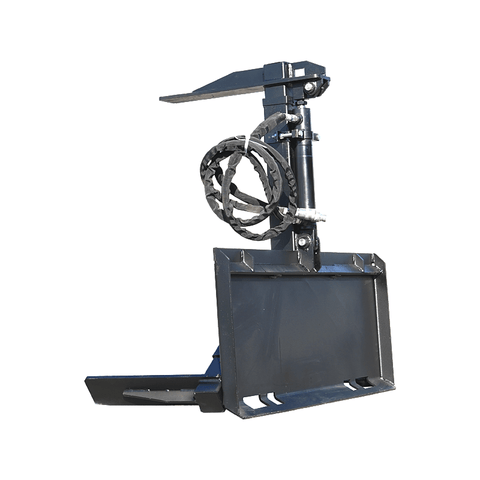

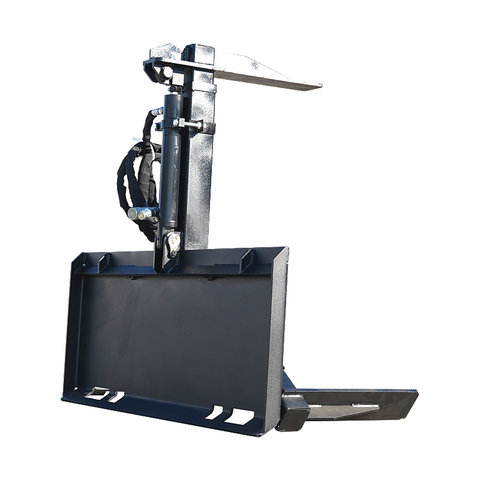

The Tire Clamp Attachment is a heavy-duty hydraulic accessory designed for automotive shops, tire dealers, and fleet service operators. Compatible with skid steers and loaders, it easily grips and maneuvers large tires for installation, removal, or repositioning.

📐 Key Specifications
Feature Detail
Model 003-056-47-001A
Gripping Diameter 43" to 63" (1100 mm – 1600 mm)
Cylinder Stroke 11" (280 mm)
Attachment Dimensions 24.4" (L) × 45.5" (W) × 44.9" (H)
Frame Material Q355B High-Strength Alloy Steel
Hydraulics Cylinder: 50/28-280 ×1, Hoses: 2SN06*1600

🔧 Key Features
Adjustable Arm Design:
Adaptable support arms grasp a wide range of tire diameters with 50 mm incremental adjustments.

Hydraulic Power & Precision:
Reliable single-cylinder actuation delivers secure, smooth clamping and angular movements.

Mesh-Guarded Hoses:
Dual reinforced hydraulic lines with wear-resistant protection.

Rugged Steel Construction:
Built with Q355B alloy steel for maximum durability in industrial conditions.

Easy Installation:
Universal skid steer mounting plate for quick connection.

⚠️ Safety Note
Never allow personnel to stand beneath a suspended tire during operation. Always check for hydraulic leaks before use
.

📦 Shipping & Packaging
Packing Size: 55.9" (W) × 33.8" (L) × 47.2" (H)

Ships crated, ready to install with all hydraulic fittings.

🛒 Ideal For:
Tire service shops

Heavy equipment depots

Agricultural and industrial yards

Construction fleets and maintenance yards
