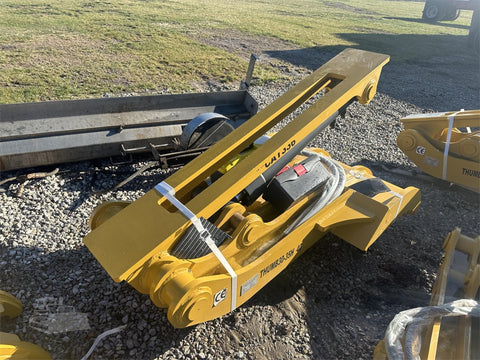

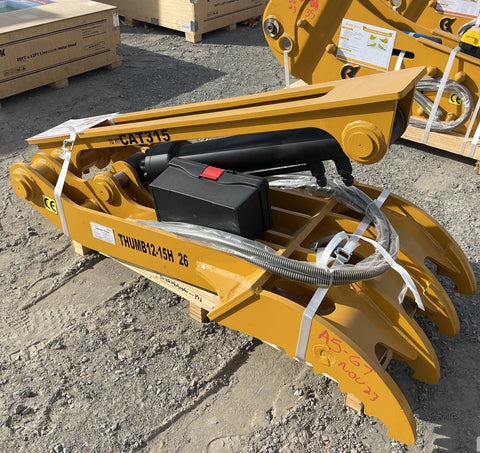

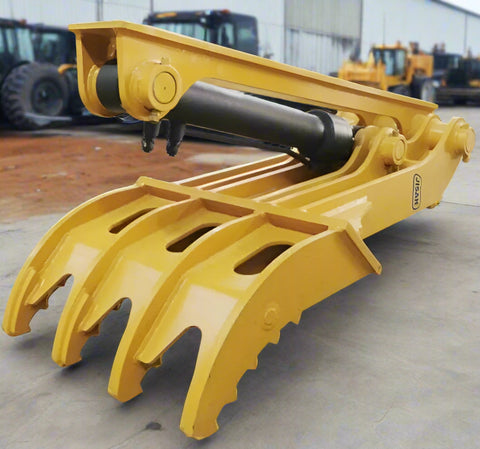

Hydraulic Excavator Thumb Grapple – Heavy-Duty Weld-On Attachment for 10–35 Ton Machines

Upgrade your excavator with our industrial-grade hydraulic thumb grapple, engineered for enhanced gripping, loading, and material handling. Designed for weld-on installation, these grapples are built from NM400 high-strength steel and are ideal for forestry, demolition, land clearing, and scrap handling.

🔩 Model Options & Specs

15 Ton Excavator Thumb (T4015)

• Built with durable NM400 steel

• Size: 1570mm (L) × 770mm (Base) × 660mm (W)

• Oil Flow: 40–50 L/min

• Max Load: 38 kN

• Working Pressure: 22–26 Mpa

• Weight: 935 lb

• Price: $3,795.00

20–25 Ton Excavator Thumb (T2025H)

• Heavy-duty NM400 steel plate

• Size: 1620mm (L) × 1400mm (Base) × 762mm (W)

• Pin-to-Pin: 1300mm

• Oil Flow: 50–60 L/min

• Max Load: 48 kN

• Working Pressure: 25–30 Mpa

• Weight: 1225 lb

• Price: $4,795.00

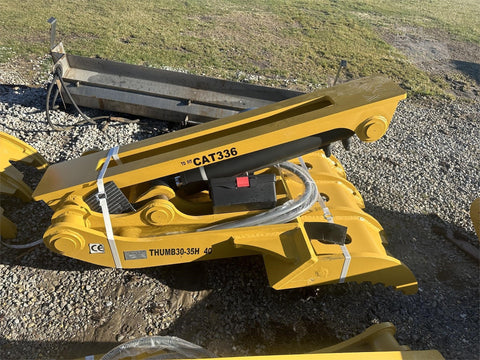

30–35 Ton Excavator Thumb (T3035H)

• Made for large excavators

• Size: 1800mm (L) × 1400mm (Base) × 1016mm (W)

• Oil Flow: 80–100 L/min

• Max Load: 68 kN

• Working Pressure: 28–32 Mpa

• Weight: 1440 lb

• Price: $6595.00

⚙️ Key Benefits

• Weld-on Design – Secure fit for rugged applications

• Hydraulic Powered – Smooth control and strong grip

• Built for Tough Jobs – Handle logs, debris, concrete, and scrap
