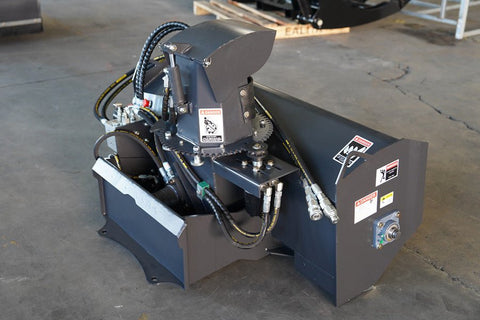

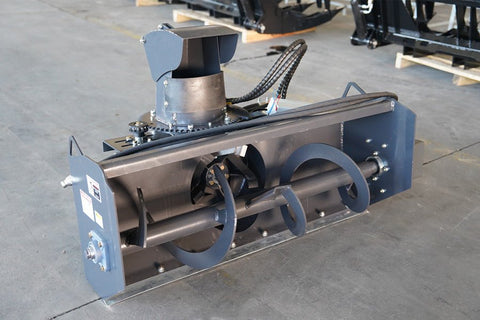

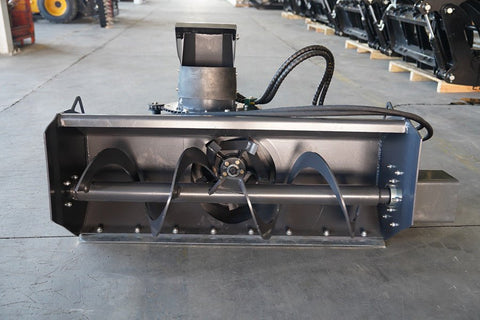

48" Mini Skid Steer Snow Blower Attachment – Standard Flow 8–13 GPM Two-Stage Hydraulic Snow Blower MSS119SB
Industrial Series 48" Mini Skid Steer Snow Blower Attachment
Model: S-HSB1220(48IN)-MP600
Clear your property with power and precision. Designed specifically for standard-flow mini skid steers, this 48-inch two-stage hydraulic snow blower is engineered to tackle heavy winter conditions on driveways, commercial lots, and acreage. With a robust hydraulic system and direct-drive auger, it throws snow up to 45 feet, ensuring efficient clearing even in wet, sticky conditions.
Key Features
-
Two-Stage Hydraulic System: A high-efficiency blower system delivers consistent output, capable of throwing snow 45–75 ft depending on conditions.
-
Direct-Drive Hydraulic Auger: Ensures maximum power transfer for cutting through deep drifts and hard-packed snow.
-
Electric Solenoid-Controlled Chute: Features a 180° rotatable chute with full hydraulic control of rotation and deflector adjustment directly from the operator station.
-
Heavy-Duty Build: Equipped with a replaceable bolt-on high-carbon steel cutting edge and adjustable depth skid shoes for setting ground clearance on gravel or pavement.
-
Hydraulic Relief System: Eliminates the need for shear pins, protecting the unit from damage and reducing downtime.
-
Safety & Visibility: The compact, well-balanced design (33.1" length) offers excellent visibility, while the safety-first engineering includes specific motor guards and easy-access maintenance points.
Technical Specifications
| General Specs | Details |
| Working Width | 48" (1220mm) |

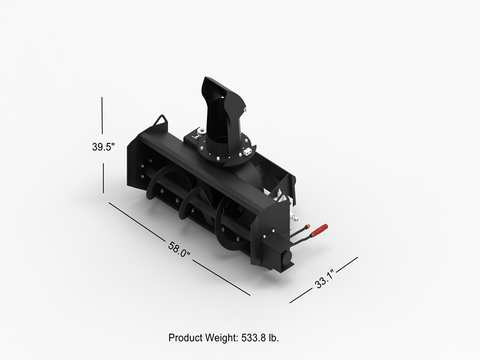

| Total Dimensions | 58.0" W x 39.5" H x 33.1" L |
| Flow Requirement | Standard Flow (8–13 GPM) |
| System Type | Two-Stage Hydraulic Blower |
| Throw Distance | 45 ft – 75 ft (Variable based on snow density) |
| Hydraulic Components | Part Number / Type |
| Main Drive Motor | BMR-250 (Item 33) |
| Secondary Motor | 025-004-HMR-250 (Item 9) |
| Chute Rotation Motor | HMP-200 (Item 19) |
| Hydraulic Cylinder | EHYG-φ25/φ14-167-38-II |
| Integration Valve | A180-013 |
| Build & Maintenance | Details |
| Bearings | UCF206 (Item 14) & 6009-RZ (Item 44) |
| Cutting Edge | High-Carbon Steel, Replaceable (Item 8) |
| Maintenance Interval | Grease auger bearings every 8 hours of operation |
| Transport Speed | Max 25 mph |
Operational Requirements
-
Engine Speed: For optimal performance, operate at 3/4 to maximum engine RPM.
-
Wet Snow: Full RPM power is required when clearing wet, sticky snow to prevent chute clogging.
-
Slopes: Operate up and down intermediate slopes only; never operate across steep slopes.
Need replacement parts? This unit uses standard components including the BMR-250 Hydraulic Motor and UCF206 Bearings for easy long-term maintenance.
