9x12 FT Rock Screen Grizzly – Heavy-Duty Soil, Gravel & Rock Separator | SKU: 1227RC

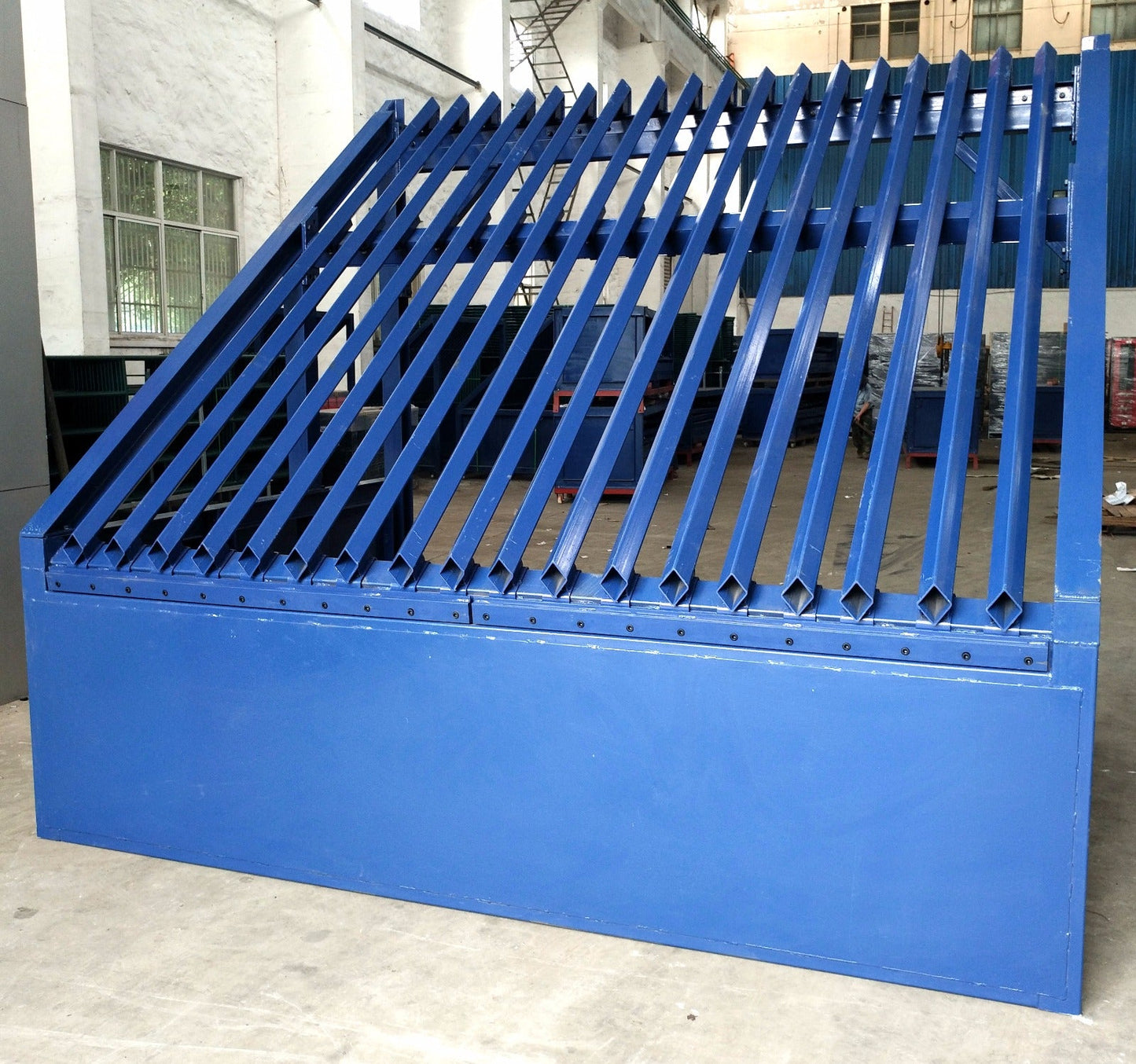

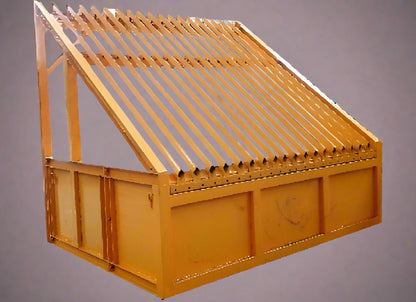

🪨 Heavy-Duty 9x12 FT Grizzly Rock Screen – Rugged Separator for Soil, Gravel & Debris

Maximize your material handling efficiency with this 9×12 FT Grizzly Rock Screen, engineered for heavy-duty screening of soil, rocks, gravel, and sand. Perfect for contractors, excavators, and landscaping pros, this static separator is built with reinforced square tubing, adjustable spacing, and a high-capacity steel deck—designed to thrive in demanding job site conditions.

🔧 Key Features & Specifications:

• Massive Screen Size
  Dimensions: 12’ L x 9’ W x 8.9’ H – large footprint for bulk material throughput.

• Heavy-Duty Deck Construction
  Made from 10-gauge steel plate with 1.6” square tubing (11 bars) for long-lasting durability.

• Adjustable Bar Spacing
  Customize screen performance with 3 spacing settings: 1", 3", and 5" – ideal for different aggregate sizes.

• Slope Angle: 37°
  Optimized for smooth debris flow and minimal clogging.

• Weight Capacity
  Supports loads up to 5,000 lbs – perfect for wheel loader and excavator work.

• Rigid Frame Design
  Constructed from 4” x 4” steel beams and cross supports for maximum stability and strength.

🛠 Assembly & Use:

• Ships flat – assembly required (2–3 hours; 2-person team recommended)

• Spare deck bars available separately

• Use with skid steers, loaders, excavators, and more

✅ Ideal For:

• Screening topsoil, fill dirt, and gravel

• Construction site cleanup

• Landscape material separation

• Prepping rock and aggregate for processing

Streamline your screening and reduce wear on your equipment by separating large debris before it hits your machinery. Built to last. Built for work. Built for serious operators.

🛒 Order your Grizzly Rock Screen today and level up your operation.
