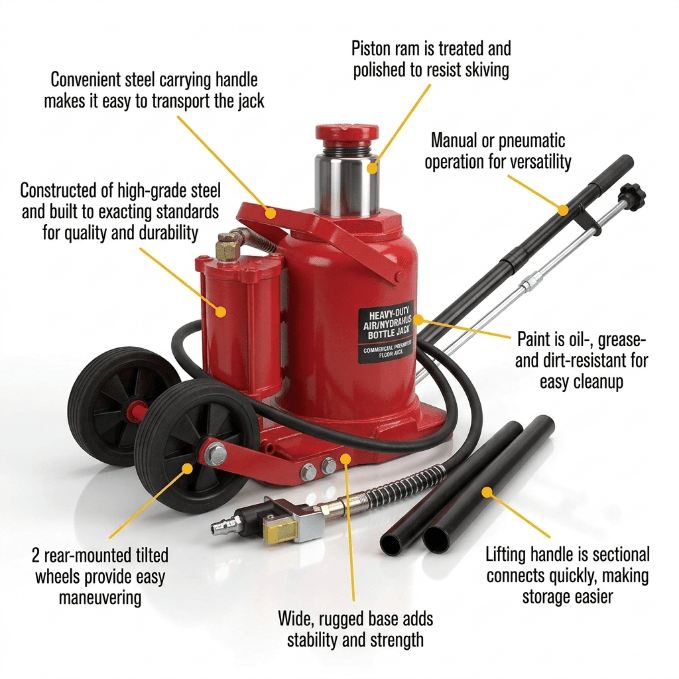

Heavy-Duty Air Hydraulic Bottle Jack

Commercial Pneumatic Floor Jacks - 10886.2 kg to 45359.2 kg Capacities

OVERVIEW

Lift with extreme power and uncompromising precision using our Professional Heavy-Duty Air Hydraulic Bottle Jack. Engineered for demanding commercial environments—including auto body shops, industrial machinery servicing, and heavy-duty farm equipment repair—these professional-grade jacks effortlessly handle massive loads. Available in three distinct weight capacities, you can select the 10886.2 kg (12 Ton) model for light trucks, the 18143.7 kg (20 Ton) model for mid-range equipment, or the staggering 45359.2 kg (50 Ton) model for lifting heavy commercial buses and industrial tractors. Featuring an air-assisted pneumatic operation system that connects directly to your shop's air compressor, these jacks deliver faster, safer, and entirely effortless lifting in a highly portable footprint.

SYSTEM HIGHLIGHTS

• Pneumatic Air-Assisted Lifting: Bypasses the grueling manual labor of standard manual jacks. Simply connect the included 1219.2 mm (48") air hose to a standard shop compressor to effortlessly raise massive payloads in seconds.

• Massive Commercial Capacities: Tailor your lifting power exactly to your fleet's needs by choosing between the 12-Ton, 20-Ton, and 50-Ton configurations.

• Heavy-Duty Steel Architecture: Constructed from ultra-thick, fully welded steel to provide maximum structural stability, ensuring the jack will not buckle or warp under extreme industrial pressure.

• Versatile Lifting Range: Features a highly adjustable saddle and extension screw system, providing a minimum clearance height of 260.4 mm (10.25") and a maximum extended lift height of up to 508.0 mm (20").

• Wide Operating Pressure: Designed to seamlessly integrate with standard commercial air setups, operating flawlessly between 8.2 and 13.7 Bar (120 - 200 PSI).

SPECIFICATIONS BY VARIANT

TECHNICAL DATA

• Minimum Height: 260.4 mm (10.25")

• Maximum Height: 508.0 mm (20")

• Hydraulic Lift Height: 168.3 mm (6.625")

• Extension Screw Adjust Height: 79.4 mm (3.125")

• Air Hose Length: 1219.2 mm (48")

• Air Inlet Fitting: 6.35 mm (1/4") x 18 NPT

• Operating Pressure: 8.2 - 13.7 Bar (120 - 200 PSI)

• Maximum Rated Pressure: 15.1 Bar (220 PSI)

IDEAL APPLICATIONS

• Auto Body & Mechanic Shops: Providing effortless, high-speed lifting for heavy pickup trucks and commercial utility vans without exhausting technicians.

• Fleet Maintenance: Utilizing the 50-Ton model to safely elevate heavily loaded semi-trailers, commercial buses, and massive transport vehicles.

• Agricultural & Farm Repair: Creating a highly portable, air-assisted lifting solution for massive tractors and combine harvesters directly in the machine shed.

• Industrial Manufacturing: Elevating heavy manufacturing machinery and CNC equipment for leveling, calibration, and undercarriage servicing.
