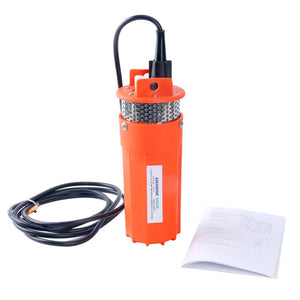

12V / 24V DC Solar Submersible Well Water Pump High Efficiency Off-Grid Irrigation 3848573

The 12V Solar DC Submersible Well Water Pump is a reliable solution for remote and off-grid water needs. Designed for use with solar panels and 12V battery systems, this heavy-duty pump provides consistent water delivery for livestock watering, irrigation, ponds, cabins, and remote homes.

Engineered with a positive displacement 3-chamber diaphragm design, it can run dry without damage and includes a stainless steel inlet screen to protect the pump from debris. A unique watertight cable gland connector prevents water-wicking, leakage, and condensation issues — ideal for harsh outdoor environments.

Key Features

• Designed for solar panels & 12V battery systems
• Easy hookup to most existing solar or wind generator systems
• Can be used with or without voltage controllers
• Runs dry without damage
• Corrosion-proof housing with stainless steel fasteners
• Watertight-gland cable connector helps prevent water leakage & condensation
• 50-mesh stainless steel inlet screen
• Fits 4" wells and larger (4-1/8" wells or larger recommended)

Ideal Applications

• Livestock watering
• Deep well pumping
• Irrigation systems
• Ponds and remote water transfer
• Off-grid homes, cabins, and remote properties

Specifications

• Voltage: 12V DC
• Pump Type: 3-Chamber Positive Displacement Diaphragm Pump
• Flow Rate: 360 LPH / 96 GPH
• Outlet Fitting: 1/2" Barbed Fitting (12.7 mm)
• Max Current: 8A @ 12V
• Max Lift: 230 ft
• Max Submersion Depth: 100 ft
• Inlet Screen: 50 Micron / 50 Mesh Stainless Steel Screen
• Power Cord Length: 9 ft
• Pump Dimensions (L × W × H): 4.09" × 4.09" × 12.95"
• Approx. Metric Dimensions: 35 cm × 10 cm

Additional Design & Build Features

• Motor: Permanent Magnet, Thermally Protected
• Internal Bypass: 105–110 PSI Max (7.2–7.5 BAR)
• Housing Material: High-Strength Engineered Plastic
• Fasteners: Stainless steel
