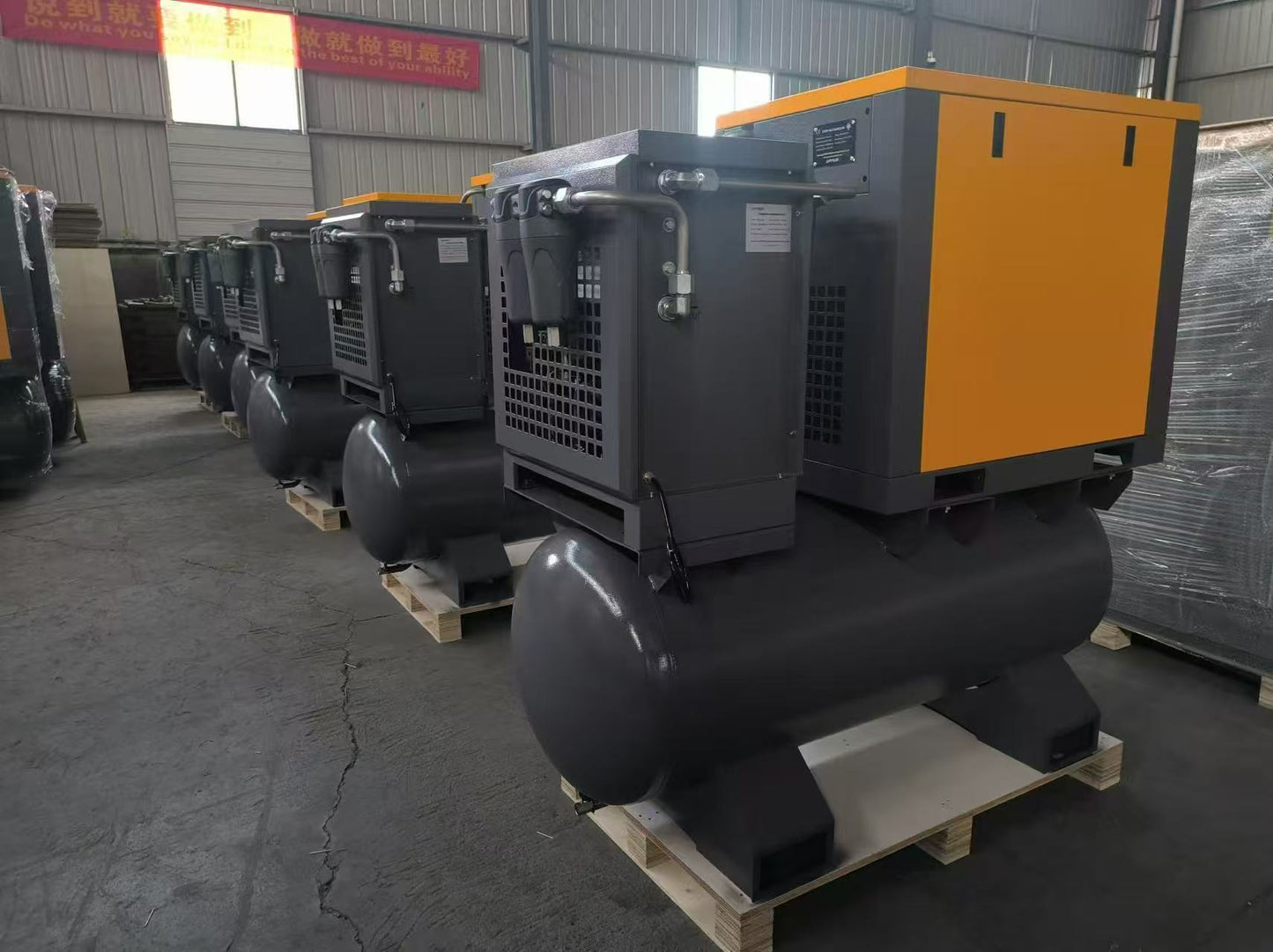

OPA Series PM VSD Screw Air Compressor 10HP 15HP 20HP with Air Dryer & Tank OPA10PV

Upgrade your shop or industrial workspace with the OPA Series PM VSD Screw Air Compressors, engineered for continuous-duty performance, energy efficiency, and long-term reliability. Each system includes a high-efficiency permanent magnet variable speed (PM VSD) screw compressor, integrated refrigerated air dryer, large air tank, and 3-stage CTA precision filtration system — delivering clean, dry, stable compressed air for demanding operations.

Designed for manufacturing, automotive, CNC, fabrication, sandblasting, and commercial facilities, the OPA Series provides low noise operation, direct-drive reliability, and major energy savings compared to traditional piston compressors.

Available in 10HP, 15HP, and 20HP configurations.

Industrial Oil-Injected Performance Engineered for high-demand environments, this compressor utilizes an oil-injected pump system for superior lubrication, cooler operating temperatures, and a significantly longer lifespan compared to oil-free units.

• Note: Designed for raw industrial power. For applications requiring moisture-free or medical-grade air, we recommend pairing this unit with an inline refrigerated dryer or desiccant filter system.

Key Features

• Permanent Magnet VSD Motor for significant energy savings

• Direct-drive system (no belts) reduces maintenance

• Baosi industrial air end for long service life

• Jiangtian IP55 motor for high-load stability

• Integrated refrigerated air dryer (R134a)

• Built-in 3-stage CTA precision filtration system

• Large air storage tank (380L or 500L)

• Oil injected

• System pressure display on control screen

• Adjustable pressure (can reduce from preset max)

• Quiet operation compared to piston compressors

• Fully assembled and ready to run

Specifications

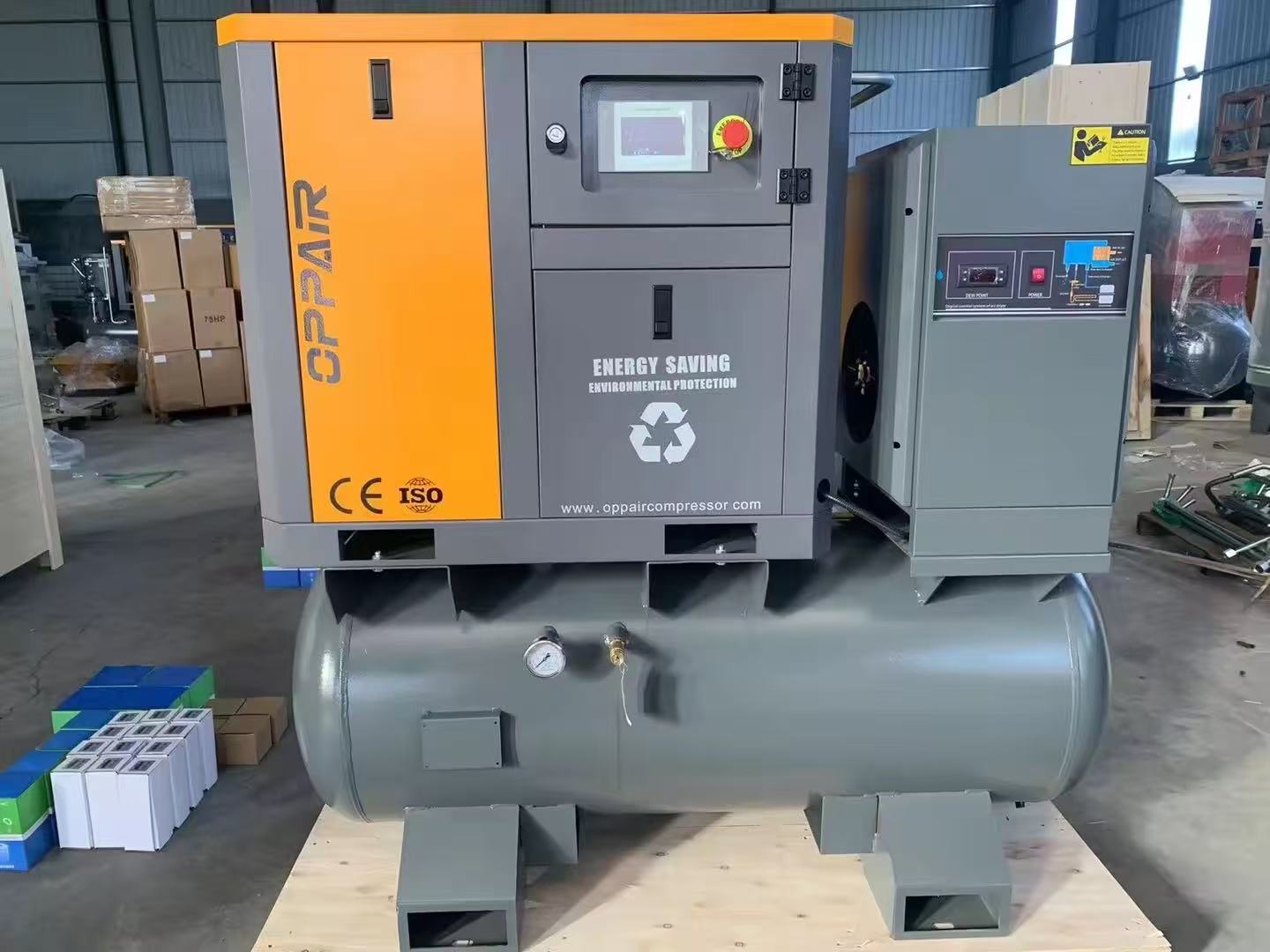

10HP – OPA10PV

• Power: 7.5 kW / 10 HP

• Air Flow: 0.9 m³/min

• Pressure: 10 bar (adjustable downward)

• Voltage: 220V, 60Hz, Single Phase

• Dryer Capacity: 1.2 m³/min

• Tank Capacity: 380L

• Overall Size: 61.0 in × 24.8 in × 59.1 in (1549 × 630 × 1501 mm)

• Weight: 743 lb (337 kg)

15HP – OPA15PV

• Power: 11 kW / 15 HP

• Air Flow: 1.3 m³/min

• Pressure: 10 bar (adjustable downward)

• Voltage: 220V, 60Hz, Single Phase

• Dryer Capacity: 1.2 m³/min

• Tank Capacity: 500L

• Overall Size: 70.9 in × 28.0 in × 67.3 in (1800 × 711 × 1710 mm)

• Weight: 886 lb (402 kg)

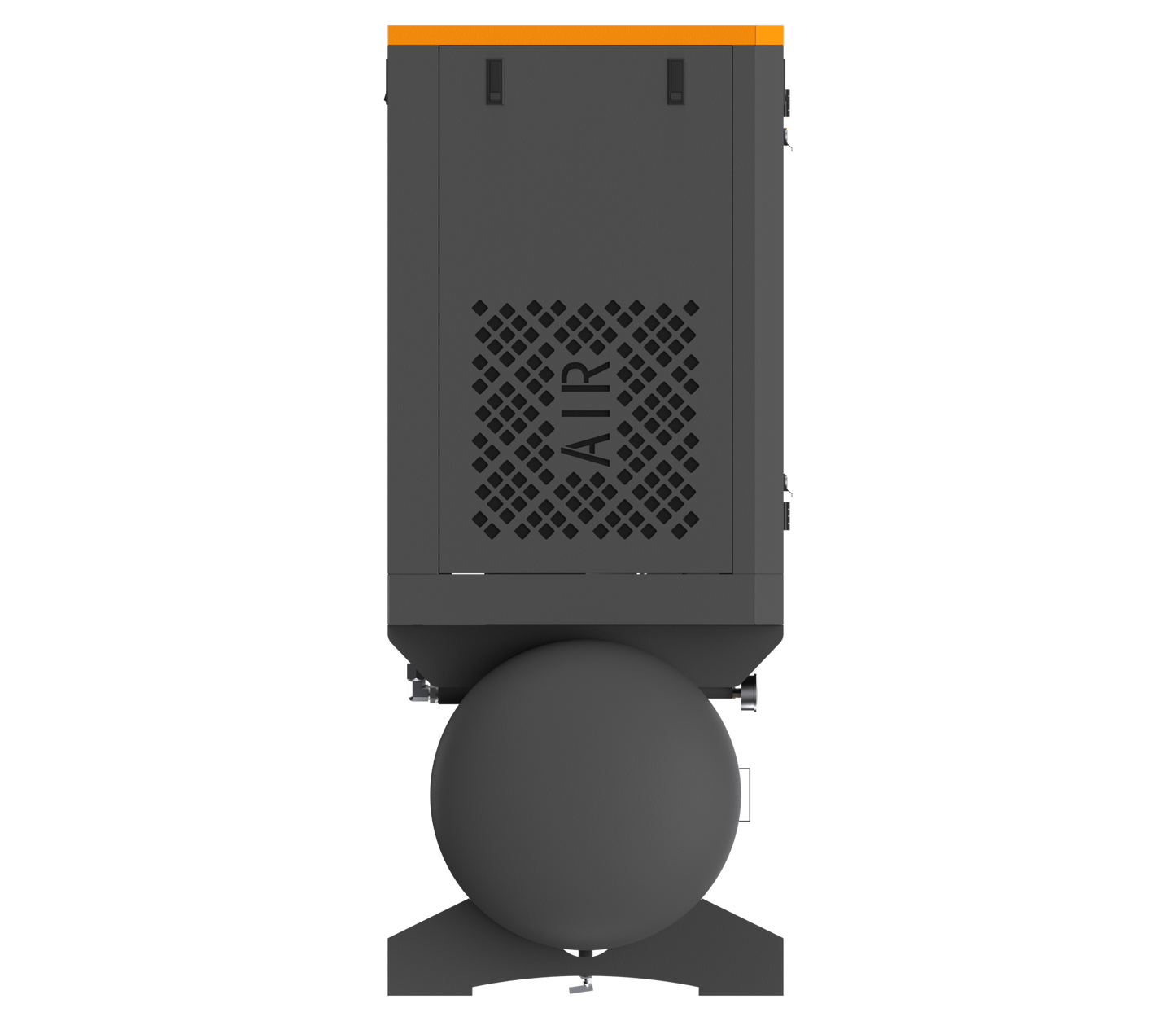

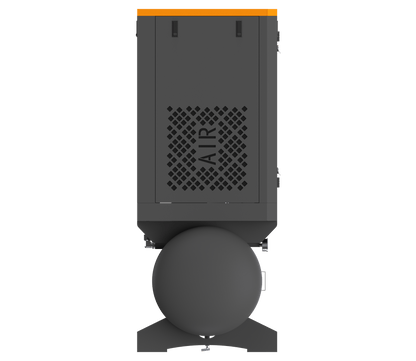

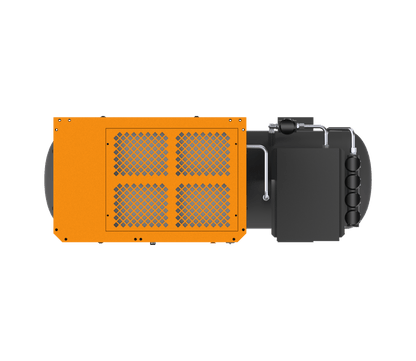

20HP – OPA20PV

• Power: 15 kW / 20 HP

• Air Flow: 2.1 m³/min

• Pressure: 10 bar (adjustable downward)

• Voltage: 220V, 60Hz, Three Phase

• Dryer Capacity: 2.4 m³/min

• Tank Capacity: 500L

• Overall Size: 70.9 in × 28.0 in × 67.3 in (1800 × 711 × 1710 mm)

• Weight: 968 lb (439 kg)

What’s Included

• PM VSD Screw Air Compressor Unit

• Integrated Refrigerated Air Dryer

• Air Storage Tank (380L or 500L depending on model)

• 3-Stage CTA Precision Filtration System

• English Digital Controller

• Controller Manual

Ideal Applications

• Machine & fabrication shops

• Automotive repair & tire centers

• CNC machinery

• Sandblasting operations

• Industrial manufacturing

• Woodworking shops

• Any continuous-duty compressed air environment
