🛠️ BX131X164 Biaxial Geogrid
📦 Price: Compare at $1,295.00 — Now Only $599.95 Each
Roll Size: 13.1 ft × 164 ft (2,148 sq ft)
SKU: BX131X164

✅ Product Overview

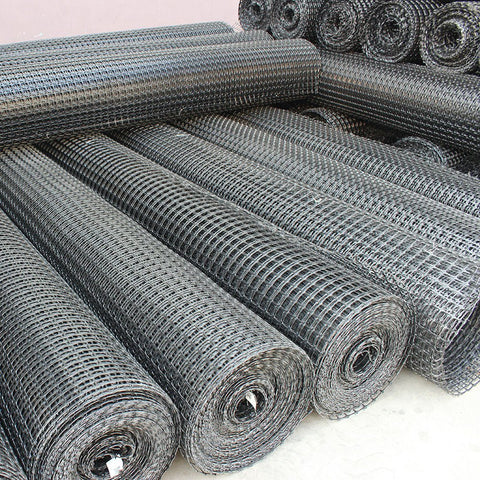

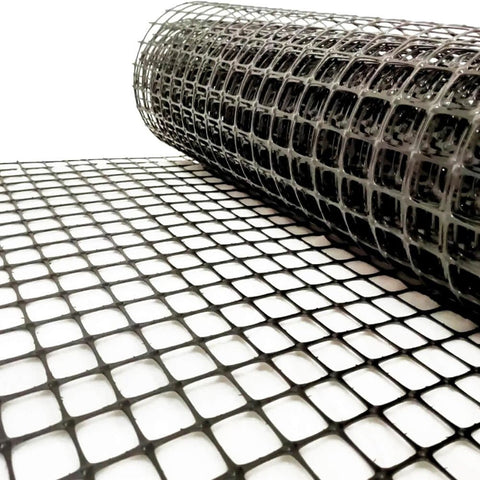

The BX131X164 Biaxial Geogrid is a high-strength, integrally formed geogrid engineered for base stabilization and soil reinforcement in civil construction applications. Manufactured from durable polypropylene and processed through a precision extruding, punching, and drawing method, this geogrid provides reliable performance across a wide range of site conditions.

This product is ideal for roads, parking lots, load platforms, working pads, and under foundations, where controlling rutting and increasing load-bearing capacity are essential.

📐 Key Specifications
Roll Dimensions: 13.1 ft wide × 164 ft long
Coverage Per Roll: 2,148 sq ft
Material: Polypropylene
Aperture Size: 1.10" (MD) × 1.49" (XMD)
Rib Thickness: 0.05"
Ultimate Tensile Strength:
Machine Direction: 1,310 lb/ft
Cross-Machine Direction: 1,970 lb/ft
Tensile Strength at 5% Strain:
MD: 810 lb/ft
XMD: 1,340 lb/ft
UV Resistance: 100%
Resistance to Long-Term Degradation: 100%
Junction Efficiency: High load-transfer capacity for structural integrity
Reinforced With: ASTM-tested for performance under SC, SW, and GP base soils

🔧 Applications

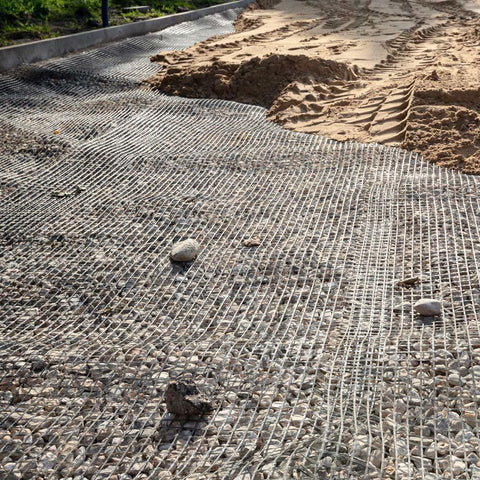

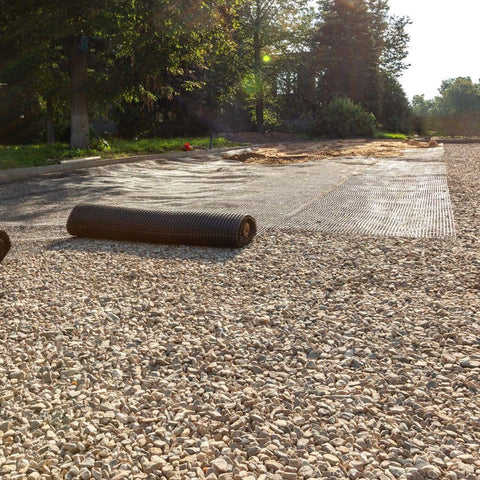

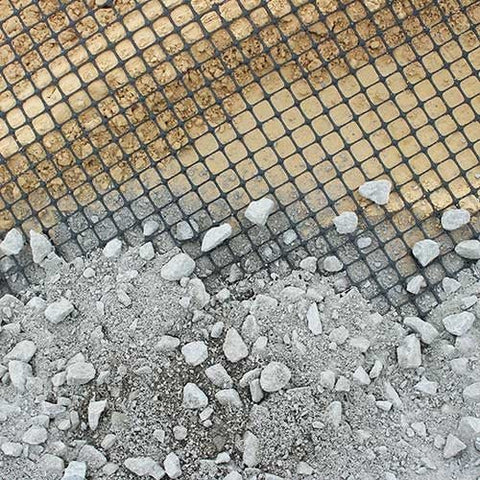

Road base stabilization
Retaining wall support
Foundation reinforcement
Embankment stabilization
Gravel driveways, trails, and access roads

🛠️ BX131X246 Biaxial Geogrid
📦 Price: Compare at $1,295.00 — Now Only $599.95 Each
Roll Size: 13.1 ft × 246 ft (3,227 sq ft)
SKU: BX131X246

✅ Product Overview
The BX131X246 Biaxial Geogrid offers the same strength and structure as the BX131X164 but in a longer 246-foot roll for maximum coverage and cost-efficiency. Engineered with a proprietary manufacturing process, this geogrid optimizes both longitudinal and transverse tensile strength, providing superior performance under heavy traffic or load-bearing conditions.

Whether for road construction, parking structures, or erosion control, this geogrid offers exceptional structural reinforcement, flexibility, and easy installation, saving time and labor on site.

📐 Key Specifications
Roll Dimensions: 13.1 ft wide × 246 ft long
Coverage Per Roll: 3,227 sq ft
Material: Polypropylene
Aperture Size: 1.06" (MD) × 1.45" (XMD)
Rib Thickness: 0.03"
Ultimate Tensile Strength:
MD: 850 lb/ft
XMD: 1,300 lb/ft
Tensile Strength at 5% Strain:
MD: 580 lb/ft
XMD: 920 lb/ft
UV Resistance: 100%
Resistance to Long-Term Degradation: 100%
Junction Efficiency: High structural load transfer
ASTM Certified Performance for multiple soil types

🔧 Applications
Large-scale roadbed reinforcement
Soft soil subgrade stabilization
Railways, trails, and logistic yard installations
Landfill and slope erosion control
Agricultural and oilfield pad sites

💡 Why Choose BX-Series Geogrids?
✔ Proven tensile performance in all directions
✔ Lightweight and easy to install
✔ Reduces aggregate requirements and installation costs
✔ Long service life with UV and chemical resistance
✔ Optimized for superior junction strength and stability
