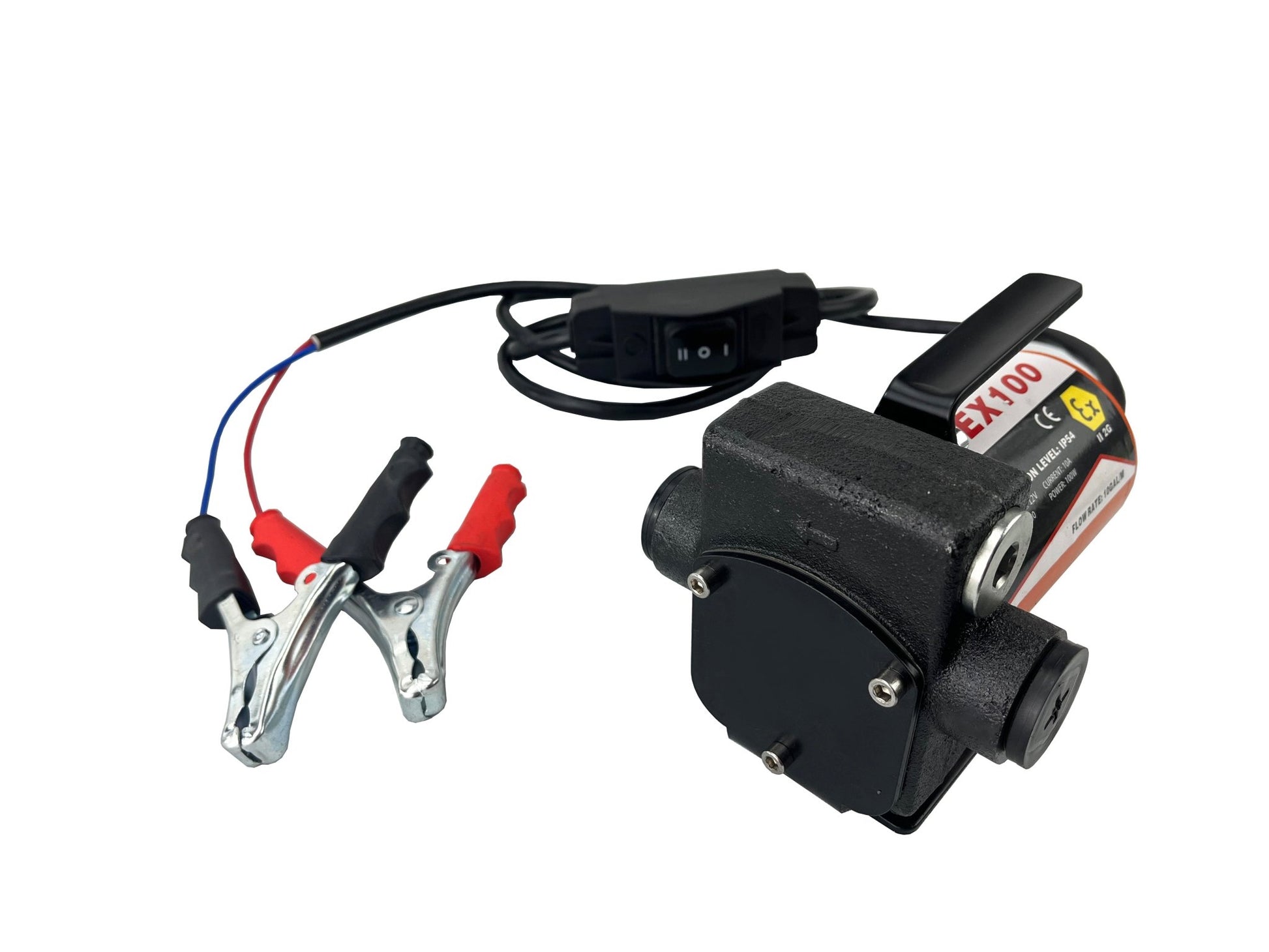

12V Gasoline & Diesel Fuel Transfer Pump 10 GPM – DCEX100

The DCEX100 12-volt fuel transfer pump delivers reliable, high-efficiency performance for gasoline and diesel refueling. With a robust 100 W motor spinning at 3,200 RPM, it pumps up to 30 L/min (10 GPM) through heavy-duty hoses, making it ideal for service trucks, farm equipment, portable tanks, and emergency backup.

Key Features

• Voltage: 12 V DC

• Rated Power: 2/15 HP (100 W)

• Current Draw: 10 A

• Motor Speed: 3,200 RPM

• Flow Rate: Up to 30 L/min (10 GPM)

• Inlet Hose: 1″ × 2 m

• Outlet Hose: 3/4″ × 4 m

• Port Fittings: 3/4″ NPT inlet & outlet

• Nozzle: 3/4″ manual shut-off nozzle

• Compatible Fuels: Gasoline, Diesel, Kerosene

Ideal Applications

• Service vehicles and fleet refueling

• Agricultural machinery (tractors, pumps)

• Construction equipment

• Remote or mobile fuel stations

• Emergency backup fuel transfer

What’s Included

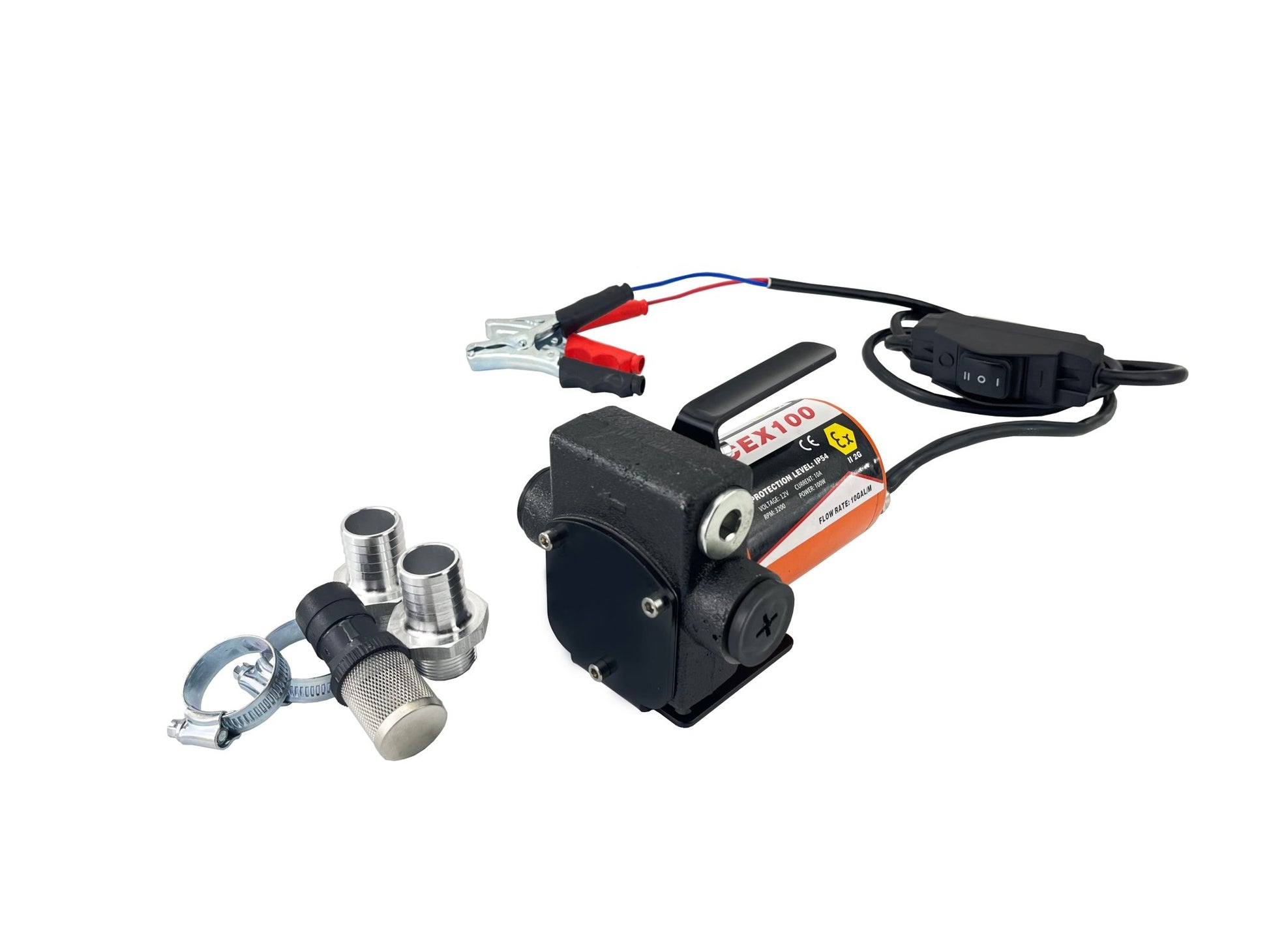

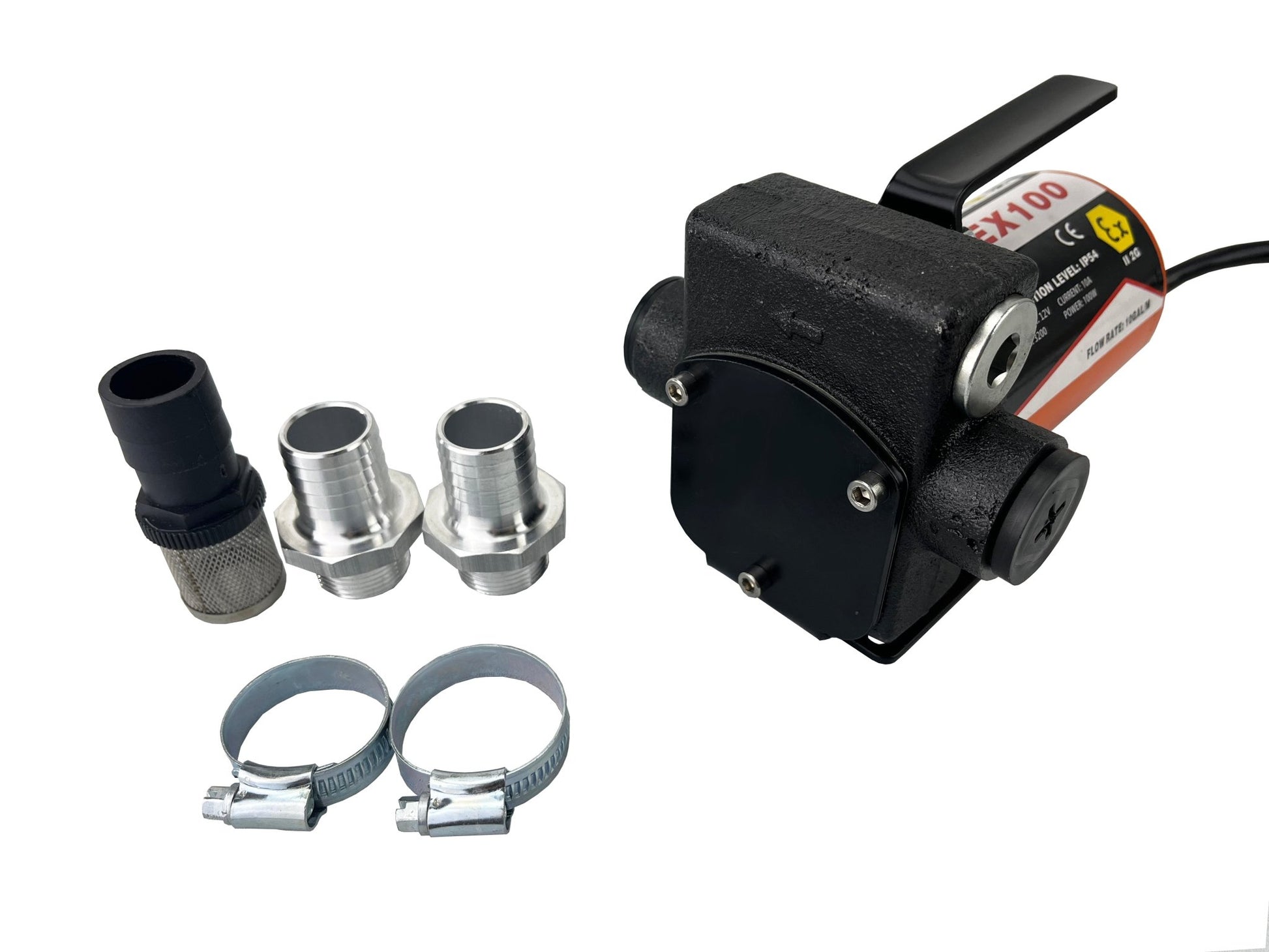

• DCEX100 pump unit with mounting bracket

• 1″ × 2 m suction hose with filter

• 3/4″ × 4 m discharge hose

• 3/4″ manual fuel nozzle

Installation hardware & user manual
