12V RV Fresh Water Pump 6.5 GPM 70 PSI – Self-Priming Diaphragm Water Pump with Pressure Switch & Strainer

Product Description

Upgrade your RV or marine water system with the Kitvance 12V DC Fresh Water Pump, designed to deliver reliable water flow and consistent pressure for campers, travel trailers, motorhomes, boats, and caravans.

Featuring a powerful 6.5 GPM flow rate and a 70 PSI pressure switch, this self-priming diaphragm pump provides efficient on-demand water delivery. Its automatic pressure switch starts the pump when water is needed and stops it when the system reaches the preset pressure, eliminating the need for constant manual operation.

The durable 4-chamber diaphragm design and NSK double ball bearings help minimize noise and vibration while maintaining smooth performance. With a self-priming height of up to 10 feet and horizontal pumping capability up to 155 feet, this pump is suitable for a variety of water transfer applications.

The pump features 3/4-inch MNPT threaded connections and includes two 1/2-inch barbed hose adapters and a strainer for convenient installation.

Ideal for RV freshwater systems, marine applications, campers, caravans, yachts, and compatible off-grid water systems.

Key Features

• High-Flow Performance: Delivers up to 6.5 gallons per minute for efficient water transfer

• 70 PSI Pressure Switch: Provides automatic pressure-controlled water delivery

• 12V DC Operation: Designed for compatible RV, marine, and battery-powered systems

• Self-Priming Design: Supports suction lift up to 10 feet

• Automatic Start & Stop: Activates when water is required and shuts off when pressure is restored

• 4-Chamber Diaphragm: Designed for smooth, consistent water flow

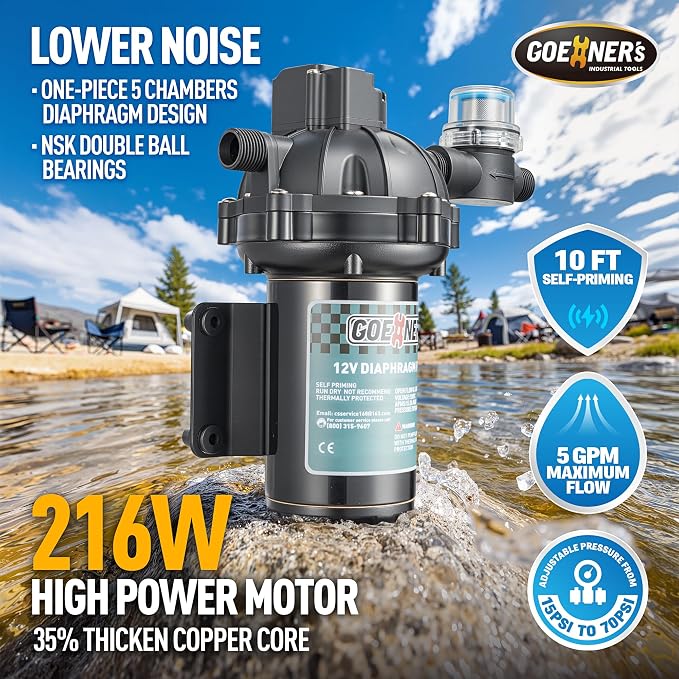

• Low-Noise Operation: NSK double ball bearings help reduce noise and vibration

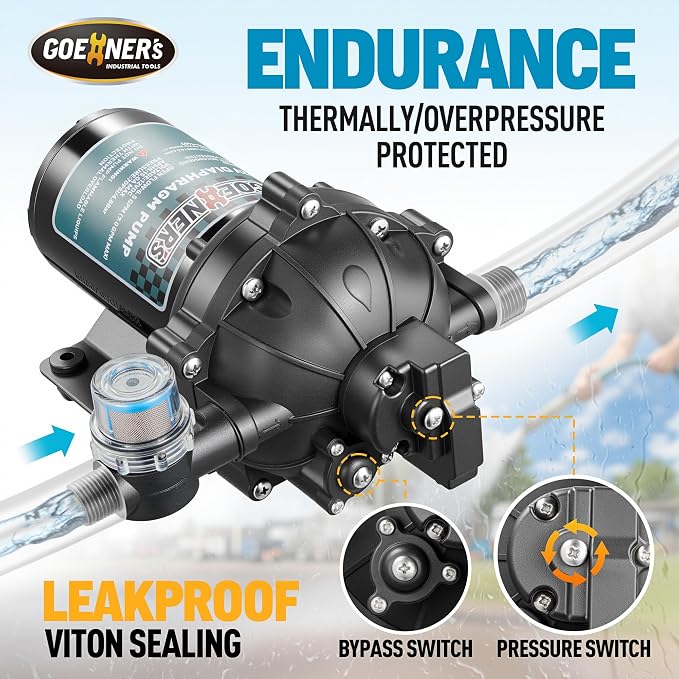

• Built-In Pressure Protection: Automatic pressure switch helps regulate pump operation

• Extended Pumping Capability: Manufacturer-stated horizontal pumping distance up to 155 feet

• Included Strainer: Helps prevent debris from entering the pump

• Hose Adapters Included: Two 1/2-inch barbed adapters for compatible plumbing connections

• Versatile Applications: Suitable for RVs, boats, campers, caravans, and water transfer systems

Specifications

• Brand: Kitvance

• Product Type: RV Fresh Water Diaphragm Pump

• Power Source: 12V DC

• Pump Type: Self-Priming Diaphragm

• Maximum Flow Rate: 6.5 GPM (Approx. 24.6 L/min)

• Pressure Switch Setting: 70 PSI

• Maximum Current: 15A

• Diaphragm Design: 4-Chamber

• Self-Priming Height: Up to 10 Feet

• Horizontal Pumping Distance: Up to 155 Feet

• Thread Size: 3/4-Inch MNPT

• Included Hose Adapters: 2 x 1/2-Inch Barbed Adapters

• Strainer: Included

• Motor Bearings: NSK Double Ball Bearings

• Automatic Pressure Switch: Yes

• Automatic Start/Stop: Yes

• Recommended Applications: RV, Camper, Caravan, Boat, Yacht, Marine Water Systems

• Quantity: 1 Pump

• Condition: New
