2,500 lb Electric Winch w/ Remote – Compact ATV/UTV Pulling Power 121EW

Compact, powerful, and easy to mount—this 2,500 lb electric winch delivers reliable pulling for ATVs, UTVs, trailers, and utility applications. Includes a handheld remote for safe, convenient operation.

Key Features

• Rated Line Pull: 2,500 lbs (1,133 kg), single line

• Remote Control: Handheld remote included for safe distance operation

• High-Torque Motor: 0.9 kW / 1.2 hp permanent-magnet motor

• Strong & Smooth: Differential planetary gear train, 150:1 reduction

• Auto Hold: Automatic in-the-drum brake helps secure the load on incline

• Durable Cable: Ø4.8 mm × 10.5 m steel cable (approx. 3/16" × 34.4 ft)

• Compact Footprint: Easy fit on bumpers, racks, and small trailers

Specifications

• Model / SKU: 121EW (EW2500)

• Rated Line Pull: 2,500 lbs (1,133 kg), single line

• Motor: Permanent magnet, 0.9 kW / 1.2 hp

• Gear Reduction Ratio: 150:1

• Gear Train: Differential planetary

• Cable (Dia × Length): Ø4.8 mm × 10.5 m

• Drum Size (Dia × L): Ø31.5 mm × 72 mm (Ø1.24" × 2.8")

• Brake: Automatic in-the-drum

• Overall Dimensions (L × W × H): 299 × 100 × 105 mm (11.8" × 4" × 4.1")

• Mounting Bolt Pattern: 76 mm, Ø8.5 mm holes

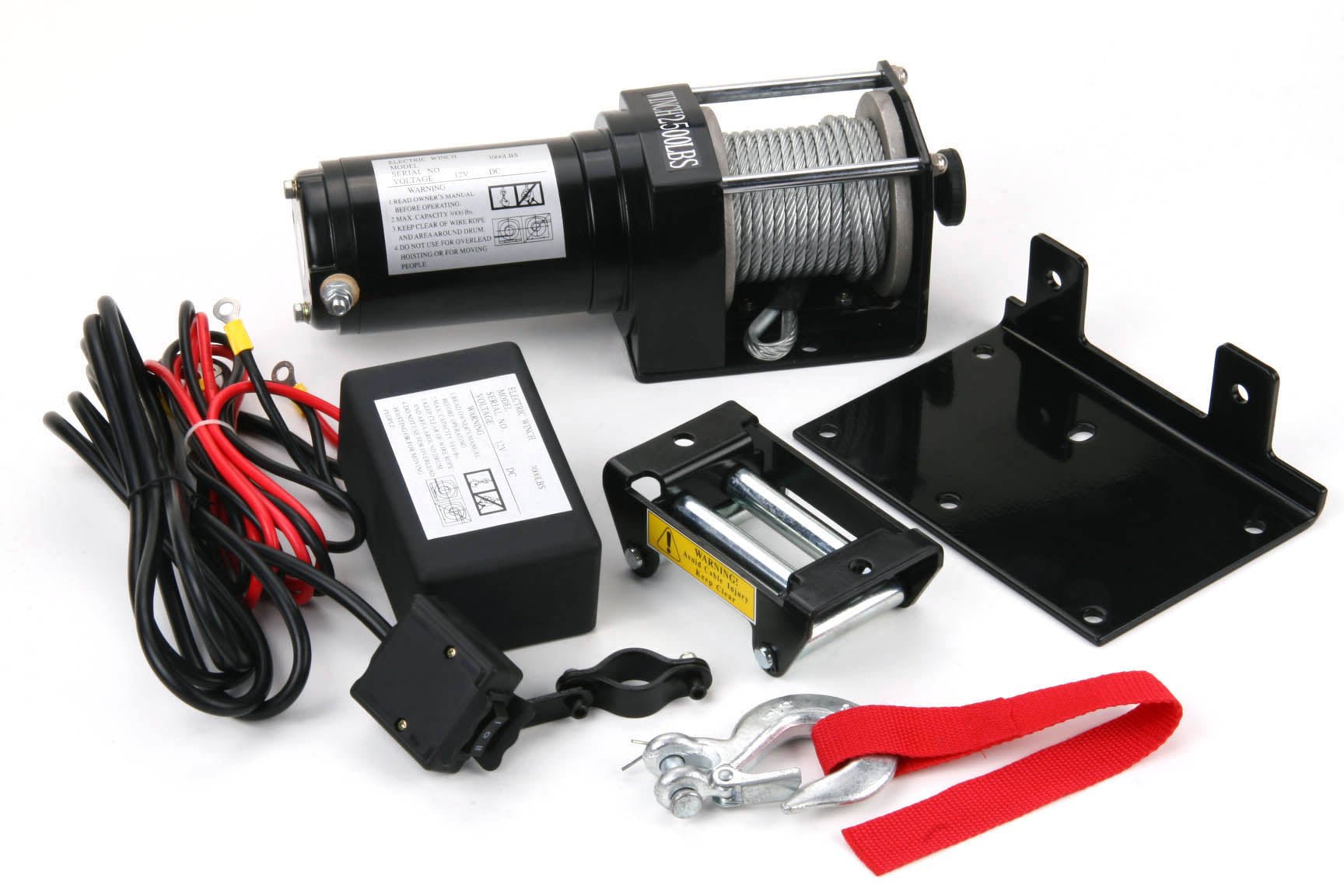

What’s Included

• 2,500 lb electric winch (pre-spooled cable)

• Handheld remote controller

• Hook & safety latch

• Mounting hardware (bolt pattern 76 mm, Ø8.5 mm)

Recommended Uses

• ATV/UTV recovery • Small equipment loading • Utility trailers • Property & farm tasks • Shop/garage pulls

• Fitment & Notes

• Ensure your mounting plate matches the 76 mm bolt pattern and supports the rated load.

• Use an appropriately rated battery/power supply and wiring.

• Always wear gloves and follow safe winching practices.
