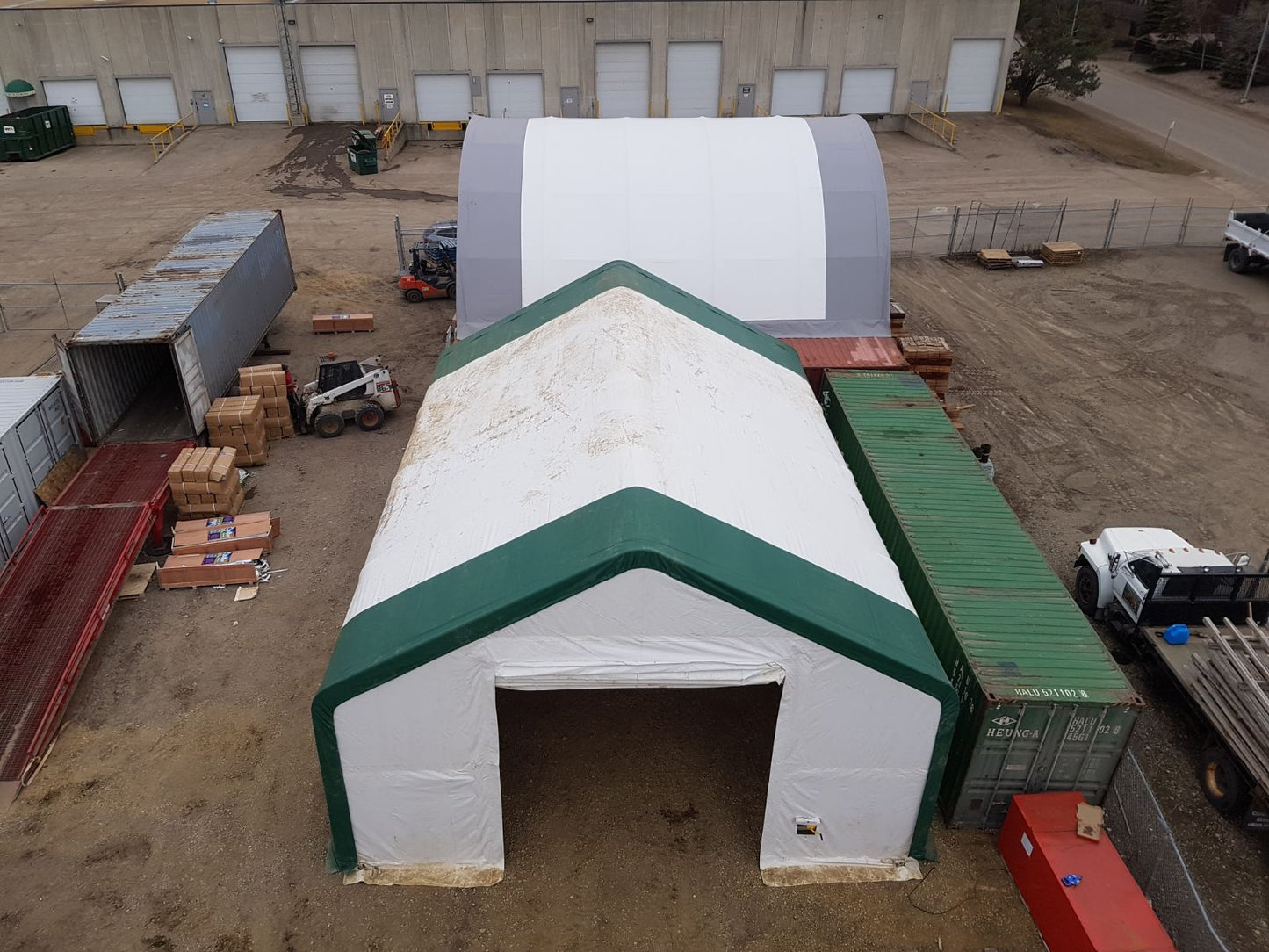

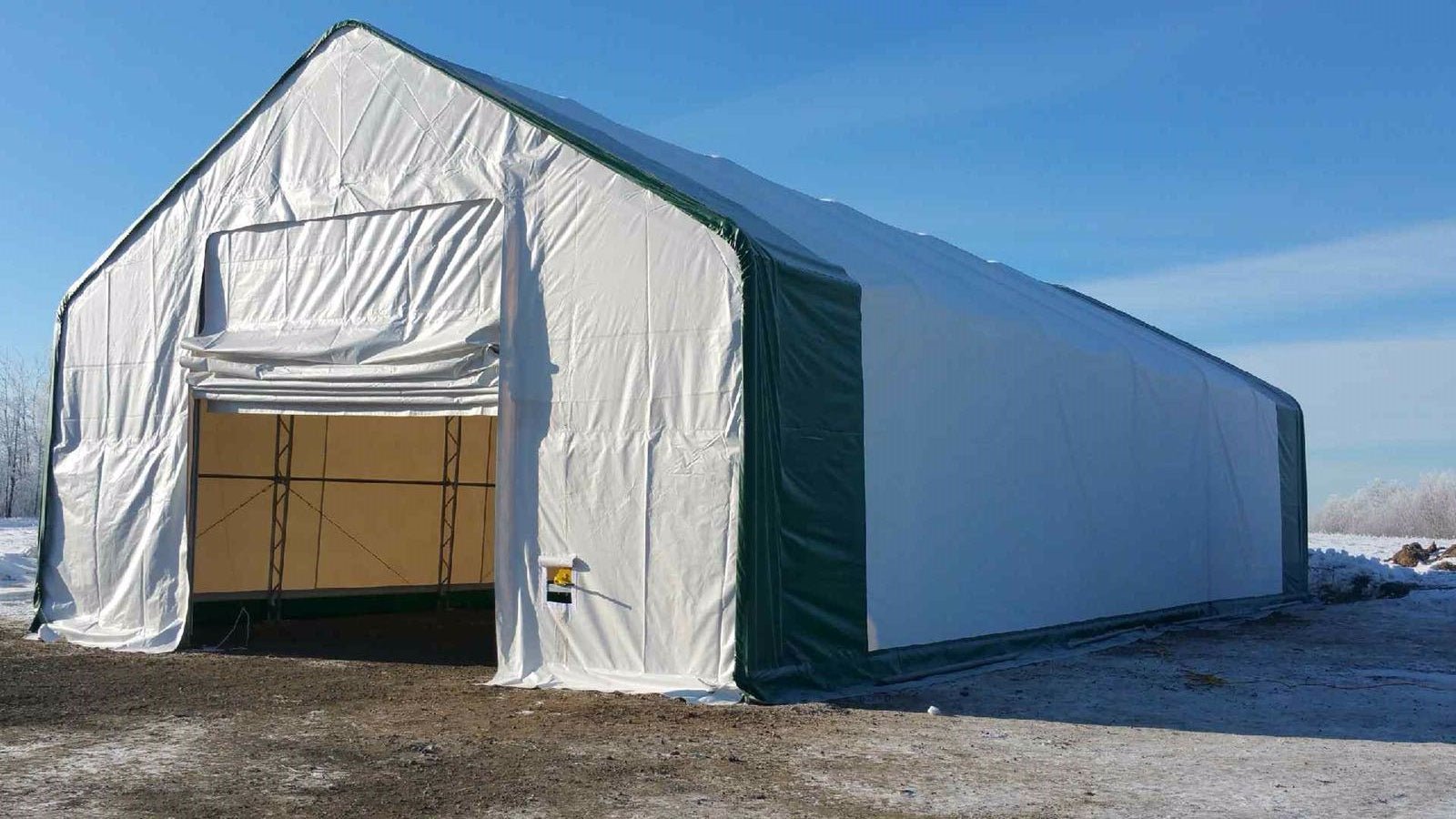

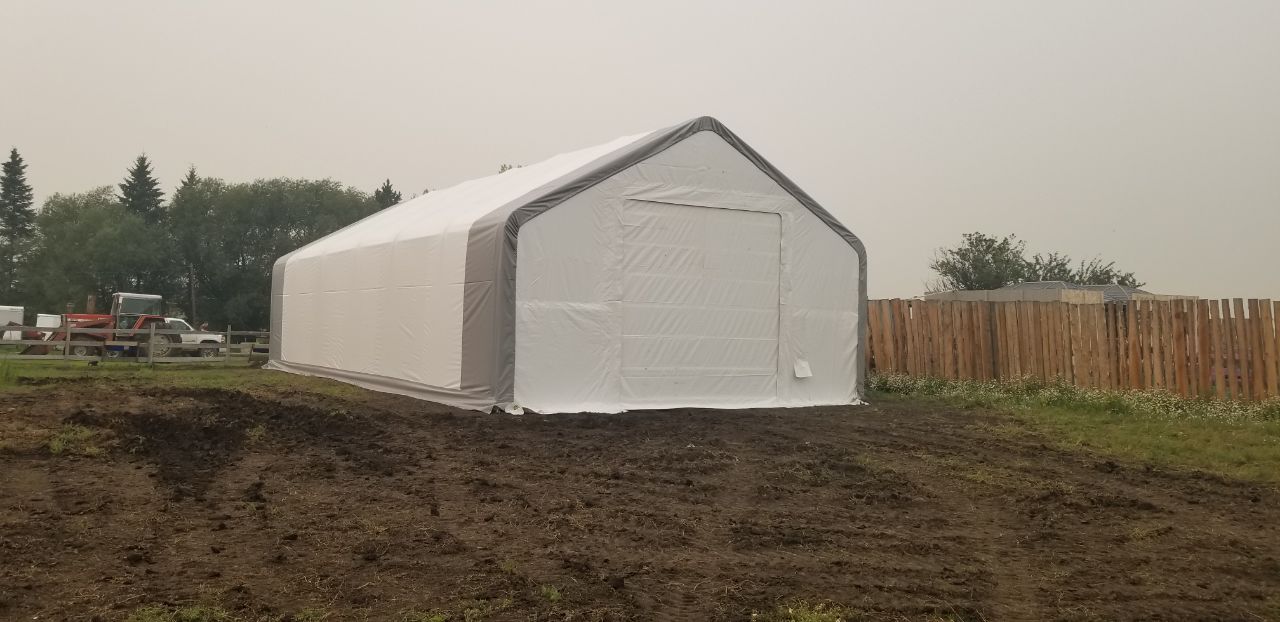

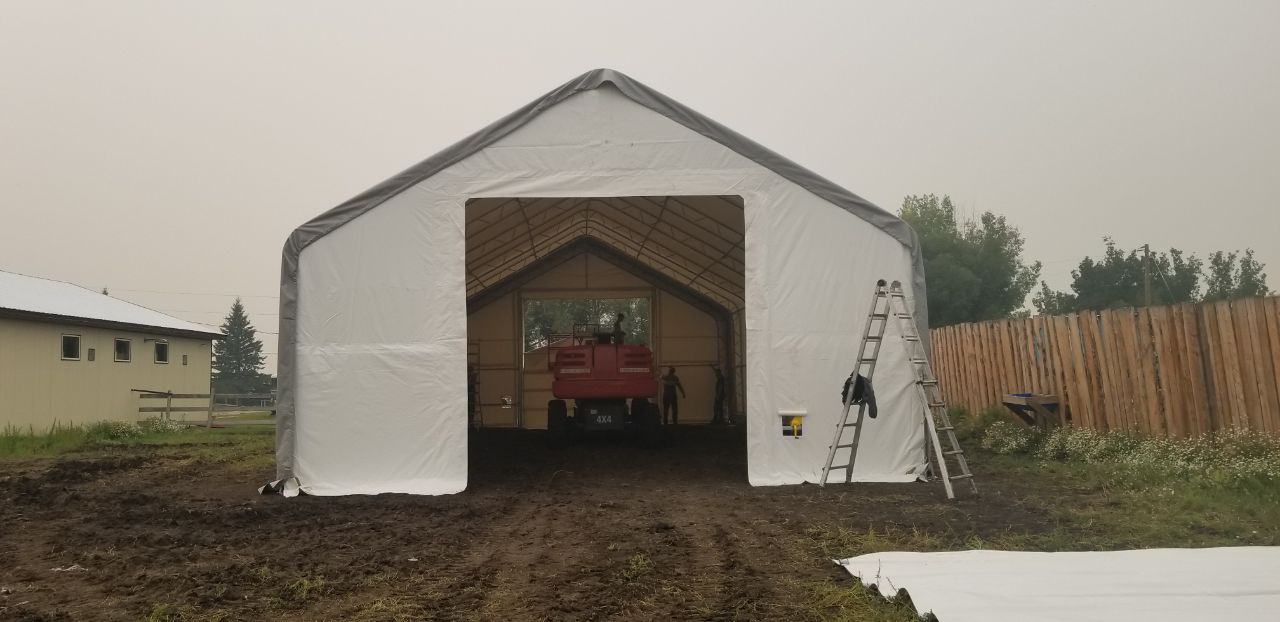

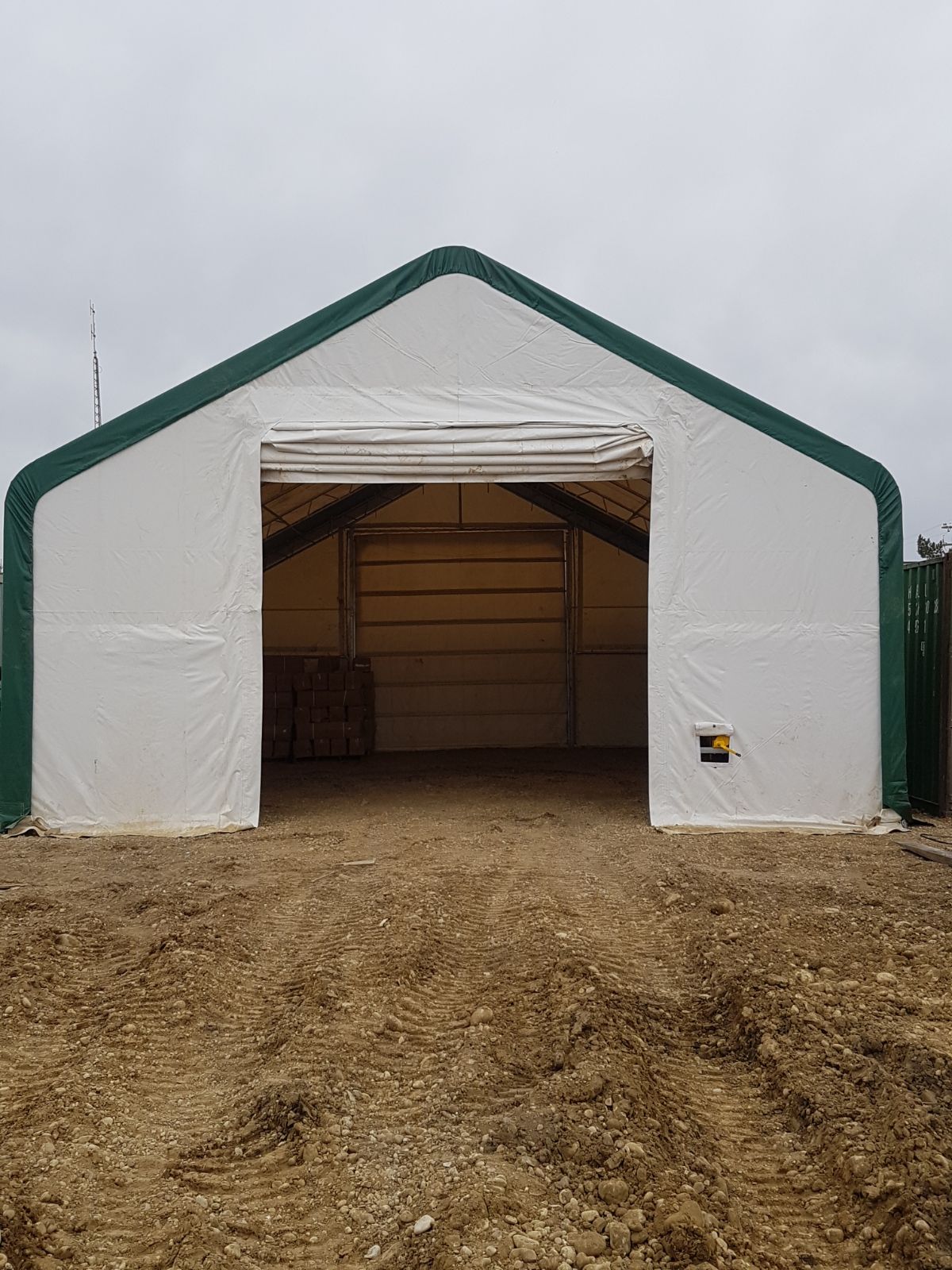

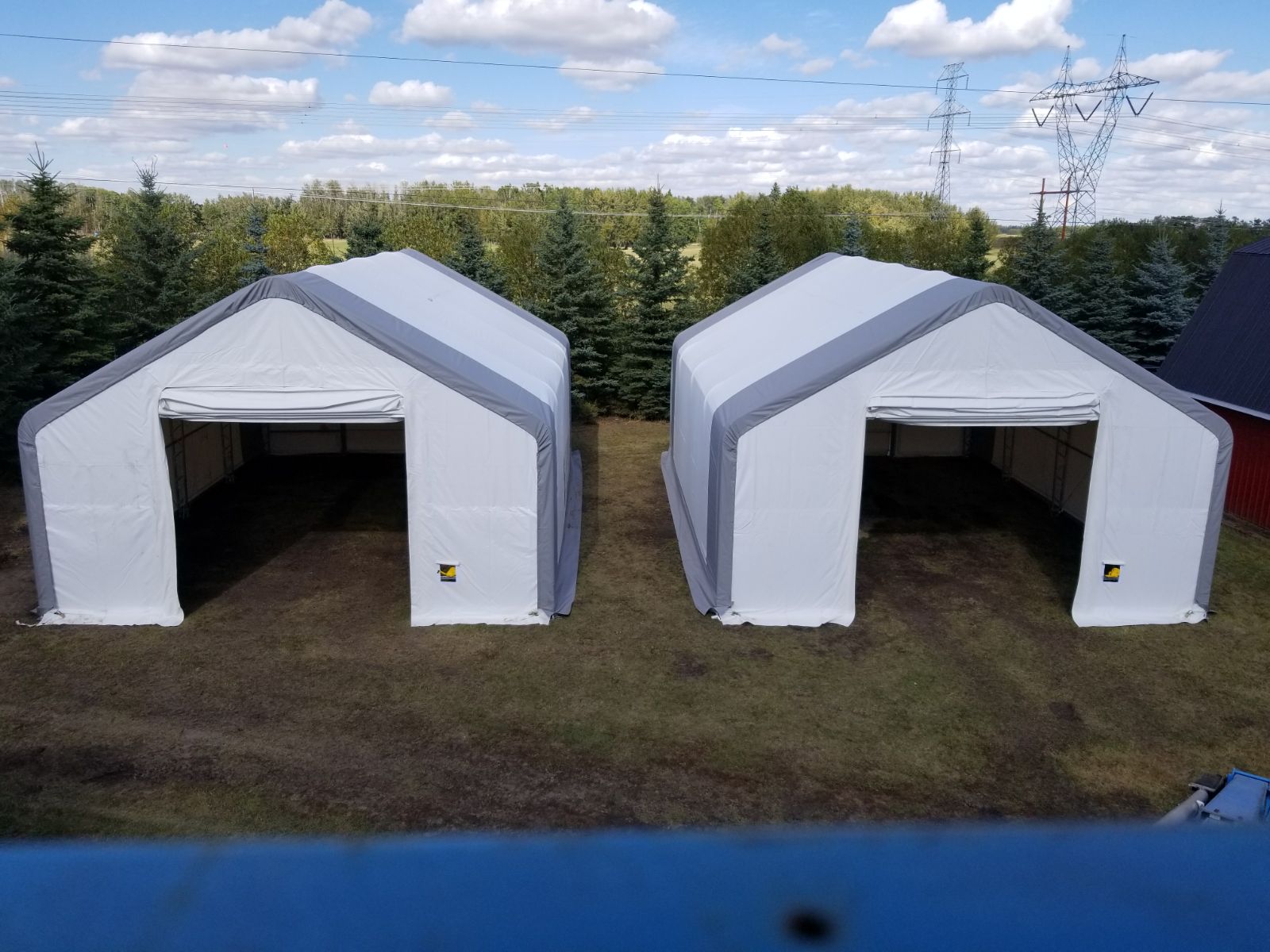

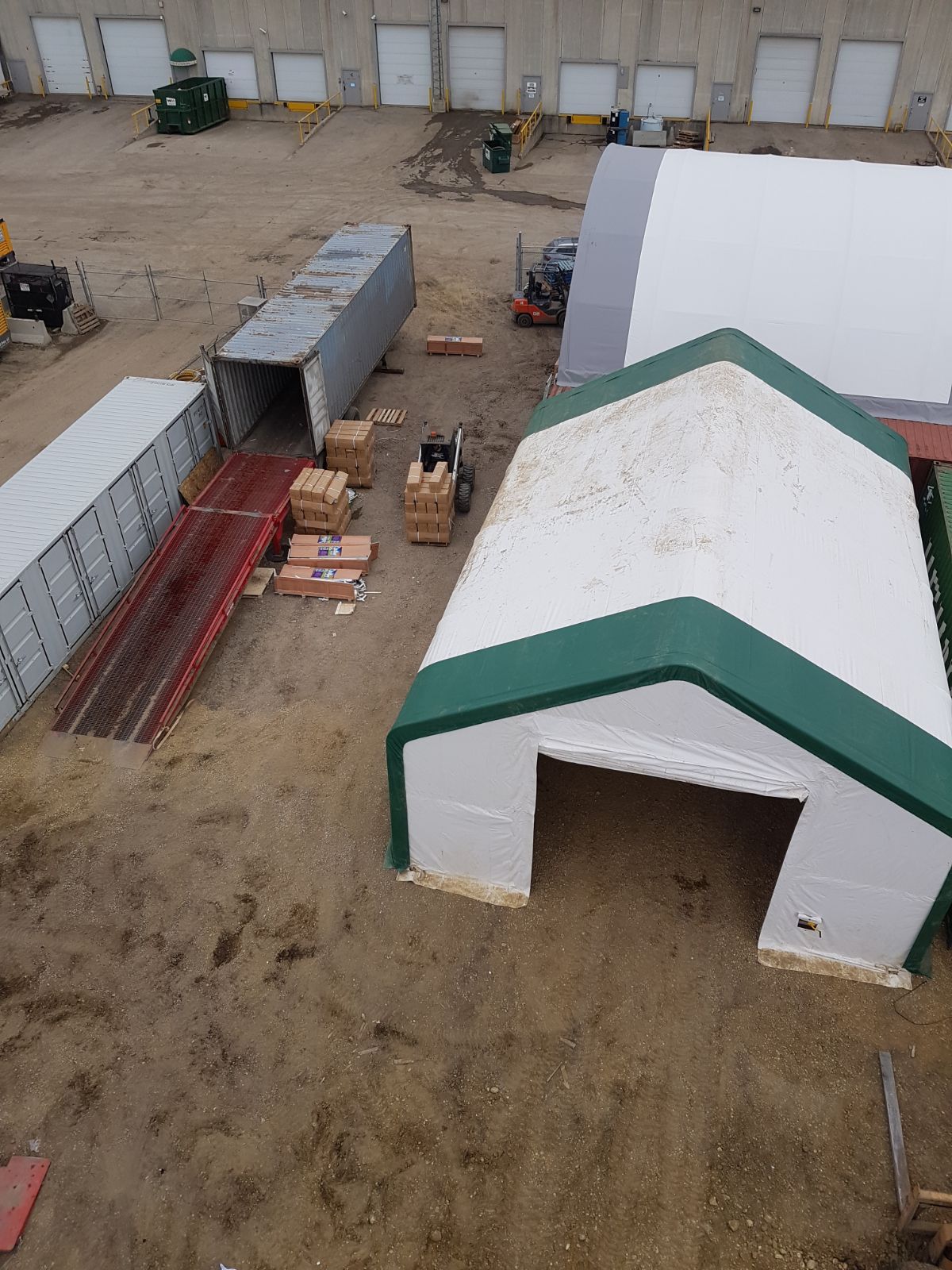

30 Ft Wide Double Truss Storage Building – Heavy-Duty Portable Shelter for Farm & Industrial Use
P304020P
Regular price
$7,995.00
Sale price
$7,995.00
Regular price
Unit price
per
Shipping calculated at checkout.
Store Stock Locator
Share it with friends and family.
Low stock
Professional 9.14 m (30') Wide Double Truss Industrial Storage Building – Extreme-Duty PVC Shelter
Reinforced Structural Engineering for High-Volume Logistics, Heavy Equipment, and All-Season Agricultural Use
OVERVIEW

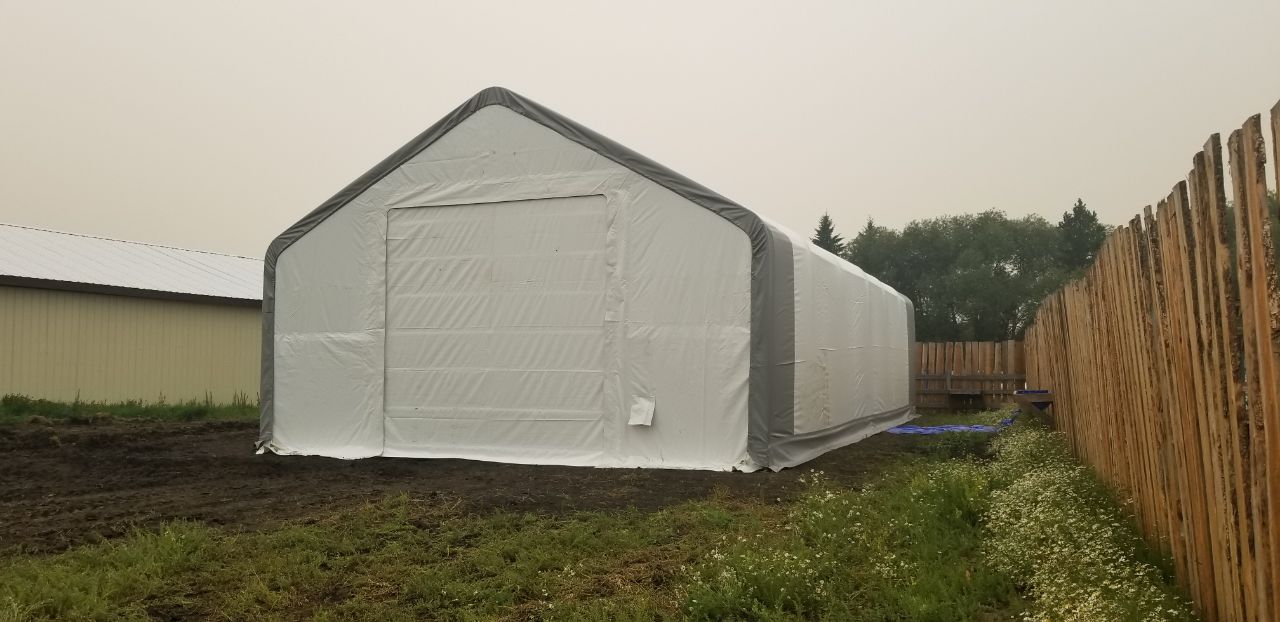

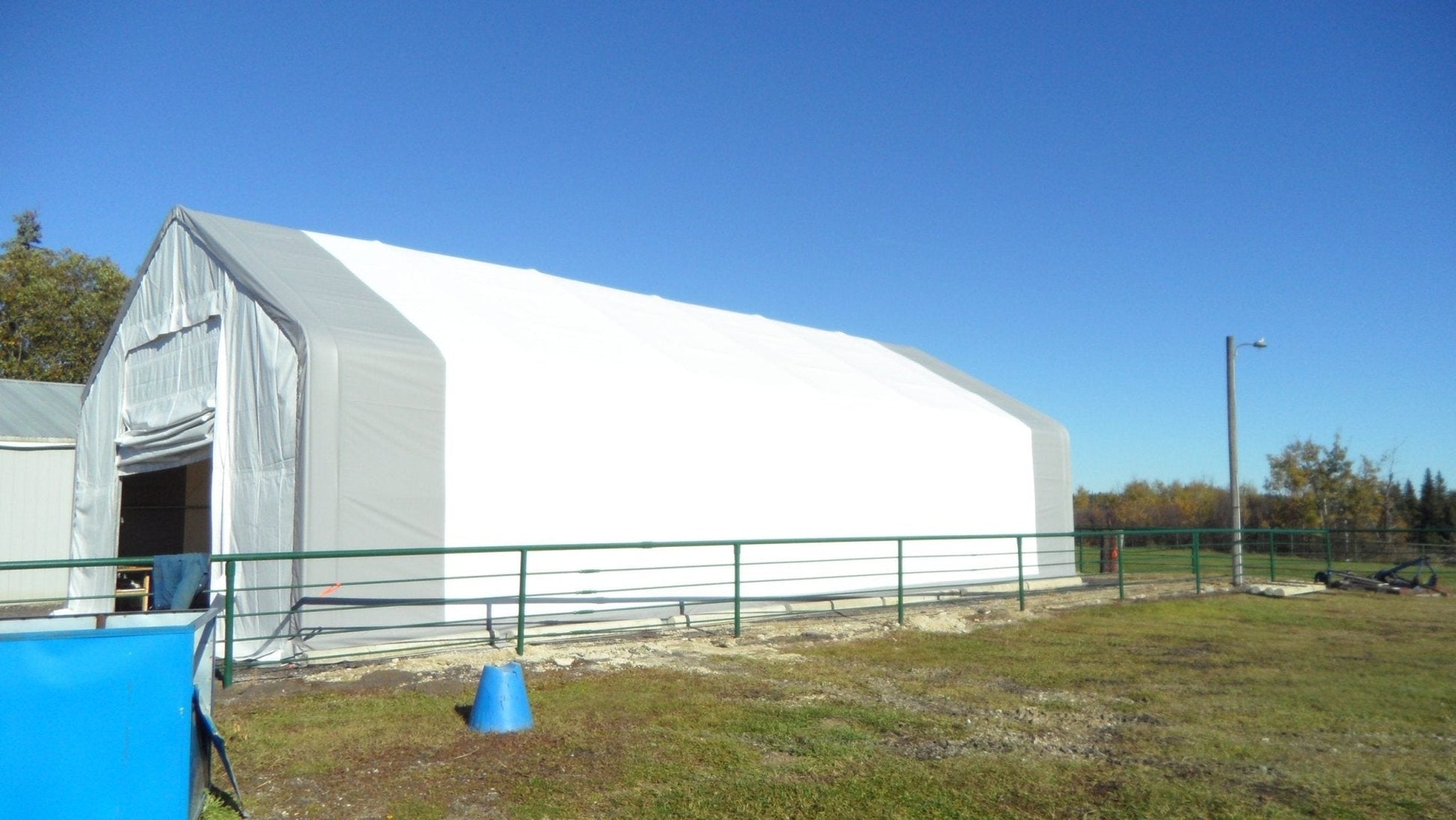

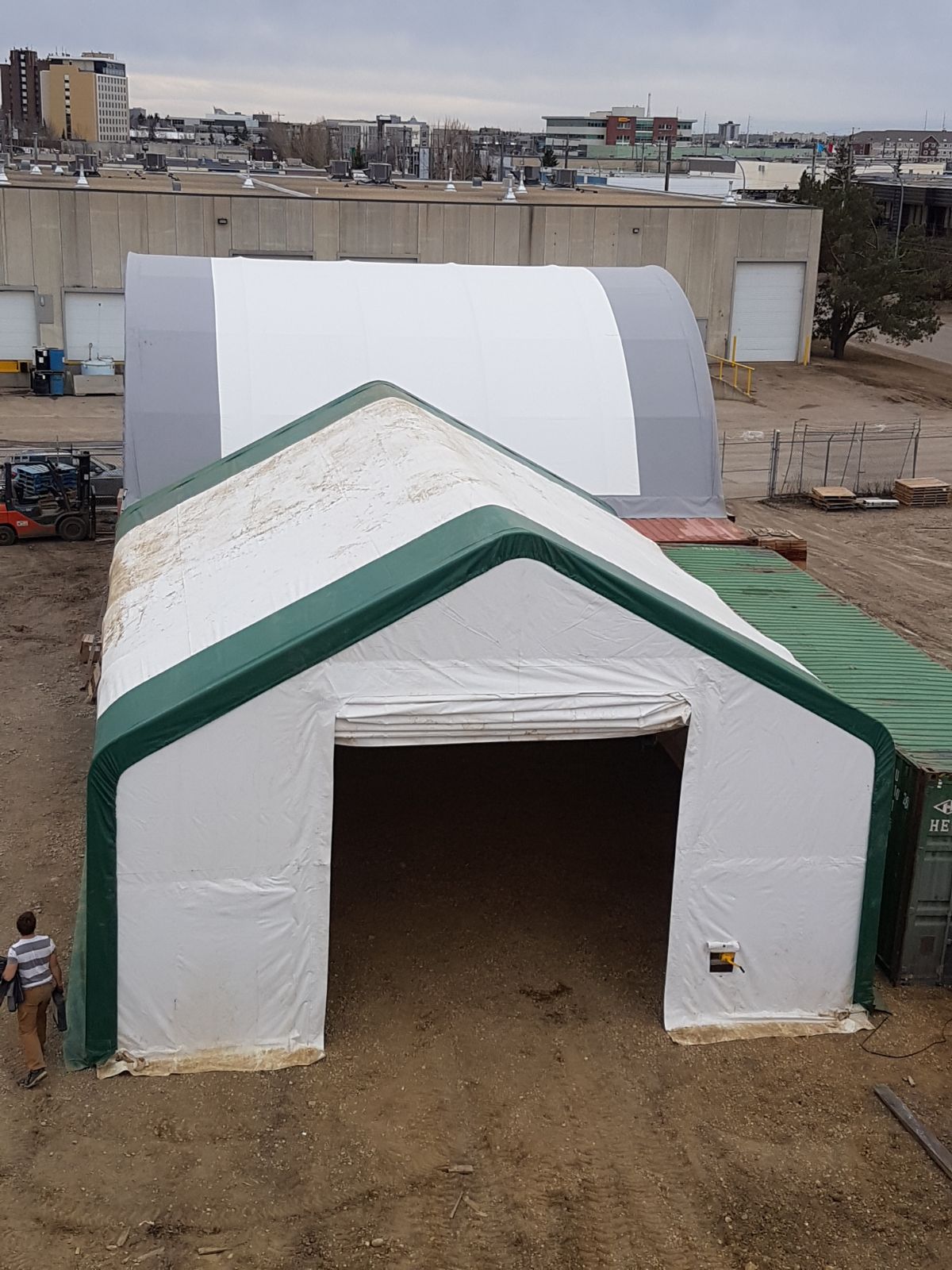

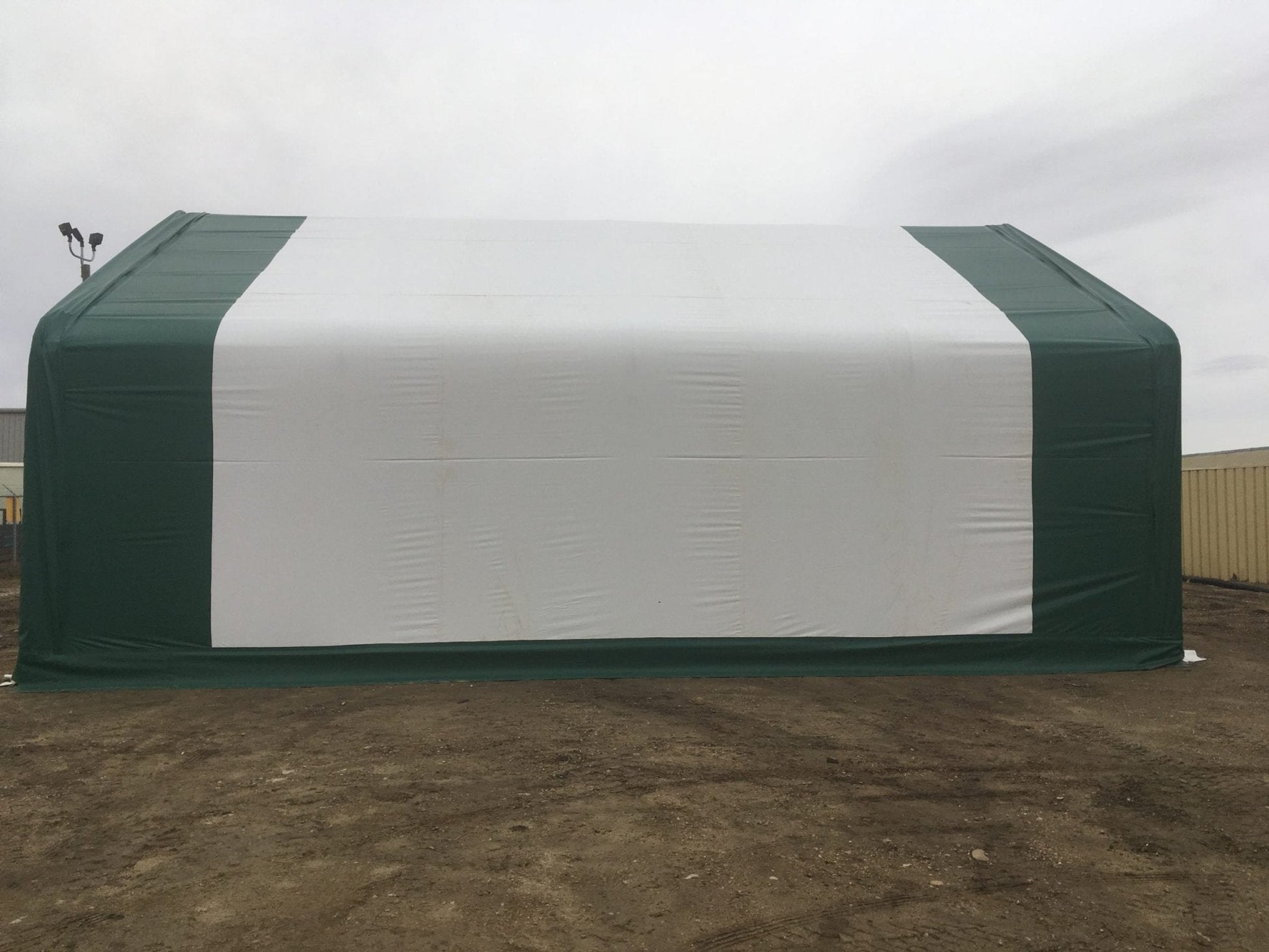

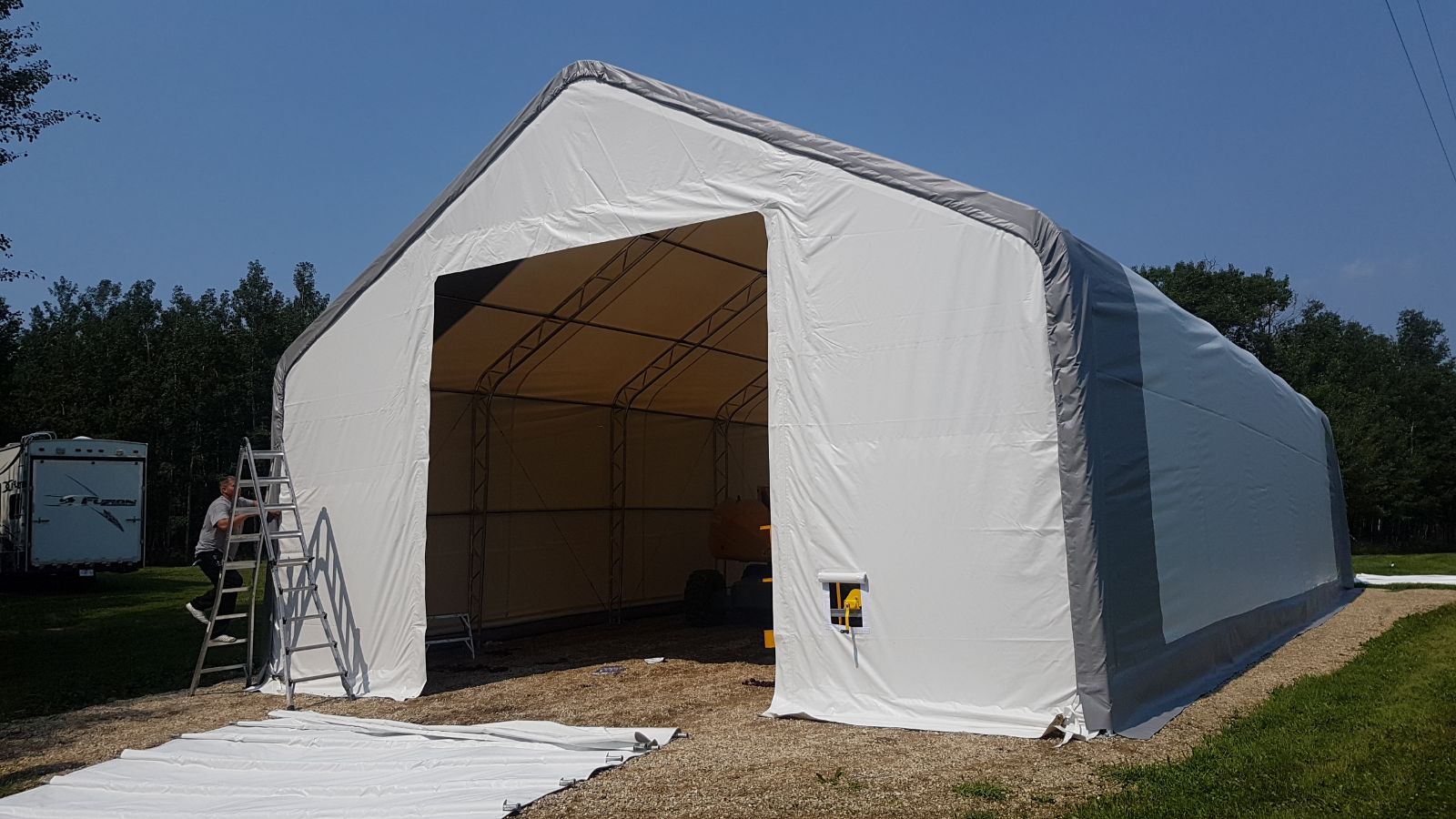

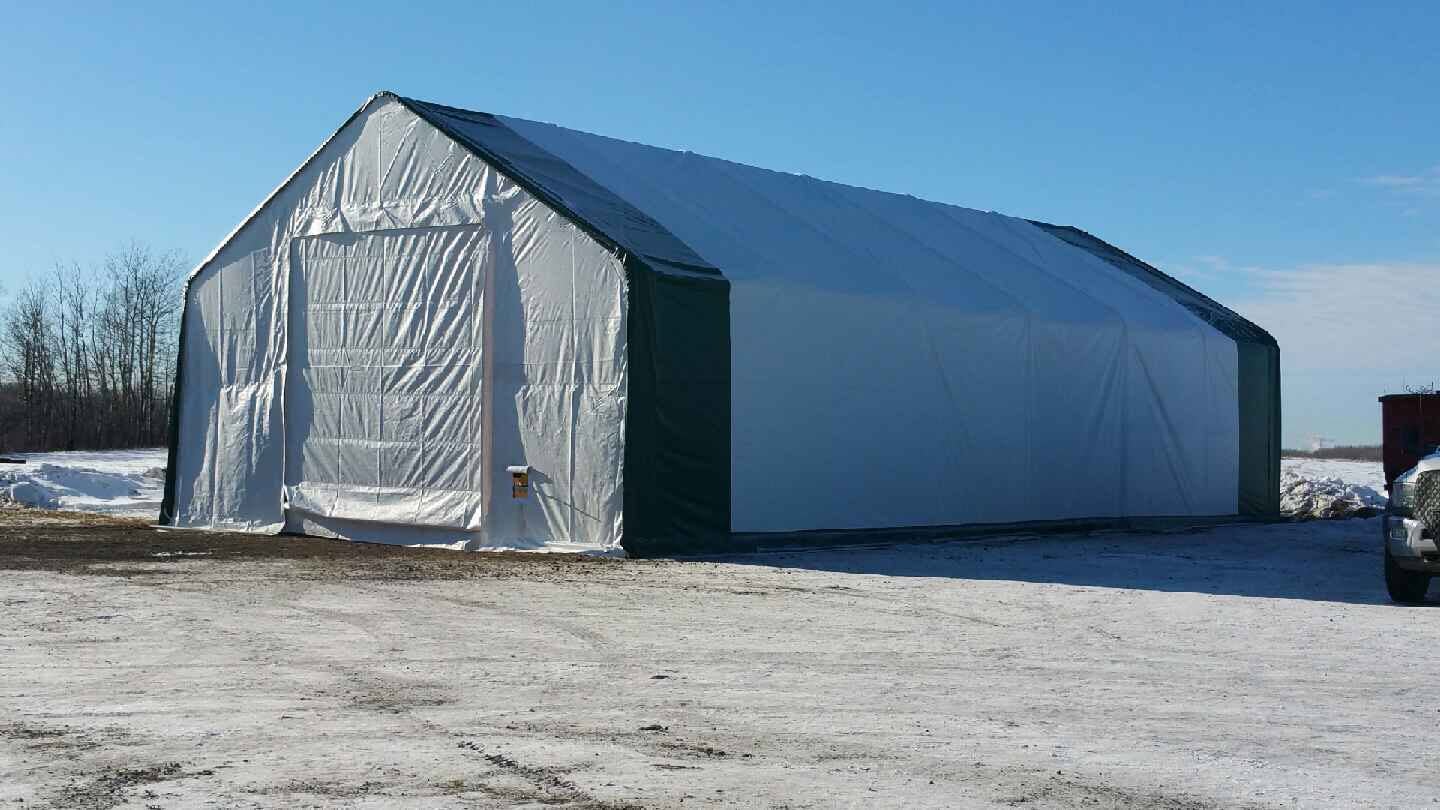

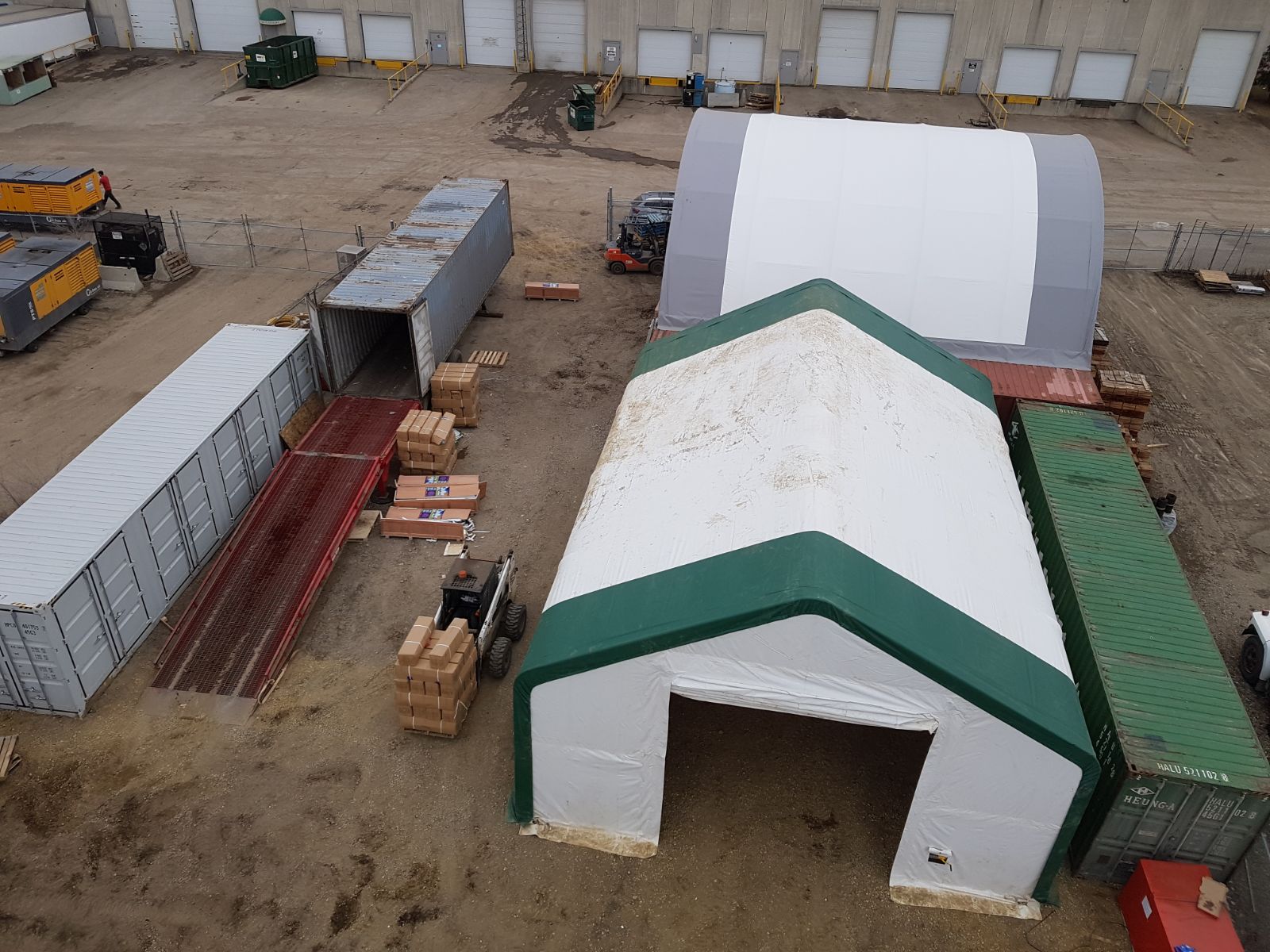

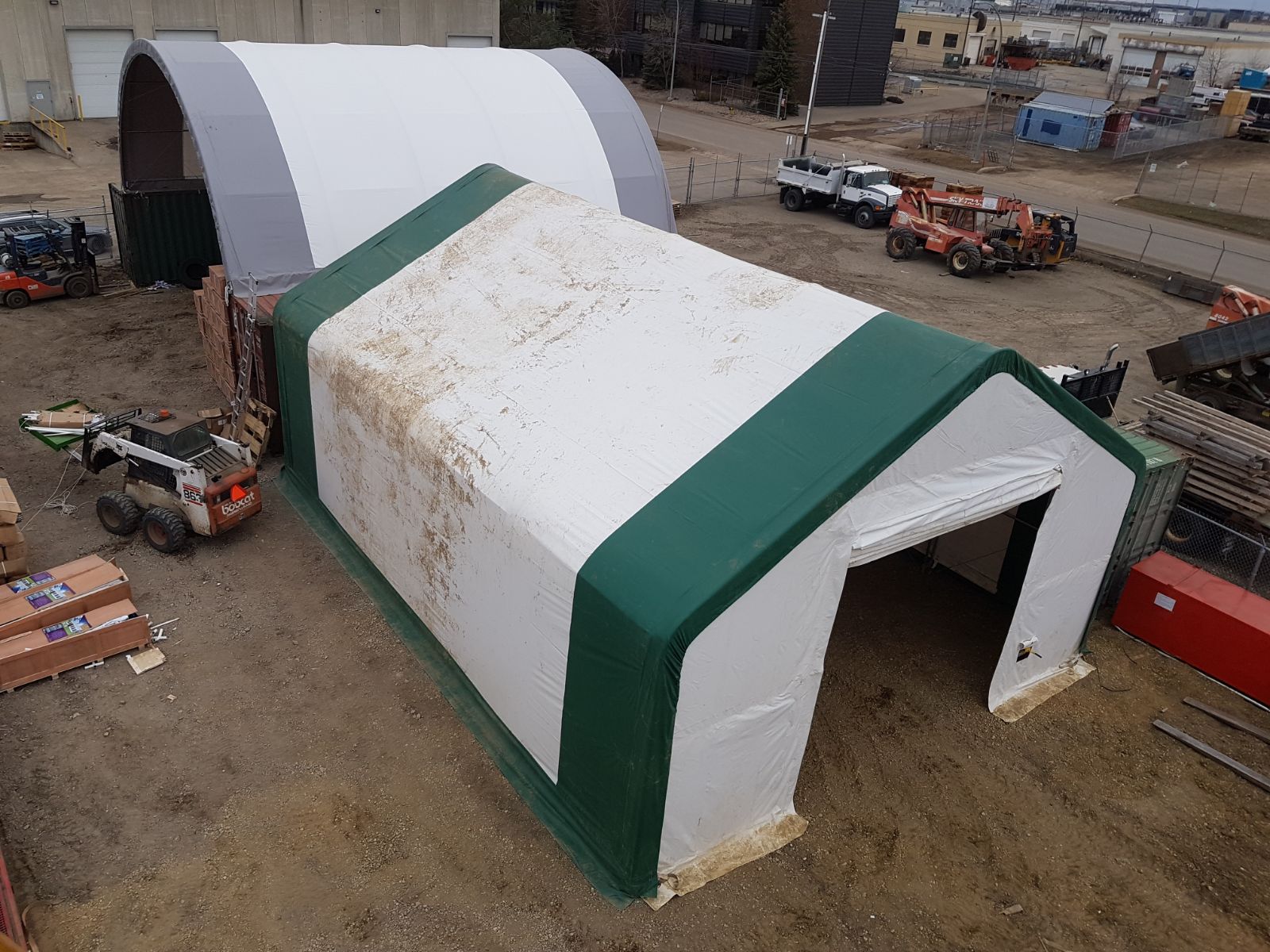

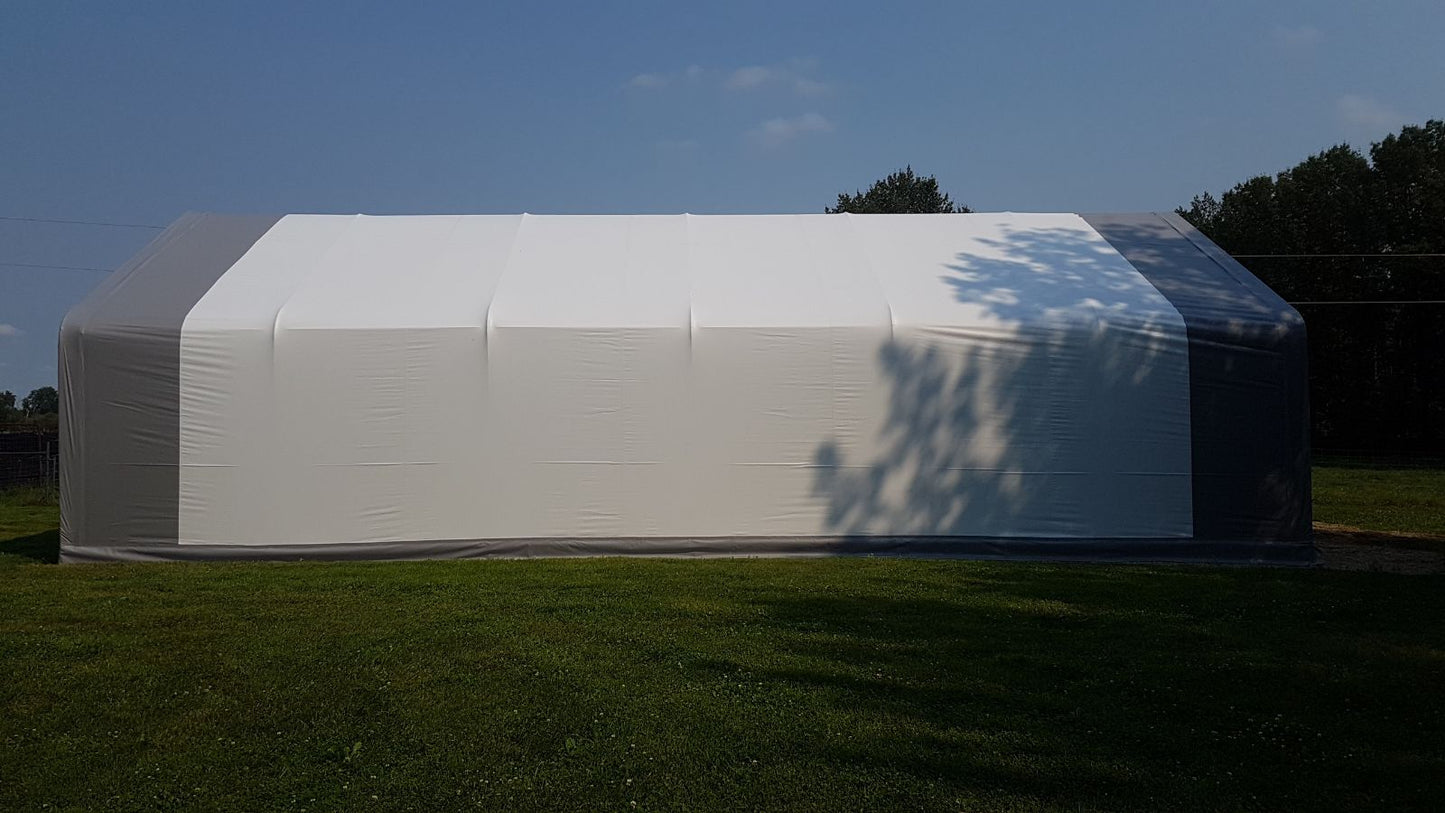

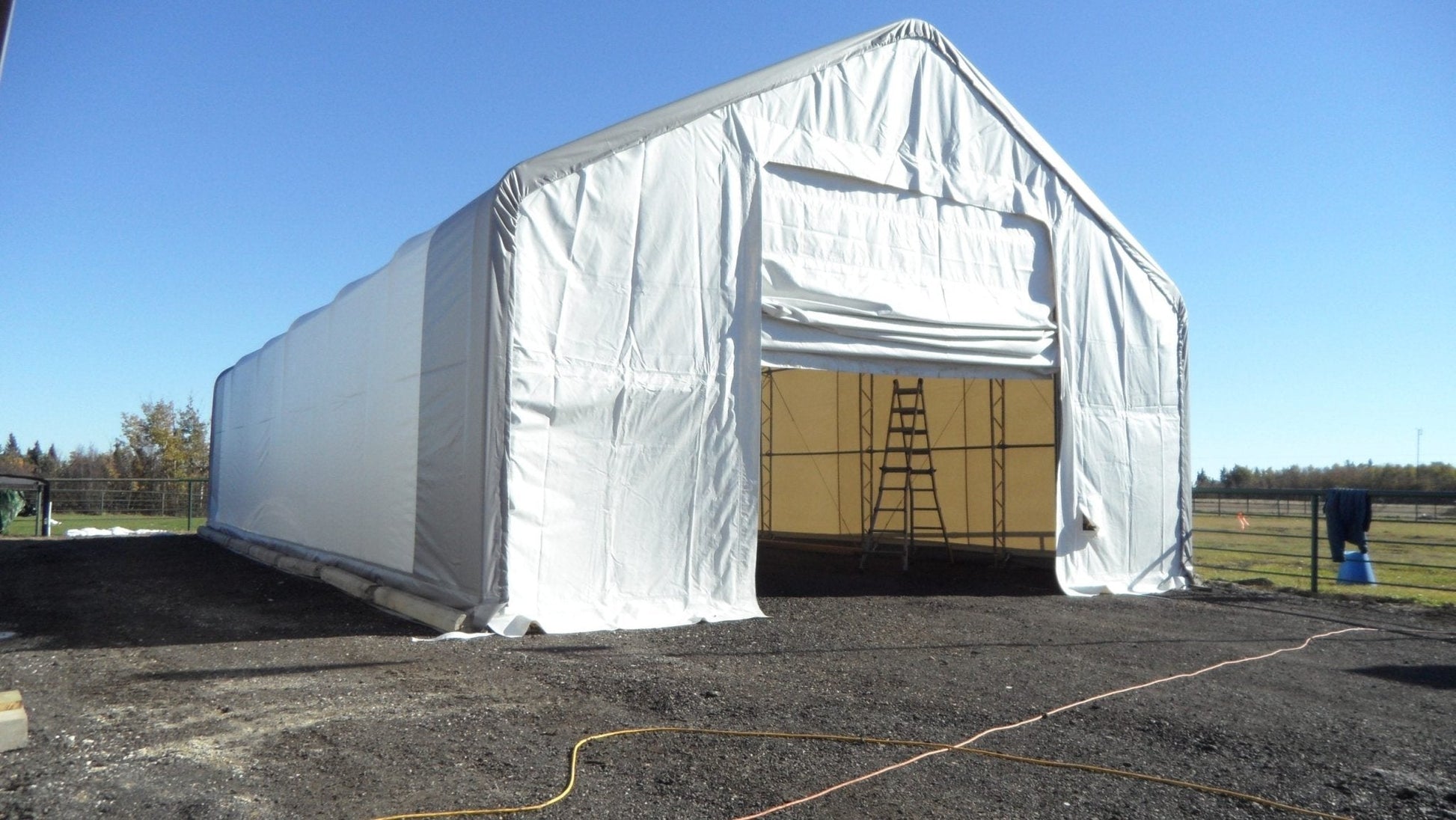

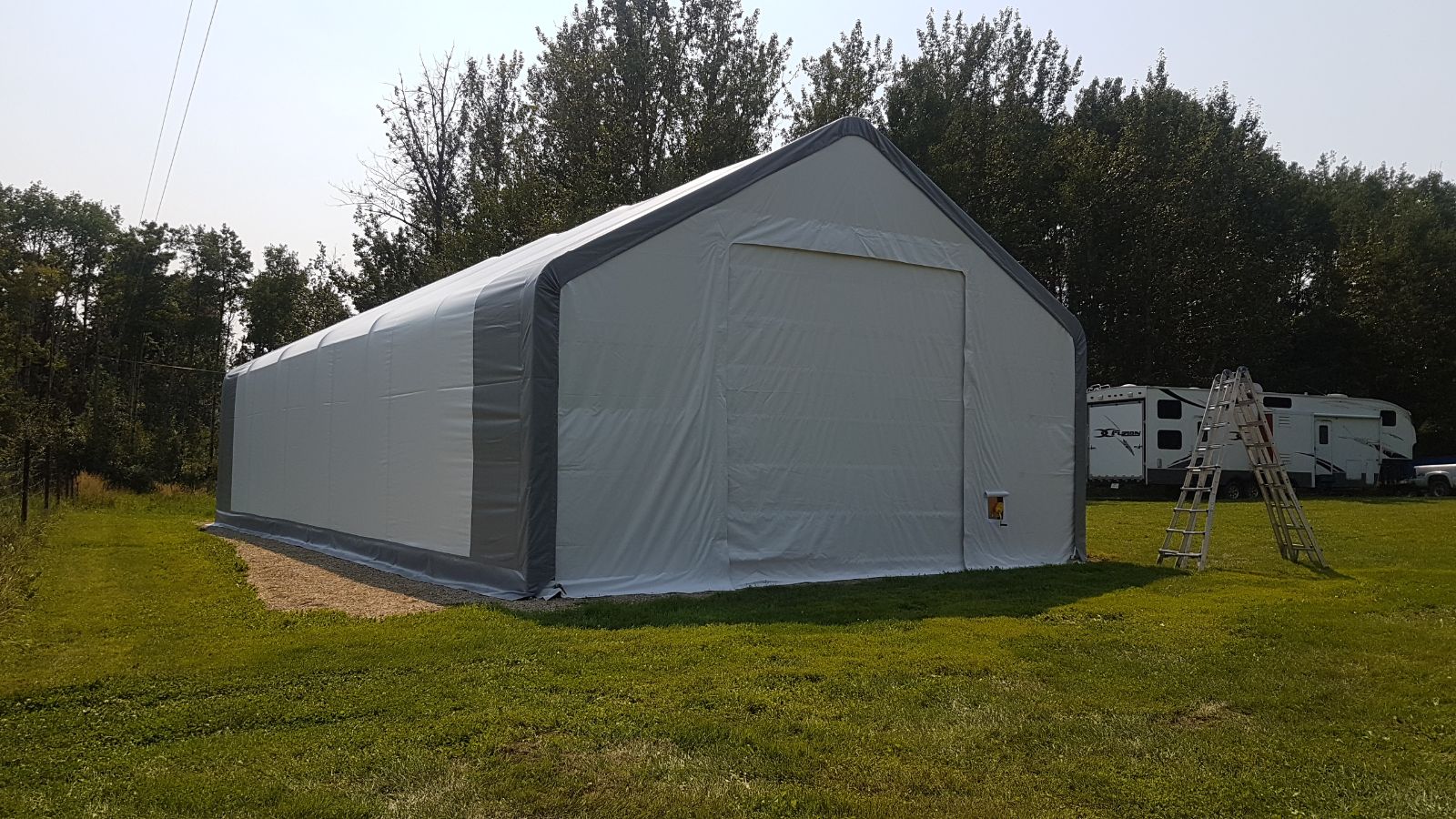

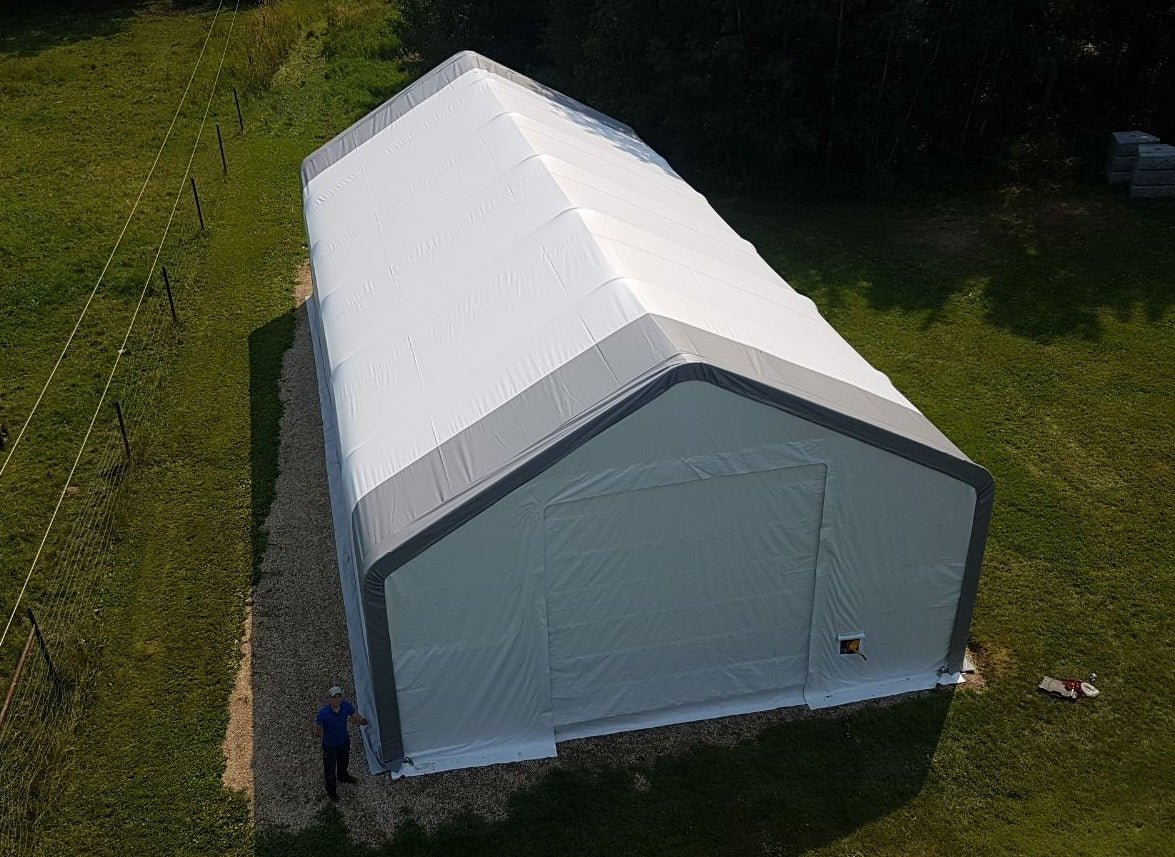

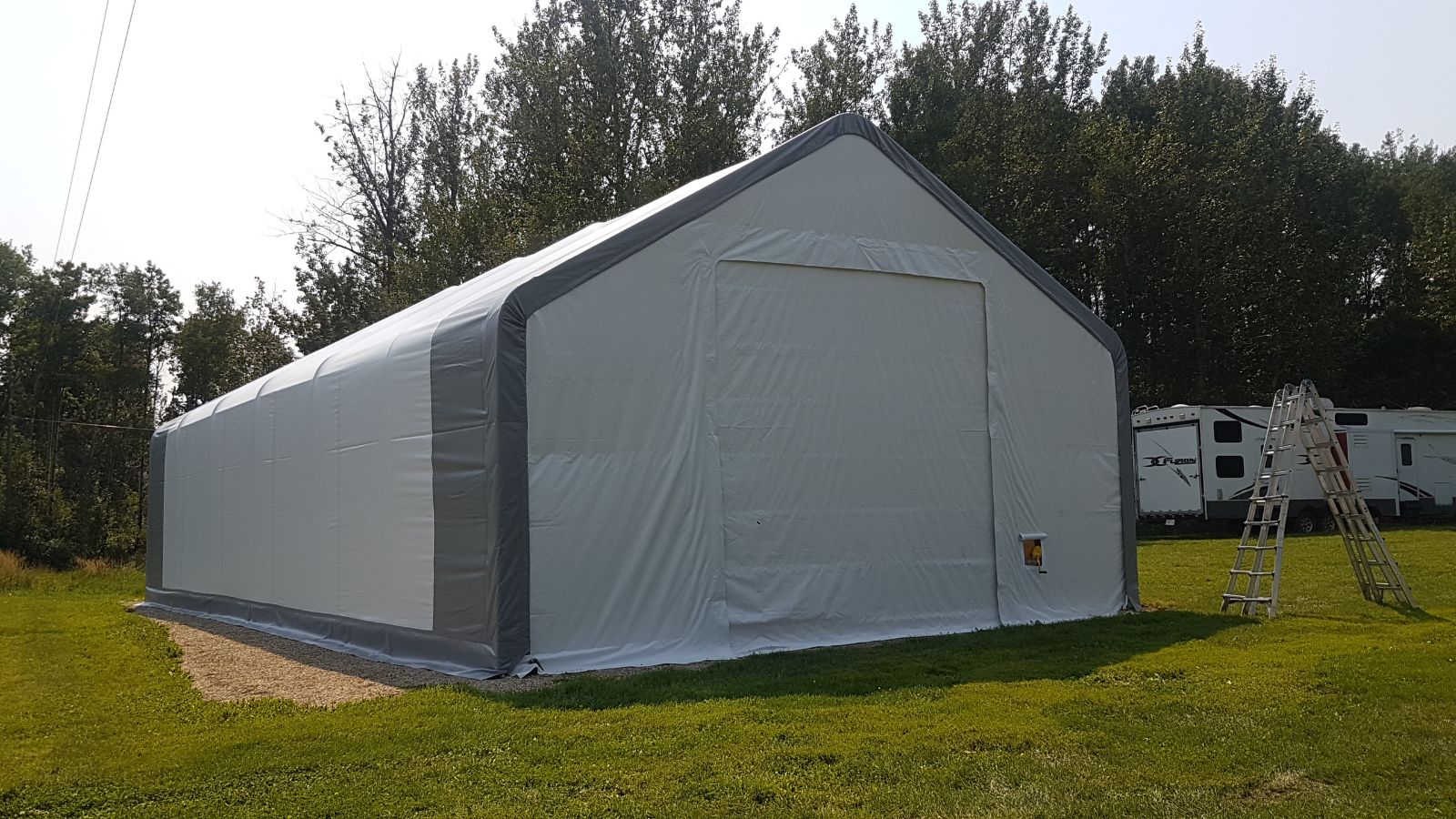

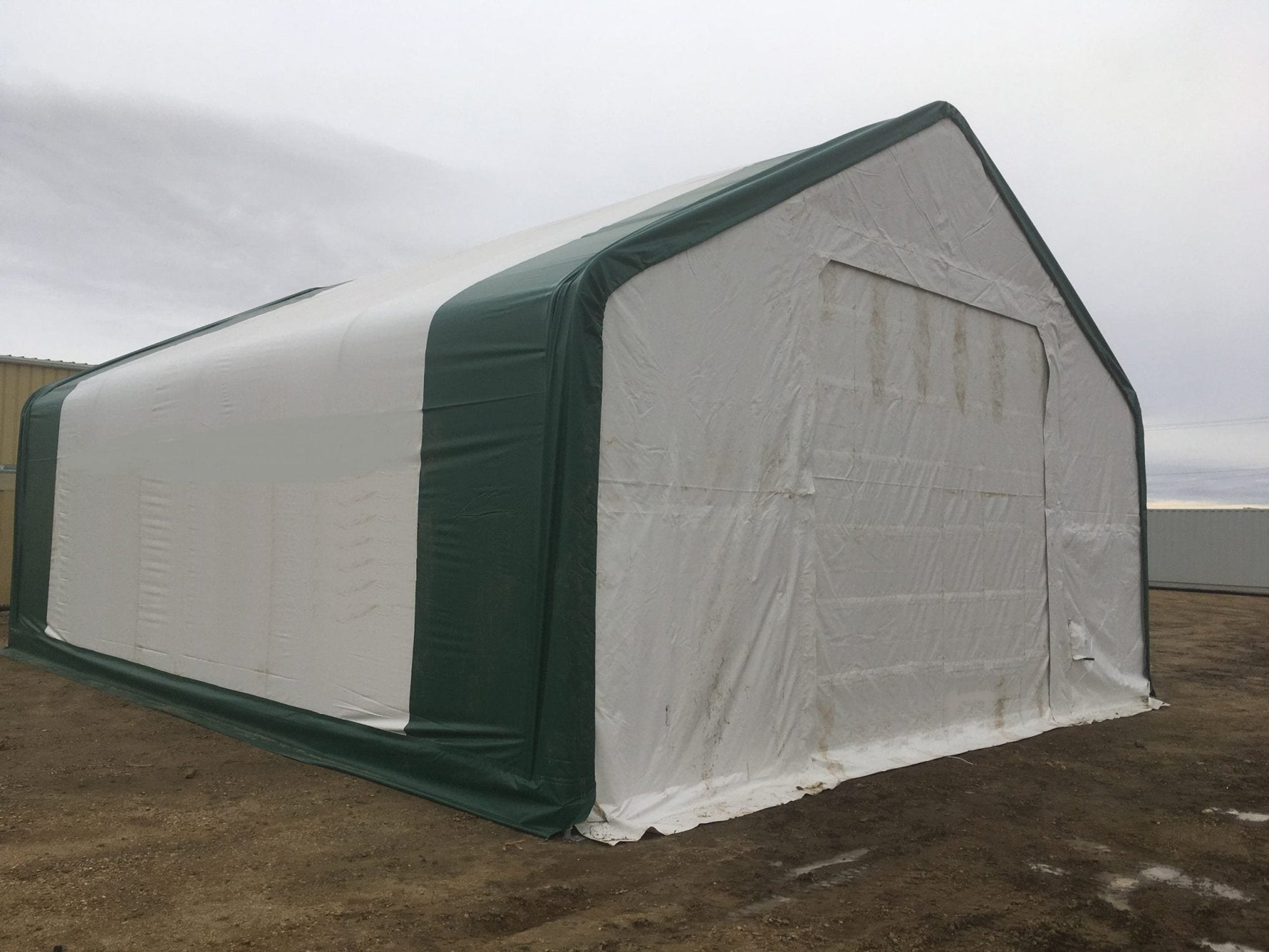

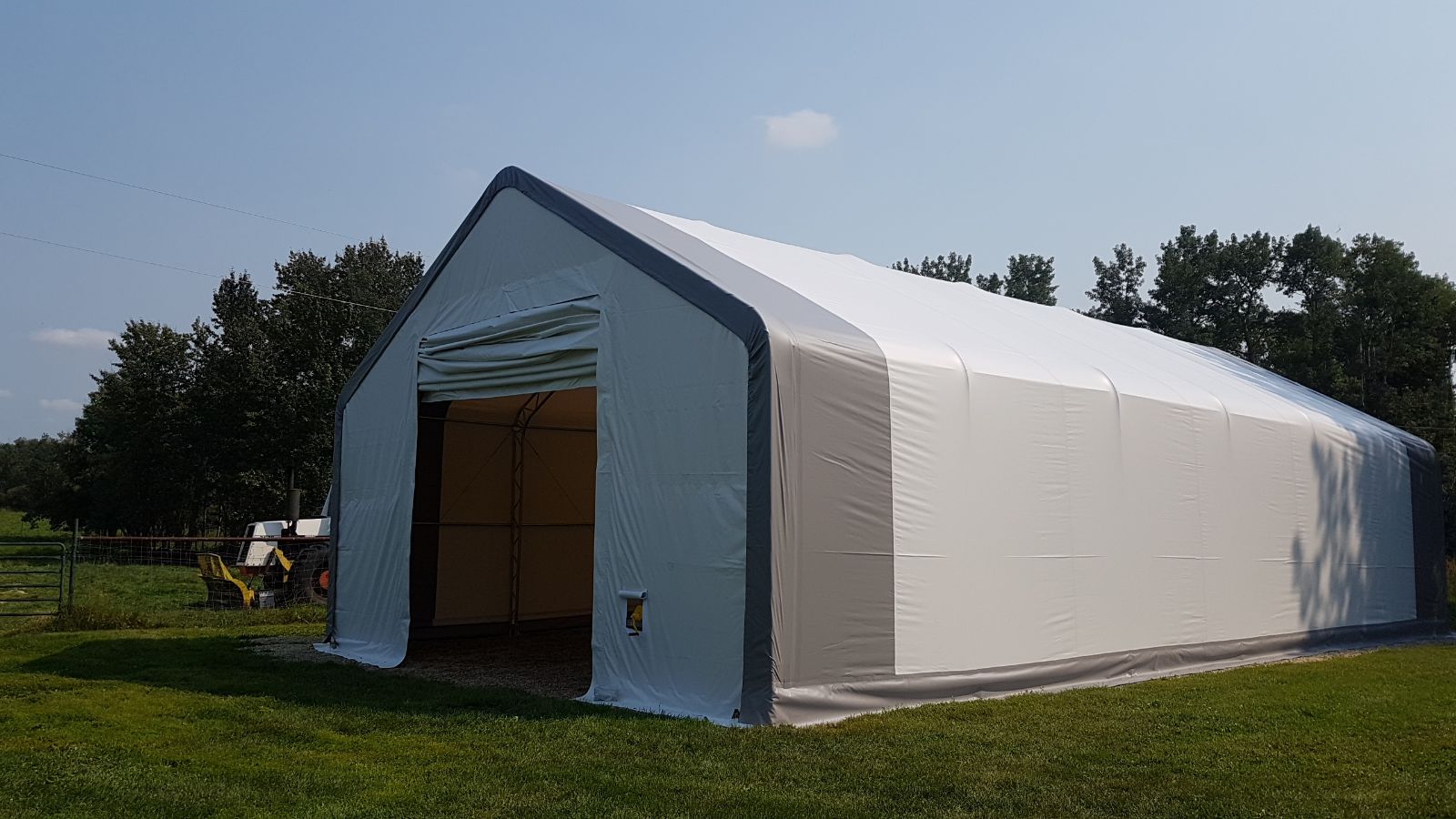

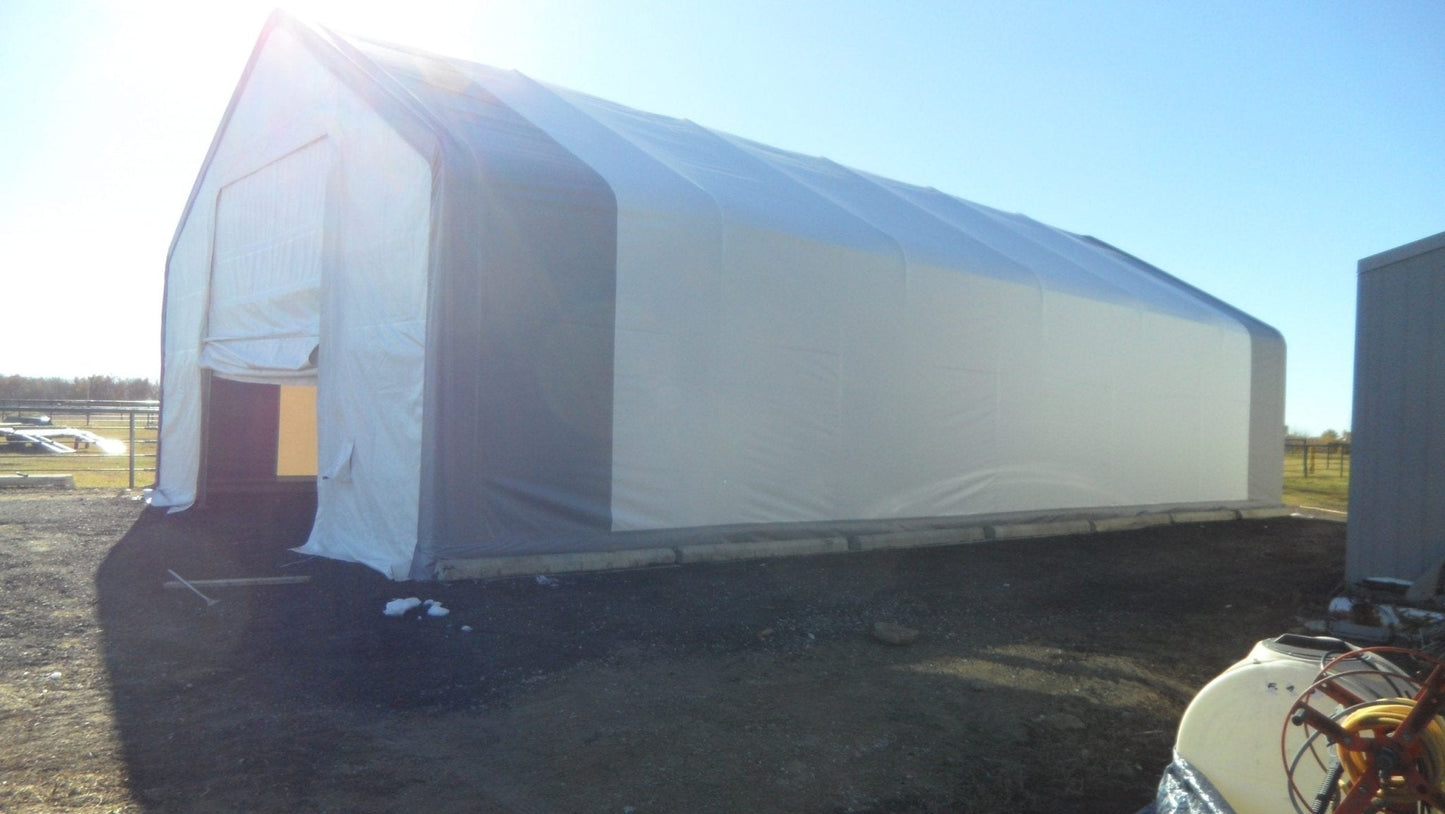

Optimize your site operations with the extreme durability of our Professional 9.14 m (30') Wide Double Truss Storage Building. Engineered for the most demanding commercial and industrial environments, this structure features a reinforced double-truss galvanized steel frame, offering significantly higher resistance to wind and snow loads compared to standard single-truss models. Clad in industrial-grade 22.5 oz (750 gsm) or premium 26.5 oz (900 gsm) PVC fabric, this shelter provides an airtight, waterproof, and UV-stabilized environment. With a towering 6.1 m (20') peak height and dual 4.27 m mechanical roll-up doors, this series is the definitive choice for long-term equipment storage, mobile warehouses, and multi-functional fabrication workshops.
Heavy Duty 30 Ft Wide Building Options Here also
SYSTEM HIGHLIGHTS
-

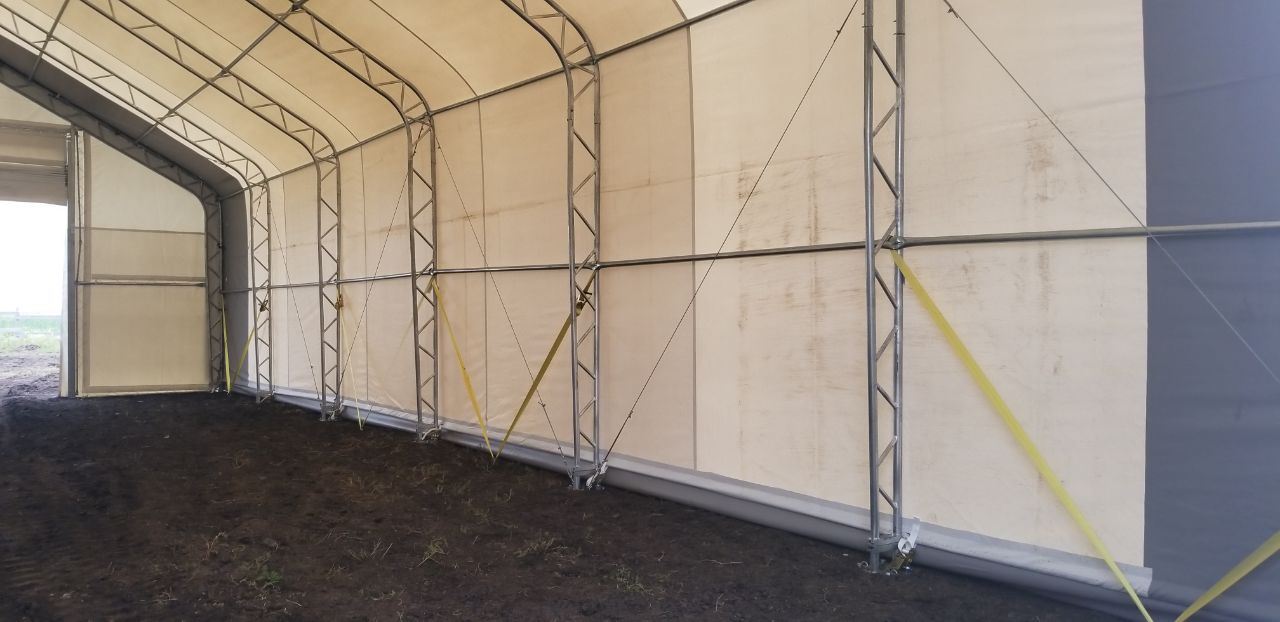

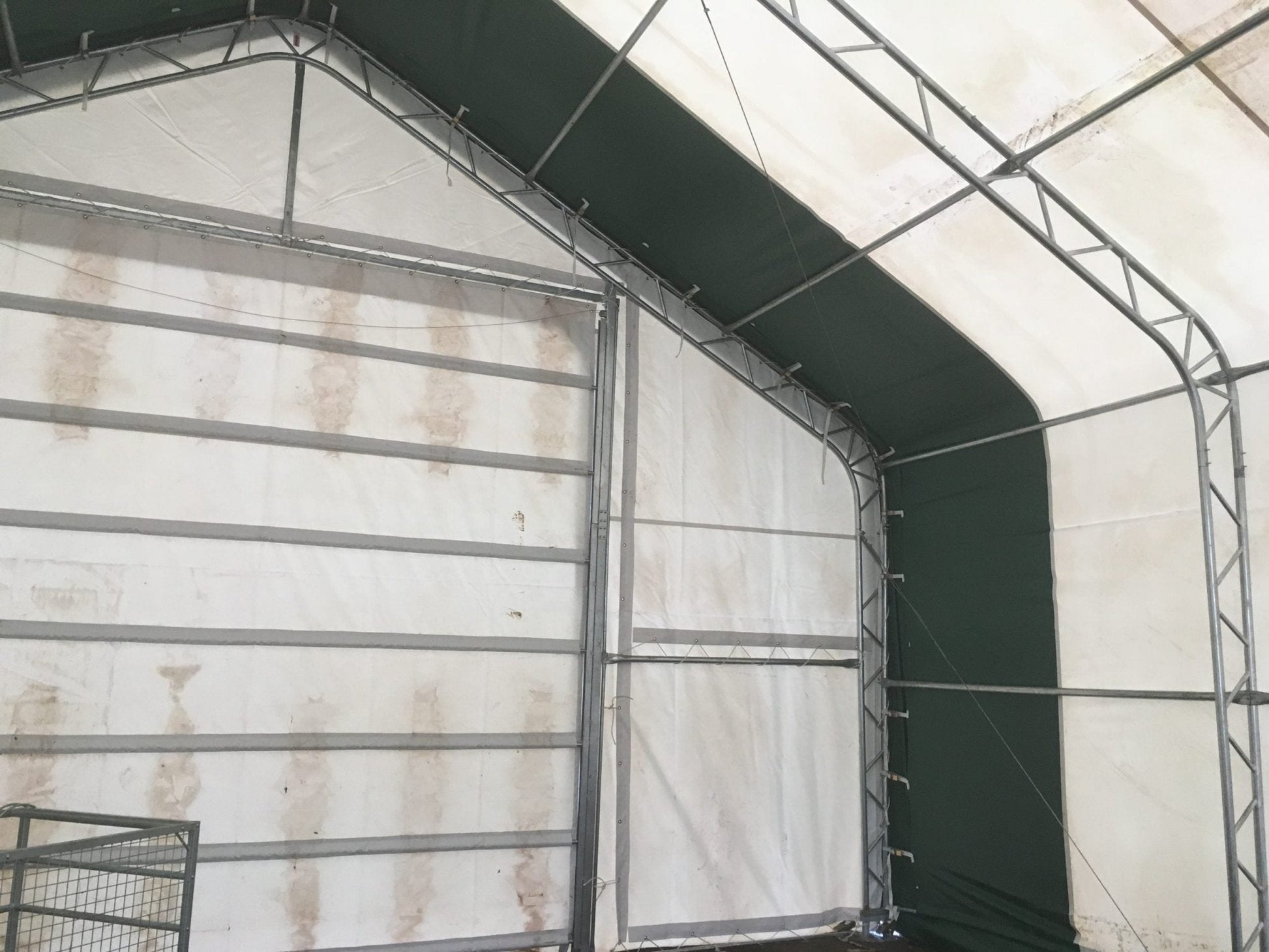

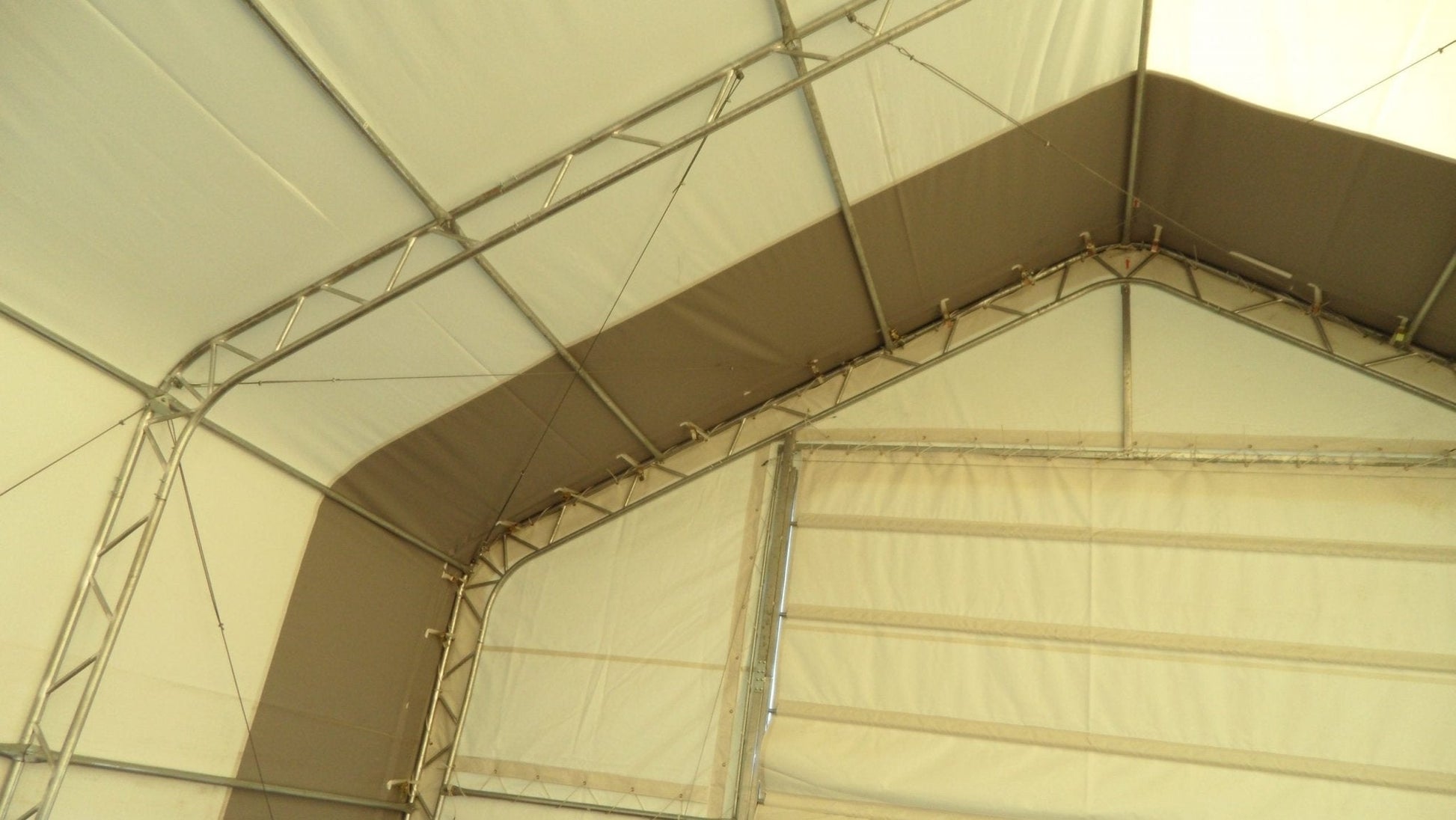

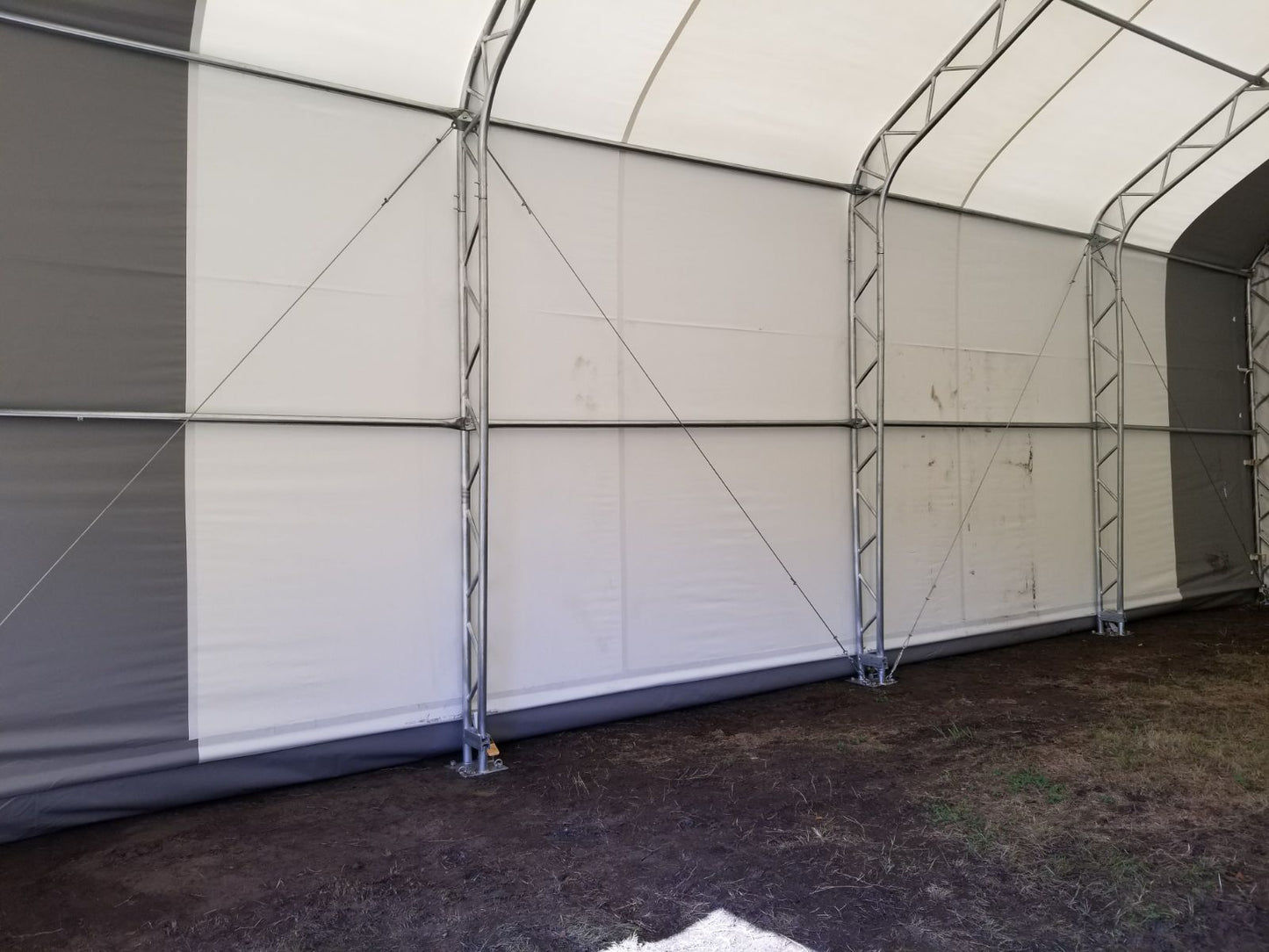

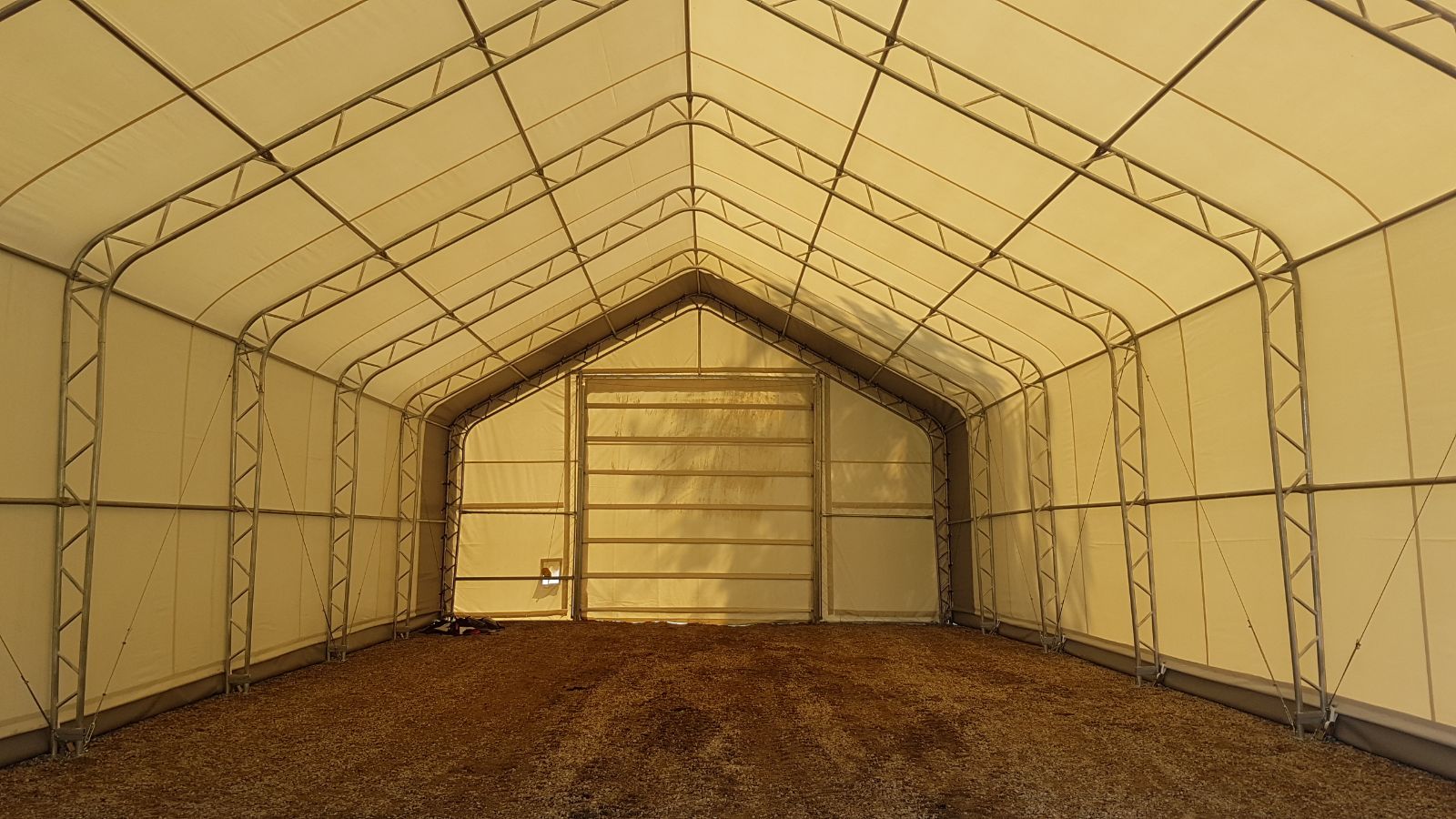

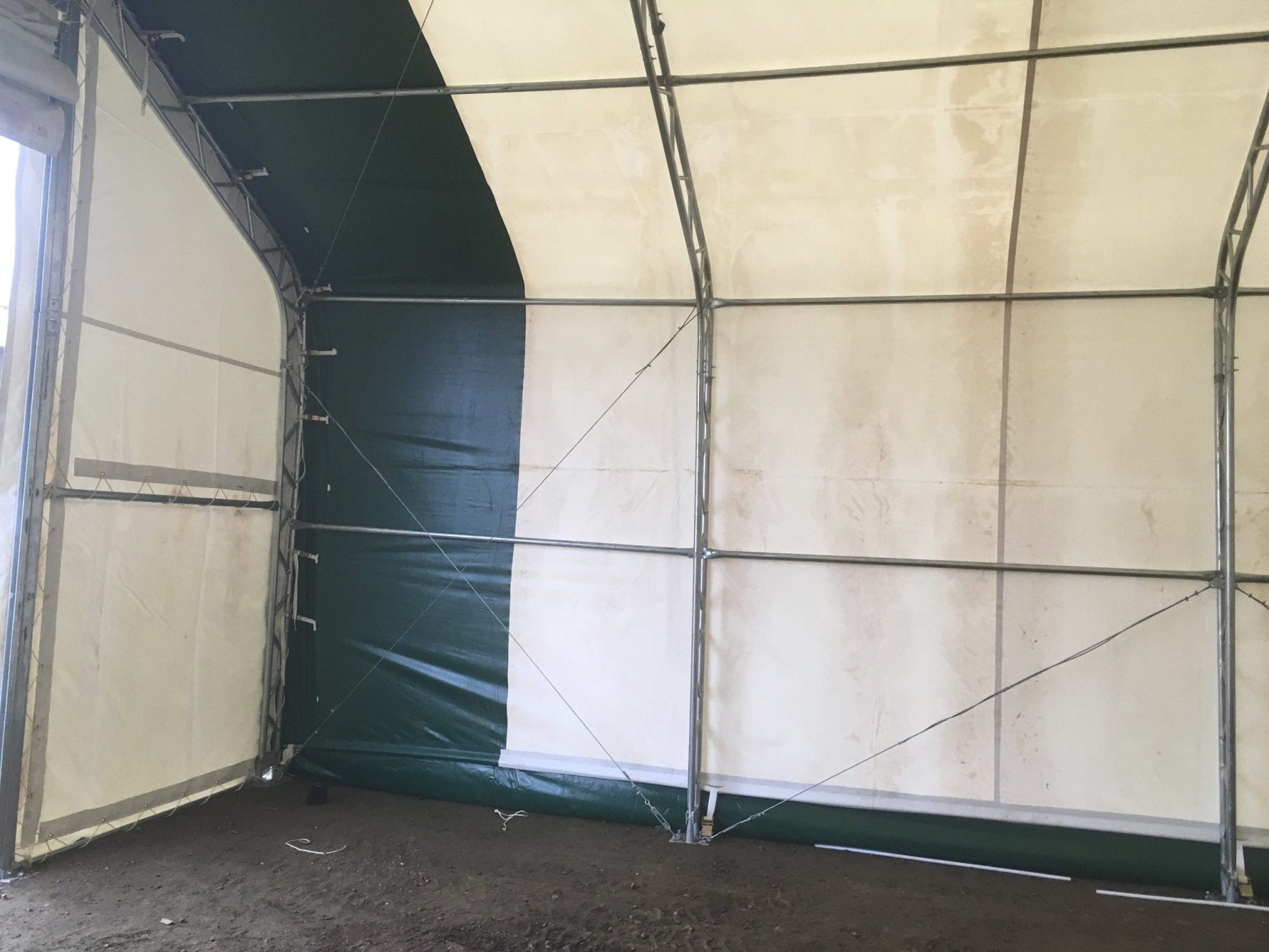

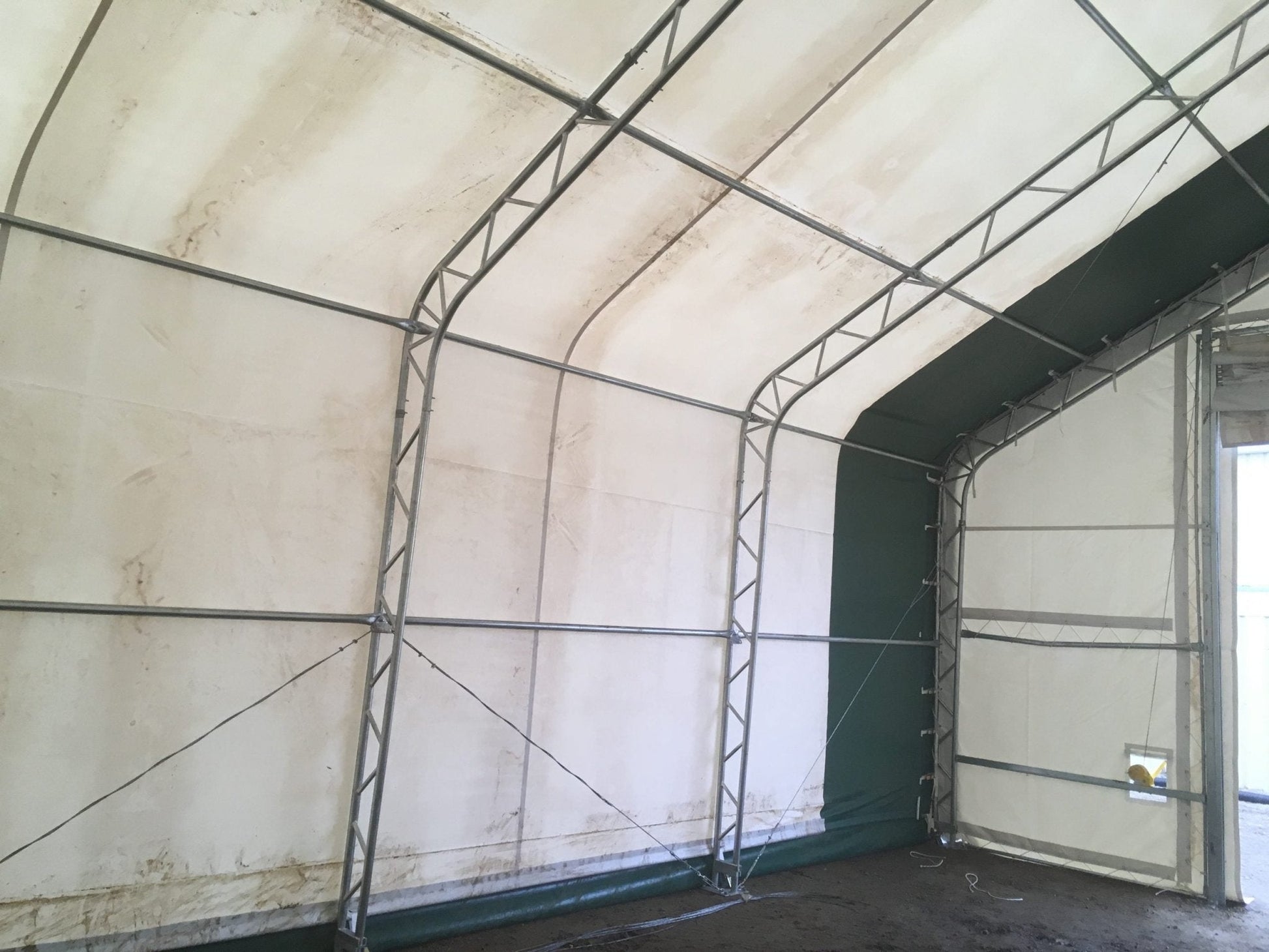

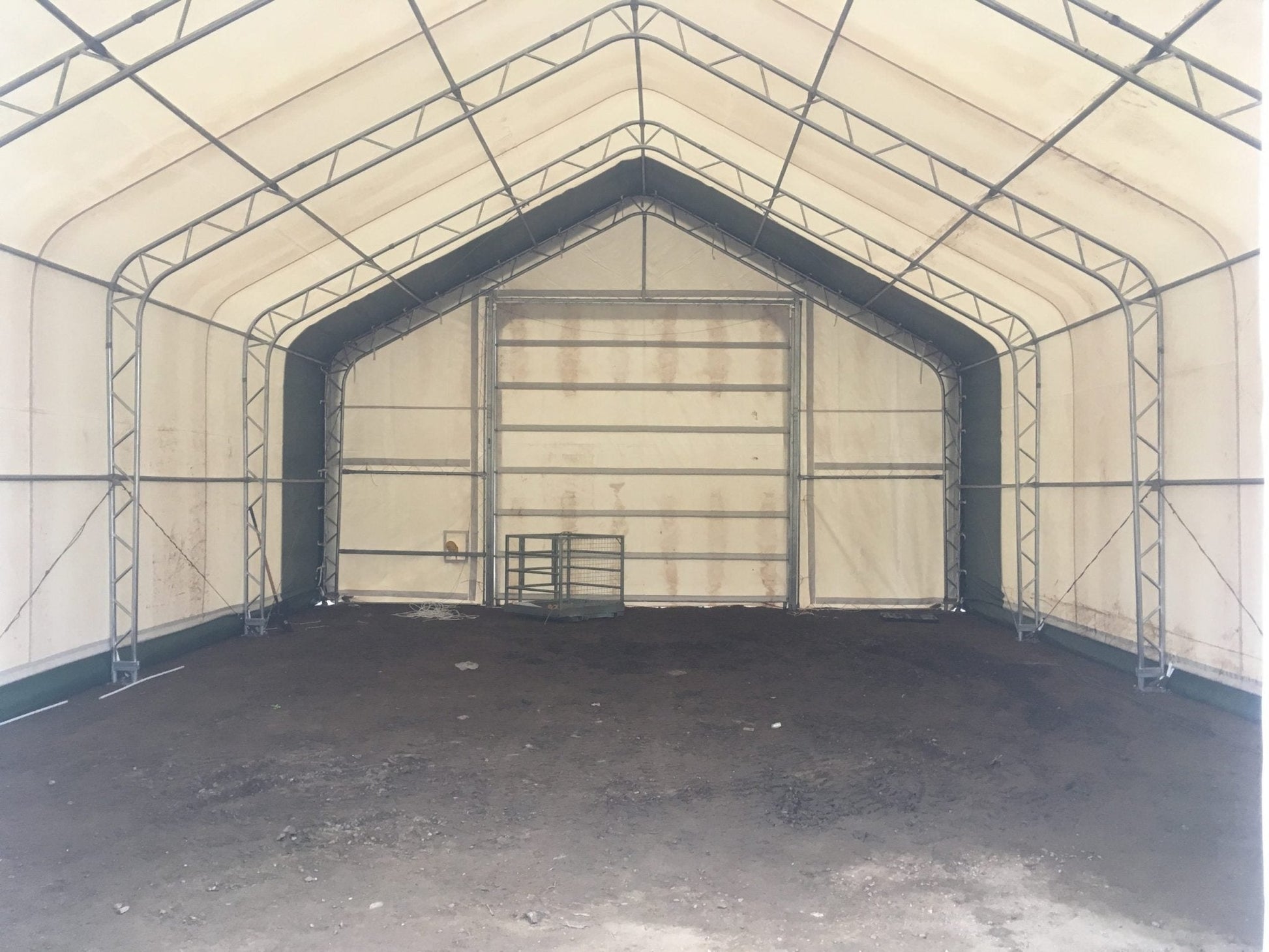

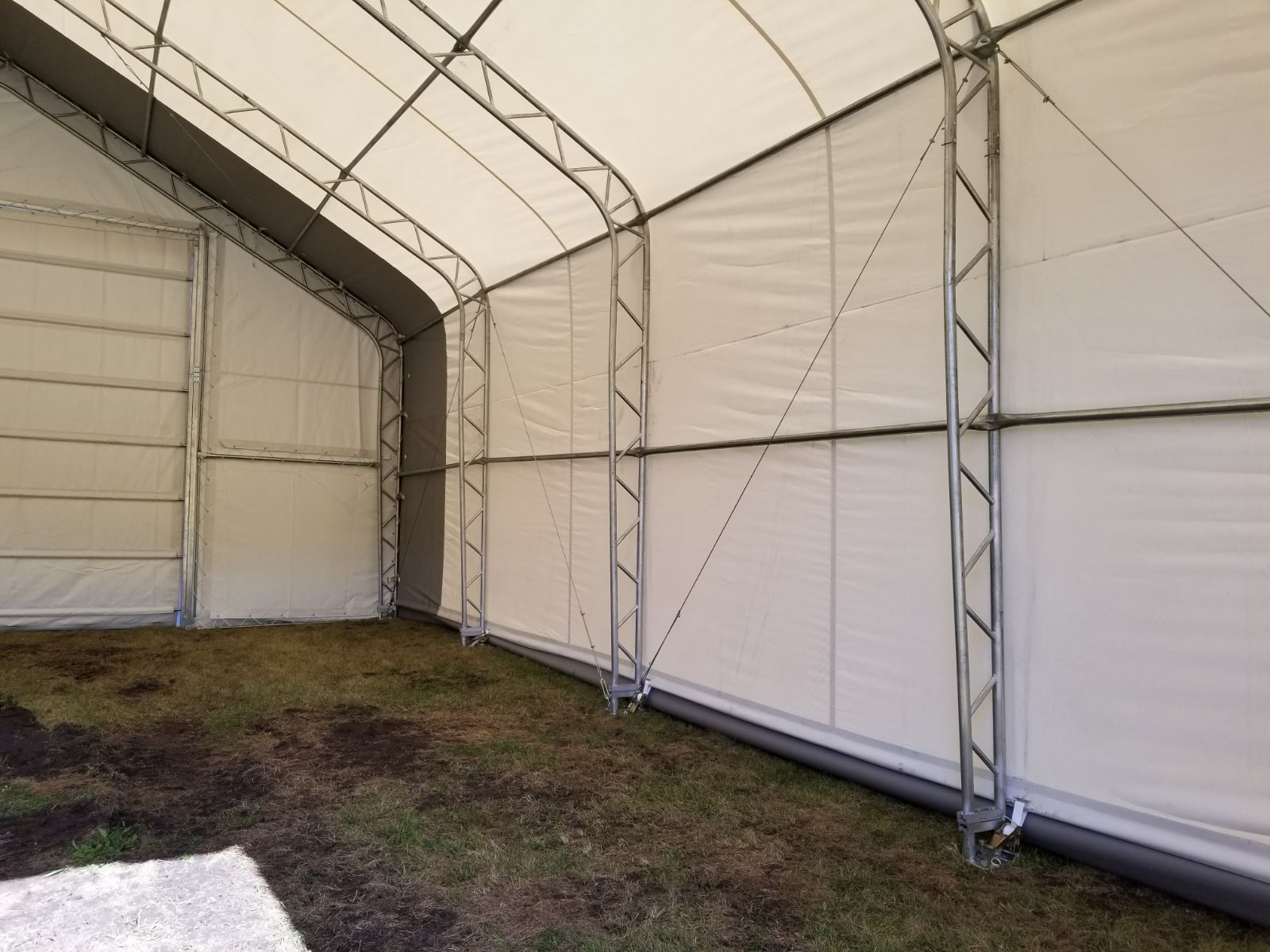

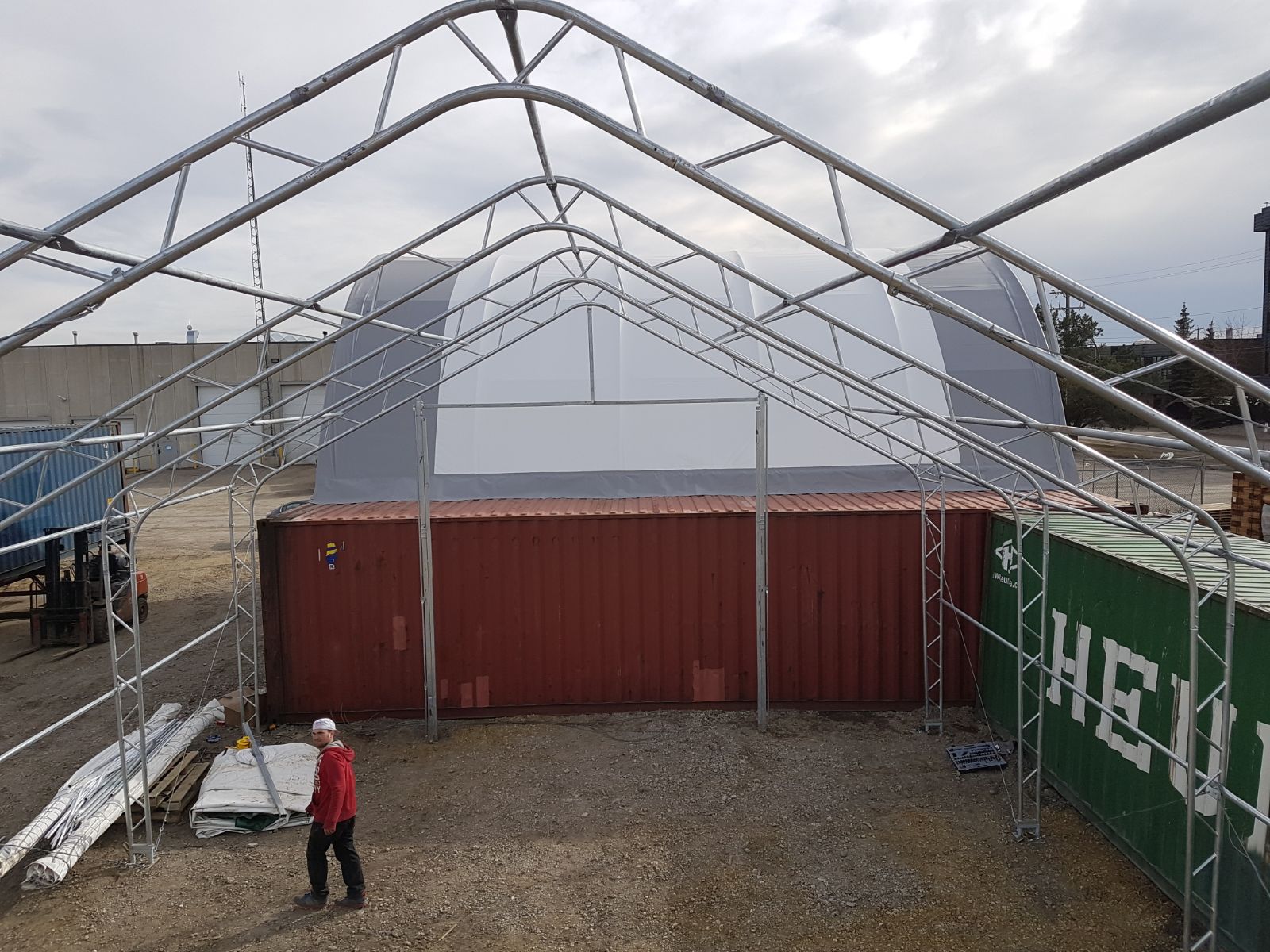

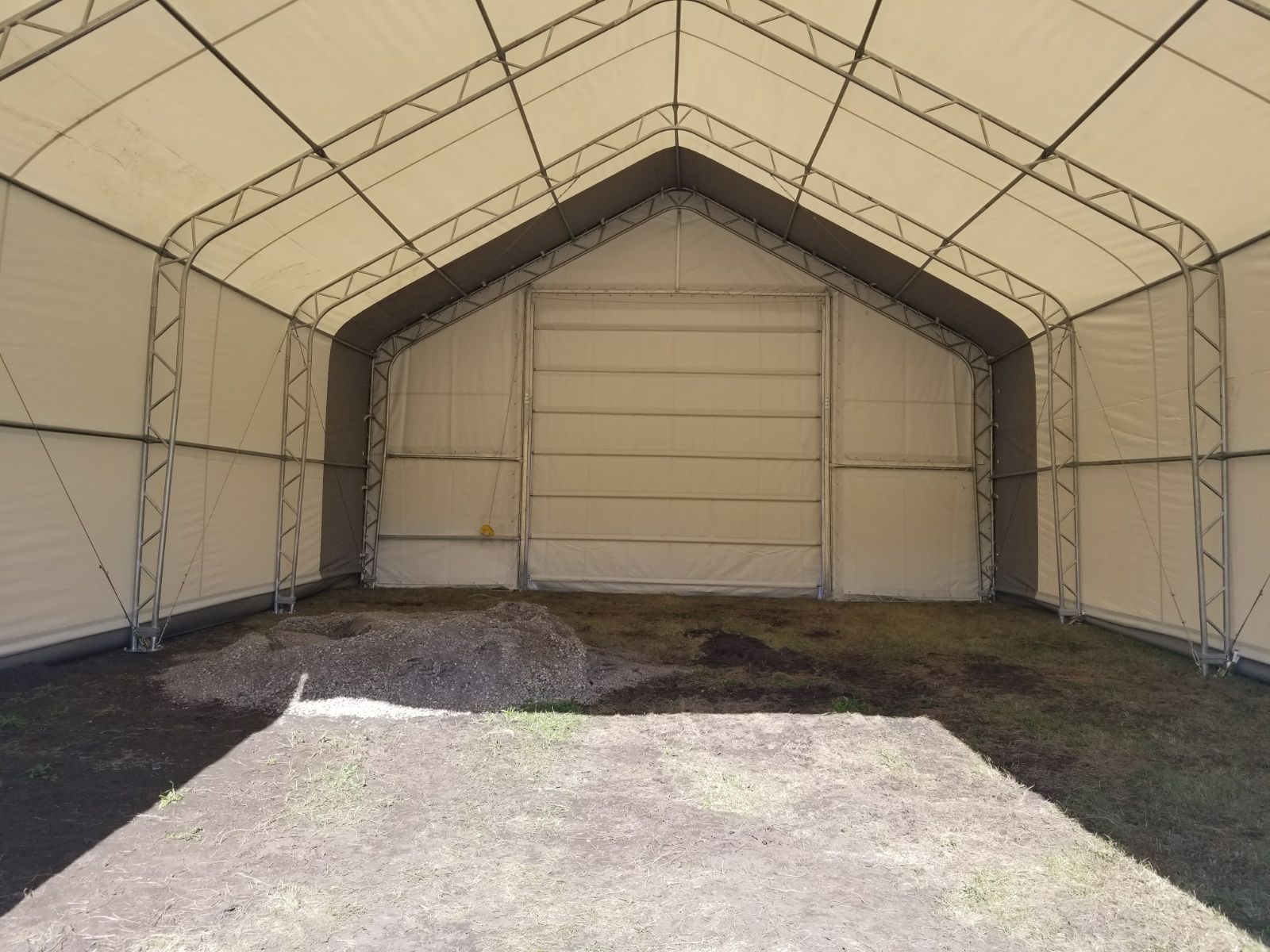

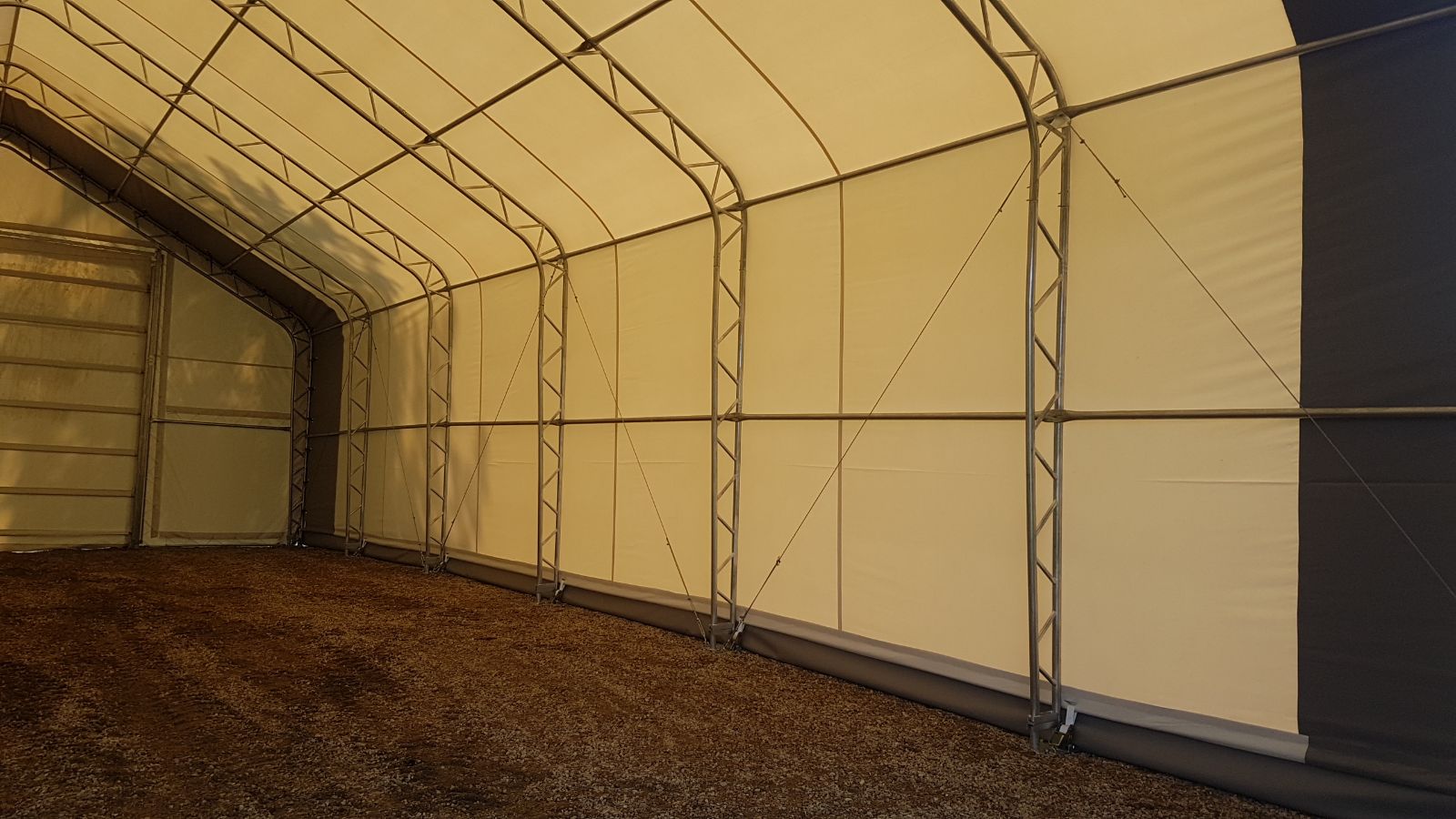

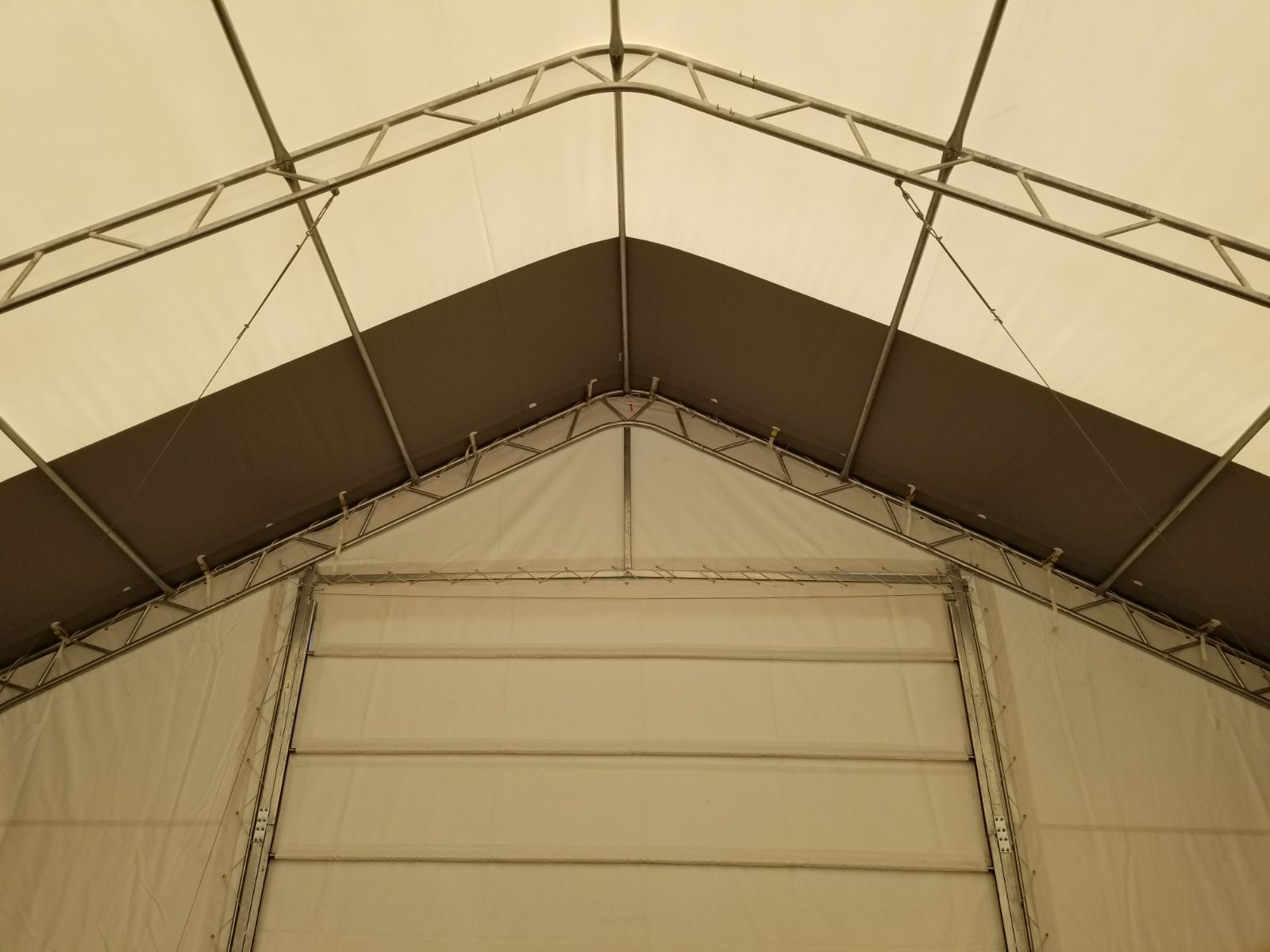

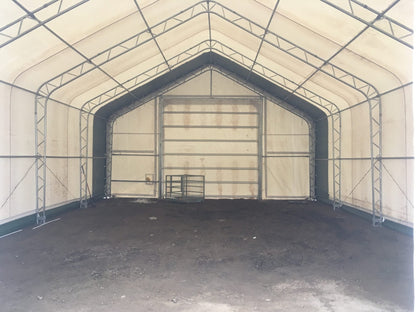

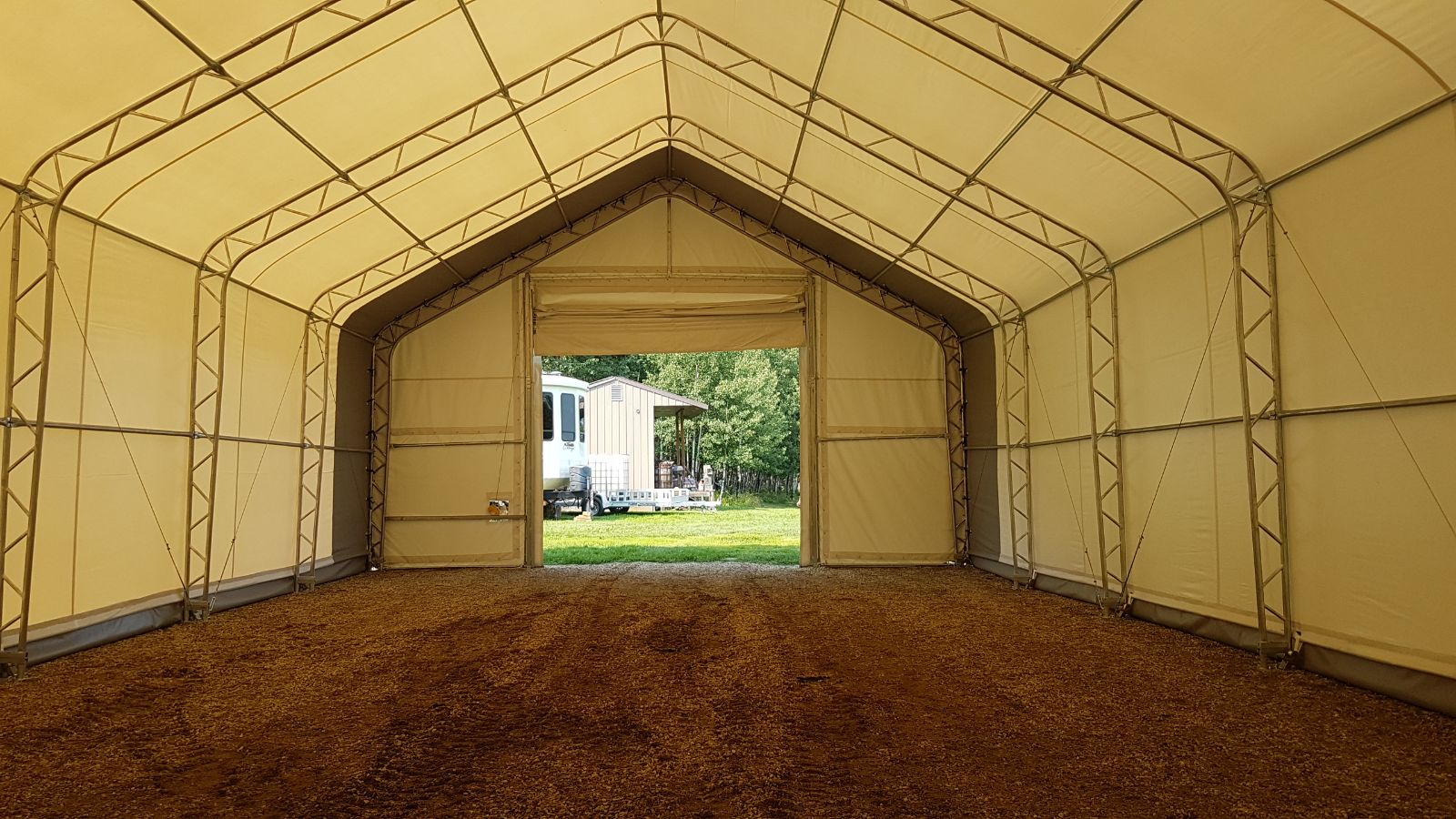

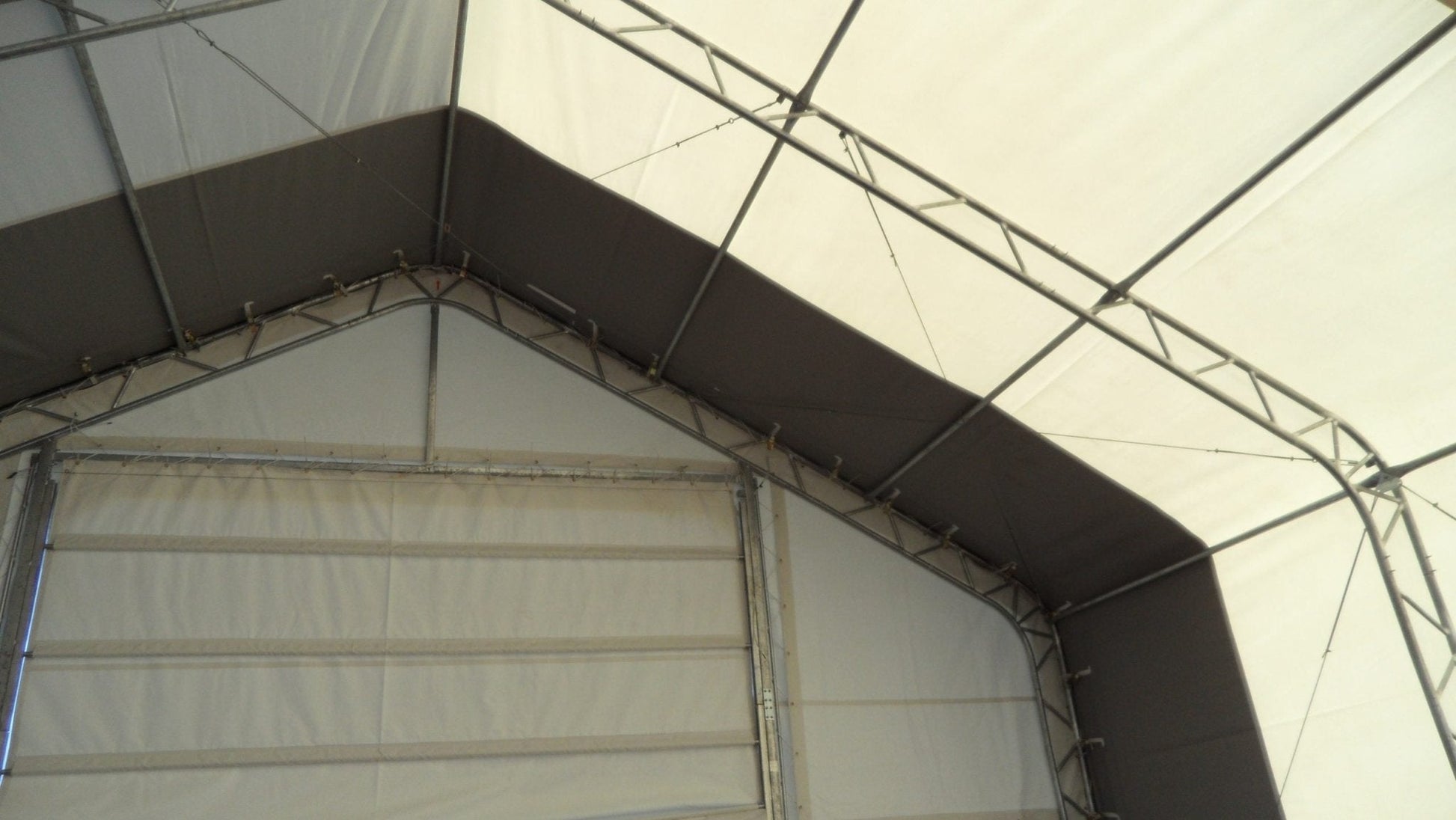

Reinforced Double Truss Frame: Constructed with 60 mm (2 3/8”) hot-dip galvanized steel pipes in a double-truss configuration to eliminate structural flex and ensure stability under heavy snow accumulation.
-

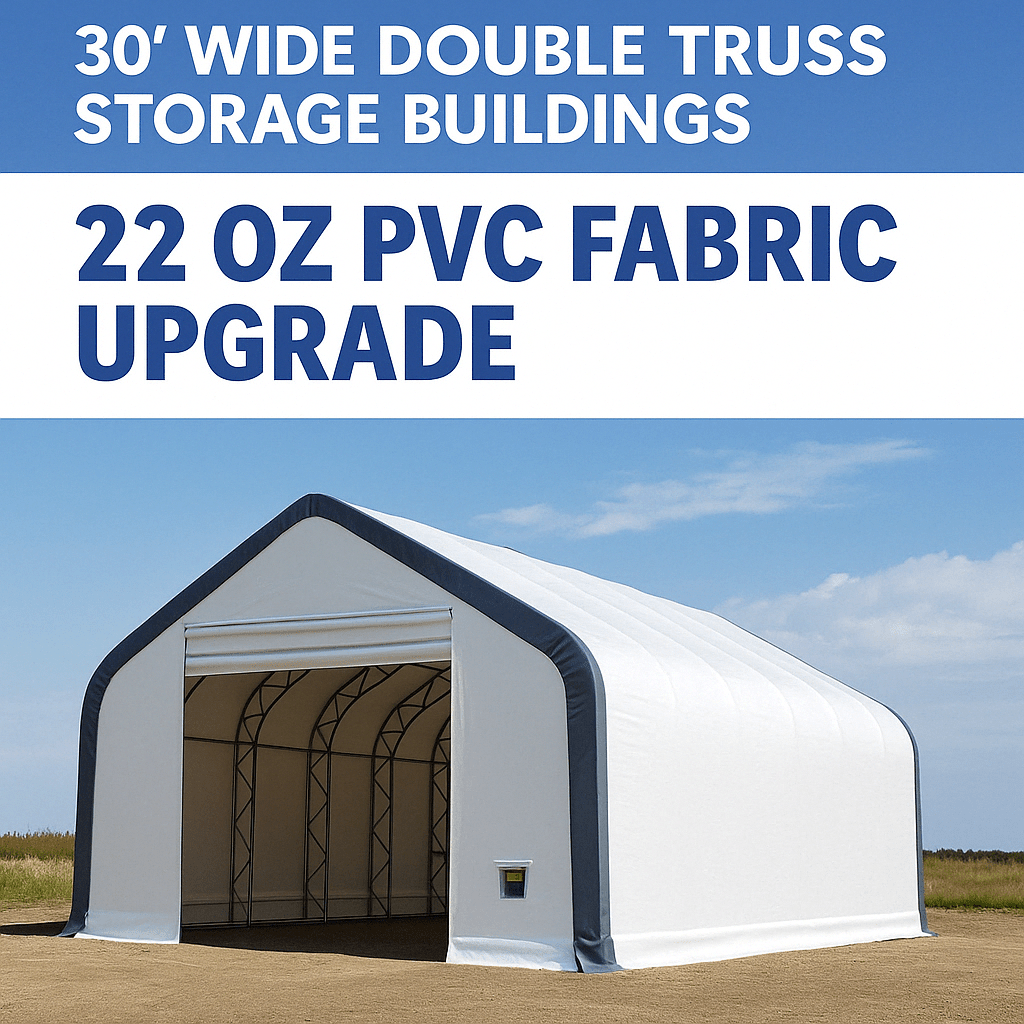

High-Density PVC Membrane: Available in standard 22.5 oz or Extreme-Duty 26.5 oz (All White) PVC, providing superior tear resistance, cold-crack protection, and flame retardancy.
-

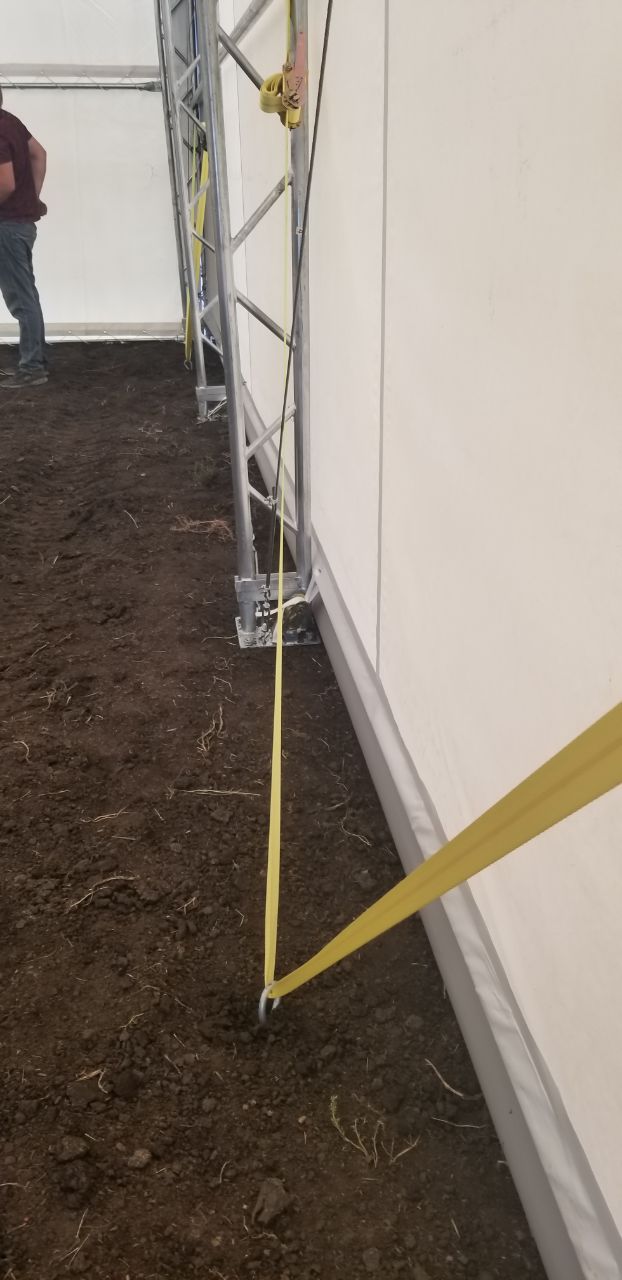

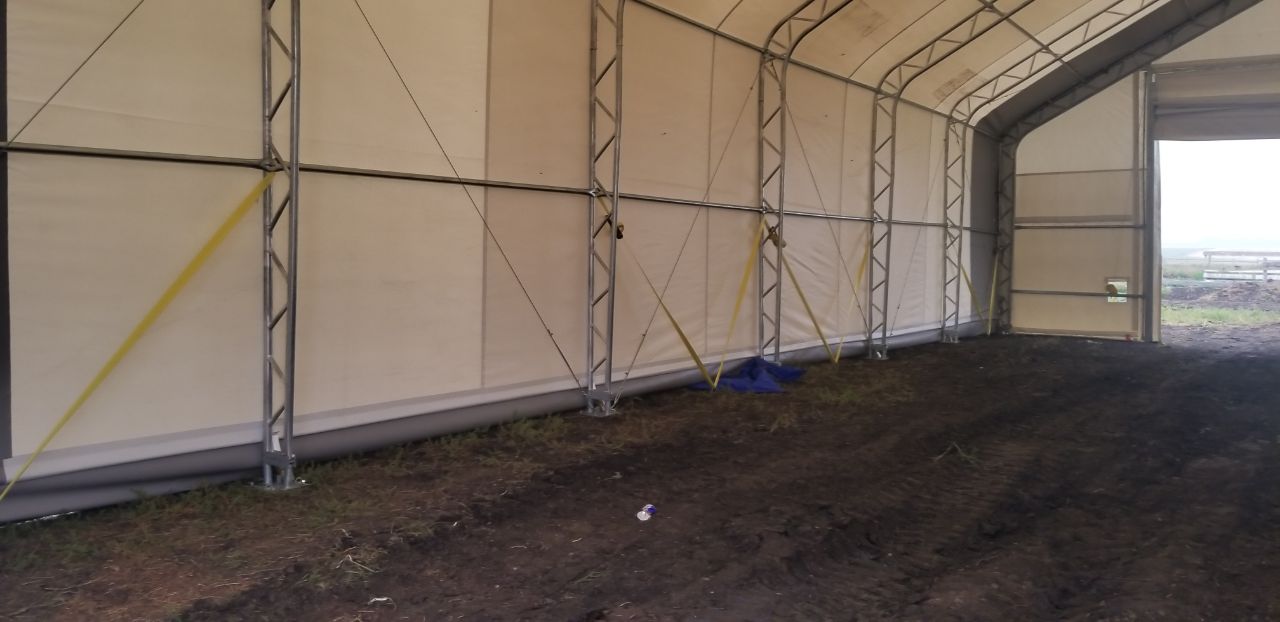

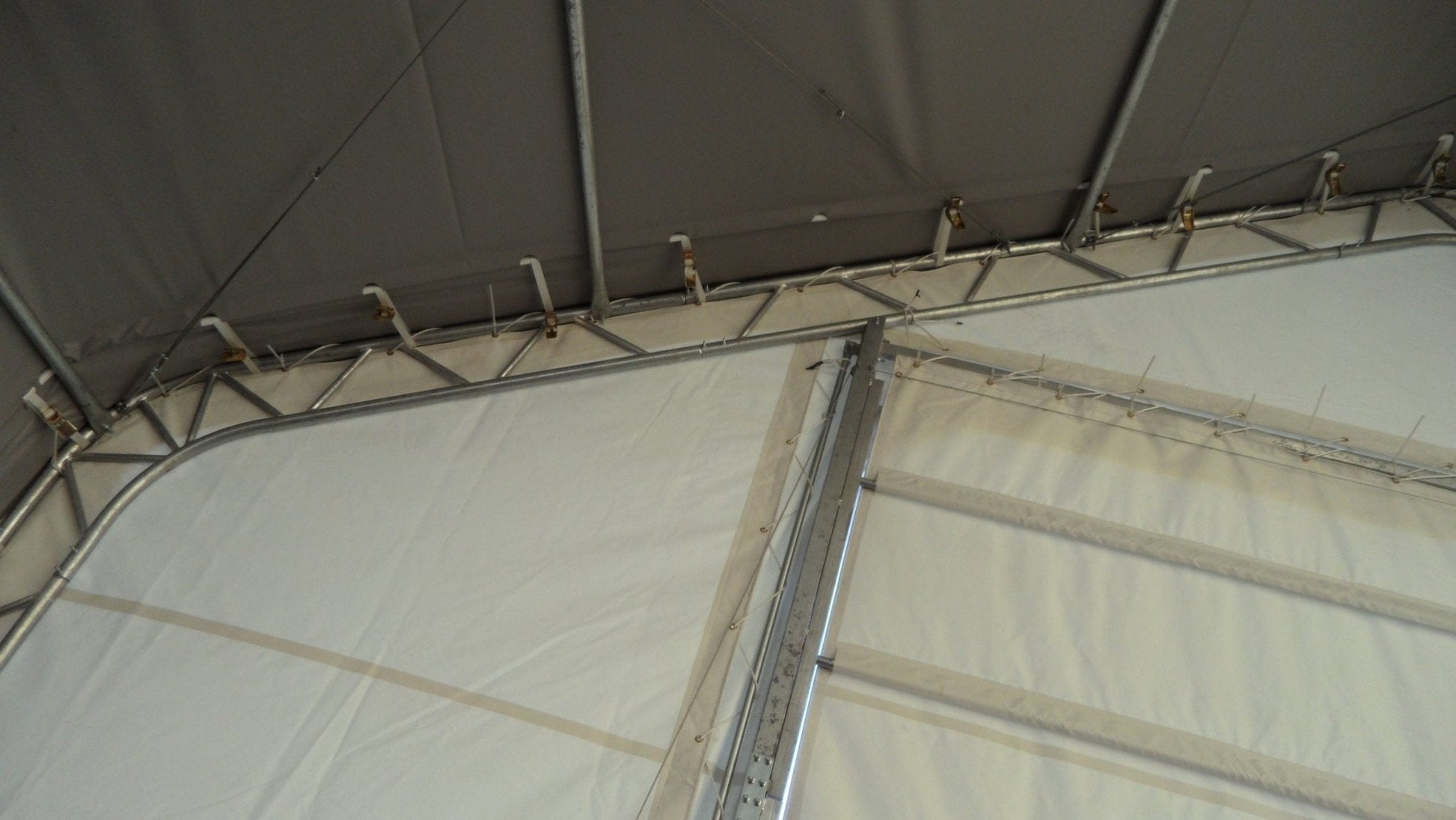

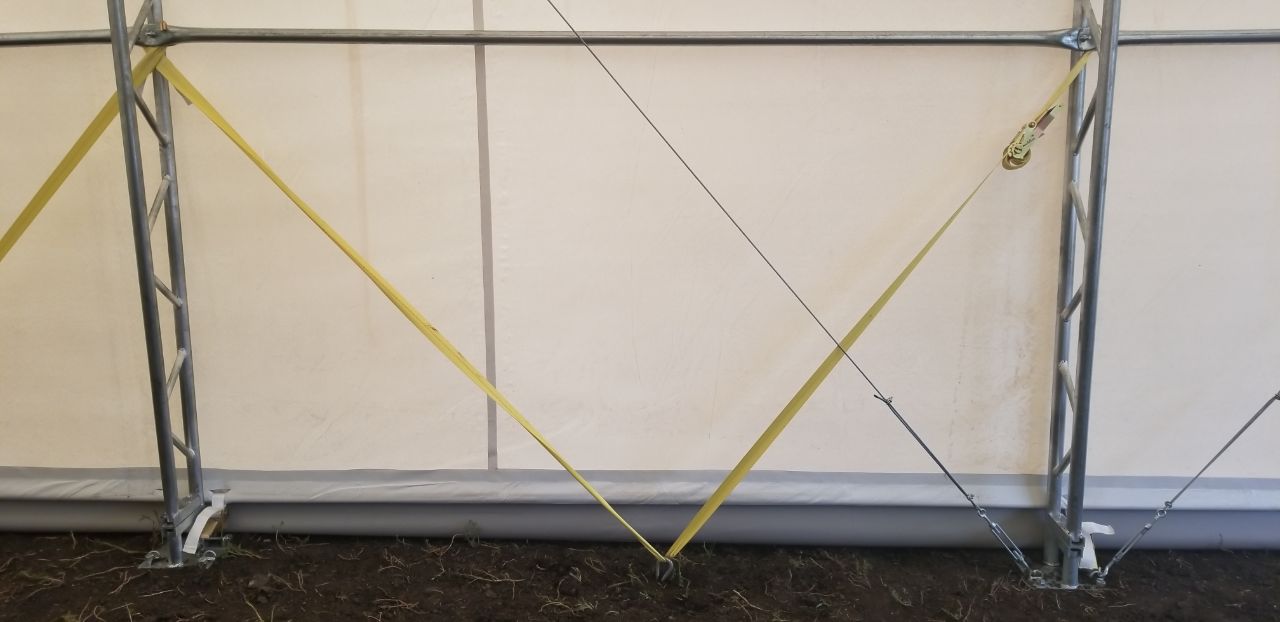

Quad Tension Cable System: Features an integrated cable tensioning network that keeps the fabric cover taut, preventing "pocketing" from rain or snow and extending the life of the cover.
-

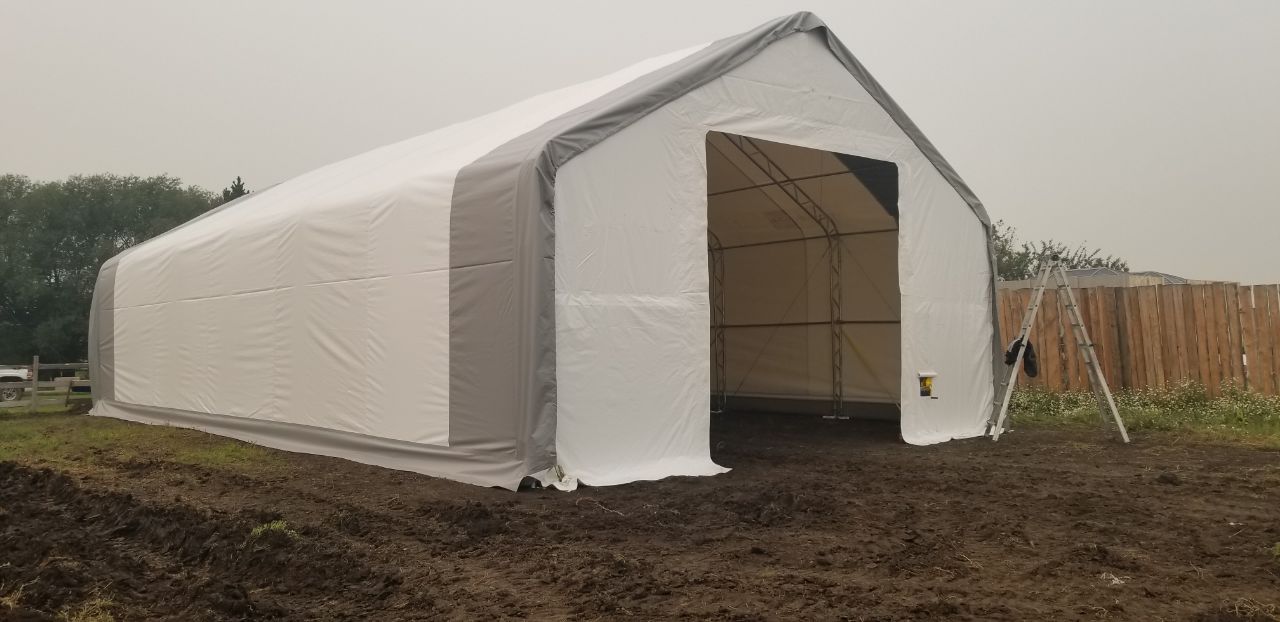

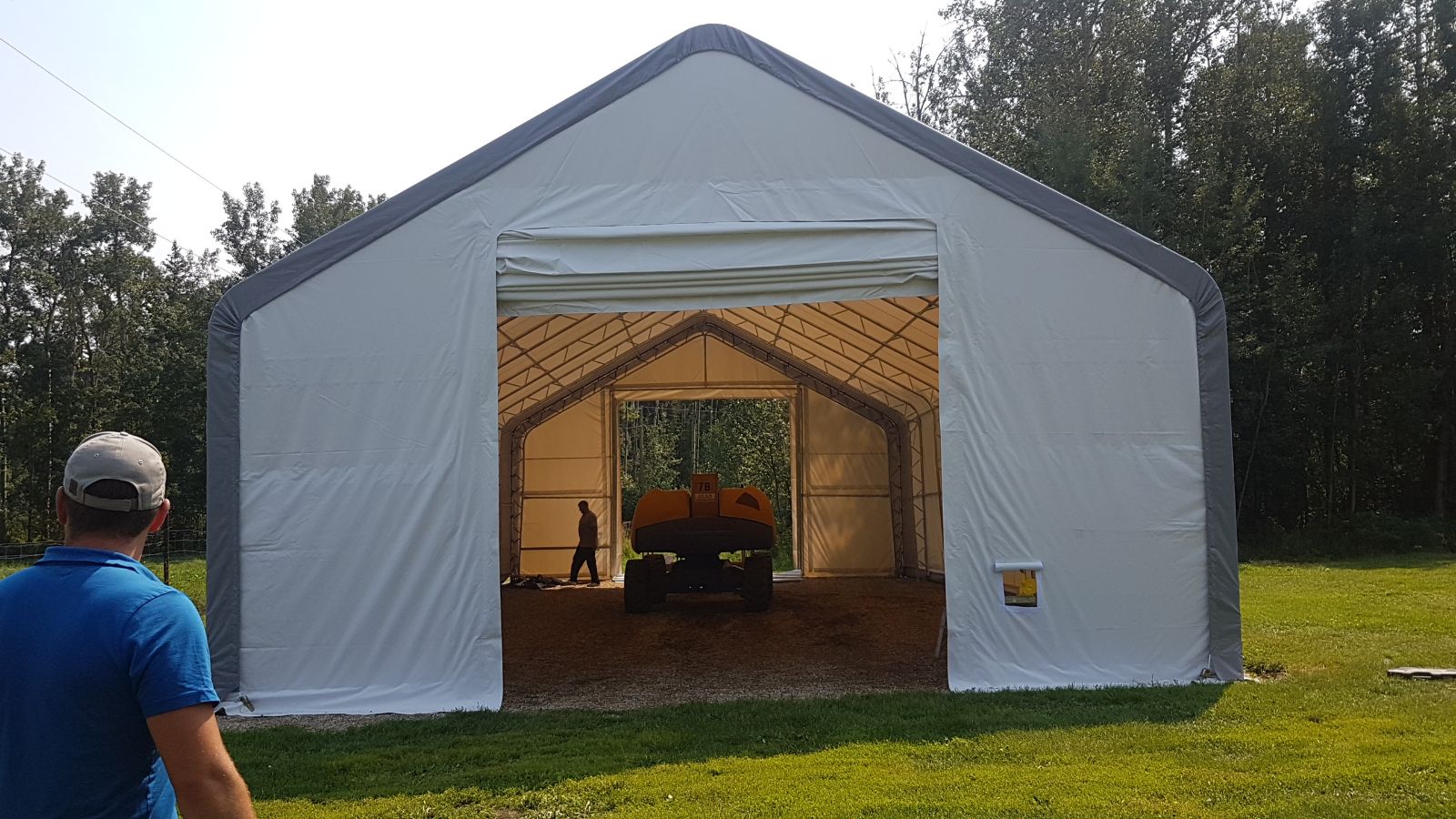

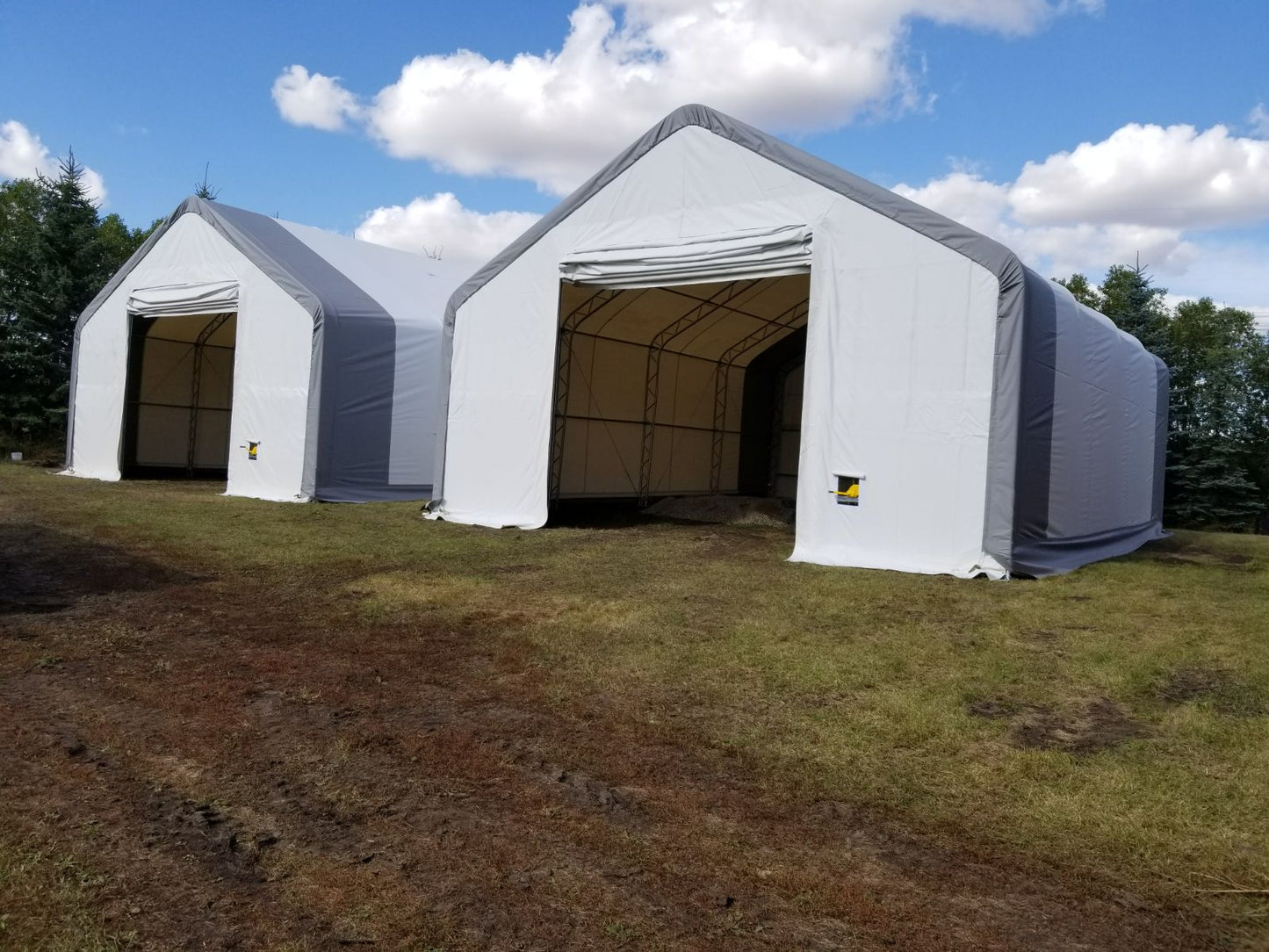

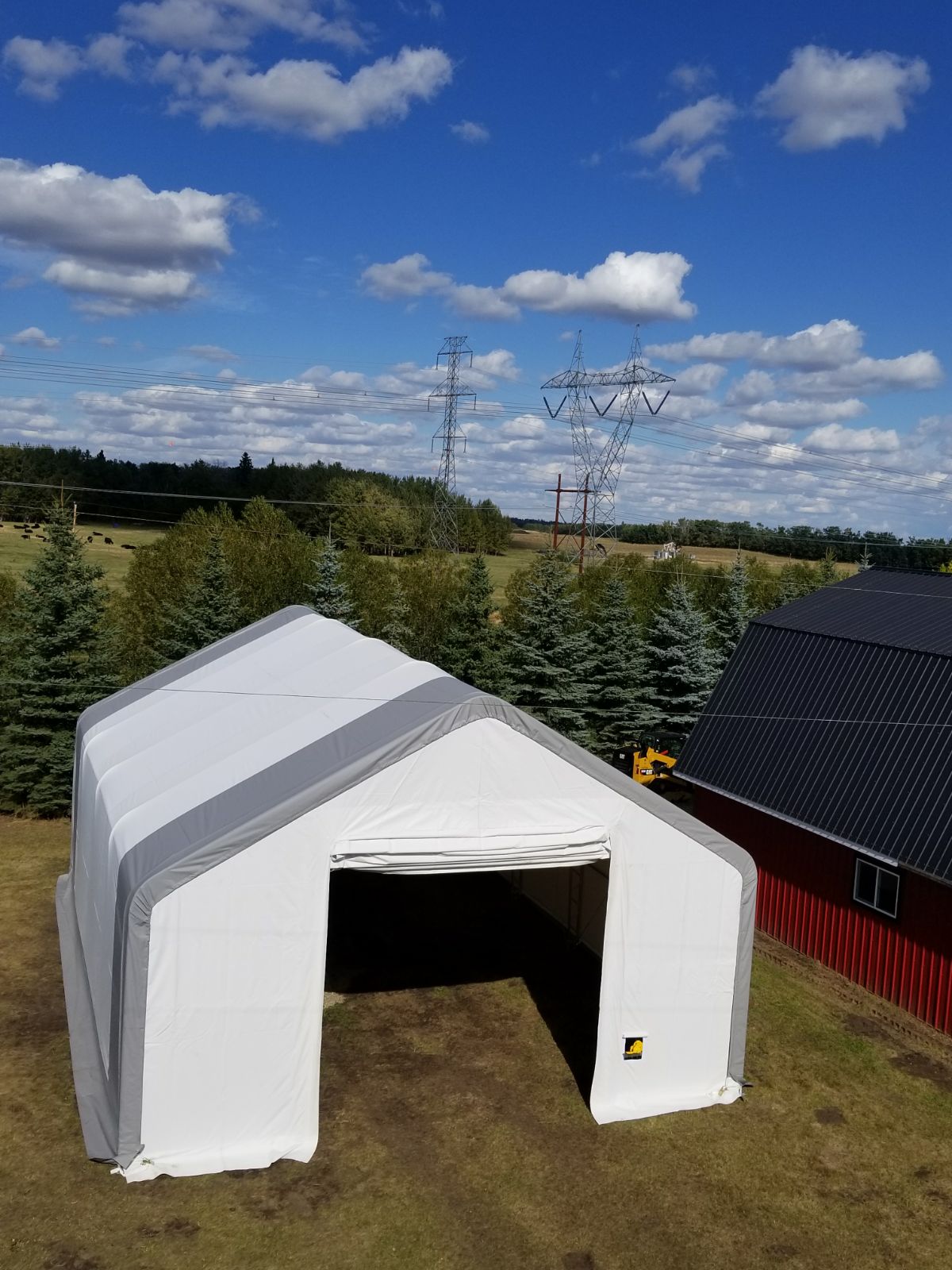

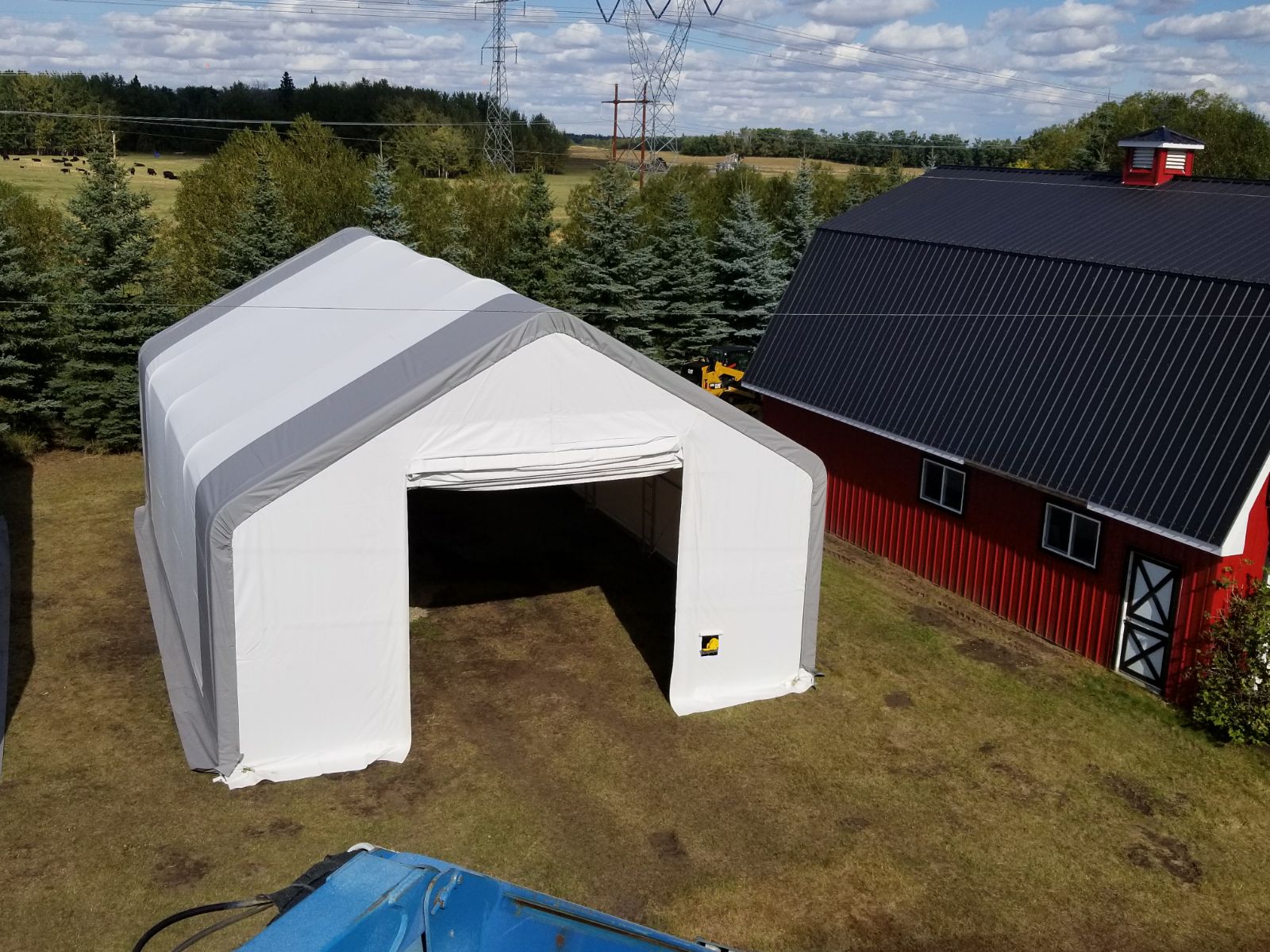

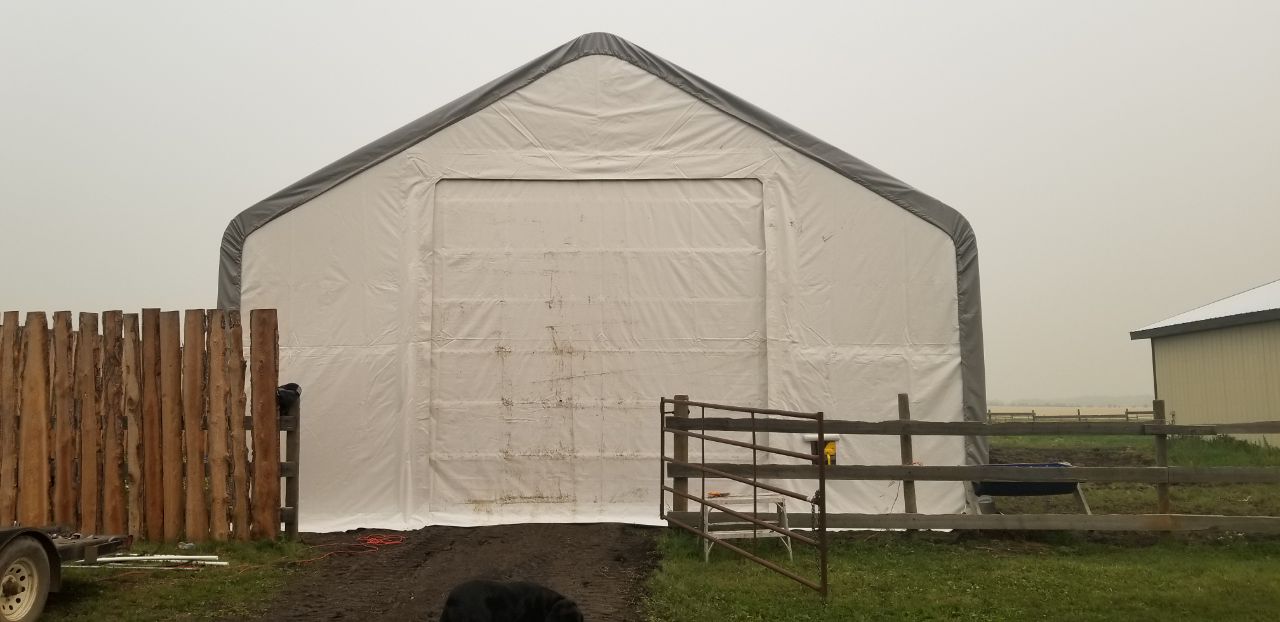

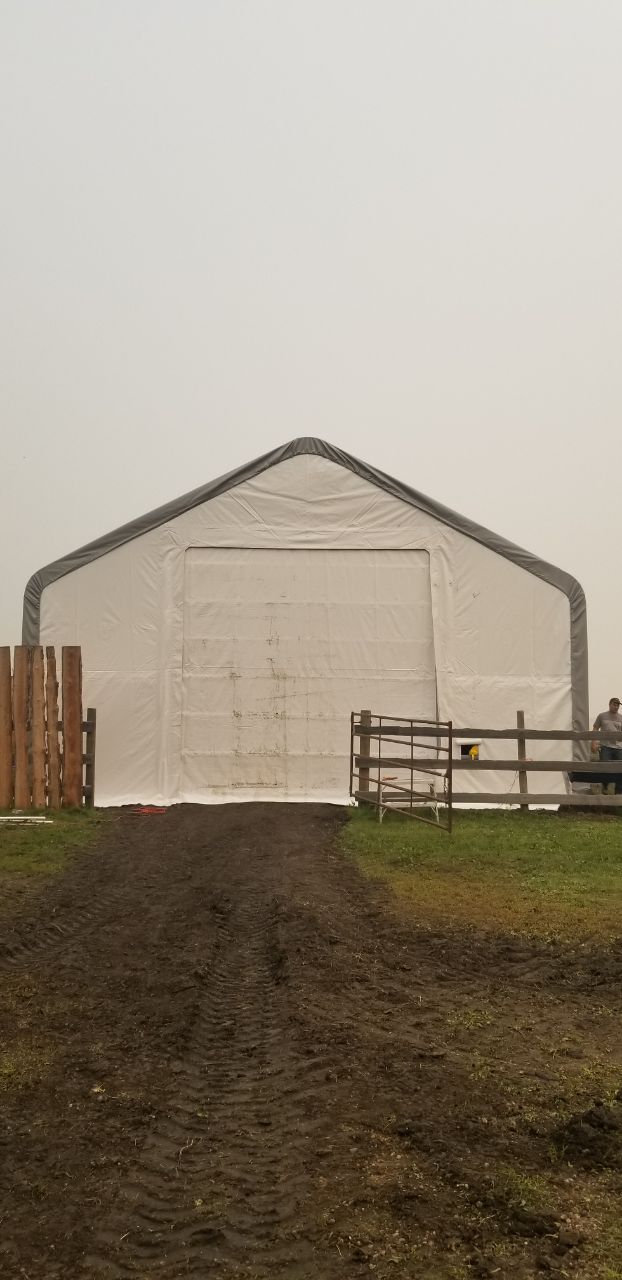

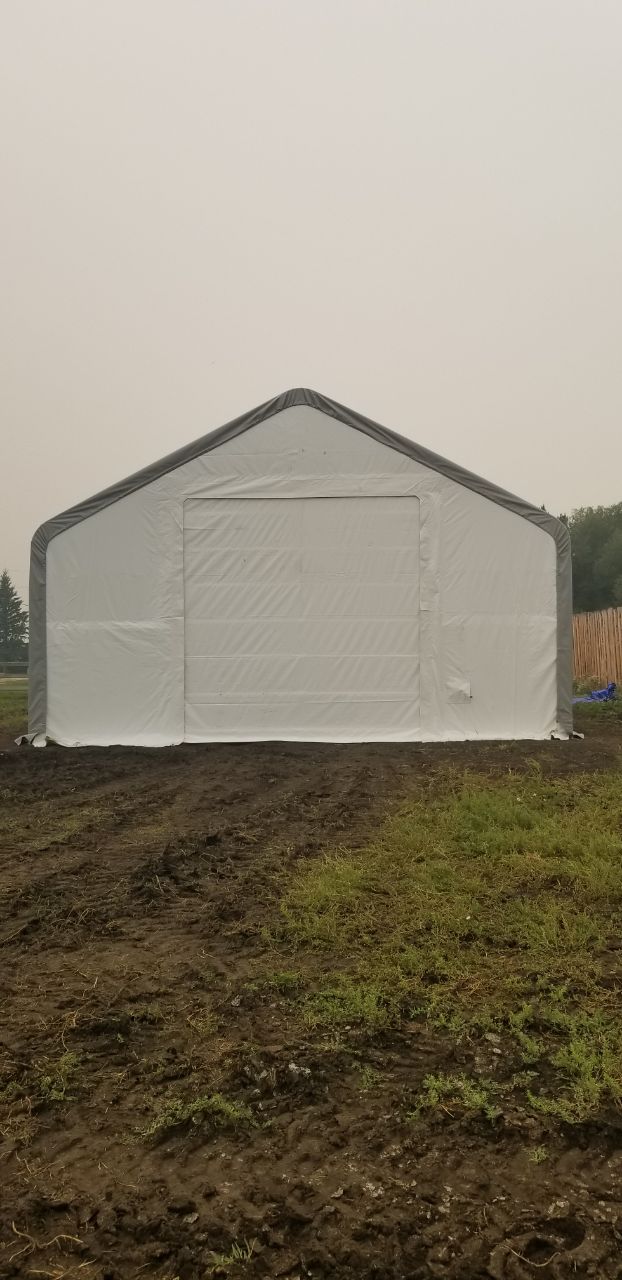

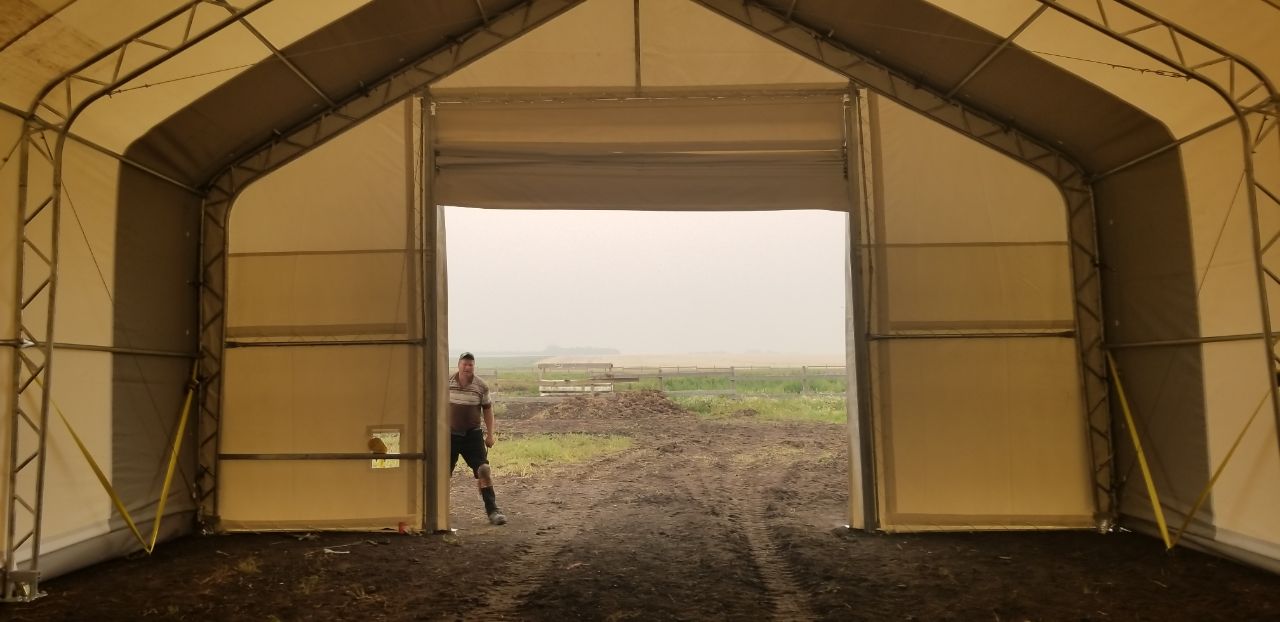

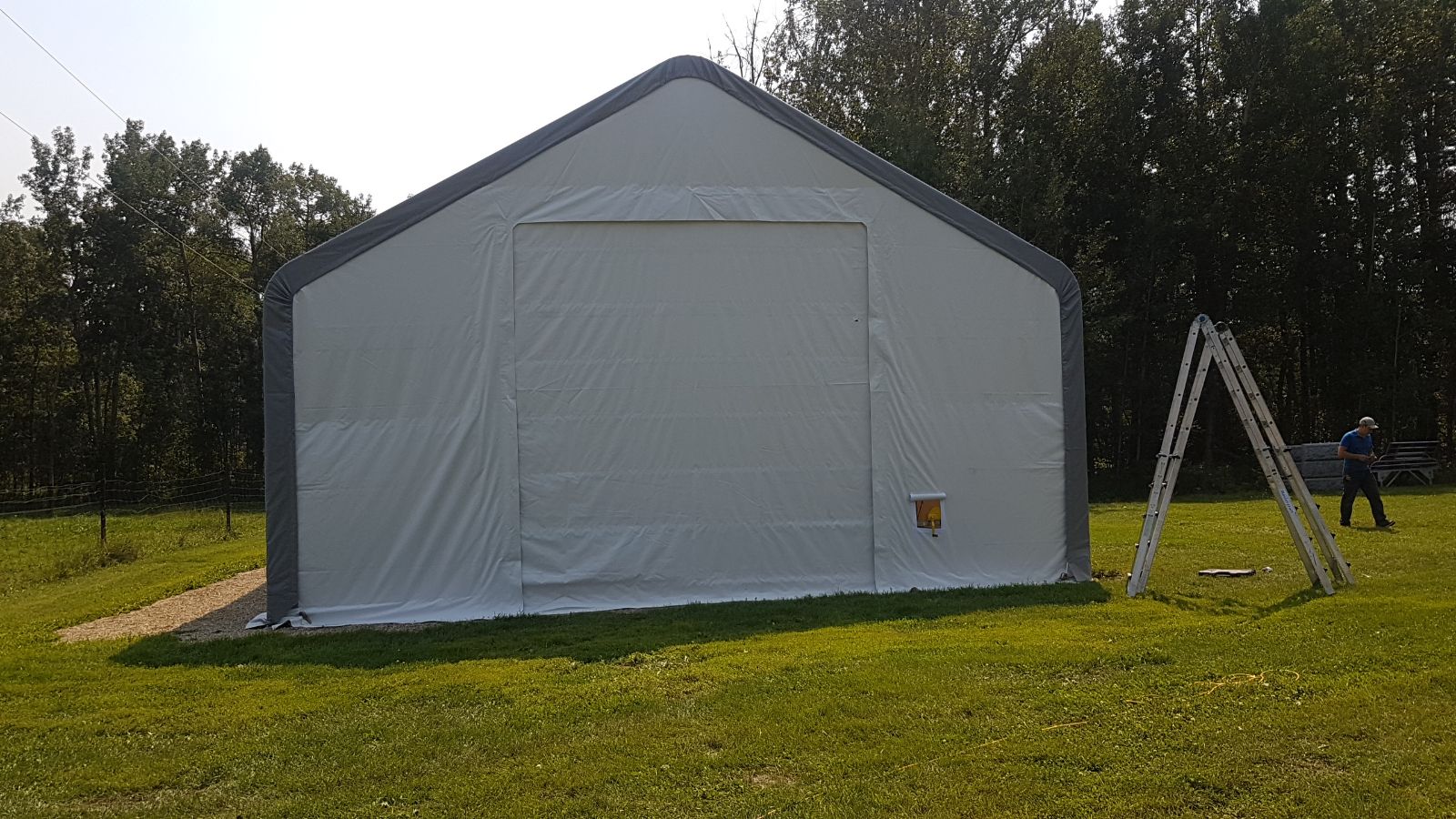

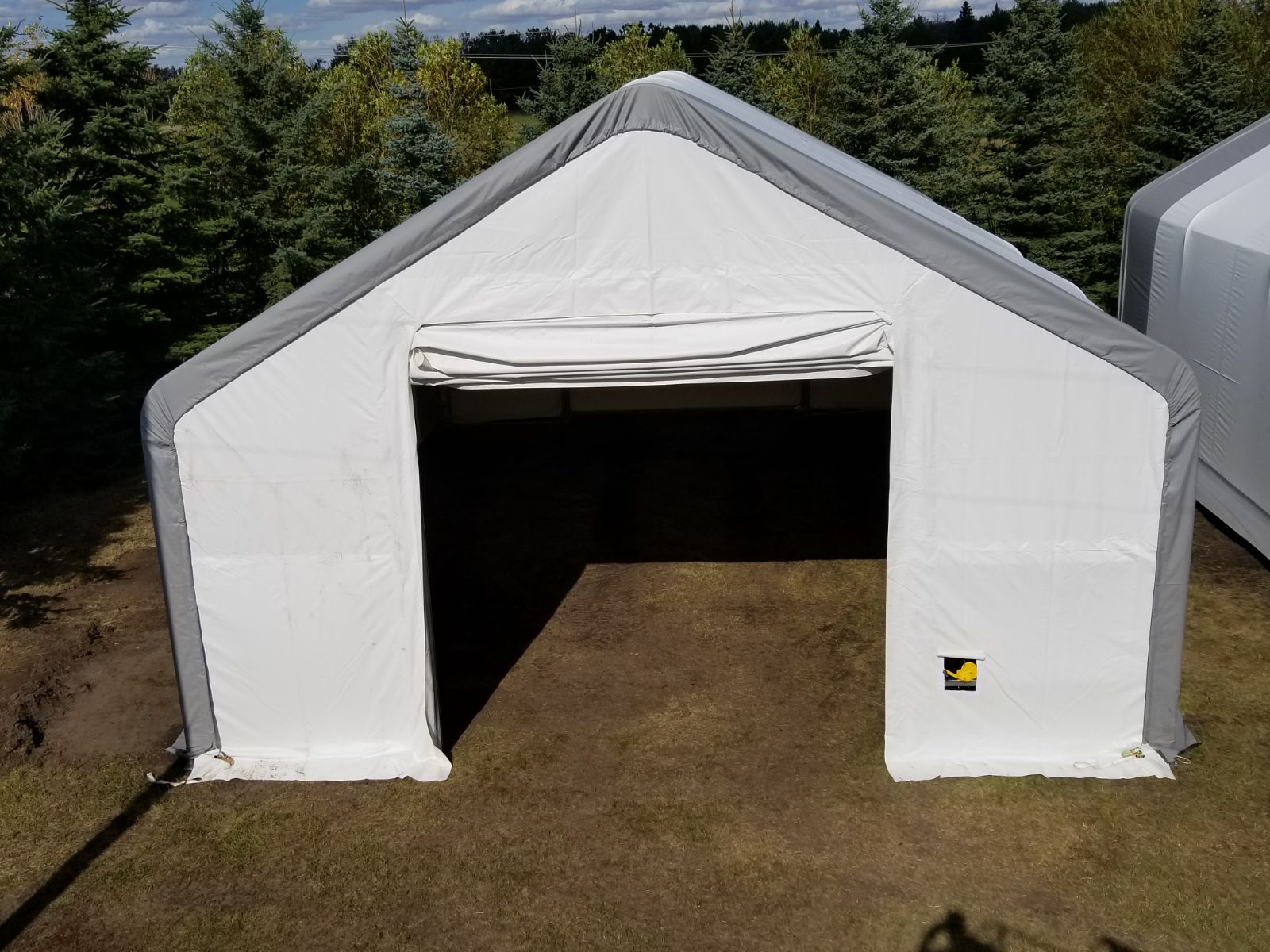

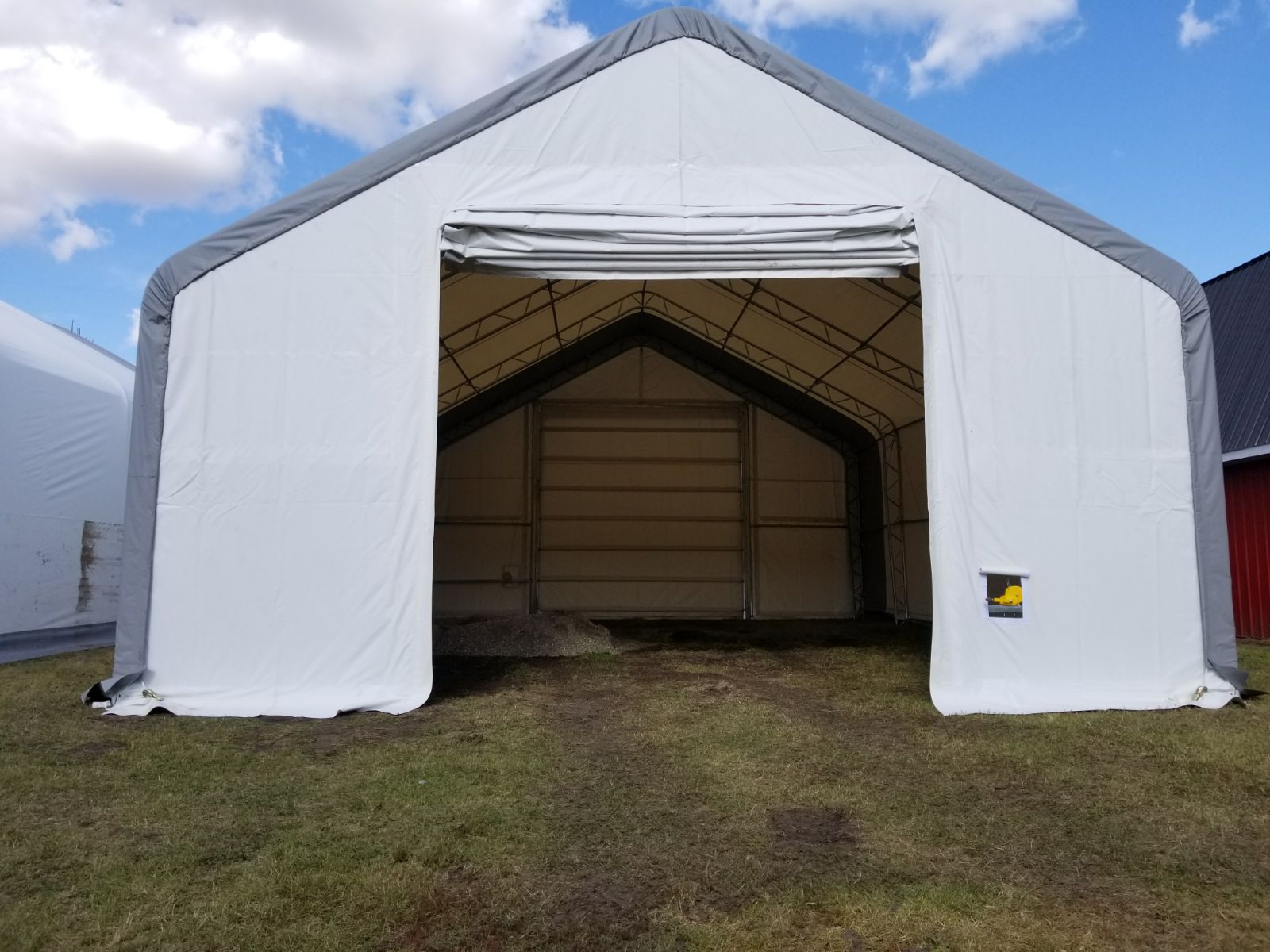

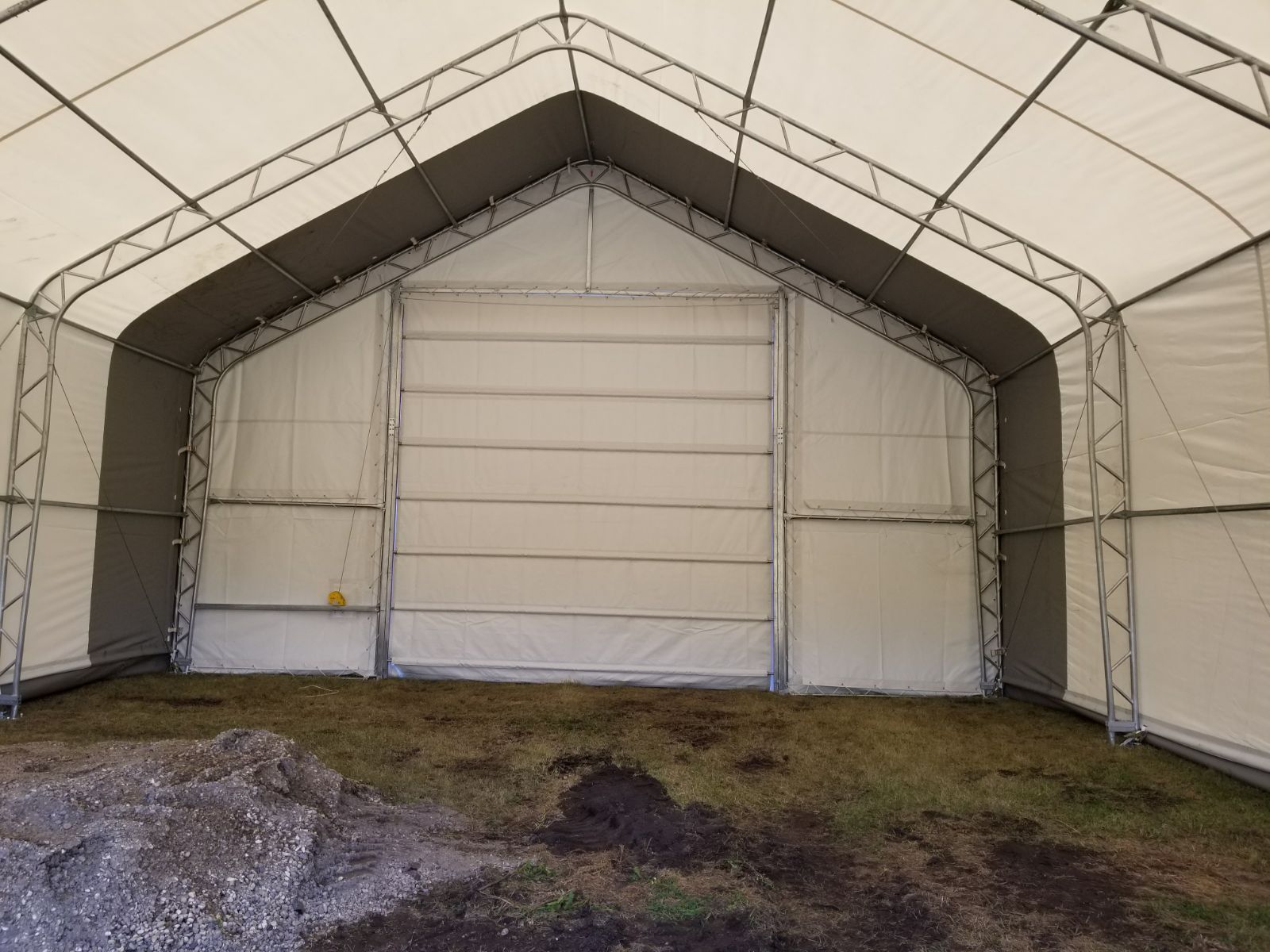

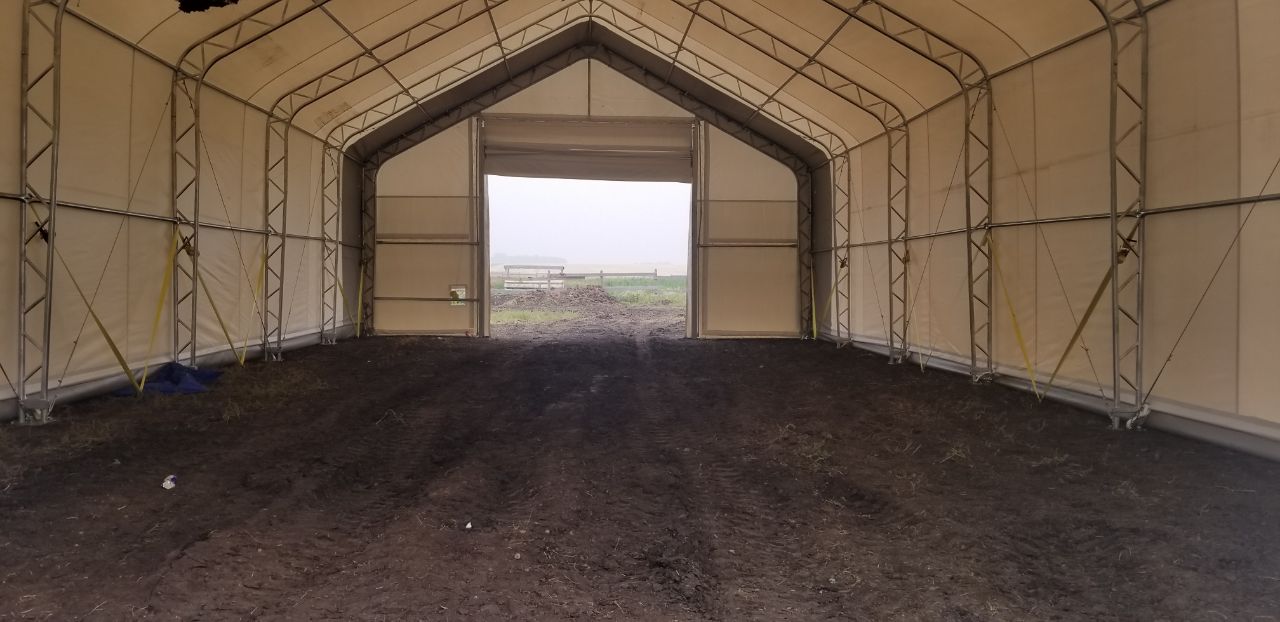

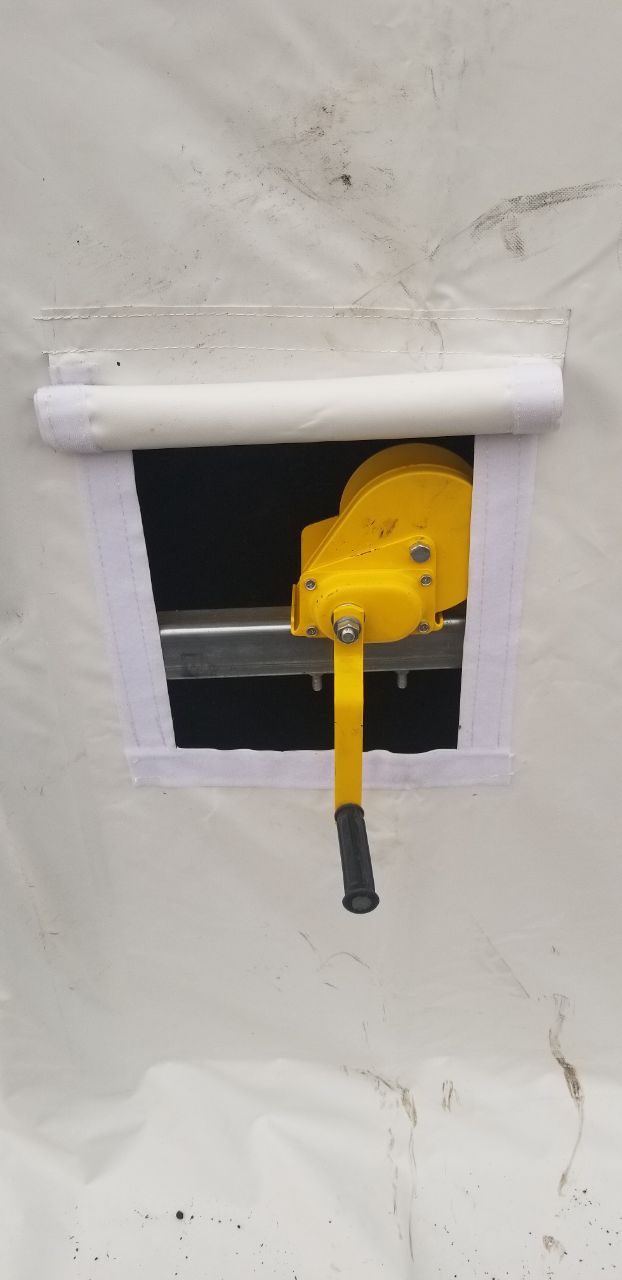

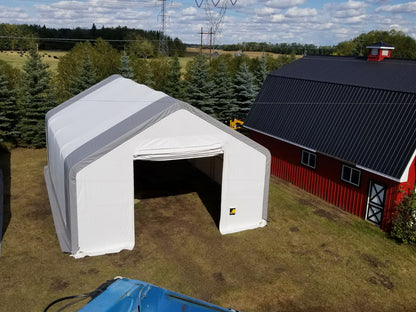

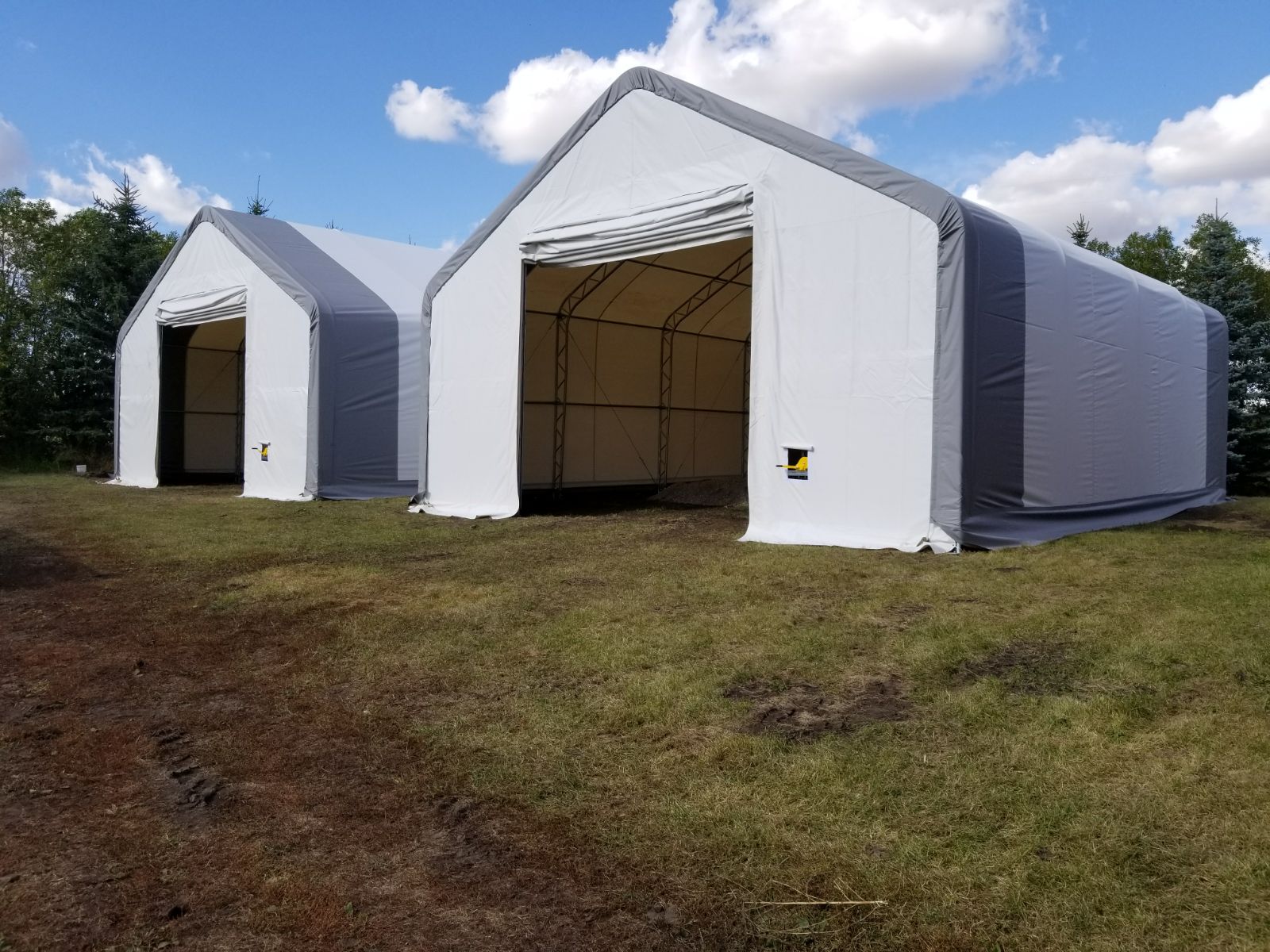

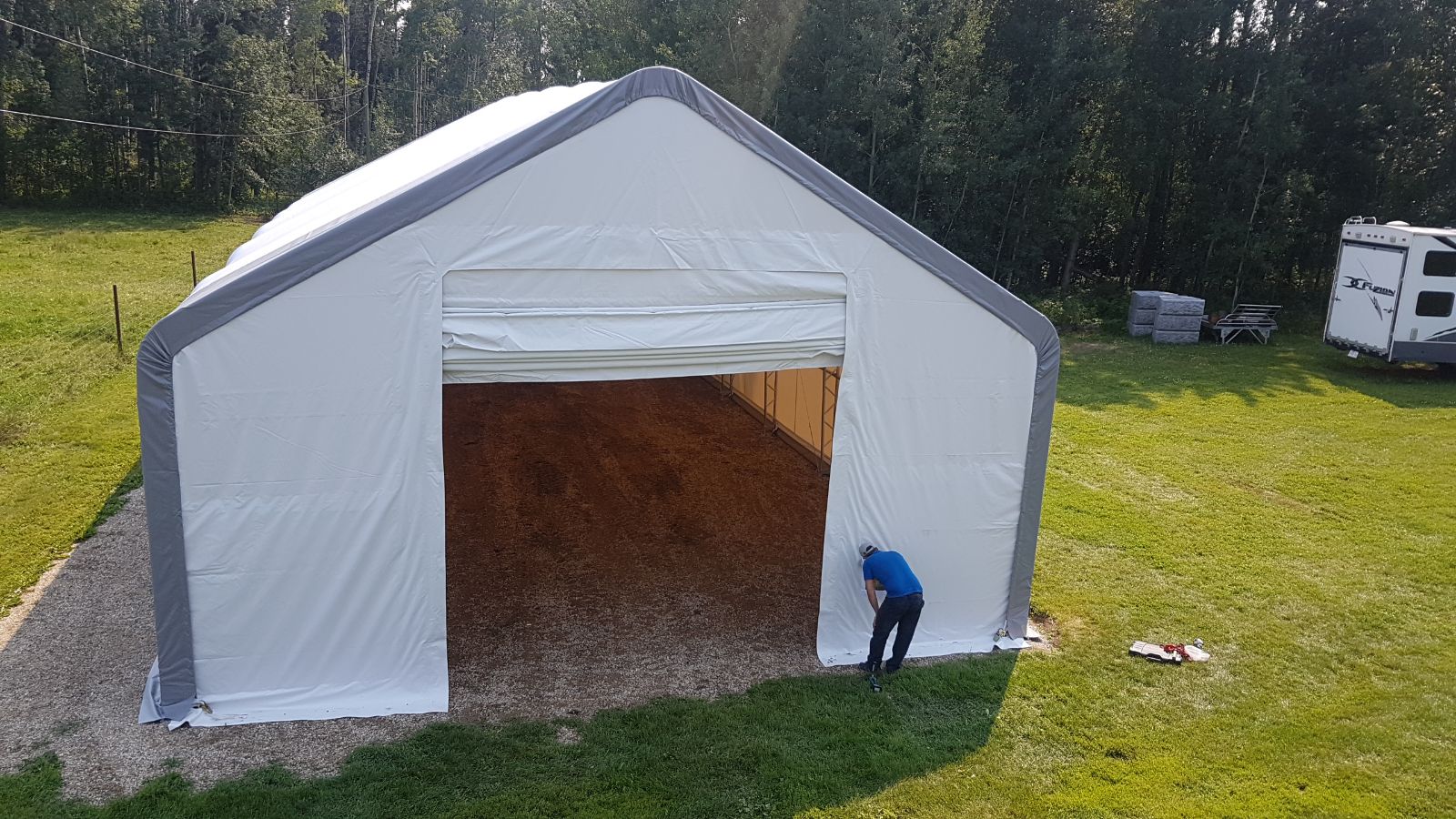

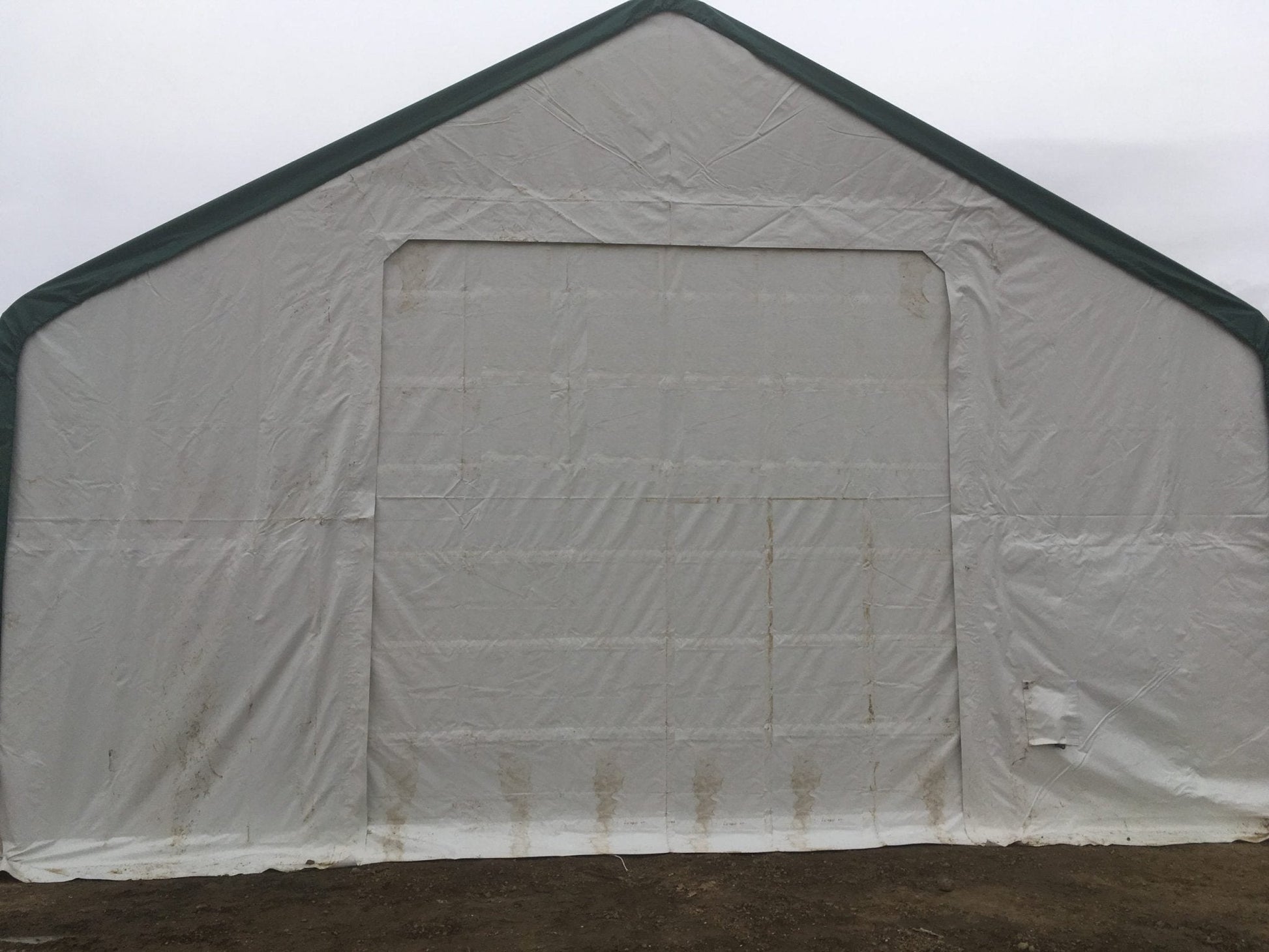

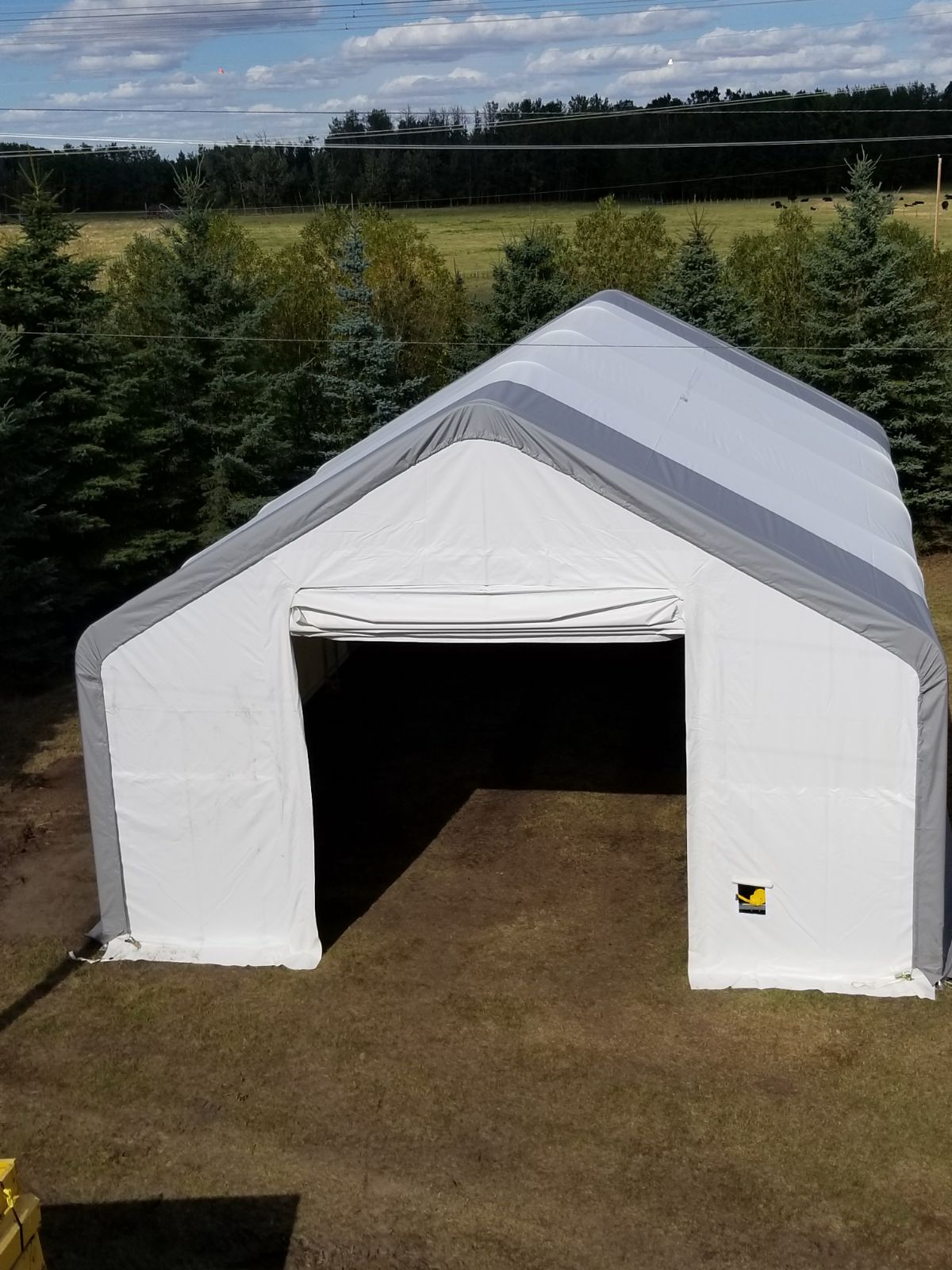

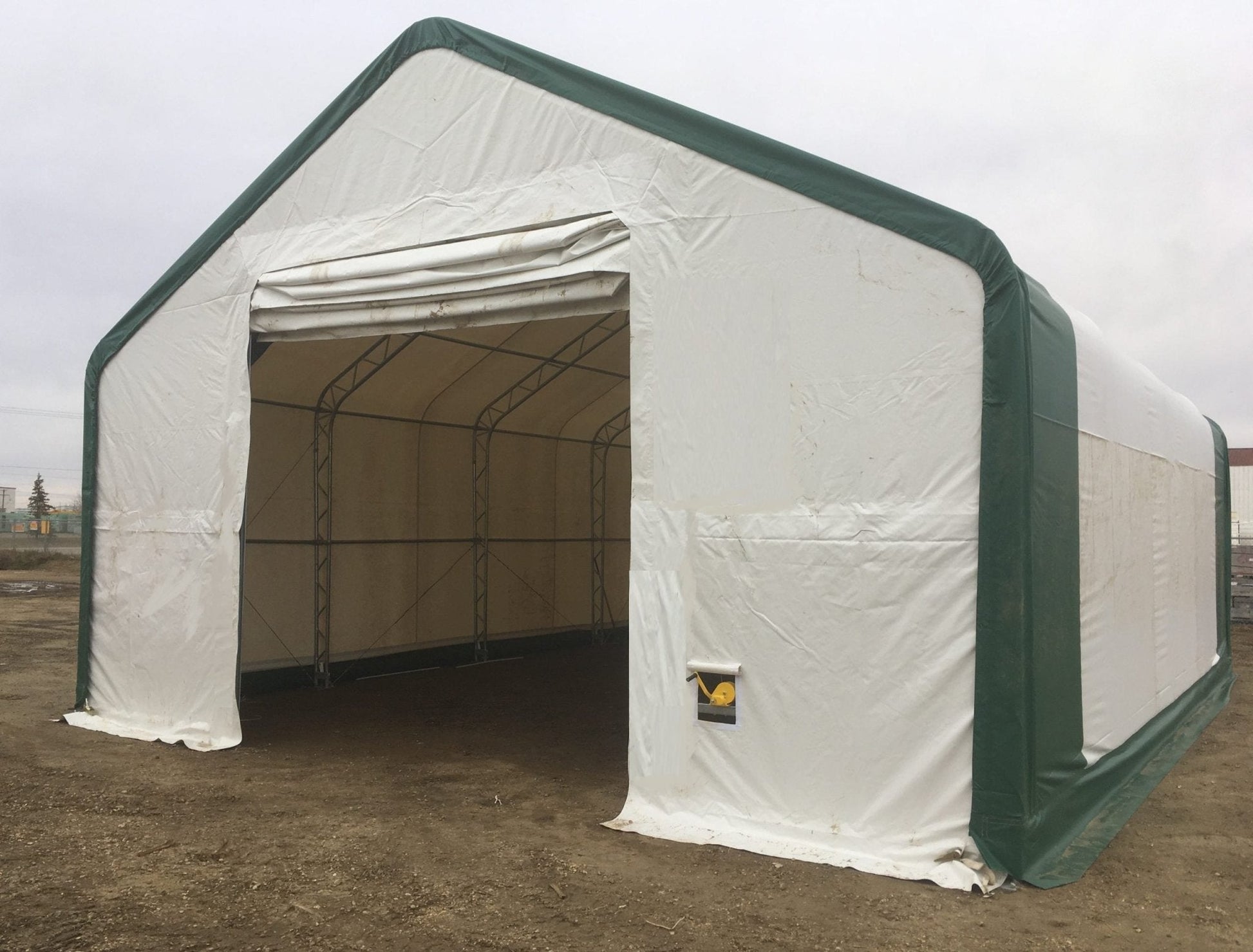

Dual Roll-Up Drive-Through Access: Equipped with high-clearance mechanical roll-up doors (4.27 m x 3.96 m) on both the front and rear panels for seamless machinery entry and exit.
-

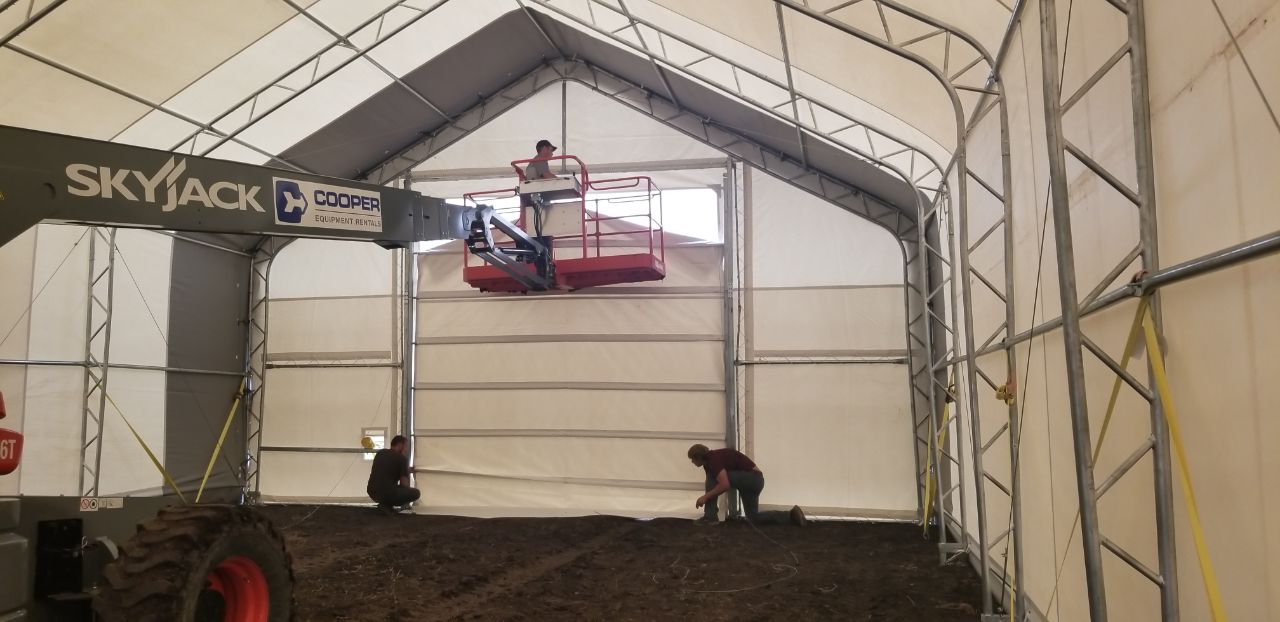

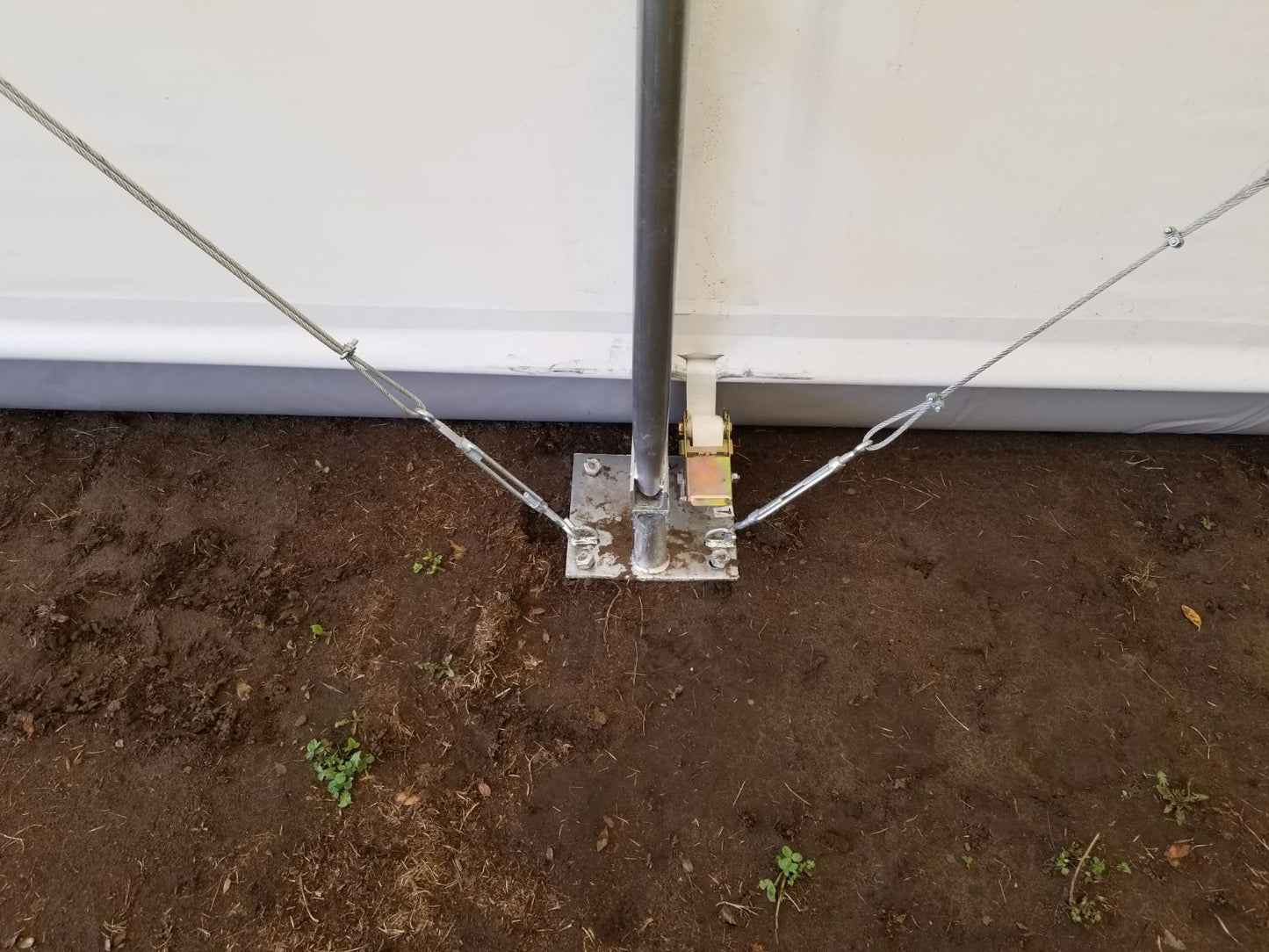

Modular Bolt-Together Assembly: Precision-engineered arches allow for efficient on-site setup, while heavy-duty steel base plates ensure secure anchoring to dirt, gravel, or concrete.
-

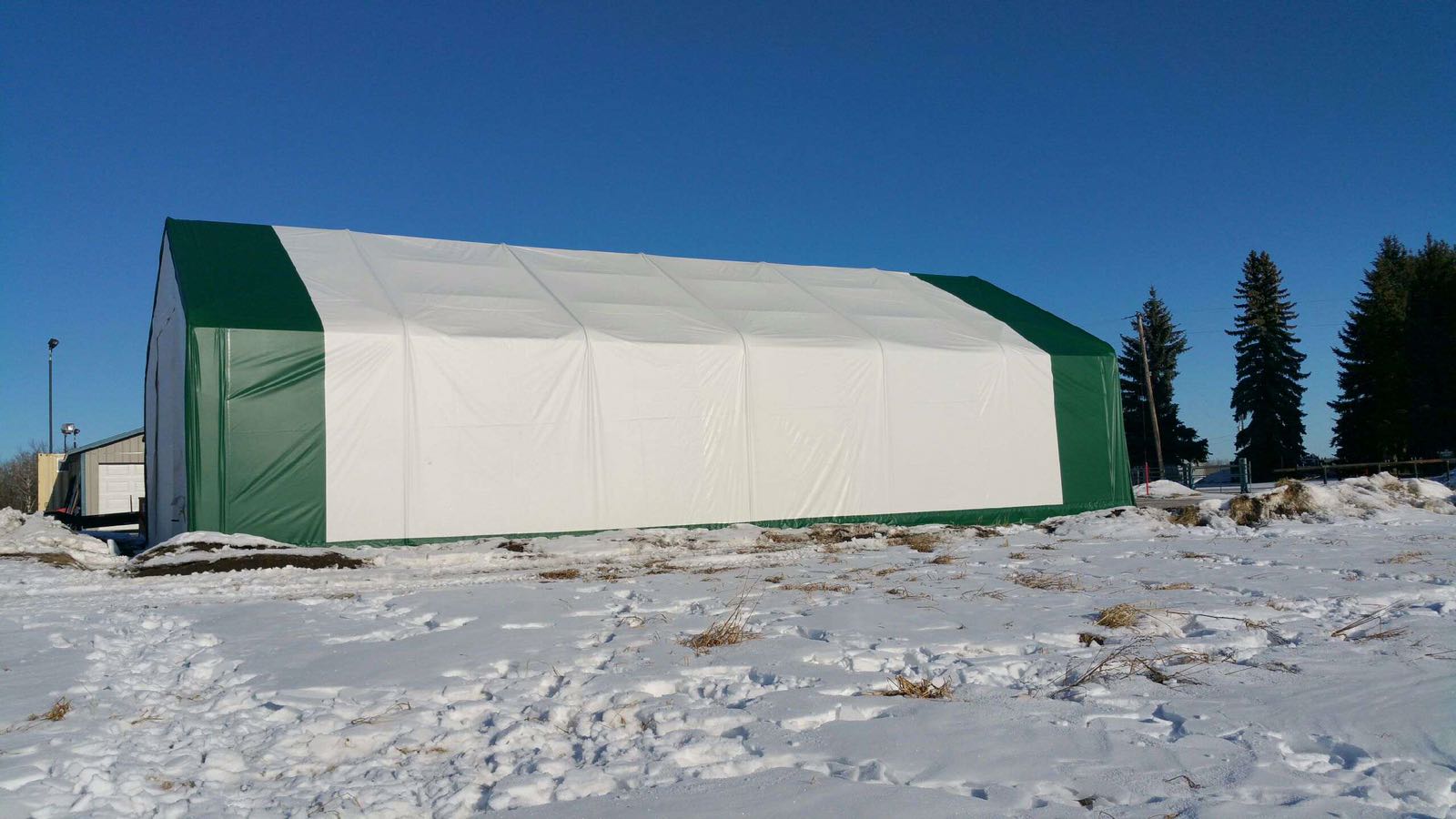

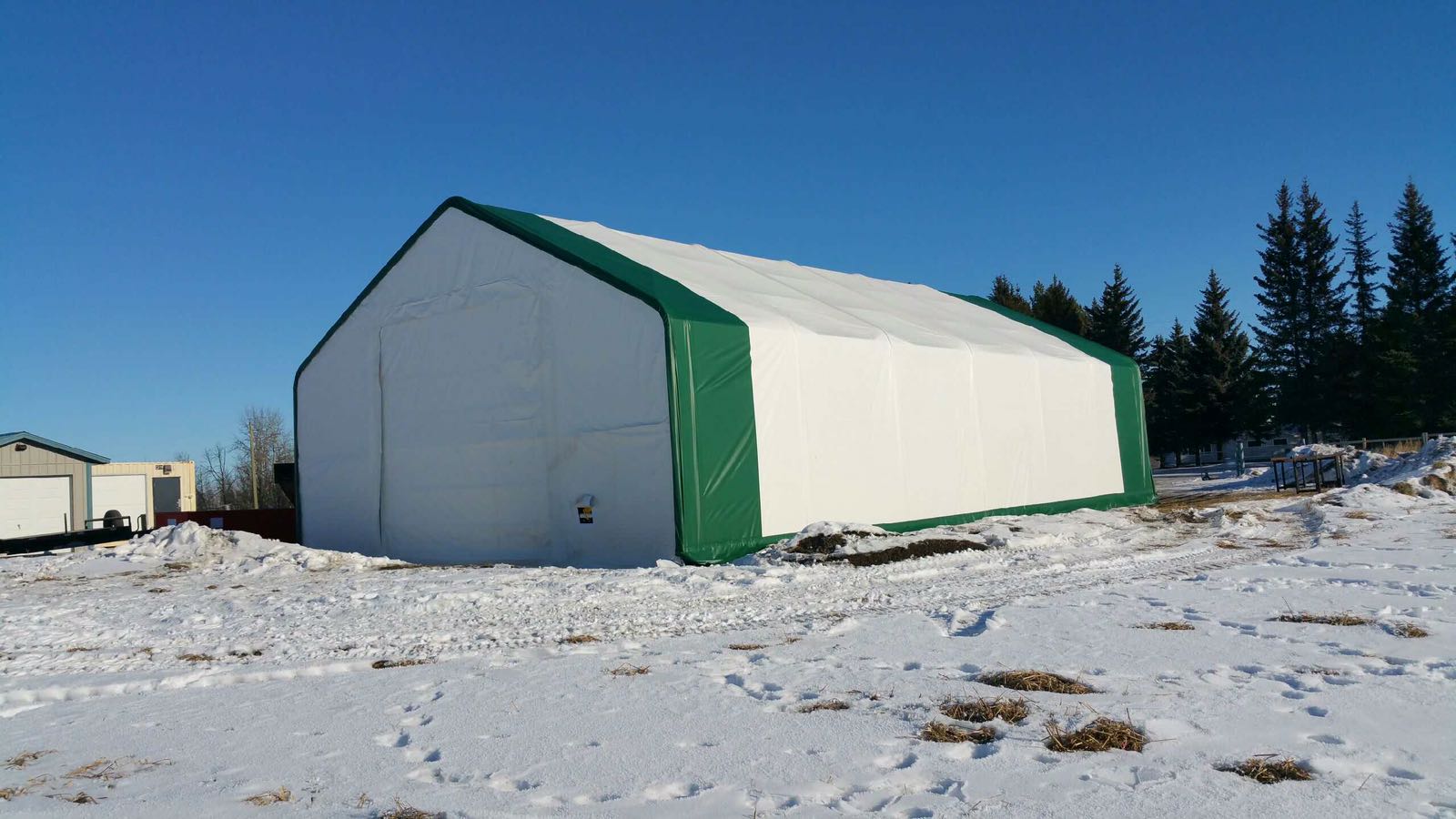

All-Season Structural Integrity: Designed for four-season performance, the double truss system is optimized for high-wind exposure and heavy-duty commercial service.
SPECIFICATIONS BY VARIANT
| Grade | Arch Spacing | Fabric Weight | Size (Metric: L x W x H) | Size (Imperial: L x W x H) | SKU |

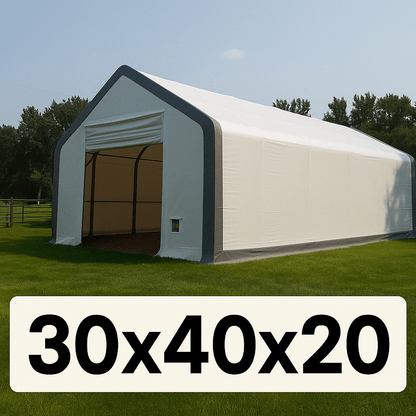

| Standard | 3.05 m (10') | 22.5 oz PVC | 12.19 x 9.14 x 6.1 m | 40 x 30 x 20 ft | P304020P |

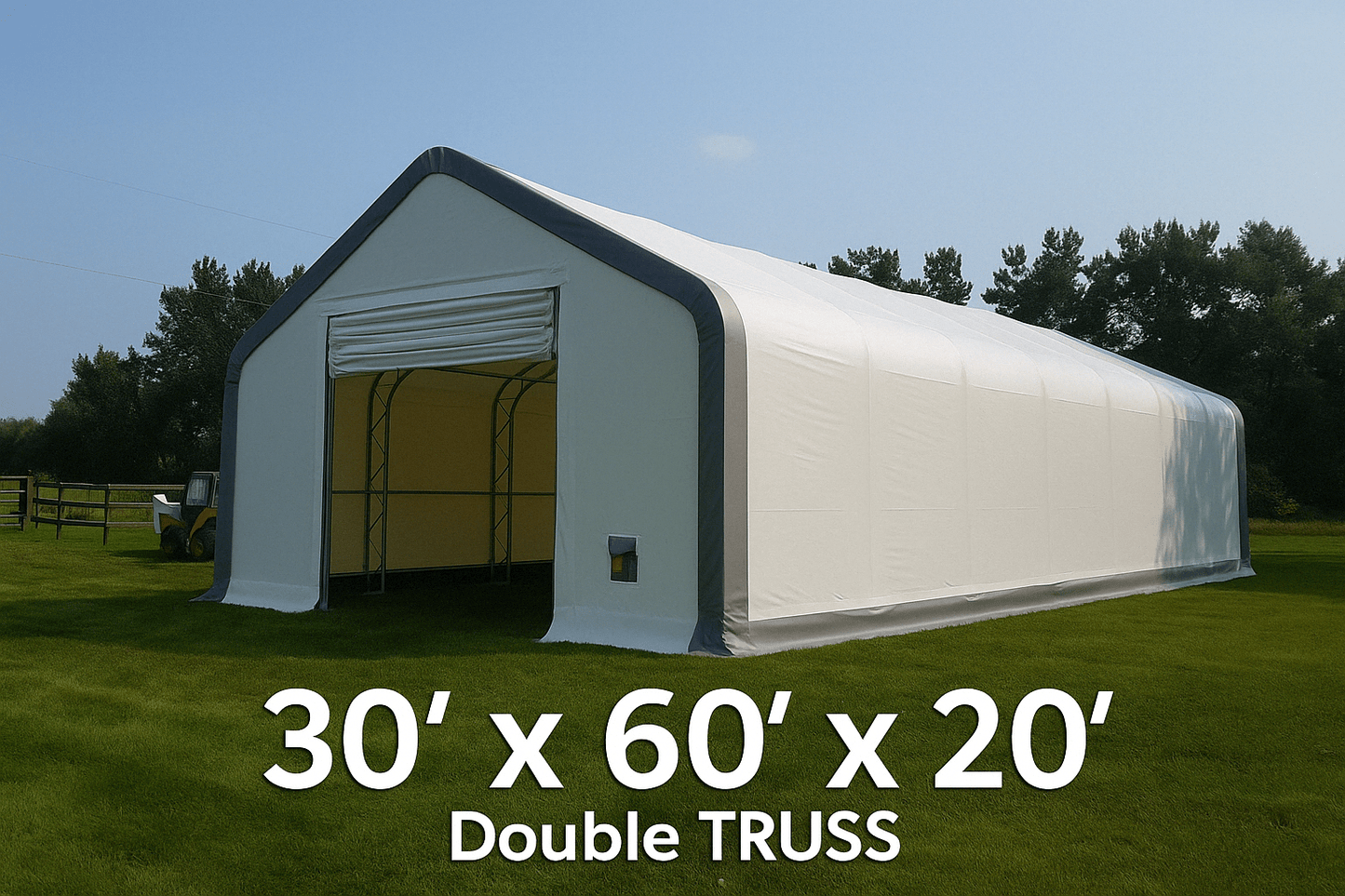

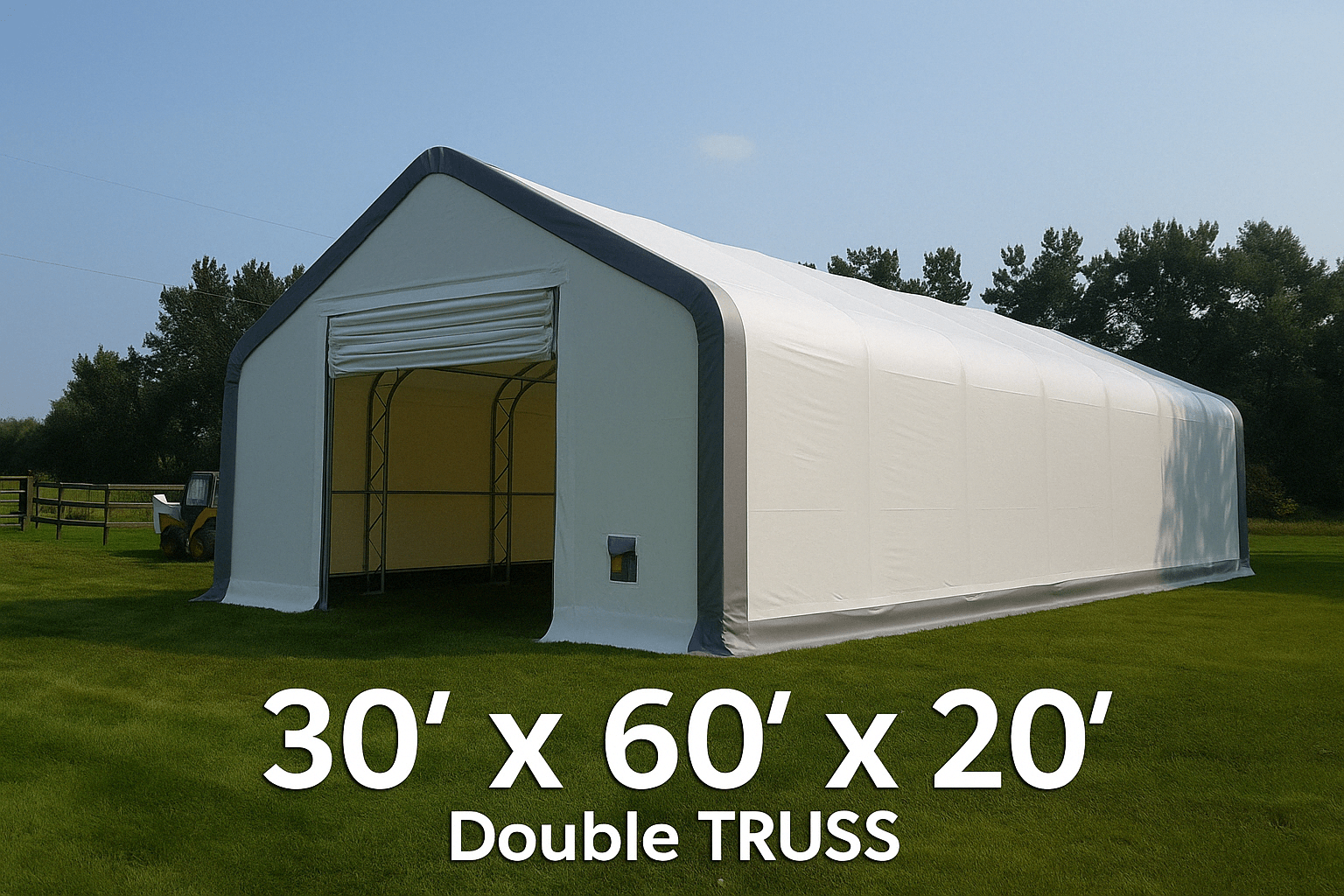

| Standard | 3.05 m (10') | 22.5 oz PVC | 18.29 x 9.14 x 6.1 m | 60 x 30 x 20 ft | P306020P |
| Standard | 3.05 m (10') | 22.5 oz PVC | 24.38 x 9.14 x 6.1 m | 80 x 30 x 20 ft | P308020P |
| HD Upgrade | 2.44 m (8') | 22.5 oz PVC | 12.19 x 9.14 x 6.1 m | 40 x 30 x 20 ft | HD304020P |
| Elite HD | 2.44 m (8') | 26.5 oz PVC | 12.19 x 9.14 x 6.1 m | 40 x 30 x 20 ft | HD304020P750 |
| Elite HD | 2.44 m (8') | 26.5 oz PVC | 19.51 x 9.14 x 6.1 m | 64 x 30 x 20 ft | HD306420P750 |
| Elite HD | 2.44 m (8') | 26.5 oz PVC | 24.38 x 9.14 x 6.1 m | 80 x 30 x 20 ft | HD308020P750 |
TECHNICAL DATA
-
Frame Material: 60 mm (2 3/8") Hot-dip galvanized double-truss steel
-
Peak Height: 6.1 m (20')
-
Door Dimensions: 4.27 m W x 3.96 m H (14' x 13')
-
Fabric Properties: 100% Waterproof, UV-resistant, Frost-proof, Flame-Retardant
- Packaging (Model P308020P): 3124 x 1118 x 1422 mm (123" L x 44" W x 56" H) | Weight: ~2,000 kg (4,410 lbs)
IDEAL APPLICATIONS
-
Heavy Machinery Garages – High-clearance storage for tractors, combines, and construction loaders.
-
Industrial Fabrication Workshops – Creating a dry, protected environment for on-site manufacturing and assembly.
-
Agricultural Supply Hubs – Storing large-scale hay volumes, feed supplies, and fertilizer.
-
Commercial Fleet Logistics – Drive-through depots for trucks, trailers, and transportation equipment.
