36 x 60 FT Heavy Duty Stacking Conveyor for Mining, Recycling, Aggregates SU25602
🚚 Adjustable Folding Conveyor System – High-Capacity, High-Elevation Stacker
Engineered for Efficiency. Built for Portability.

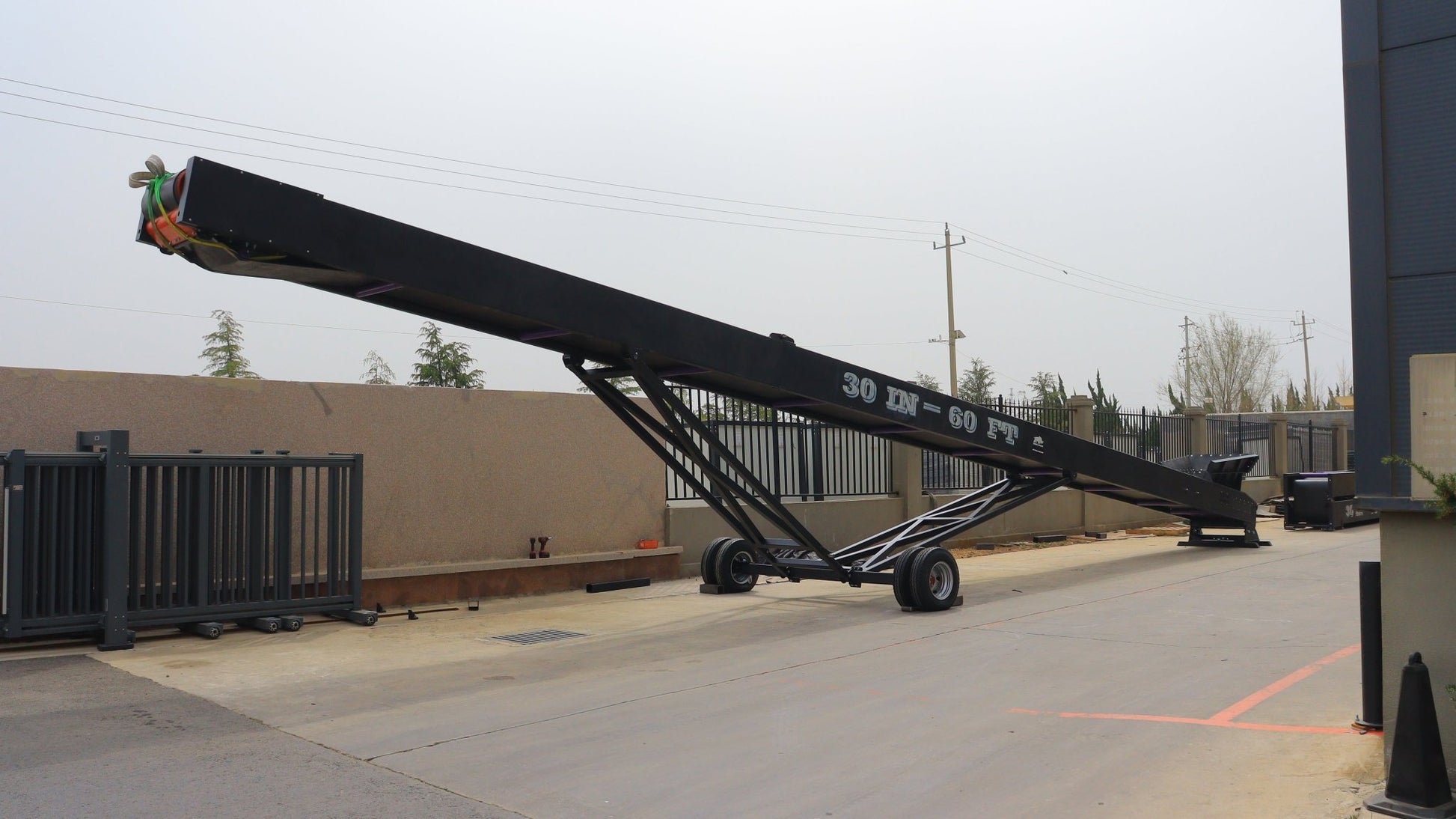

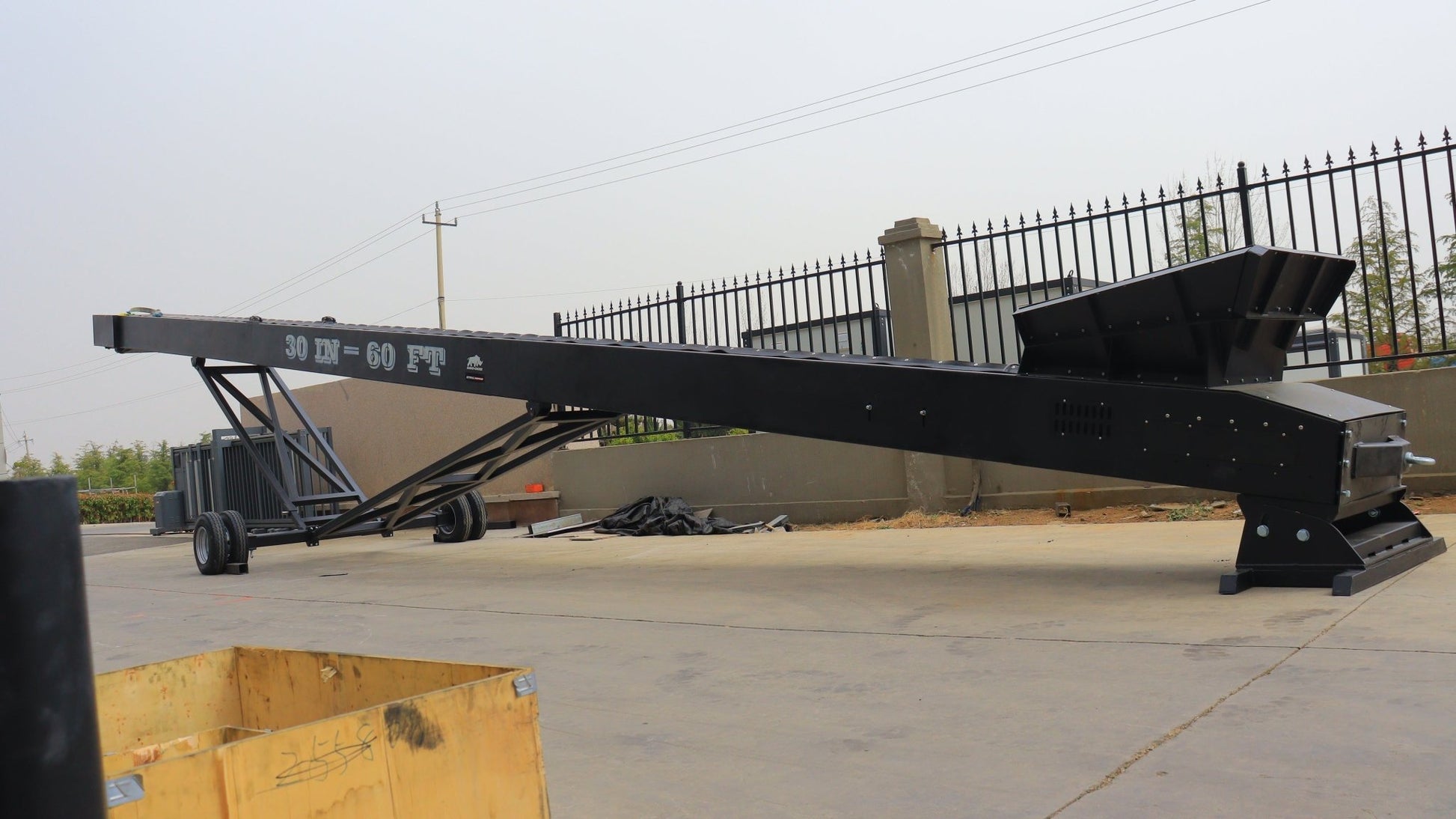

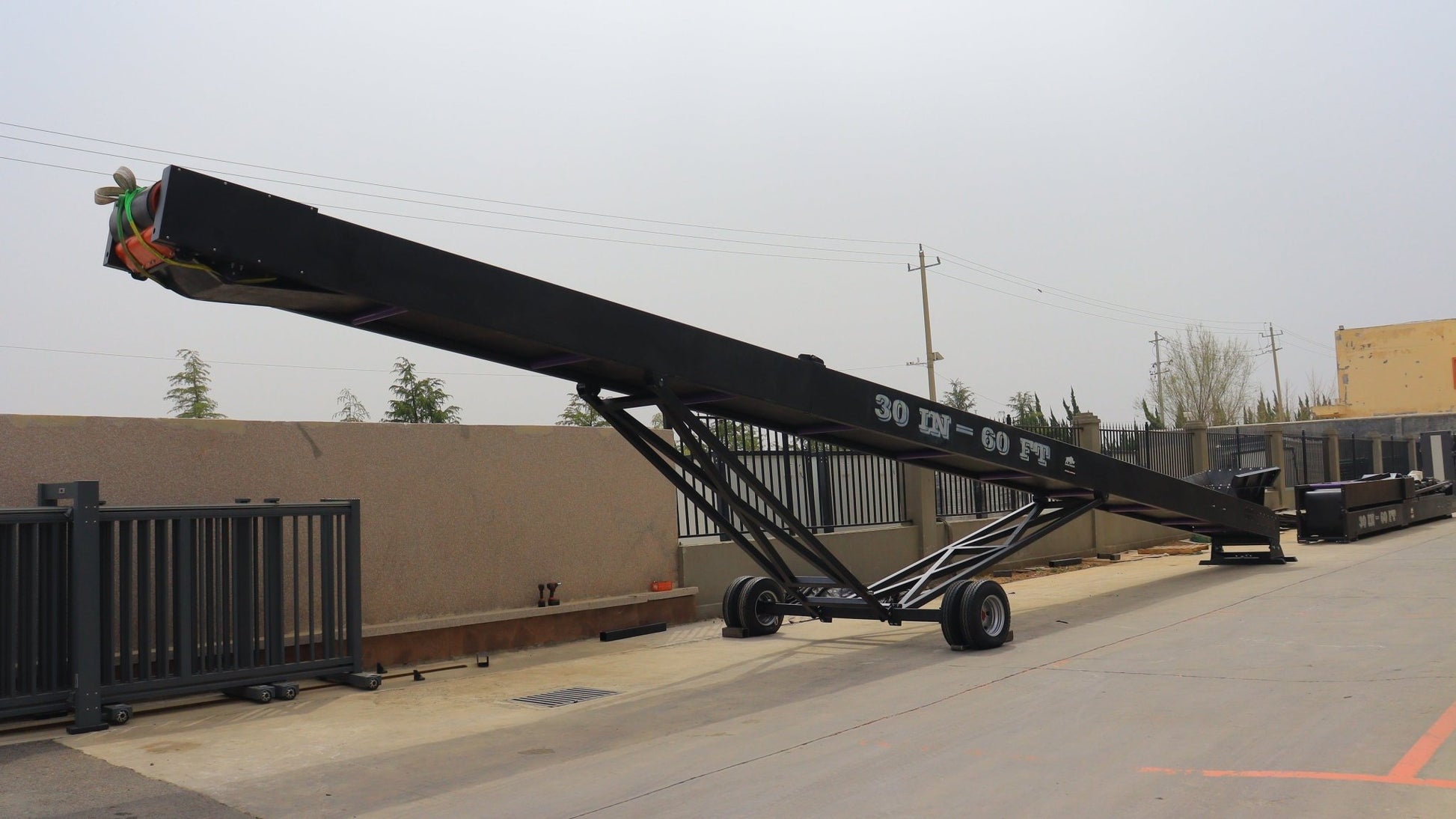

This heavy-duty folding conveyor is designed for bulk material handling in high-volume operations such as aggregate yards, recycling centers, and construction sites. With an adjustable incline from 10° to 20°, a rugged Q345 steel frame, and high-speed endless belt, this conveyor delivers smooth, controlled stacking up to 22 ft high then folds down compactly for transport.
📦 Key Specifications:

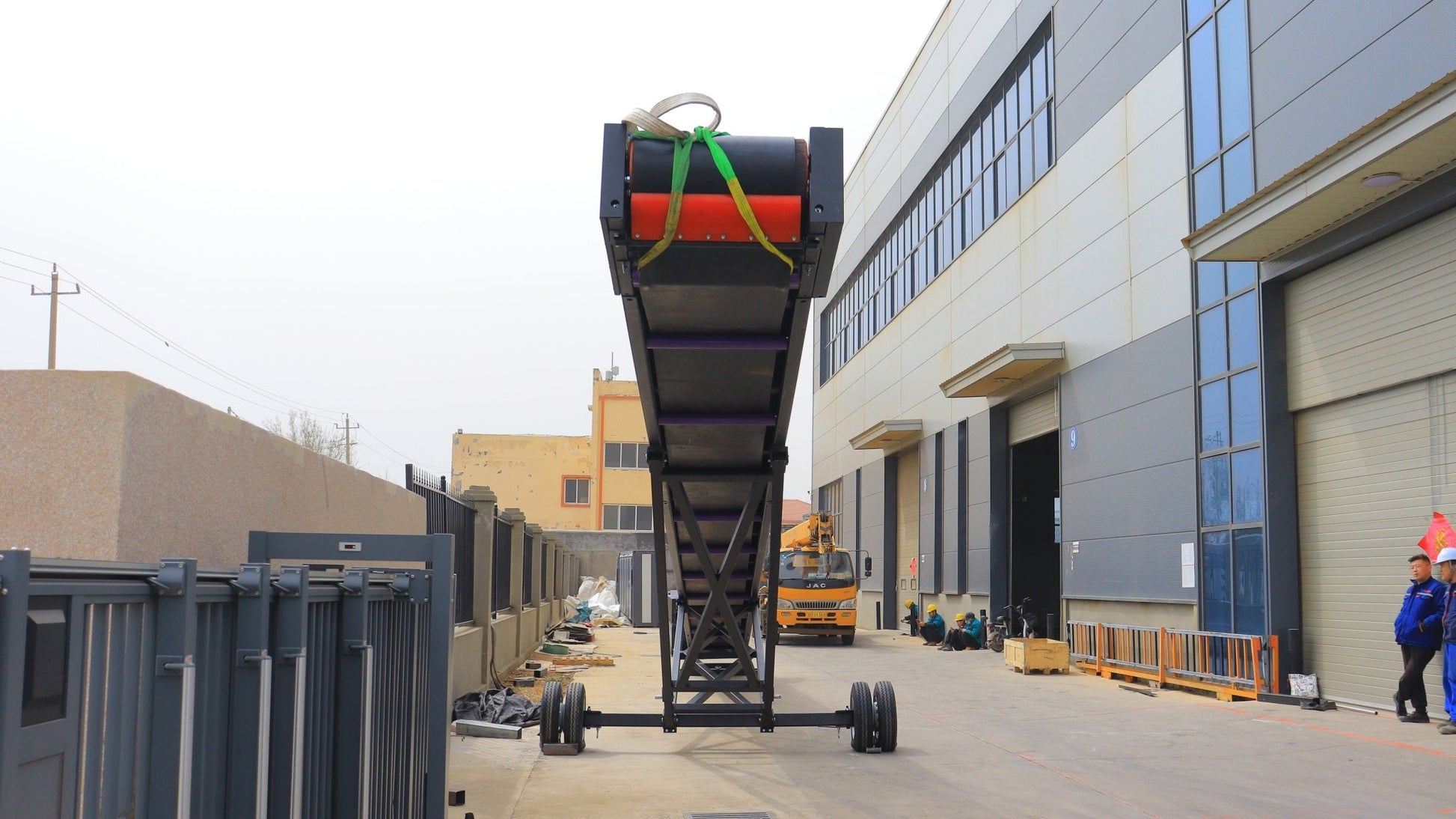

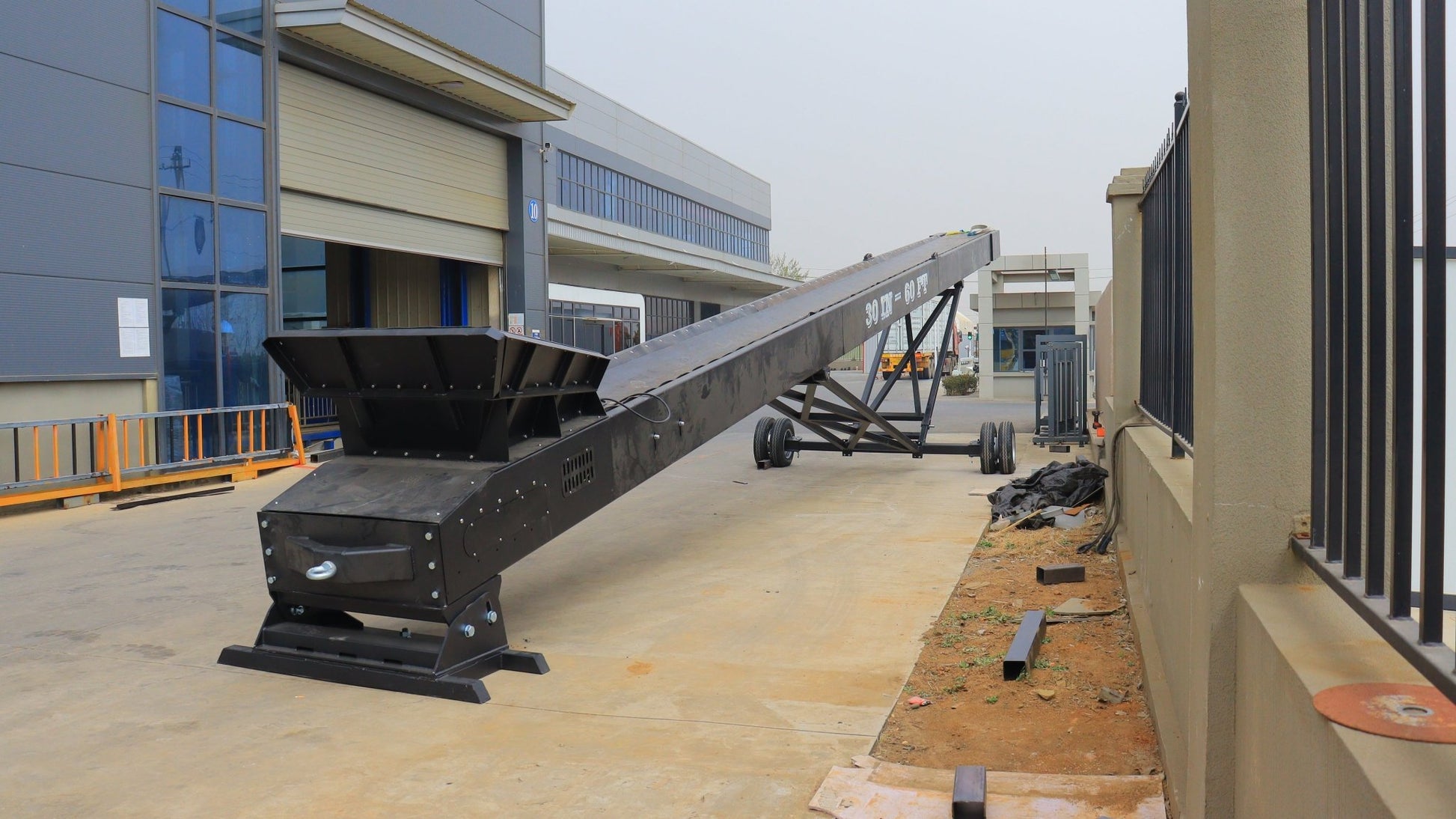

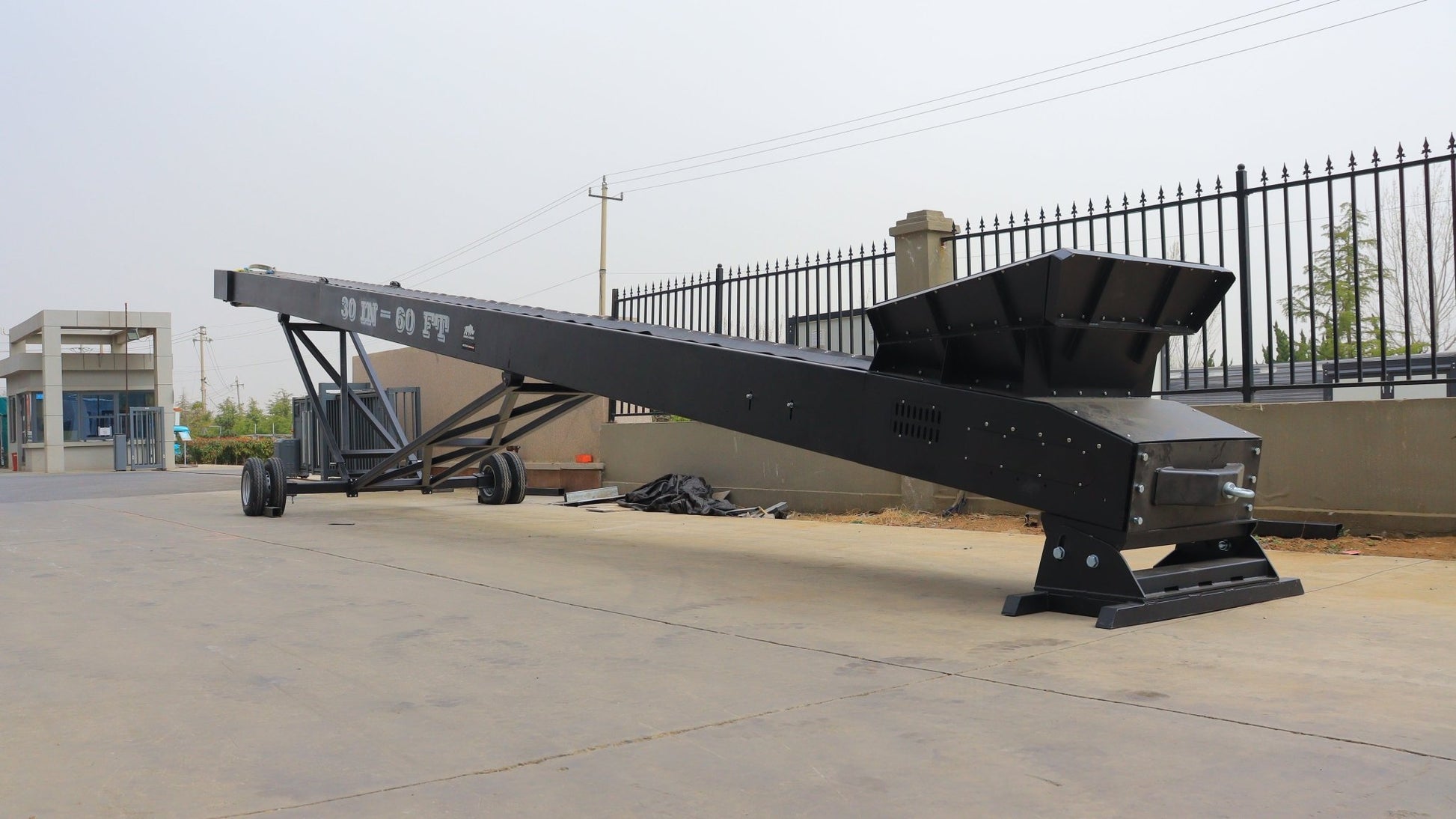

Deployed Dimensions:
-
Minimum Elevation: 60 ft (L) × 12 ft (W) × 13 ft (H)
-
Maximum Elevation: 60 ft (L) × 12 ft (W) × 22 ft (H)
-
Angle Range: Adjustable from 10°–20°

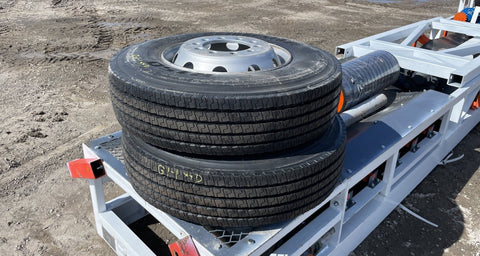

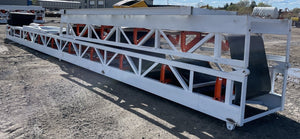

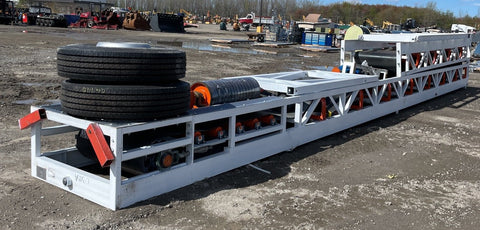

Folded for Transport:
-
Compact Size: 40 ft (L) × 4 ft (W) × 8 ft (H)
-
Fits 2 units per pallet
-
Shipping Container Capacity: 4 units per container
Weight: 3,500 kg
Frame: High-strength Q345 Structural Steel
Conveyor Belt: Endless, 750 mm wide
Max Belt Speed: 1.2 m/s

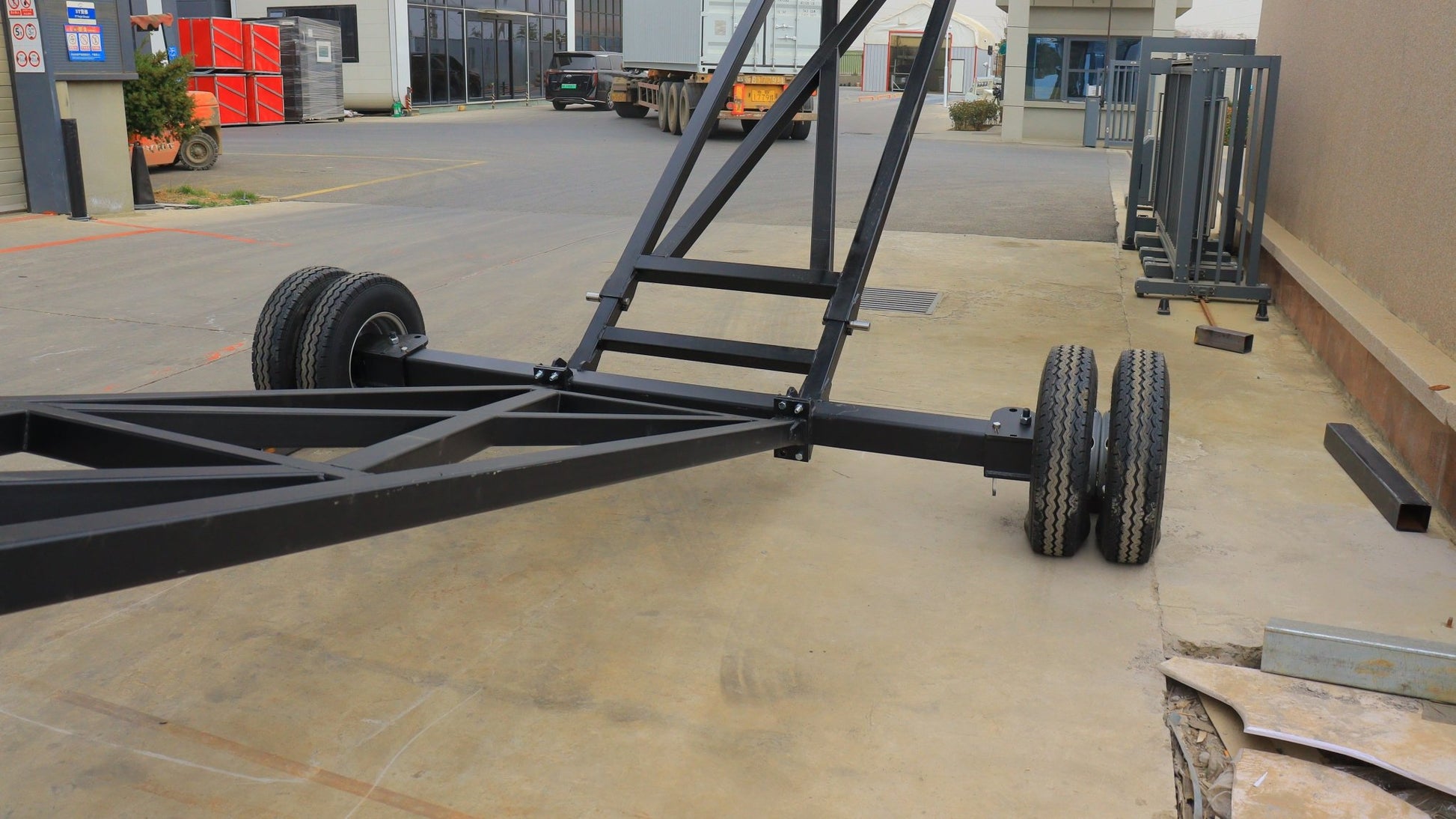

Axle Width: 12 ft (3,500 mm)
🛠️ Component Breakdown:
| Part | Specification |
|---|---|
| Drive Roller | 350×820 mm, rubber-coated, live shaft |
| Return Roller | 350×820 mm, rubber-coated |
| Head & Tail Cleaners | Red polyurethane blades (straight & V-shaped) |
| Idler Rollers | Upper: 89×260 mm, Lower: 89×812 mm |
| Motor | Integrated gear-reduction motor (MCV2132M-4), 7.5 kW |
| Cabling | 3×4 + 1×2.5 mm² copper, OT-100A/OT-40A terminal lugs |
✅ Ideal For:
-
Aggregate stockpiling & truck loading
-
Demolition & recycling site operations
-
Portable jobsite conveyor systems
-
Efficient material transfer in construction zones
🧰 Fold. Deploy. Stack with Power.
This portable stacker is your all-in-one solution for high-volume material movement with minimal downtime and maximum mobility.
