Professional 15.24 m (50') Wide Double Truss Industrial Storage Building – Elite PVC Shelter
Extreme-Duty Reinforced Engineering for Large-Scale Warehousing, Logistics, and Heavy Industrial Operations

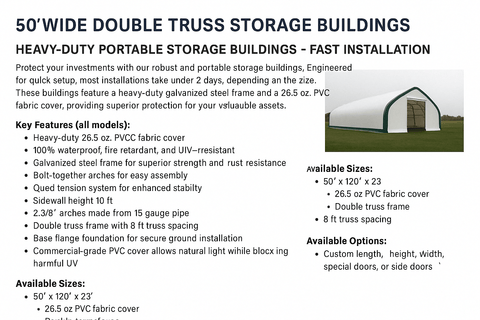

OVERVIEW

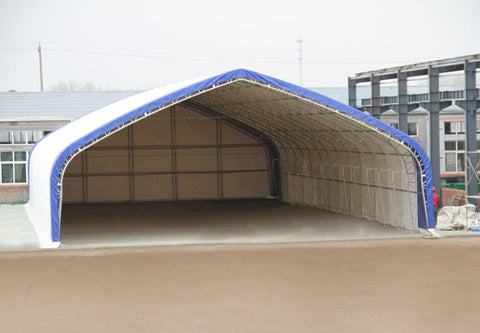

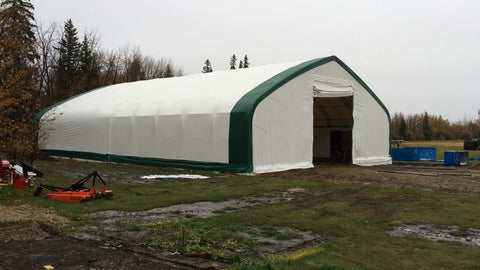

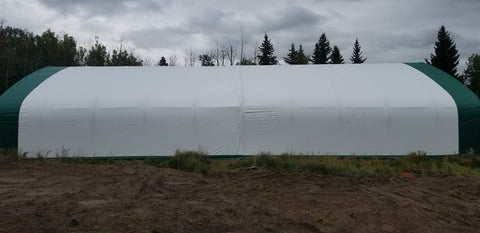

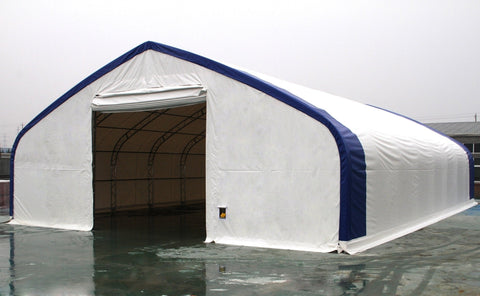

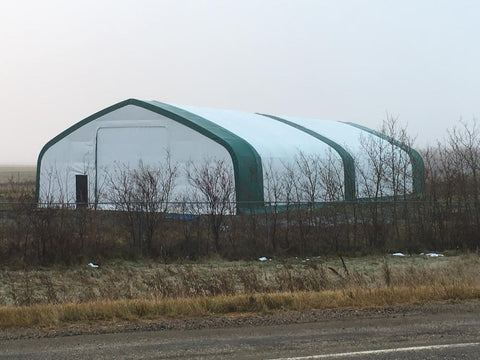

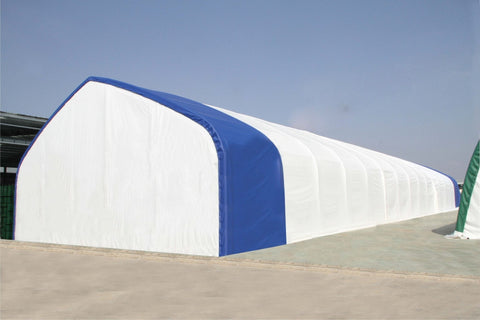

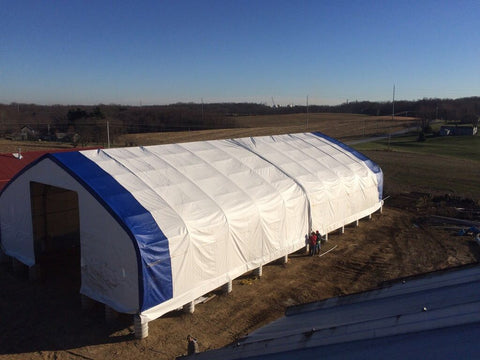

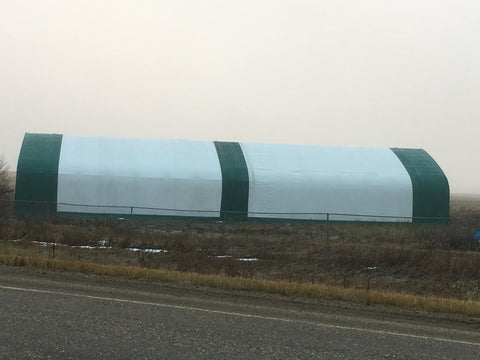

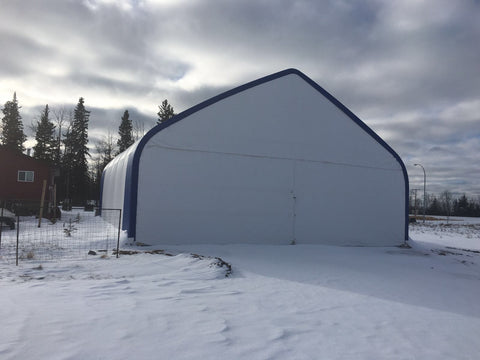

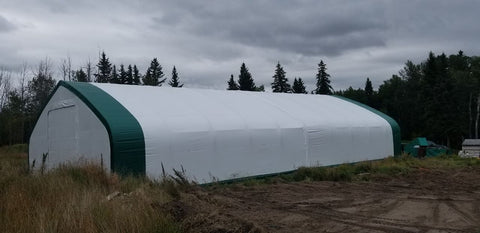

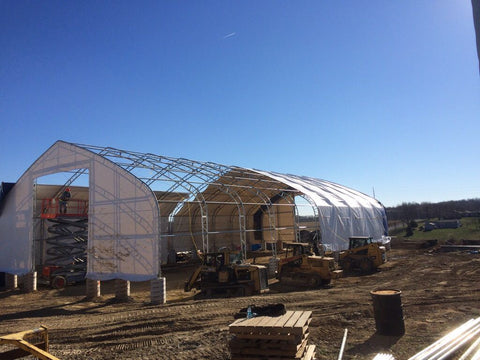

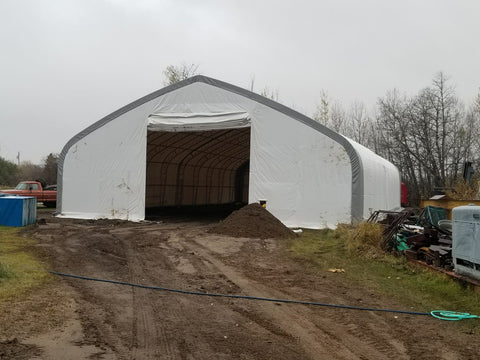

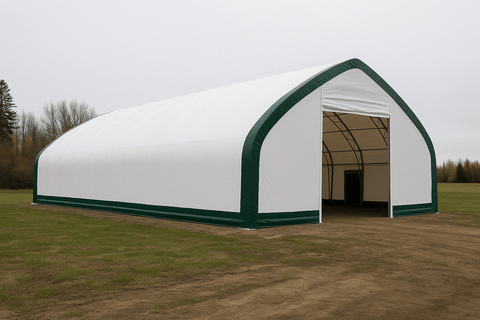

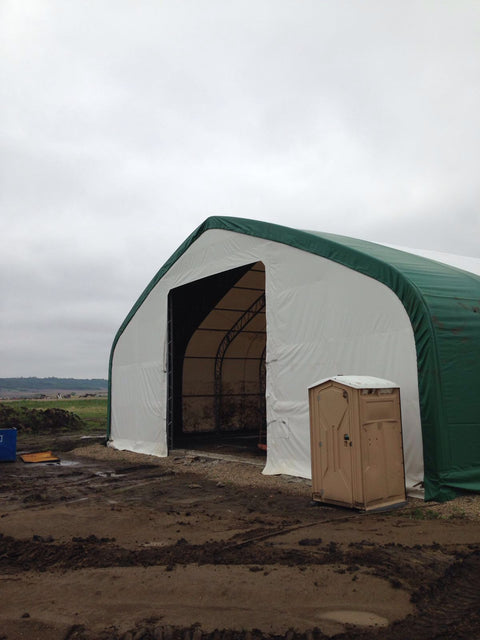

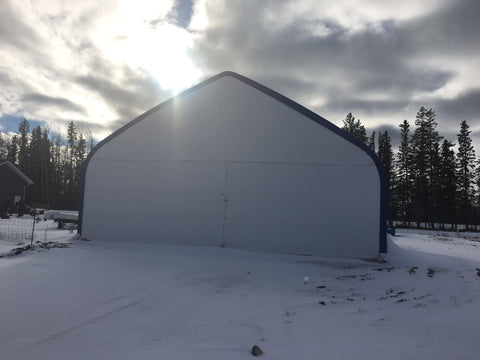

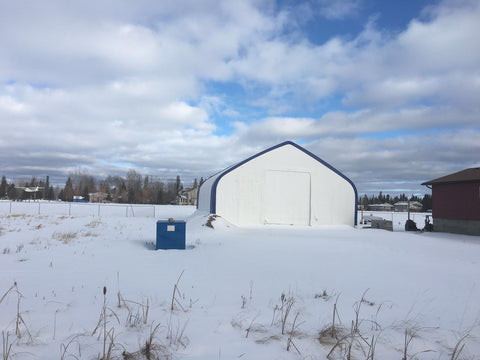

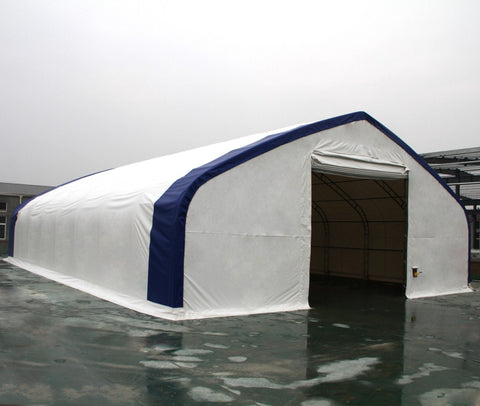

Command the highest level of site protection with the Professional 15.24 m (50') Wide Double Truss Storage Building. Engineered for massive volume requirements and extreme climatic exposure, this structure features a reinforced double-truss galvanized steel frame, offering the highest available resistance to wind and snow loads. Clad in premium 26.5 oz (900 gsm) PVC fabric, this shelter provides an airtight, 100% waterproof, and fire-retardant environment for heavy machinery, bulk inventory, and commercial logistics. With peak heights reaching 7.01 m (23') and customizable arch spacing for extreme load zones, this series represents the pinnacle of portable industrial fabric buildings.
SYSTEM HIGHLIGHTS
-

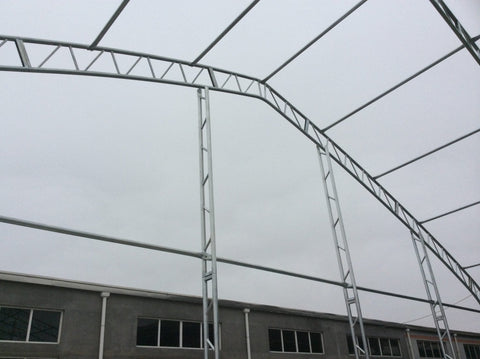

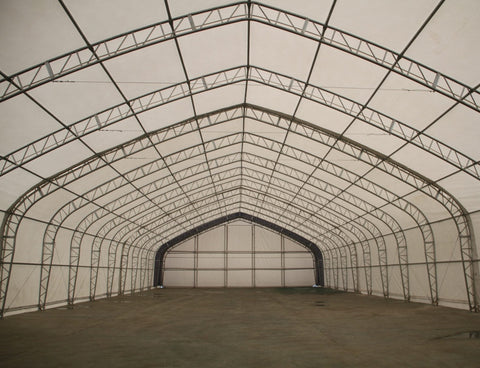

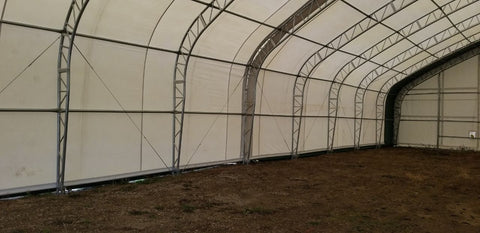

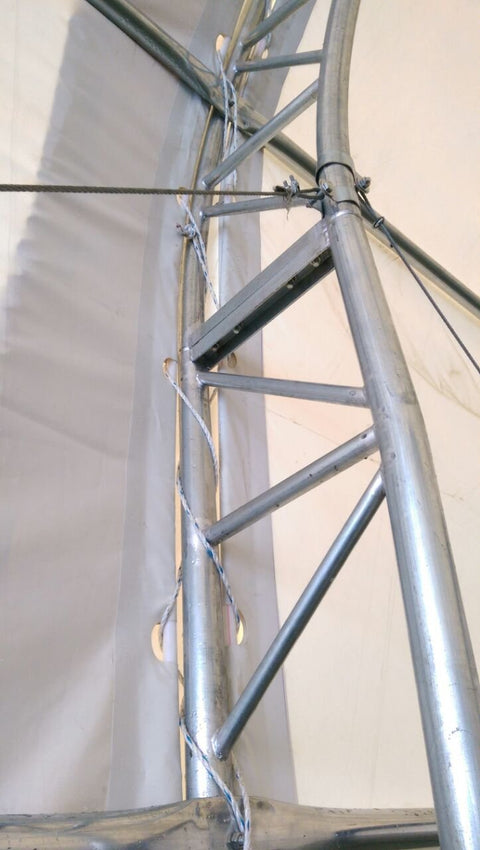

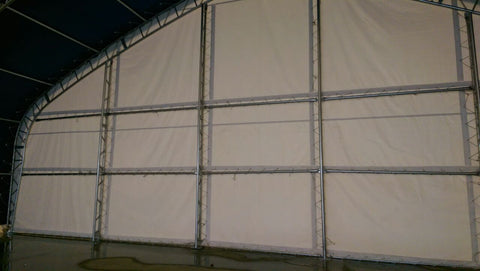

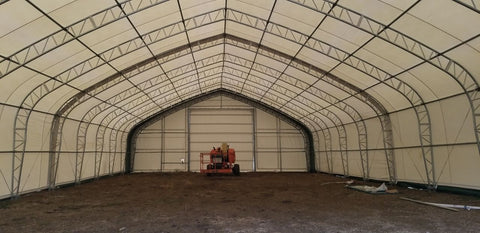

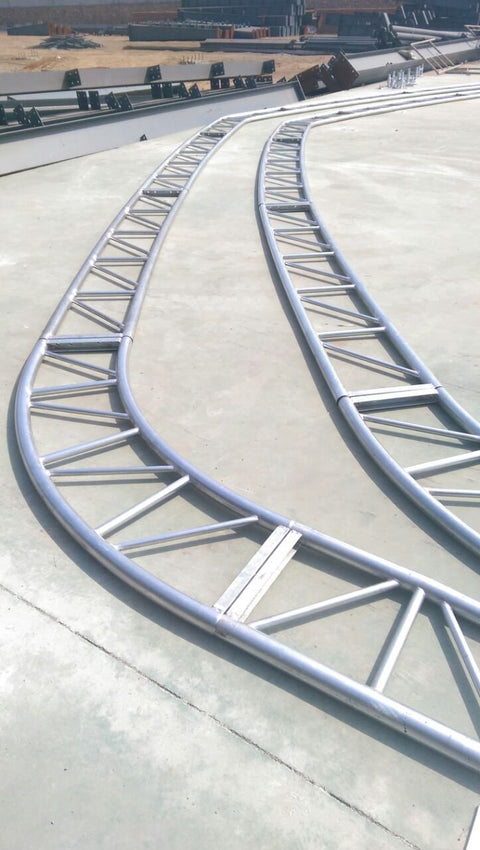

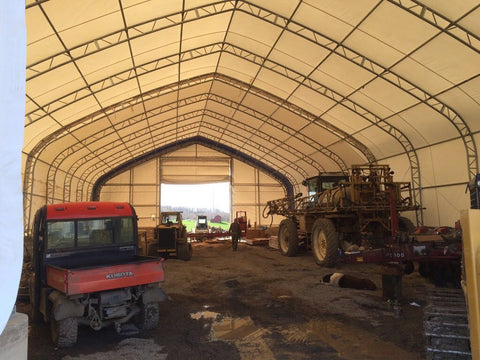

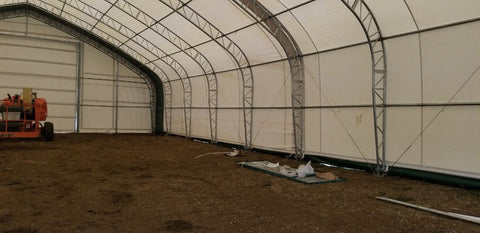

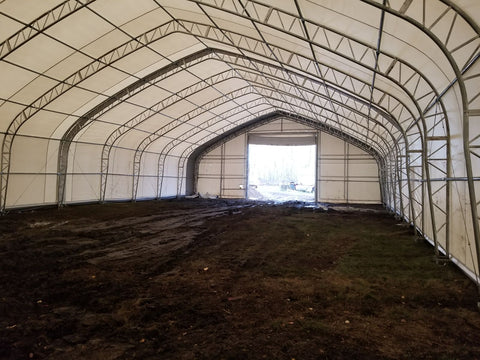

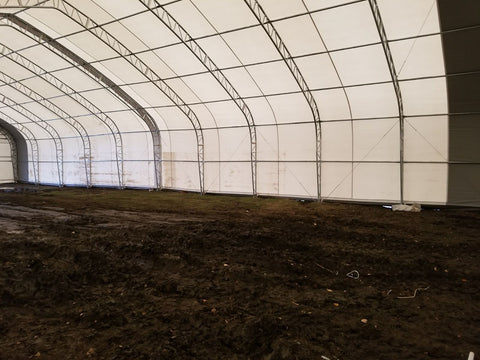

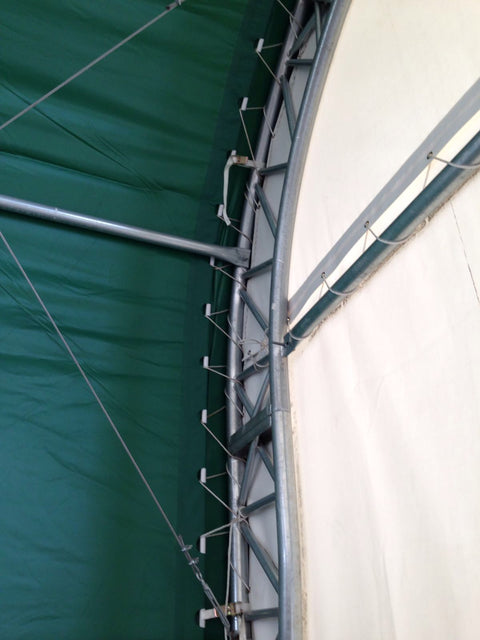

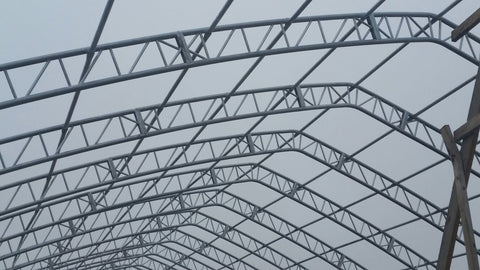

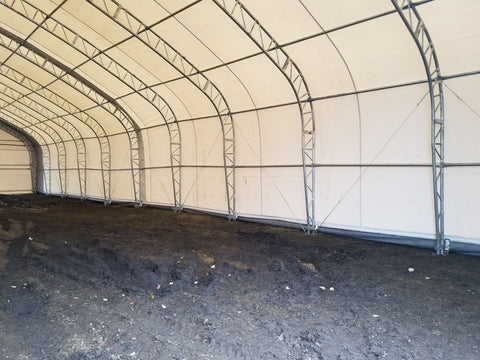

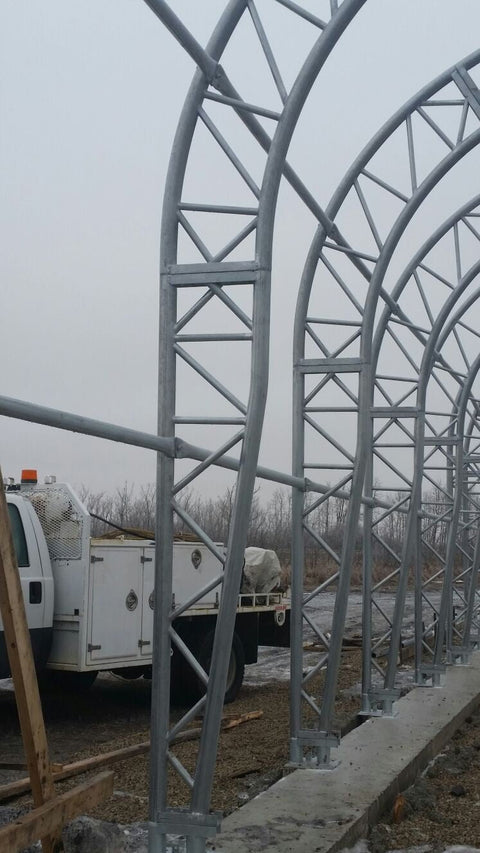

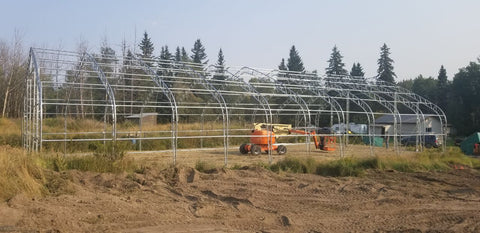

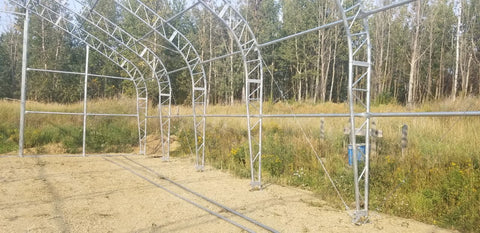

Industrial Double Truss Architecture: Features hot-dip galvanized steel pipes in a reinforced double-truss configuration, engineered to eliminate structural flex and survive severe weather cycles.
-
Elite 26.5 oz PVC Membrane: High-density, commercial-grade PVC that is UV-stabilized, frost-resistant, and flame-retardant, offering a 15-year prorated lifecycle in harsh outdoor environments.
-
Dual Performance Configurations:
-
Standard Series: 3.05 m (10') arch spacing with 60 mm steel tubing; ideal for standard industrial storage and vehicle housing.
-

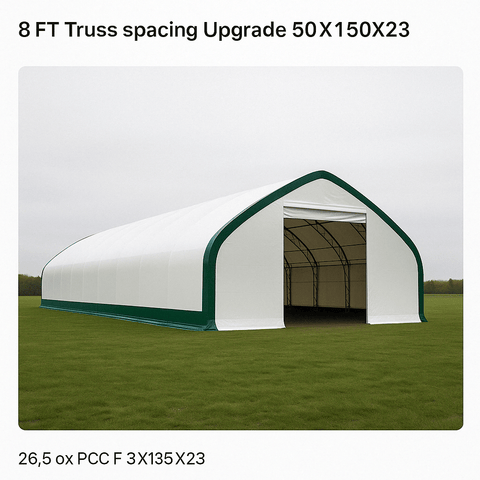

Heavy-Duty DPM Series: 2.44 m (8') arch spacing with massive 76 mm (3.0") steel tubing; engineered for extreme snow loads (40 lbs/sq ft) and heavy-duty industrial use.
-
-

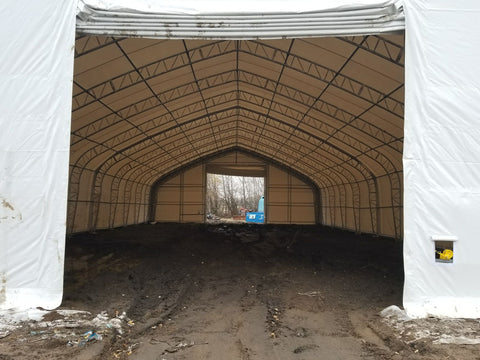

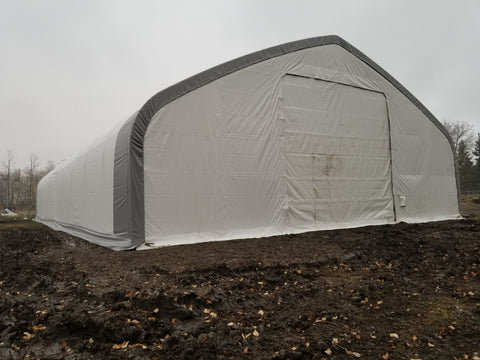

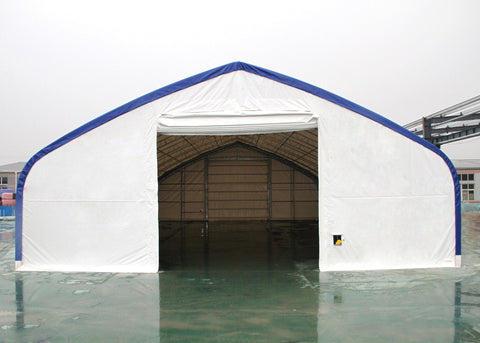

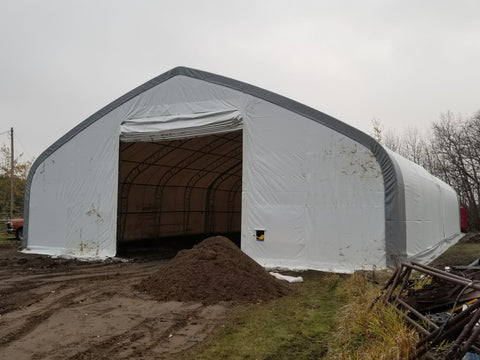

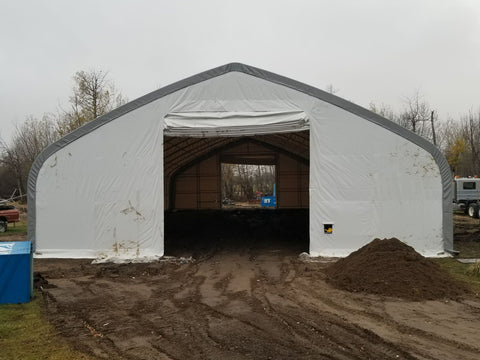

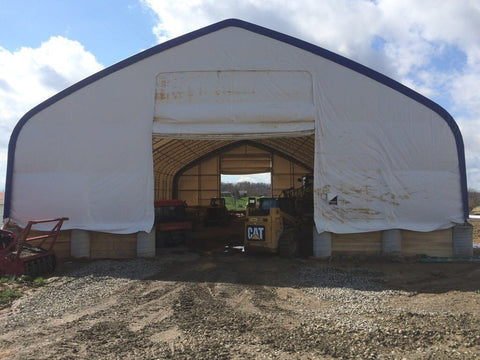

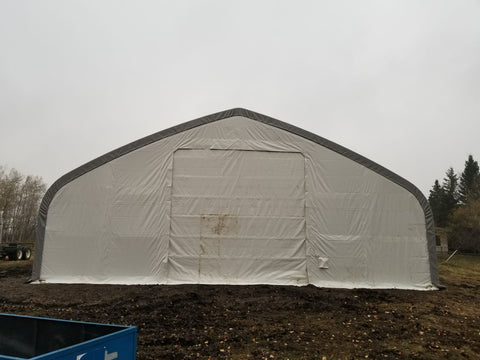

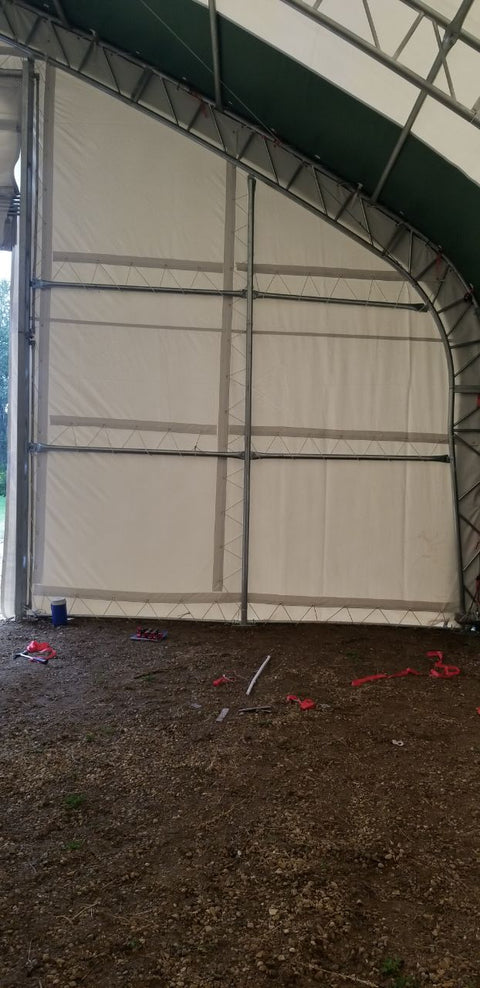

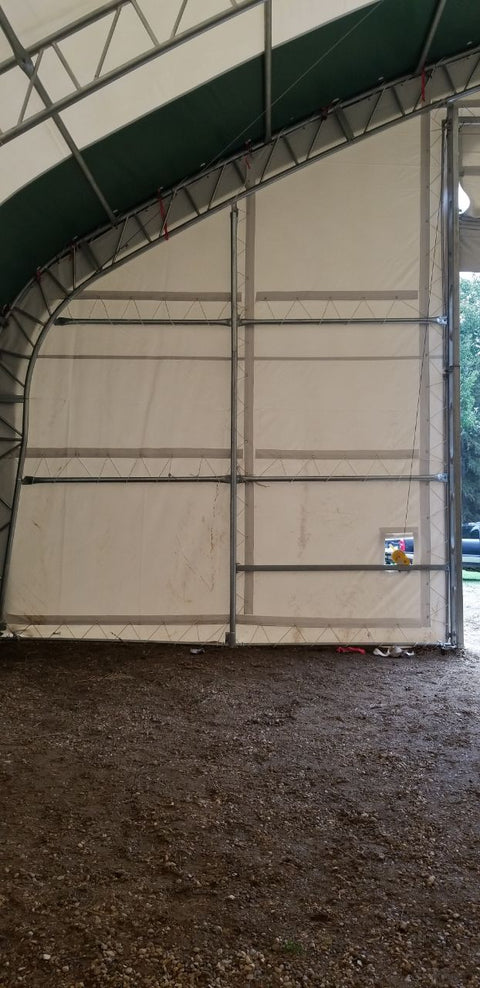

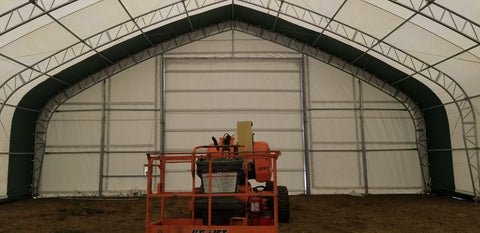

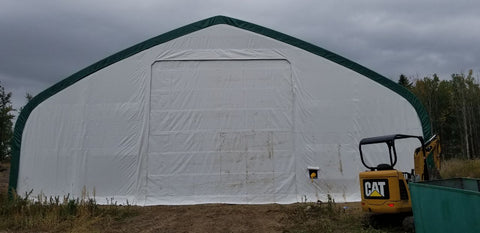

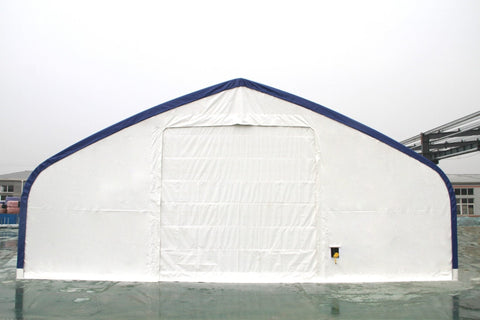

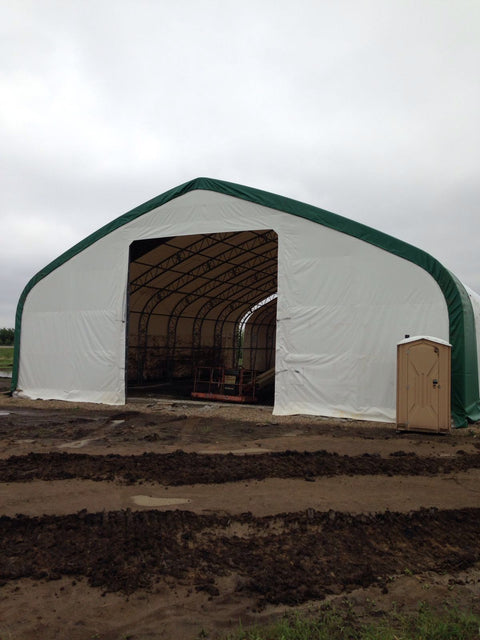

High-Clearance Winch Doors: The DPM series features massive 5.49 m x 4.88 m (18' x 16') winch-operated doors at both ends, facilitating the movement of oversized industrial equipment and semi-trailers.
-

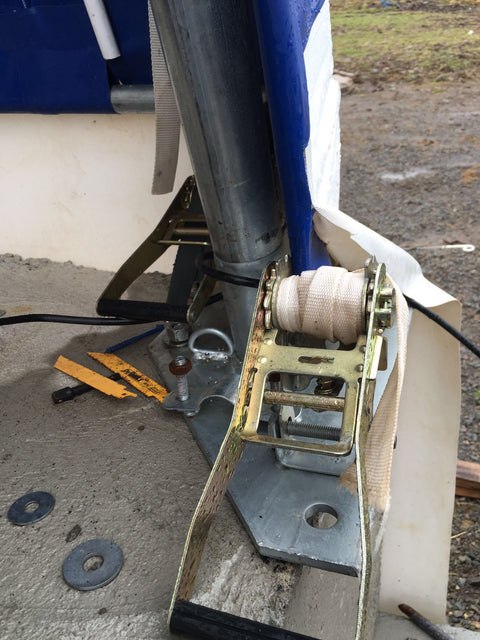

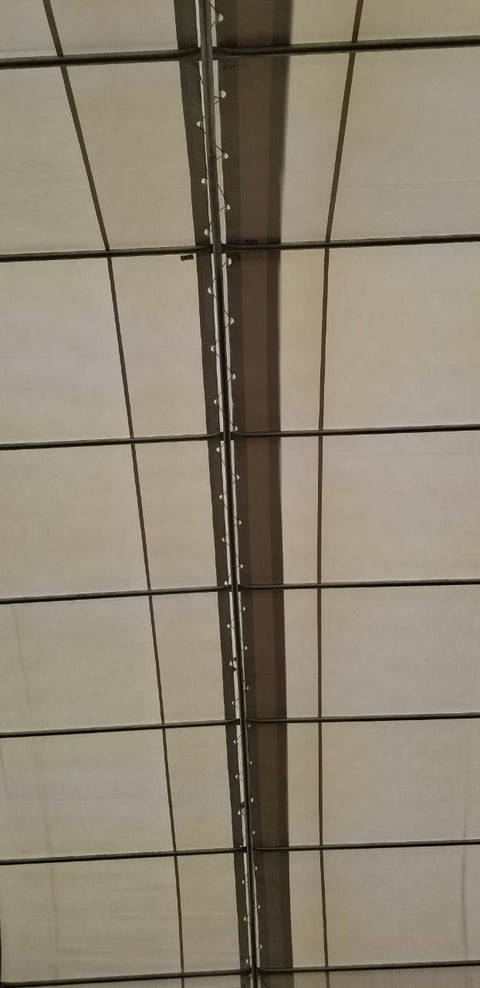

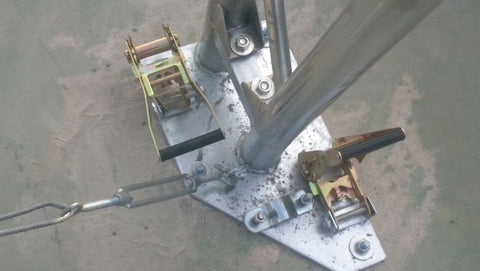

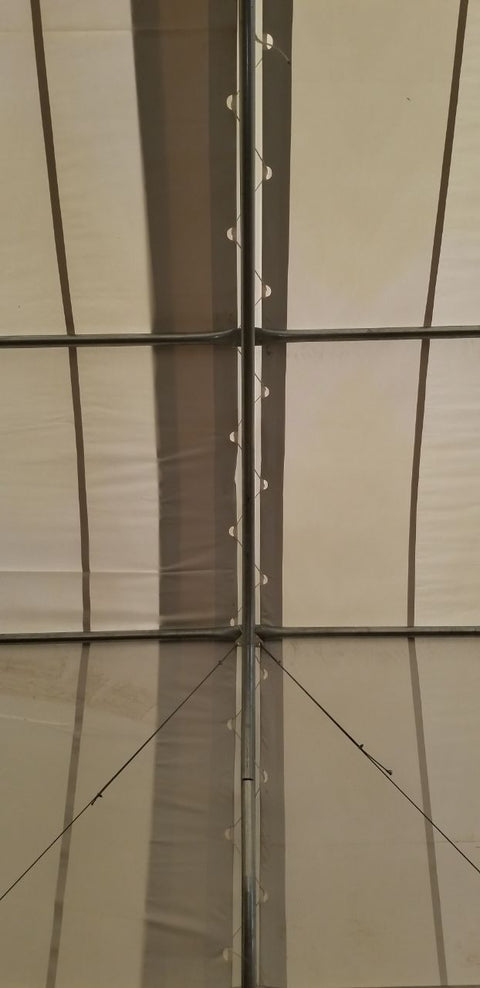

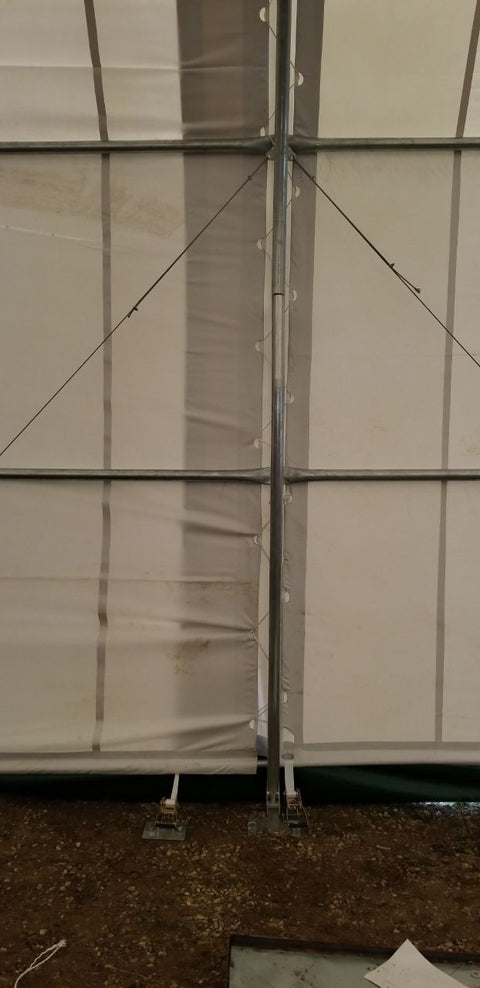

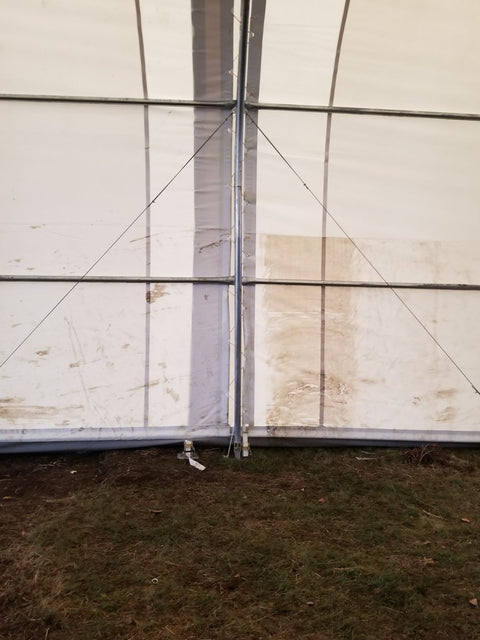

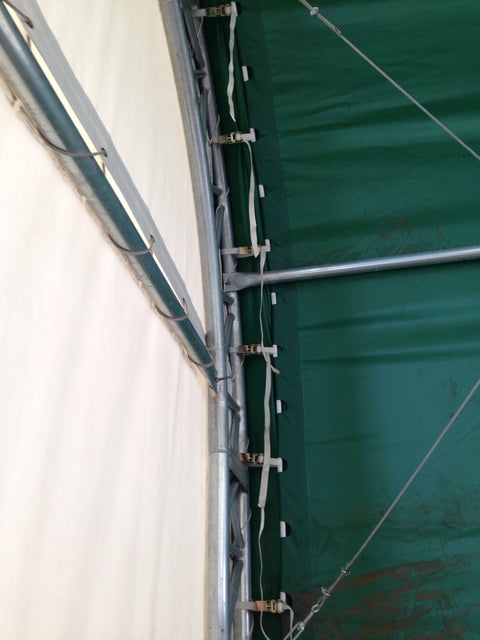

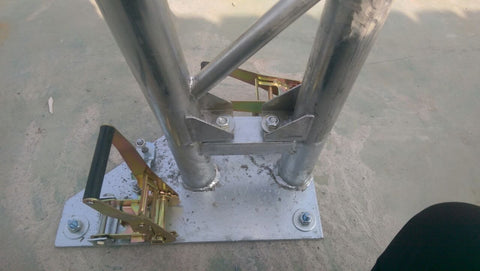

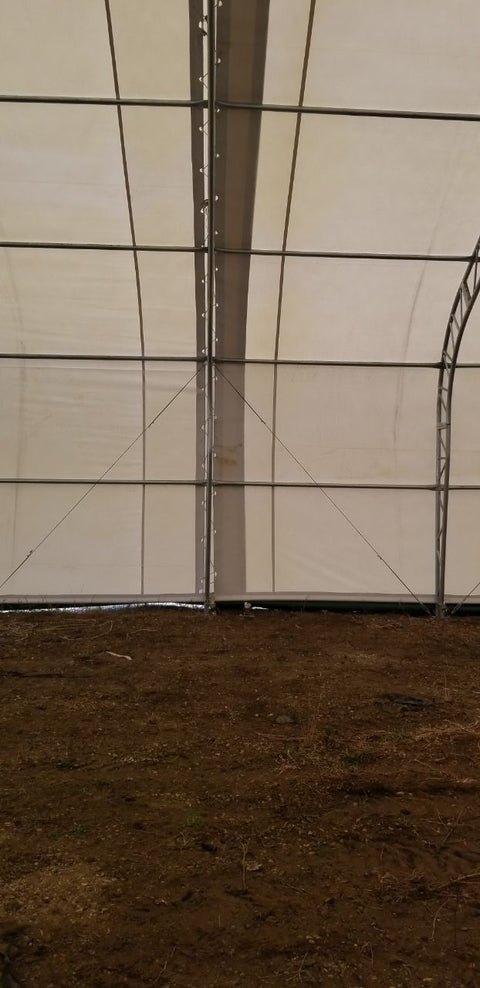

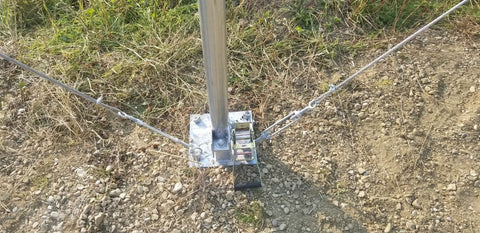

Quad Tensioning Network: An integrated internal cable system ensures the fabric cover remains taut, preventing "pocketing" from precipitation and reducing mechanical wear on the membrane.
-

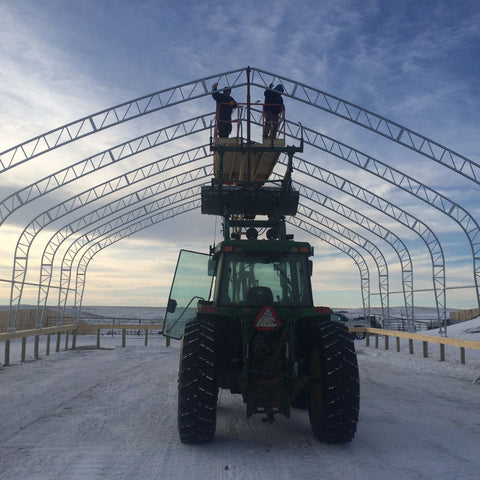

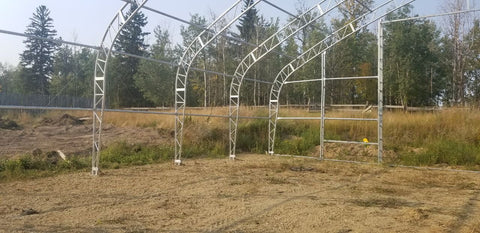

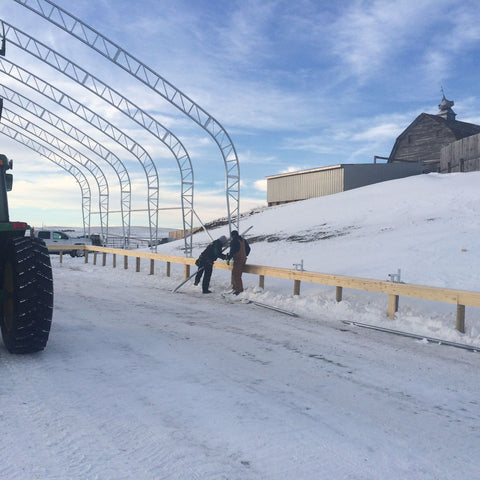

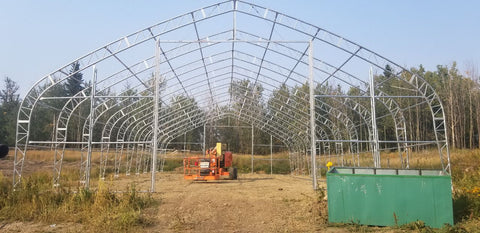

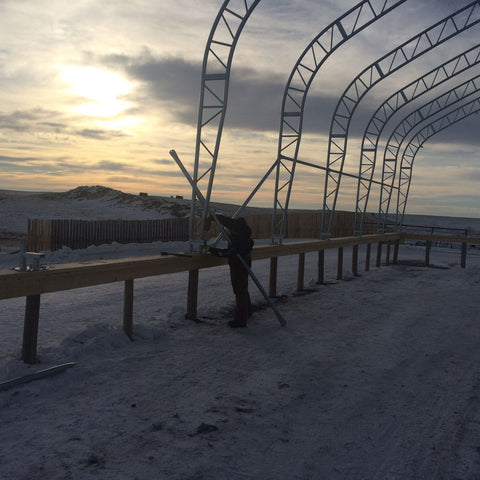

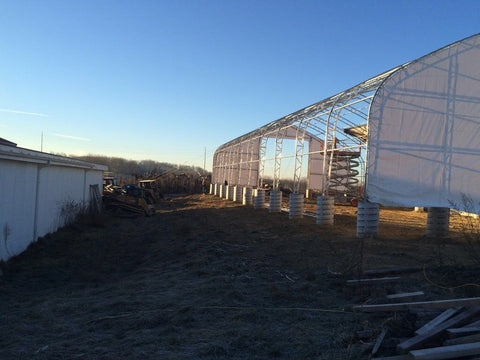

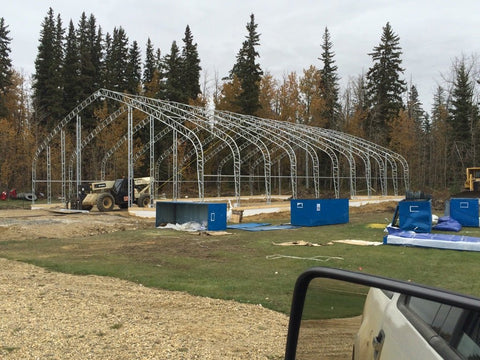

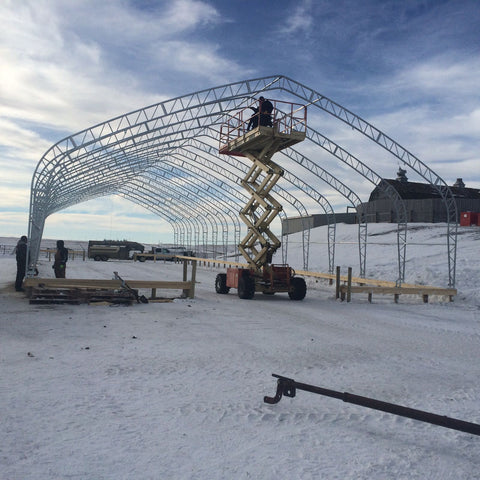

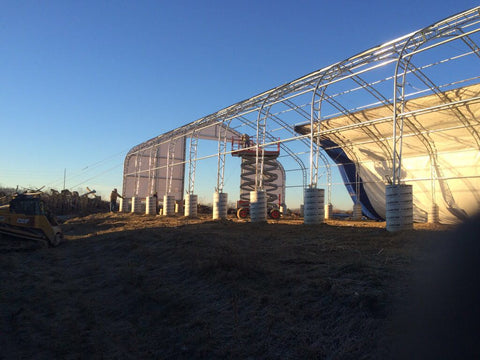

Rapid Modular Assembly: Precision-manufactured bolt-together arches allow for efficient installation (typically under 2 days with a professional crew) without the need for on-site welding.
SPECIFICATIONS BY VARIANT
| SKU | Model Class | Size (Metric: L x W x H) | Size (Imperial: L x W x H) | Arch Spacing |

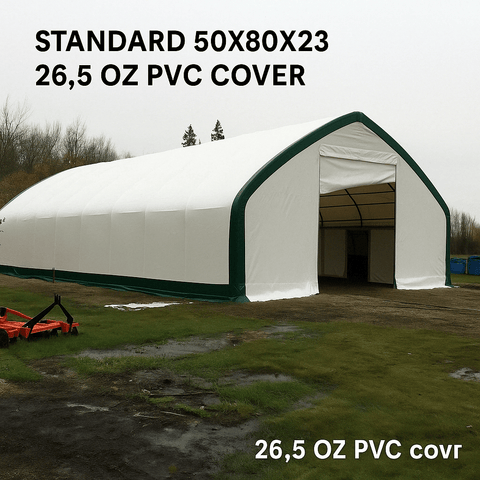

| P506023P | Standard | 18.29 x 15.24 x 7.01 m | 60 x 50 x 23 ft | 3.05 m (10') |
| P508023P | Standard | 24.38 x 15.24 x 7.01 m | 80 x 50 x 23 ft | 3.05 m (10') |

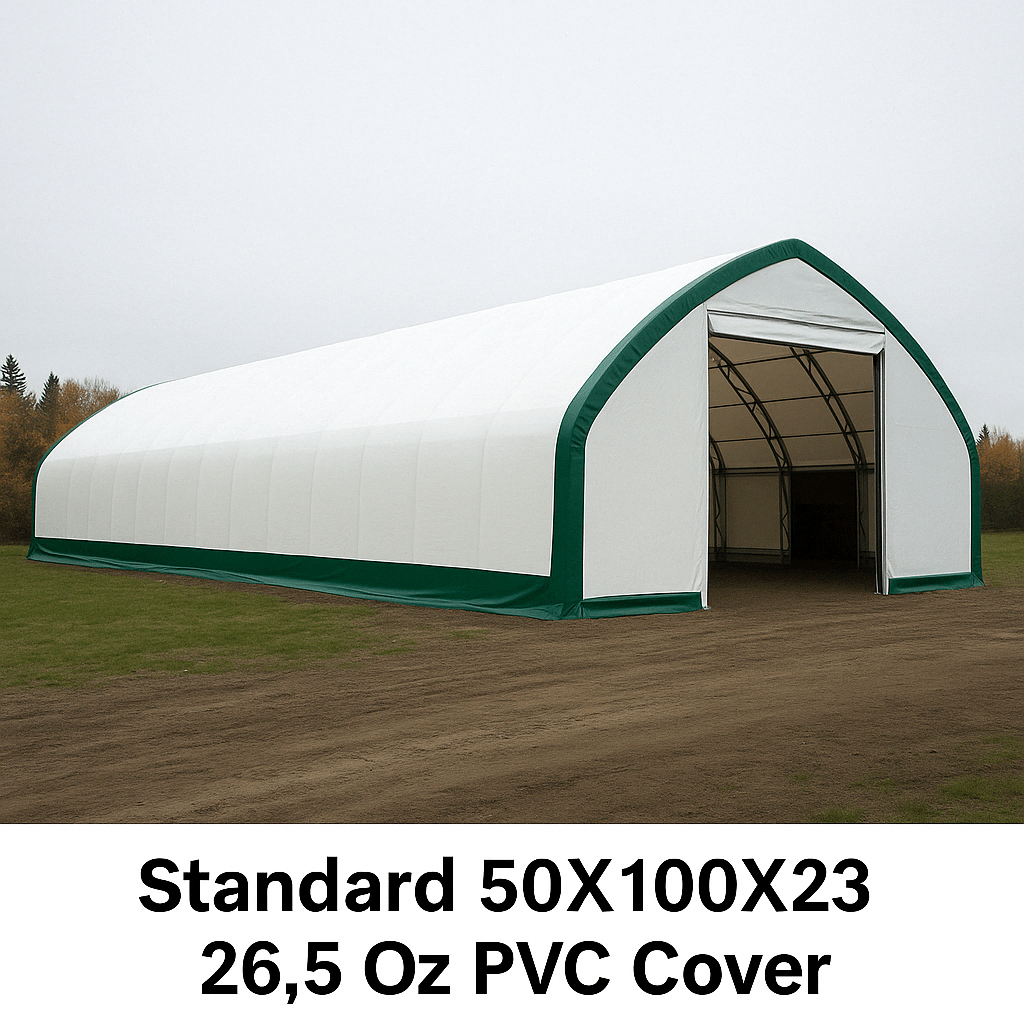

| P5010023P | Standard | 30.48 x 15.24 x 7.01 m | 100 x 50 x 23 ft | 3.05 m (10') |
| P5012023 | Standard | 36.58 x 15.24 x 7.01 m | 120 x 50 x 23 ft | 3.05 m (10') |
| P5015023P | Standard | 45.72 x 15.24 x 7.01 m | 150 x 50 x 23 ft | 3.05 m (10') |
| 5010423DPM | Heavy Duty | 31.70 x 15.24 x 7.01 m | 104 x 50 x 23 ft | 2.44 m (8') |
| 5012023DPM | Heavy Duty | 36.58 x 15.24 x 7.01 m | 120 x 50 x 23 ft | 2.44 m (8') |
| 5015223DPM | Heavy Duty | 46.33 x 15.24 x 7.01 m | 152 x 50 x 23 ft | 2.44 m (8') |
| 5020023DPM | Heavy Duty | 60.96 x 15.24 x 7.01 m | 200 x 50 x 23 ft | 2.44 m (8') |
TECHNICAL DATA
-
Fabric: 26.5 oz (900 gsm) PVC (White)
-
Standard Frame: 60 mm x 1.8 mm (2 3/8") Galvanized Steel
-
HD Frame (DPM): 76 mm x 1.8 mm (3.0") Galvanized Steel
-

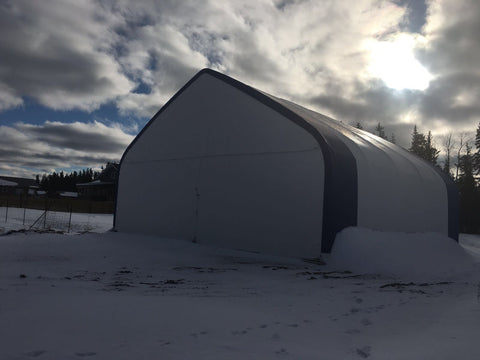

Snow Load Rating: 20 lbs/sq ft (Standard) | 40 lbs/sq ft (HD DPM)
-
Warranty: 15-Year Prorated Tarp / 10-20 Year Frame Warranty
IDEAL APPLICATIONS
-

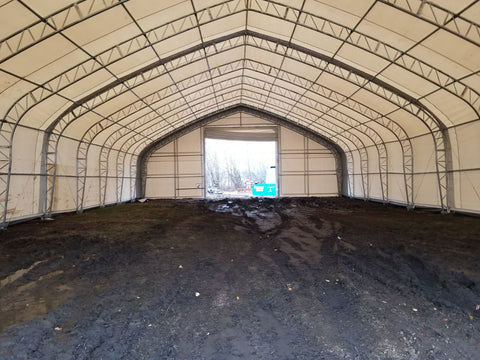

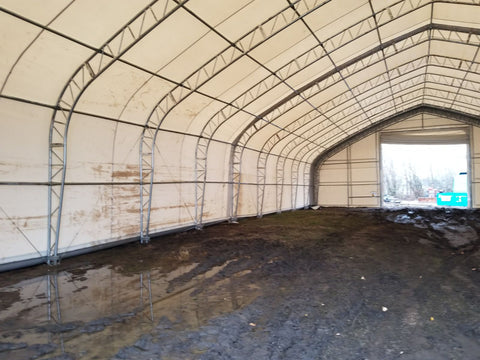

Industrial Warehousing – Massive, clear-span space for palletized inventory and bulk logistics centers.
-

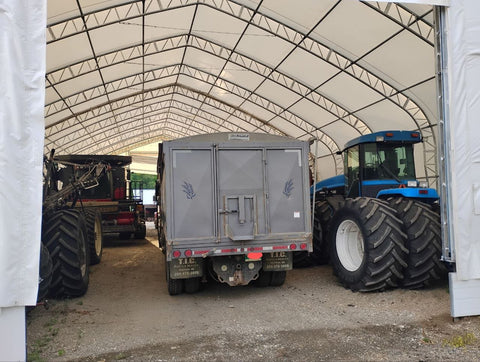

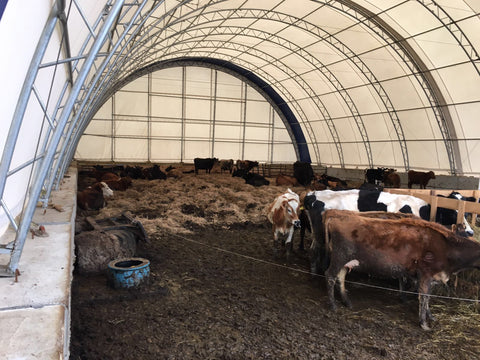

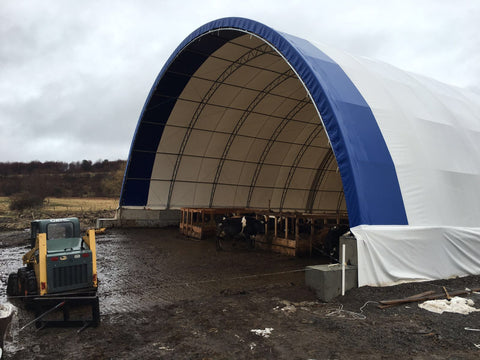

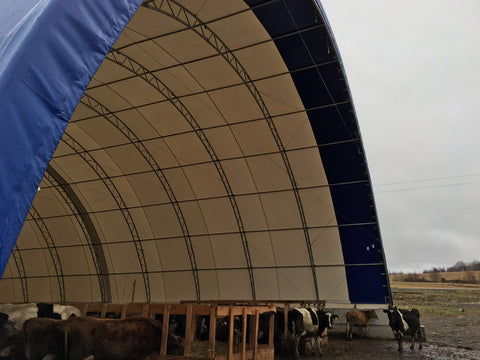

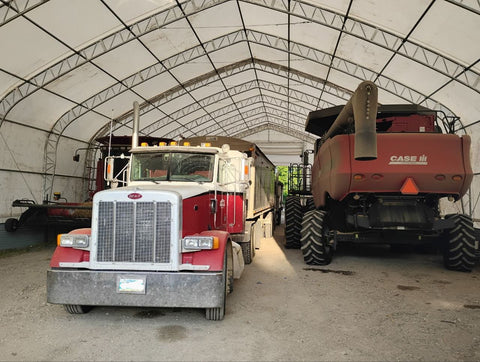

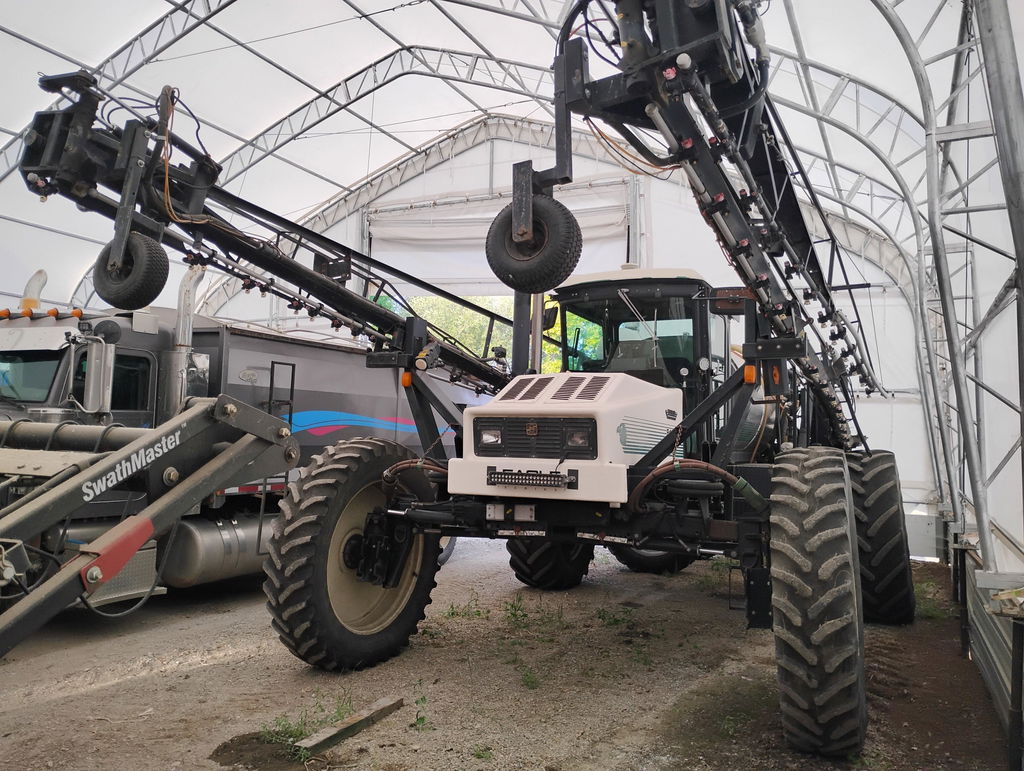

Agricultural Super-Shelters – Protecting large-scale hay storage, combines, and multi-tractor fleets.
-

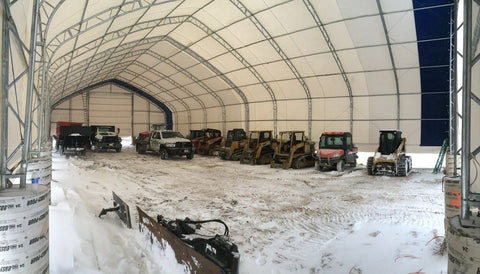

Construction Site Depots – Providing a professional, dry environment for heavy machinery maintenance and material fabrication.
-
Aviation & Marine Storage – Spacious clearance for aircraft hangars or dry-docking multiple large vessels.
