50x40 & 50x80 FT Double Truss Fabric Storage Buildings – Heavy-Duty PVC Container Shelters
Regular price
$13,495.00
Sale price
$13,495.00
Regular price
Unit price
per
Shipping calculated at checkout.
Store Stock Locator
Share it with friends and family.
Awaiting stock, shipping soon

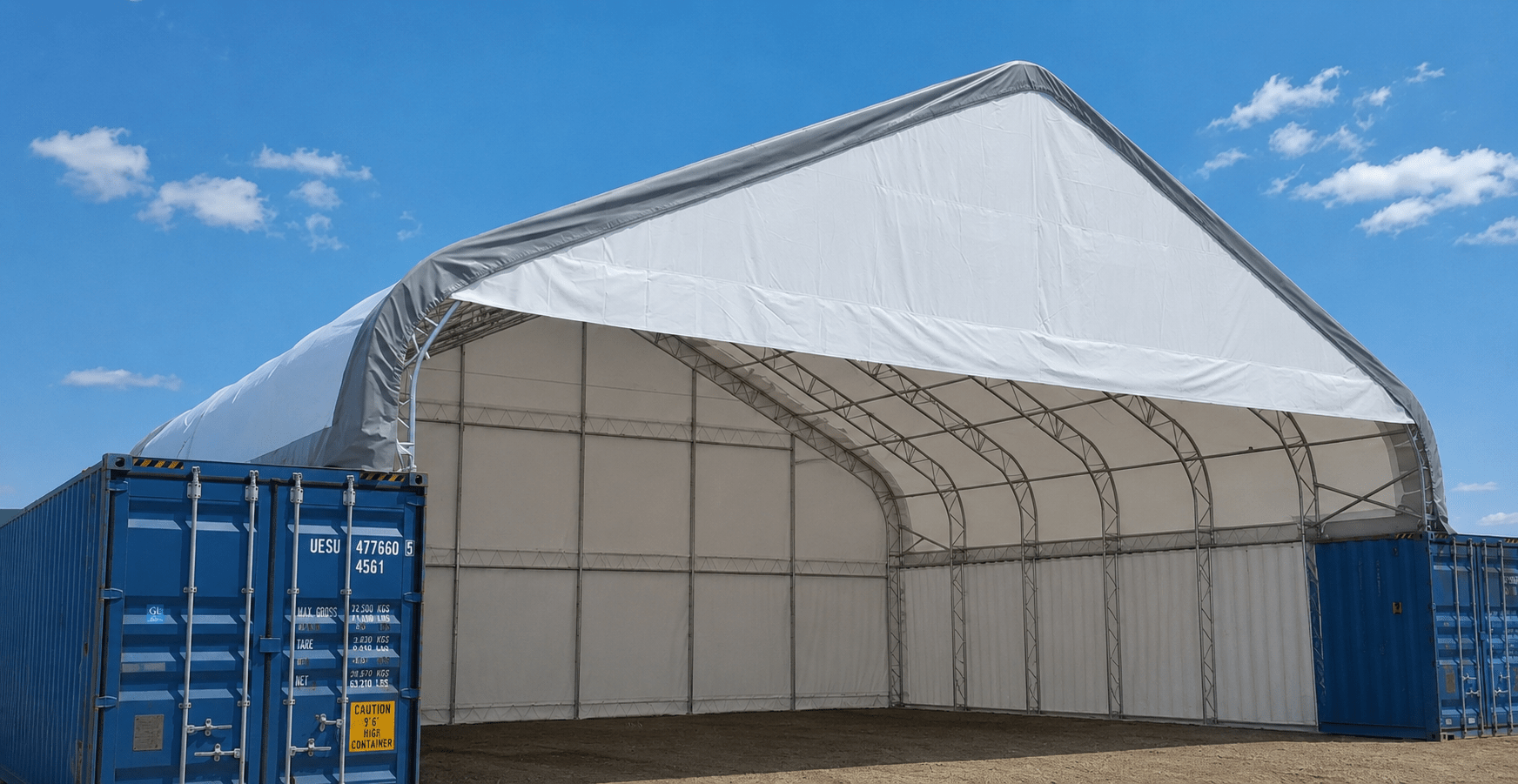

50ft Wide Double Truss Fabric Storage Buildings – Heavy-Duty PVC Container Shelters (40ft & 80ft Lengths)
OVERVIEW
Maximize your industrial storage capacity with our commercial-grade 50ft Wide PVC Container Shelters. Engineered for durability and rapid deployment, these structures feature a reinforced double truss frame and heavy-duty PVC fabric. Designed to mount directly onto standard high-cube containers (up to 6.40m / 21ft clearance), they provide a spacious, secure, and weather-resistant environment for large-scale operations in logistics, construction, and agriculture.
SYSTEM HIGHLIGHTS
-
Reinforced Double Truss Frame: Built with 60mm (2 3/8") diameter, 2mm (14-gauge) galvanized steel tubing for superior wind and snow load resistance.
-
Heavy-Duty 650g/m² (22oz) PVC Fabric: UV-resistant, 100% waterproof, and flame-retardant material designed to withstand extreme temperatures from -50°C to +50°C.
-
Patented No-Weld Clamping System: Enables fast, tool-free installation directly onto shipping containers without the need for drilling or welding.
-
Quad Tensioning Technology: Ensures the fabric remains taut and stable year-round, preventing water pooling and reducing wind noise.
-
Scalable Storage Solution: Creates massive clear-span interiors ideal for heavy machinery, bulk materials, or vehicle fleets.
SPECIFICATIONS & DIMENSIONS
| Feature | 40ft Length Model | 80ft Length Model |
| Dimensions (W x L x H) | 15.24 x 12.19 x 3.66 m (50x40x12 ft) | 15.24 x 24.38 x 3.66 m (50x80x12 ft) |
| Max Clearance (on Containers) | Approx. 6.40 m (21 ft) | Approx. 6.40 m (21 ft) |
| Frame Type | Double Truss Galvanized Steel | Double Truss Galvanized Steel |
| Fabric Weight | 650g/m² (22oz) PVC | 650g/m² (22oz) PVC |
| Tube Diameter | 60 mm (2 3/8") | 60 mm (2 3/8") |
| Installation Method | Clamp-on (No Welding Required) | Clamp-on (No Welding Required) |
IDEAL APPLICATIONS
-
Construction Sites – On-site equipment workshops and material storage.
-
Agricultural Operations – Hay storage, livestock shelters, or machinery housing.
-
Logistics & Warehousing – Rapid expansion of covered pallet and inventory space.
-
Marine & Industrial – Temporary shipyards or vehicle maintenance bays.
