8ft x 20ft x 8ft Sea Container Walk-In Container Cold Room Cooler with 3P Condensing Unit & Air Cooler CR2080

Sea Container Large commercial walk-in cold room designed for refrigerated storage, produce, meat, dairy, restaurant inventory, grocery backroom storage, and warehouse cold storage applications. Built with 100 mm insulated PU panels and a 3P condensing unit, this cooler is designed to maintain a controlled temperature range from 0°C to 18°C.

Shipping outside of Edmonton pickup: add $1500.00.

Key Features

• Large Sea Container 20 ft x 8 ft x 8 ft walk-in cold room size
• Temperature range from 0°C to 18°C

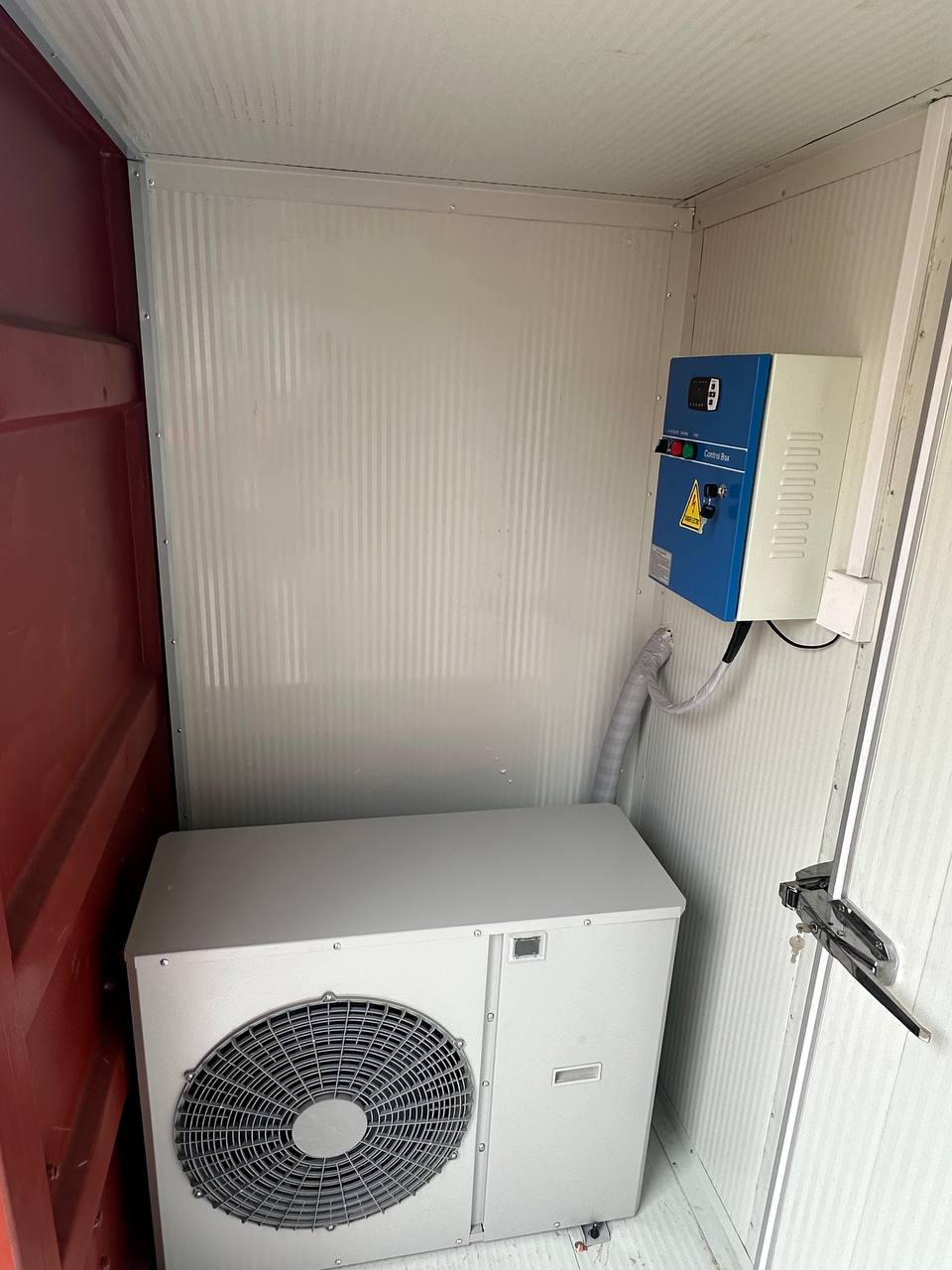

• Includes 3P condensing unit

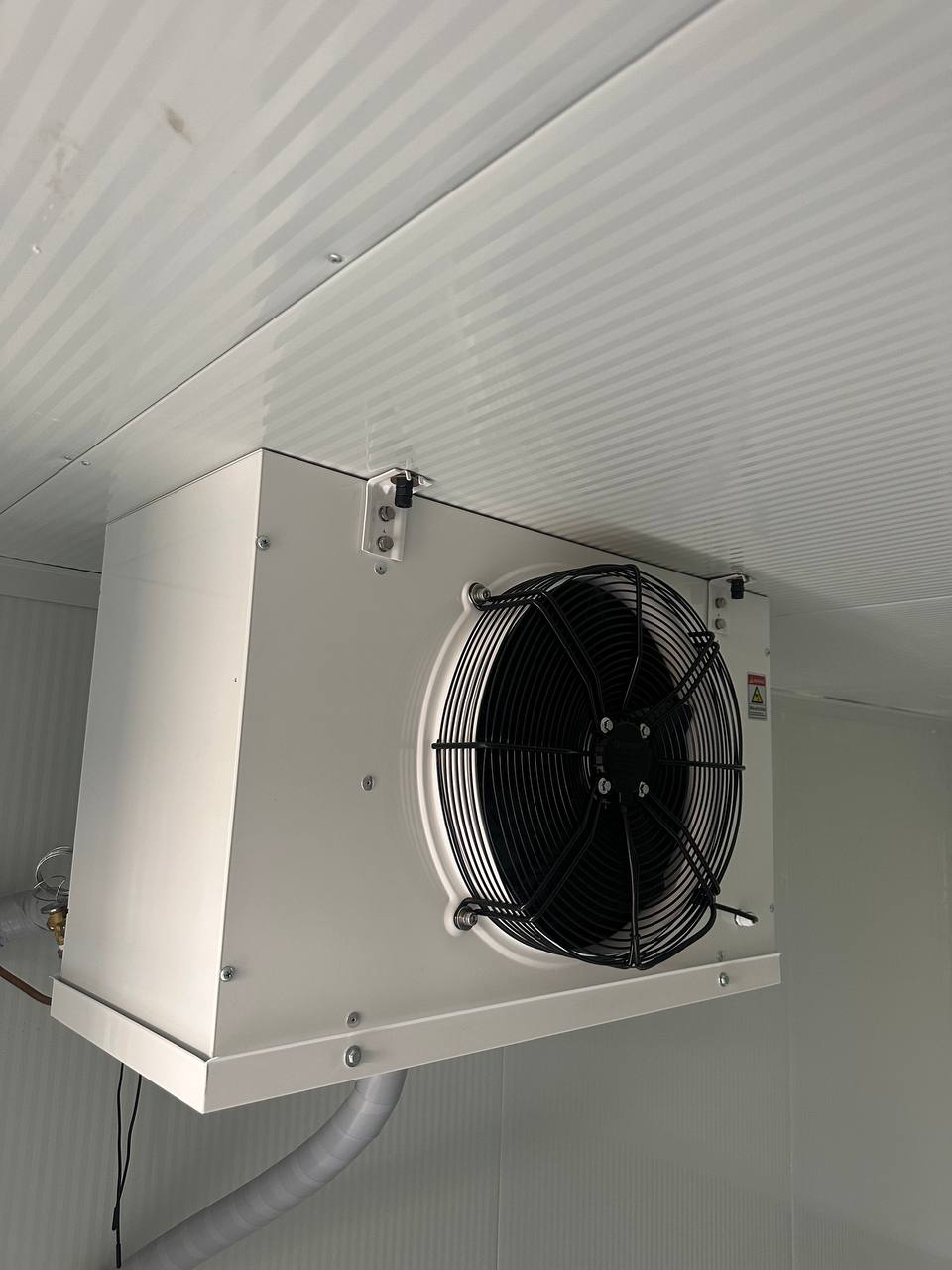

• Includes AOS-D30-220V/60Hz/1PH air cooler evaporator
• 100 mm thick PU insulated panels for strong temperature retention
• Suitable for commercial refrigeration, food storage, warehouse use, and retail cold storage
• 220V / 60Hz / 1 phase applicable voltage

Specifications

• Cold Room Size: 20 ft L x 8 ft W x 8 ft H (4.9 m x 2.3 m x 2.2 m)
• Temperature Range: 0°C to 18°C
• Condensing Unit: 1 set of 3P condensing unit
• Air Cooler Evaporator: AOS-D30-220V/60Hz/1PH
• PU Panel Thickness: 100 mm
• Applicable Voltage: 220V / 60Hz / 1 Phase
• Use Type: Commercial cold storage / walk-in cooler

What’s Included

• Walk-in cold room panel system
• 3P condensing unit
• AOS-D30 air cooler evaporator
• Required refrigeration components as supplied




  Containerized Cold Room (20 ft) — Frequently Asked Questions

  General & Specifications

  Q: What are the dimensions of the 20 ft Container Cold Room?

  A:

  • External Dimensions: 20 ft L x 8 ft W x 8 ft H (4.9 m x 2.3 m x 2.2 m)

  • Internal Usable Dimensions: 15.4 ft L x 6.9 ft W x 6.5 ft H (4.7 m x 2.1 m x 2.0 m)

  • Total Usable Volume: Approximately 19.7 m³ (697 cu. ft.)

  Q: What is the thickness of the insulation panels?

  A: The unit features 100 mm (4 inches) high-density Polyurethane (PU) insulated panels on all six sides—including the walls, floor, roof, and door—for maximum temperature retention and energy efficiency.

  Q: What is included with the unit?

  A: The cold room comes fully integrated inside a standard 20 ft shipping container, built with 100 mm PU panel insulation throughout, and includes an insulated cold room door measuring 0.8 m W x 1.8 m H (31.5" x 70.8").

  Door & Accessibility

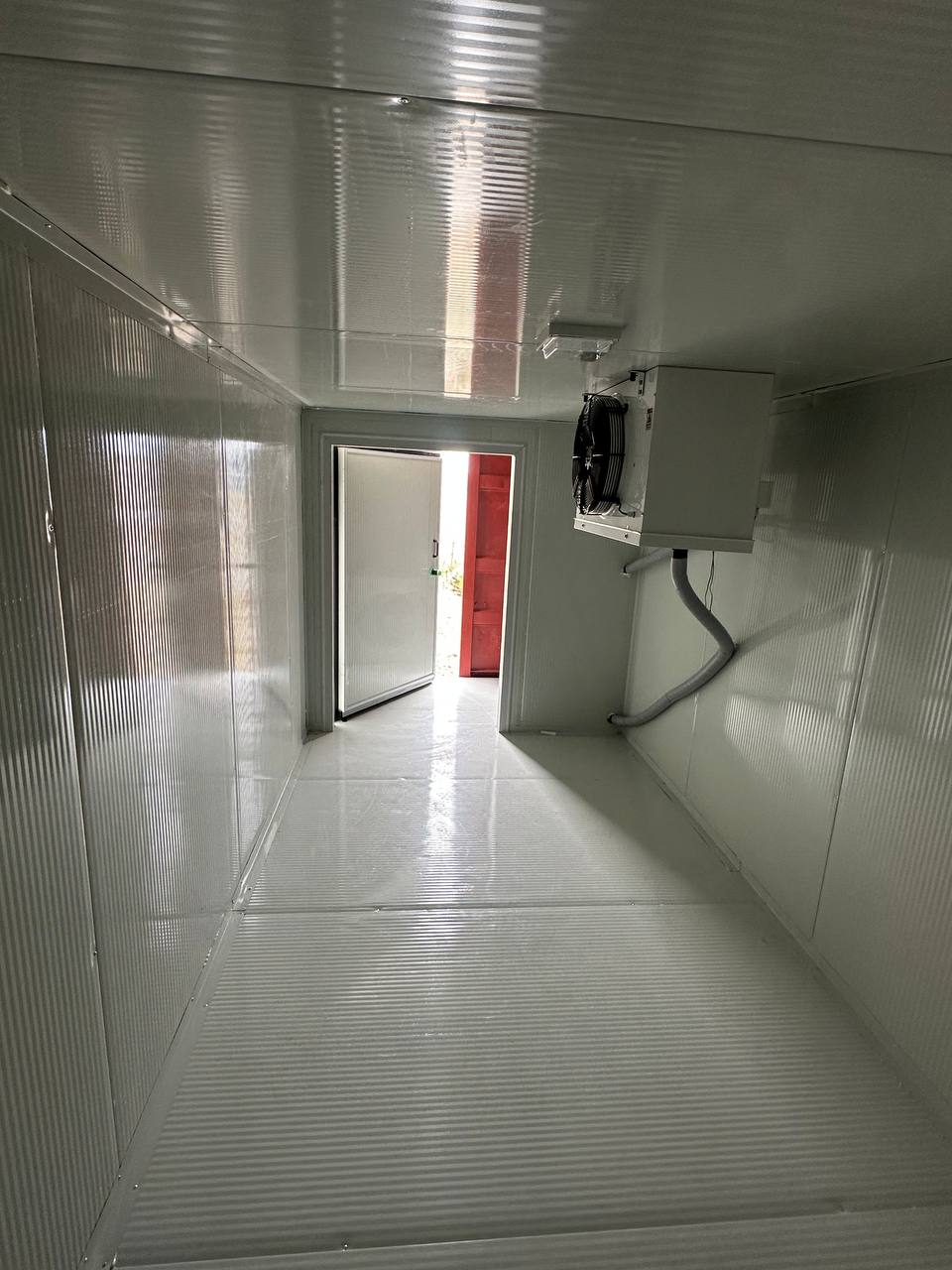

  Q: What size is the cold room door?

  A: The entry door measures 0.8 m wide by 1.8 m high (approx. 31.5 in x 70.8 in) and has a 100 mm insulated core to prevent thermal bridging.

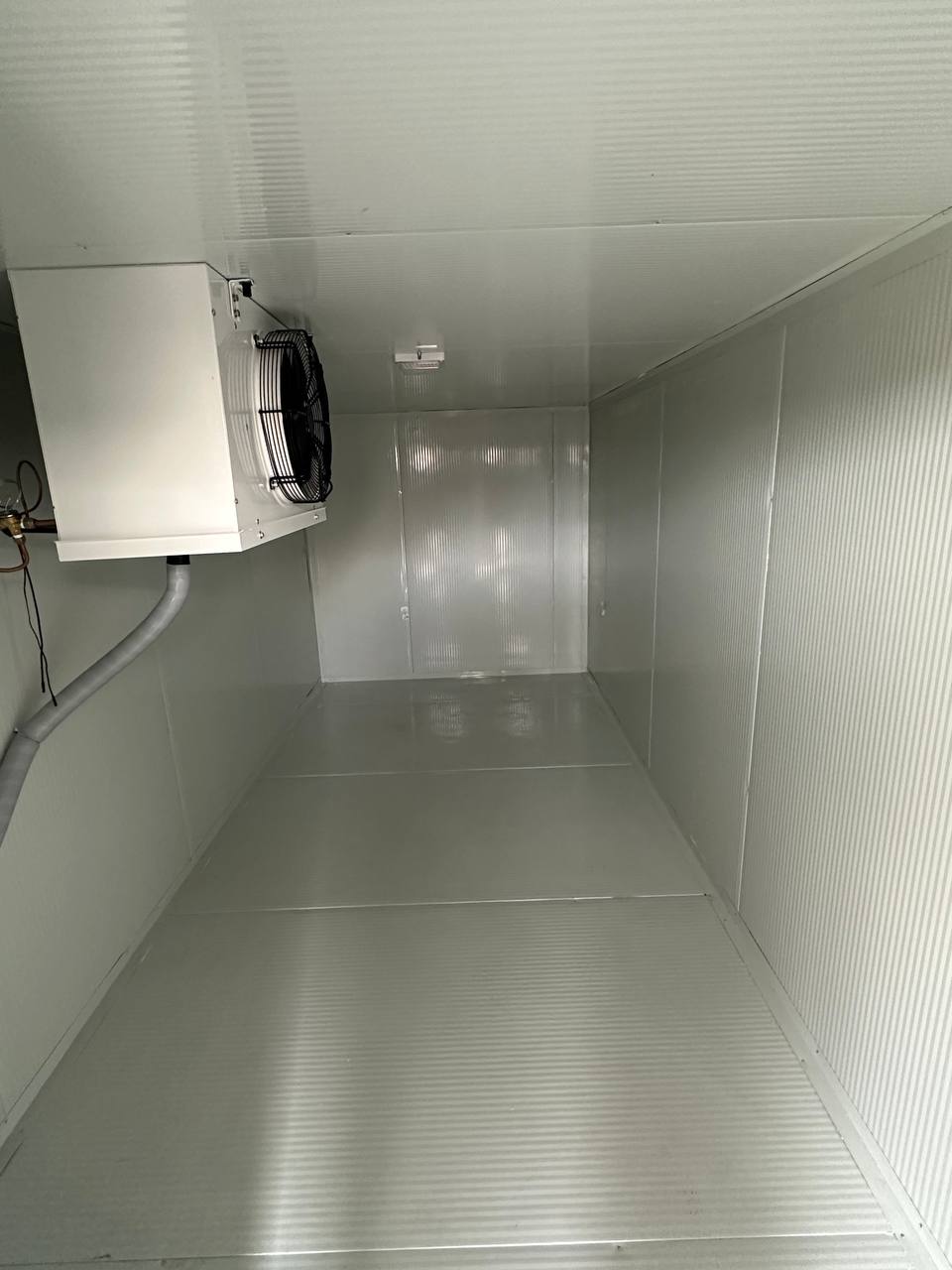

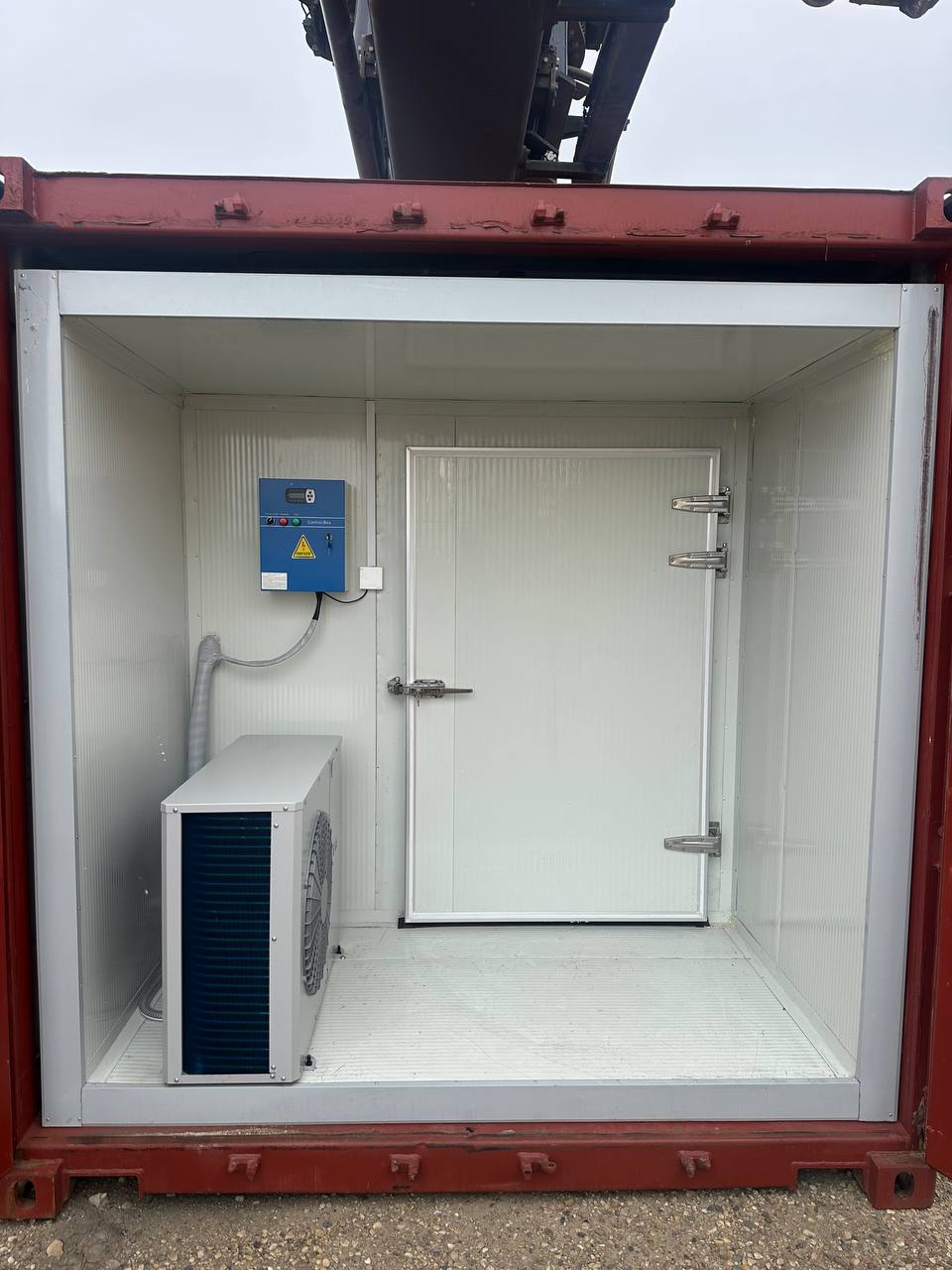

  Q: Is the cold room built directly inside the container?

  A: Yes, the complete insulated cold room structure is pre-installed inside a heavy-duty 20 ft ocean shipping container, making it plug-and-play, weather-resistant, and easy to transport or relocate.

  Operation & Performance

  Q: Why use 100 mm PU panels for the entire structure?

  A: Uniform 100 mm PU insulation across the walls, roof, floor, and door ensures optimal thermal insulation, reduces energy consumption, and maintains stable freezing or chilling temperatures even in harsh ambient climates.

  Q: Can this container cold room be moved to another location later?

  A: Absolutely. Because the cold room is built inside a standard ISO shipping container frame, it can be easily loaded onto a flatbed truck or crane and moved whenever your business expands or changes locations.
