Robust Commercial Aluminum Marine Dock Systems & Components
Ditch the rotting wooden piers that warp, splinter, and collapse under the strain of active commercial marine operations. Engineered for outfitting remote forestry camp lakes, industrial aquatic staging areas, and high-traffic municipal boat launches, these robust aluminum dock systems deliver uncompromising over-water stability. Constructed with a rustproof commercial-grade aluminum frame and topped with high-traction, weather-resistant wood-grain vinyl decking, they actively resist the brutal elements of marine environments. Available as a complete 1.2 m x 6.1 m (4.0 ft x 20.0 ft) primary deployment system or as individual structural components, we stock these modular marine assets at wholesale prices to ensure you get real value for the dollar on your waterfront infrastructure.
Key Features:
- Commercial-Grade Aluminum Frame: Built from lightweight, rustproof structural aluminum tubing engineered to confidently withstand harsh aquatic environments and constant commercial boat traffic without corroding.
- Weather-Resistant Vinyl Decking: Features highly durable, modular vinyl paneling with a high-traction wood-grain finish, providing secure footing for active crews in severely wet marine conditions.

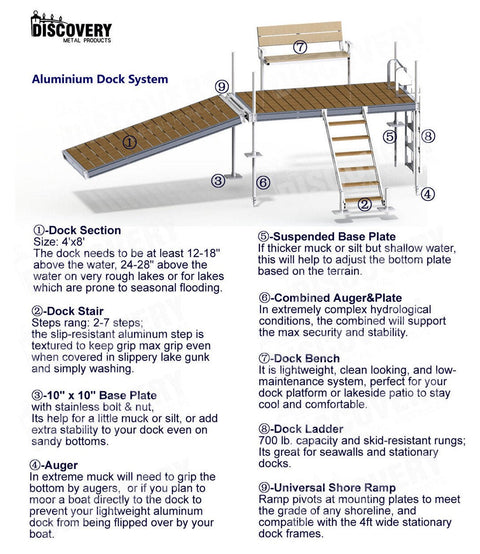

- Complete Primary Kit Configuration: The main 1.2 m x 6.1 m (4.0 ft x 20.0 ft) system package includes two dock sections, four 2.4 m (8.0 ft) adjustable legs, 25.4 cm (10.0") base plates, an auger end, a ramp connector, and a solid marine cleat.
- Fully Scalable Architecture: Designed for ultimate flexibility; operators can deploy the primary system and seamlessly expand their footprint by adding individual structural components as site demands grow.
Detailed Technical Specifications:
| Specification | Details |
| Equipment Type | Commercial Modular Dock System & Components |
| Frame Construction | Rustproof Structural Aluminum |
| Decking Material | High-Traction Weather-Resistant Vinyl |
| Primary System Footprint | 1.2 m x 6.1 m (4.0 ft x 20.0 ft) |
| Installation Profile | Adjustable Leg System (Panel Assembly Required) |
Available Models & SKUs:
| SKU | Component Description | Specifications / Dimensions |
| D1123DL | 3-Step Marine Ladder | Aluminum Boarding Accessory |
| D1123AL | Aluminum Support Leg | 2.4 m (8.0 ft) Length |
| D1123AE | Auger End Anchor | Sub-Surface Mud/Sand Anchoring |
| D1123BP | Base Plate | 25.4 cm x 25.4 cm (10.0" x 10.0") |
| D1123DB | Dock Bench | 1.0 m (3.2 ft) Seating Profile |
| D1123DC | Dock Cleat | 20.3 cm (8.0") Aluminum Tie-Down |
| D1123DP | Primary Aluminum Dock System Kit | 1.2 m x 6.1 m (4.0 ft x 20.0 ft) |
| D1123SR | Universal Shore Ramp Connector | Land-to-Dock Hardware Link |
Modular Expansion Components (Available Separately):
- Hardware & Anchoring: Procure additional 2.4 m (8.0 ft) Support Legs, Auger Ends, and 25.4 cm (10.0") Base Plates to reinforce complex over-water structural extensions.
- Marine Accessories: Enhance operational safety and functionality with standalone 20.3 cm (8.0") Dock Cleats, Universal Shore Ramp Connectors, 3-Step Boarding Ladders, and 1.0 m (3.2 ft) Dock Benches.
Perfect For:
- Establishing reliable aquatic staging areas for commercial marine and dredging operations
- Outfitting robust boat access points and tie-downs at remote industrial forestry camps
- Upgrading rotting wooden piers at high-traffic municipal boat launches and lakes
- Facility managers needing scalable, rustproof marine infrastructure at budget-friendly prices
