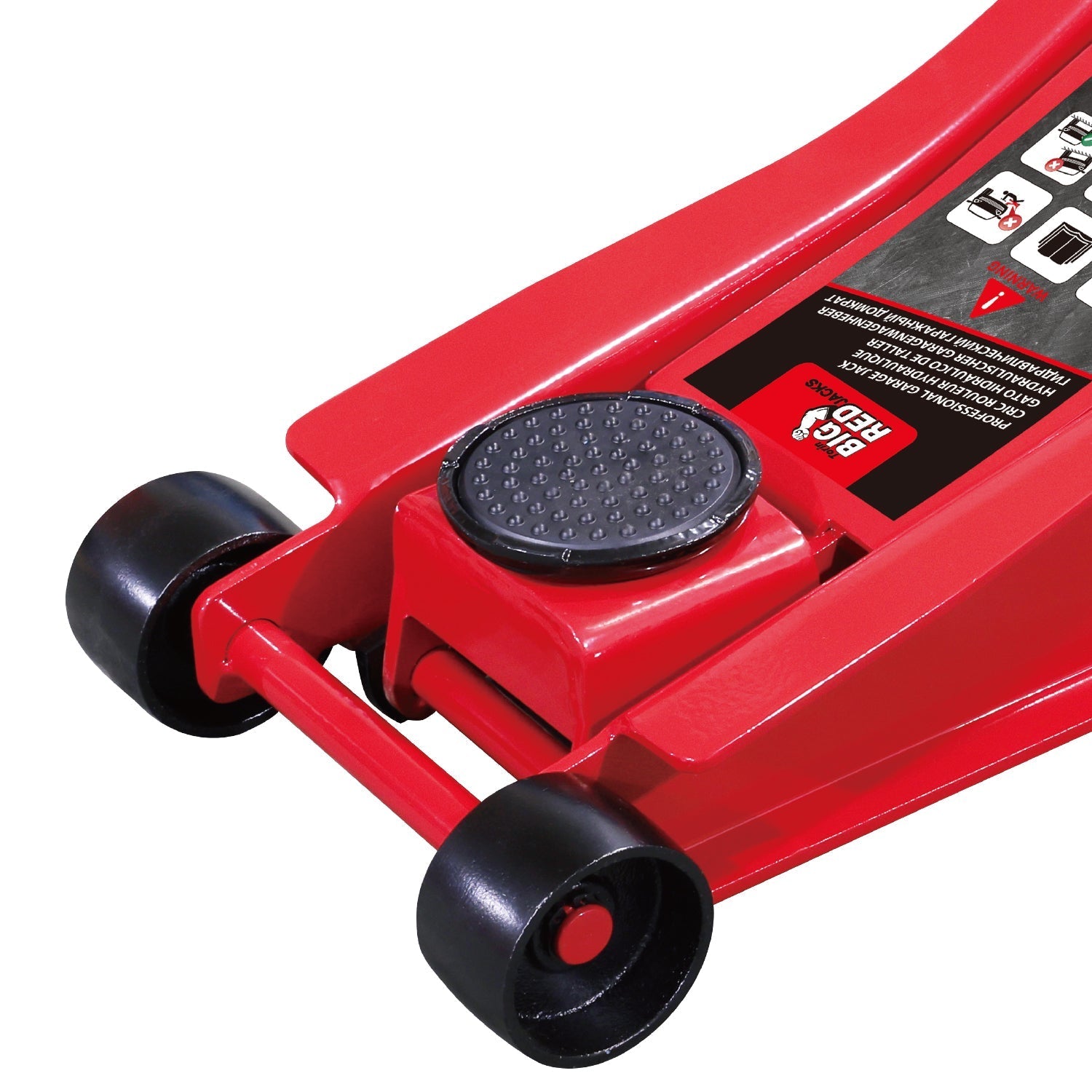

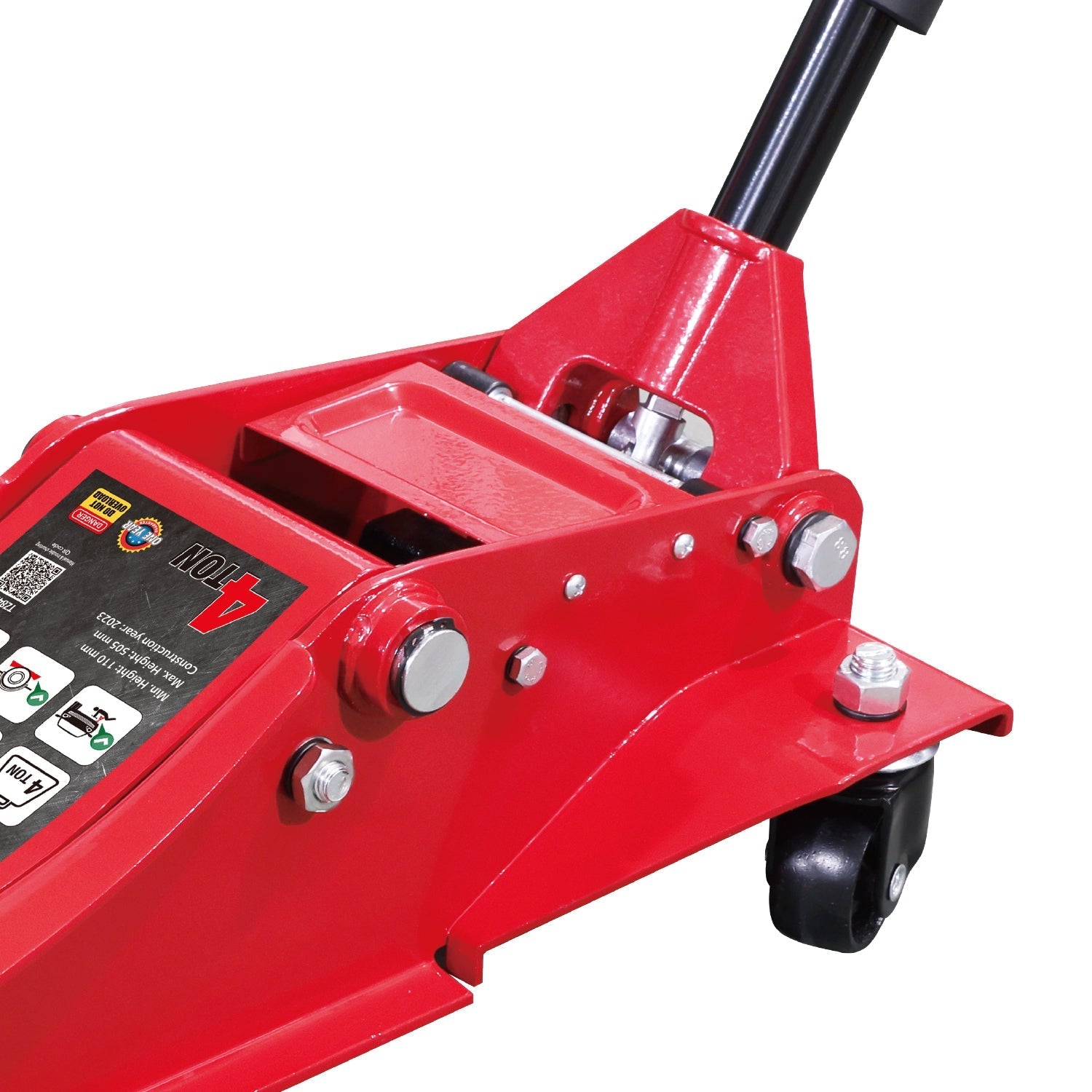

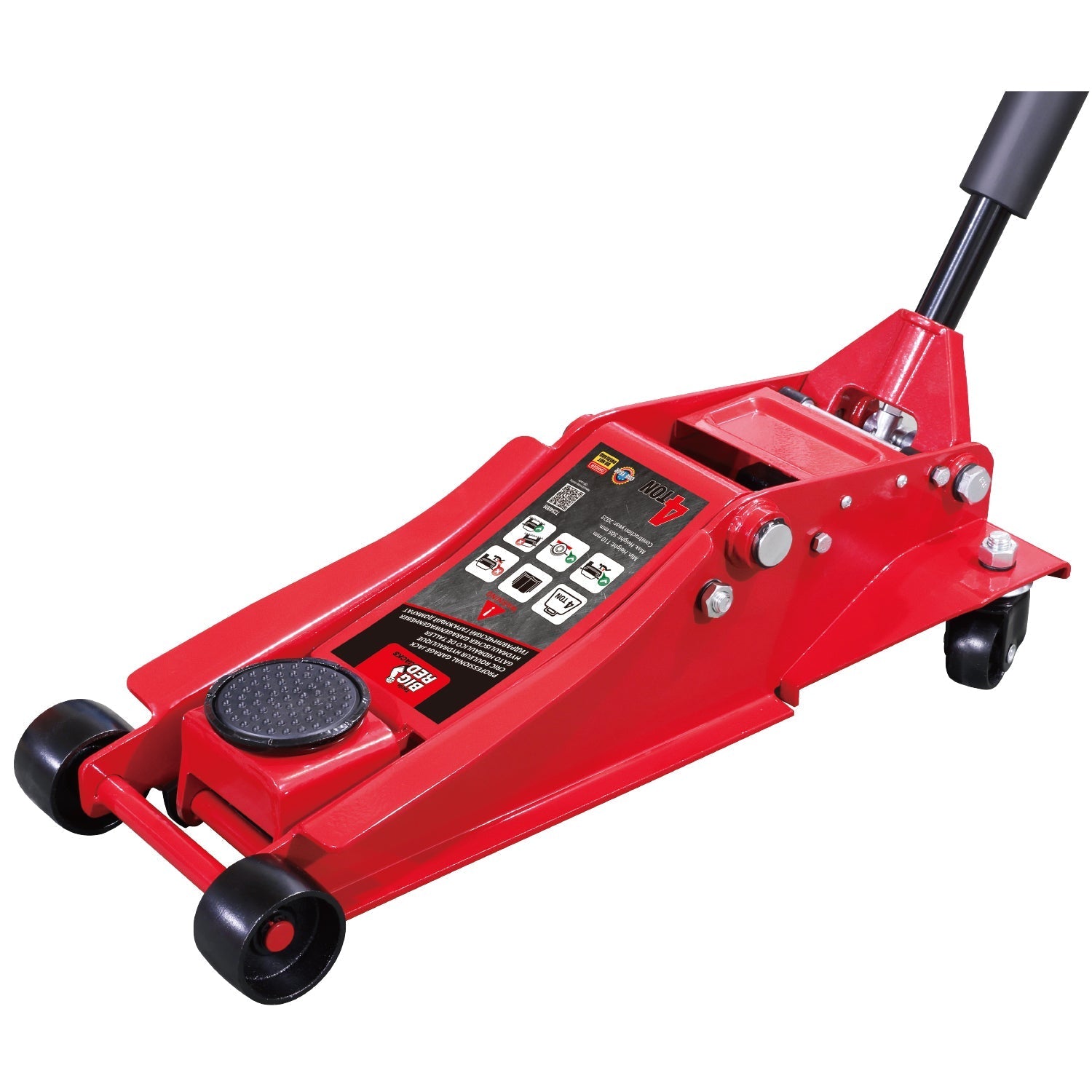

Big Red 4-Ton Hydraulic Floor Jack – 8,000 lb Capacity, Dual Piston, 19-7/8" Max Lift | T84009
🛠️ Big Red 3.5 Ton Low Profile Floor Jack – T83508D | Heavy-Duty Hydraulic Jack for Low Clearance Vehicles
Engineered for Performance. Built for Power.
The Big Red T83508D Hydraulic Floor Jack delivers industrial-grade lifting performance with the versatility you need in any garage. With a 3.5-ton (7,000 lb) lift capacity and ultra-low profile, this jack easily fits under lowered vehicles and raises them up to 21.06 inches, making it ideal for sports cars, sedans, SUVs, and light trucks.
Its dual-piston quick-lift pump reduces lifting effort and time by up to 5×, while the all-steel, rust-resistant frame ensures lasting durability in professional shop environments.
✅ Key Features:
-
💪 3.5 Ton Capacity (7,000 lbs): Lifts cars, trucks, SUVs, and more
-
⚡ Dual Piston Quick-Lift Pump: Lifts 5× faster than standard jacks
-
🔽 Ultra-Low Profile: 3.86" minimum height—perfect for performance vehicles
-
📏 Extended Lift Range: Raises up to 21.06" for excellent service access
-
🧱 Heavy-Duty All-Steel Construction: Designed for long-term shop and industrial use
-
🔄 Smooth Maneuverability:
-
(2) Fixed steel casters
-
(2) 360° swivel casters for tight turns
-
-
📏 Extra-Long 49.2" Handle: Offers leverage and reach without strain
-
🛡️ Rust-Resistant Finish: Protects against wear in demanding workspaces
📐 Technical Specifications:
| Specification | Detail |
|---|---|
| Model | T83508D |
| Lift Capacity | 3.5 Ton / 7,000 lbs |
| Min. Lift Height | 3.86 in. |
| Max. Lift Height | 21.06 in. |
| Chassis Length | 29.92 in. |
| Saddle Diameter | 3.86 in. |
| Handle Length | 49.21 in. |
| Product Size (L×W×H) | 29.92" × 13.58" × 6.69" |
| Product Weight | 94.8 lbs |
| Frame Material | Heavy-Duty Steel |
| Finish | Red, Rust-Resistant |
| Type | Hydraulic / Low-Profile |
🧰 Ideal For:
✔ Performance & lowered vehicles
✔ Automotive shops & garages
✔ SUVs, sedans, and light-duty trucks
✔ DIYers and professional mechanics
Tackle every lift with confidence and speed.
The Big Red T83508D is your heavy-duty, low-profile solution for shop-grade performance and smooth garage operation.
