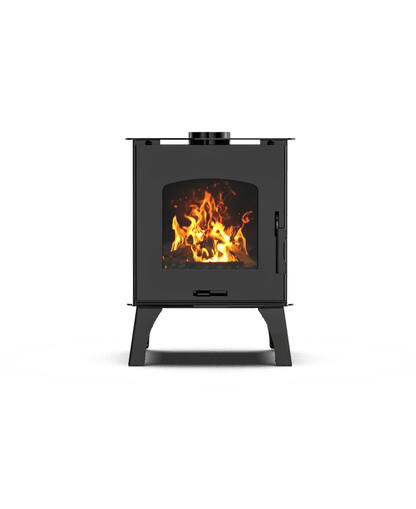

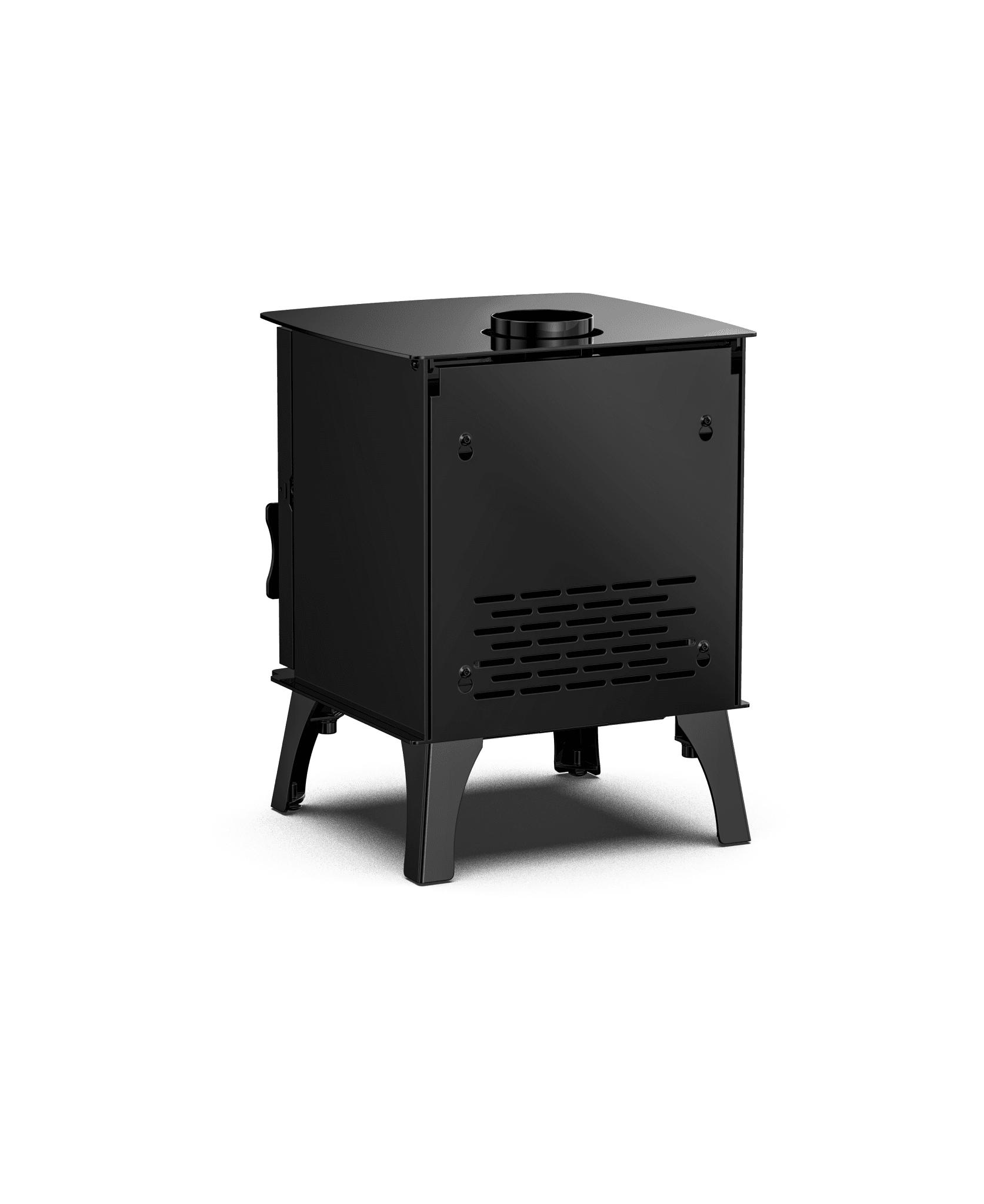

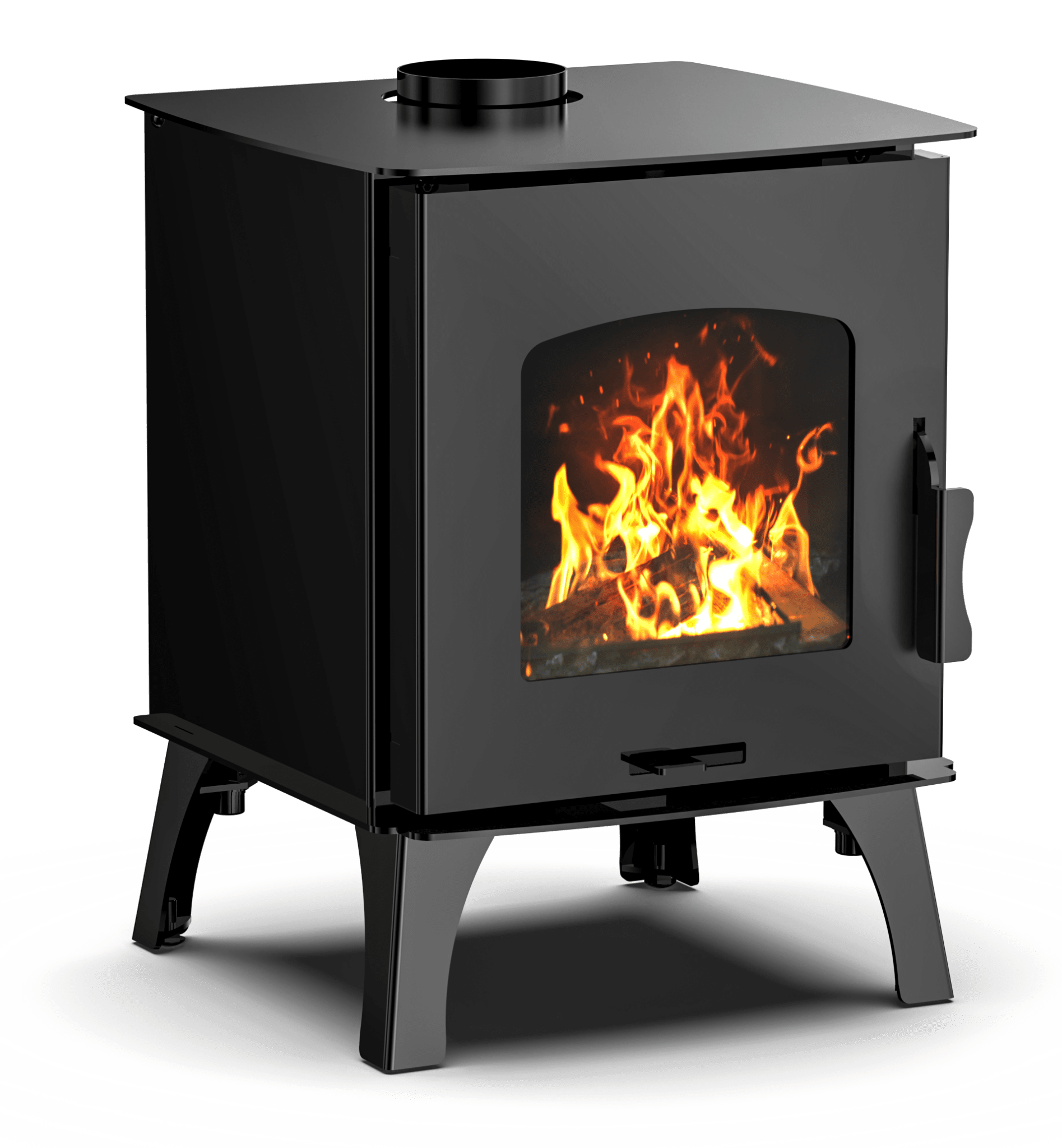

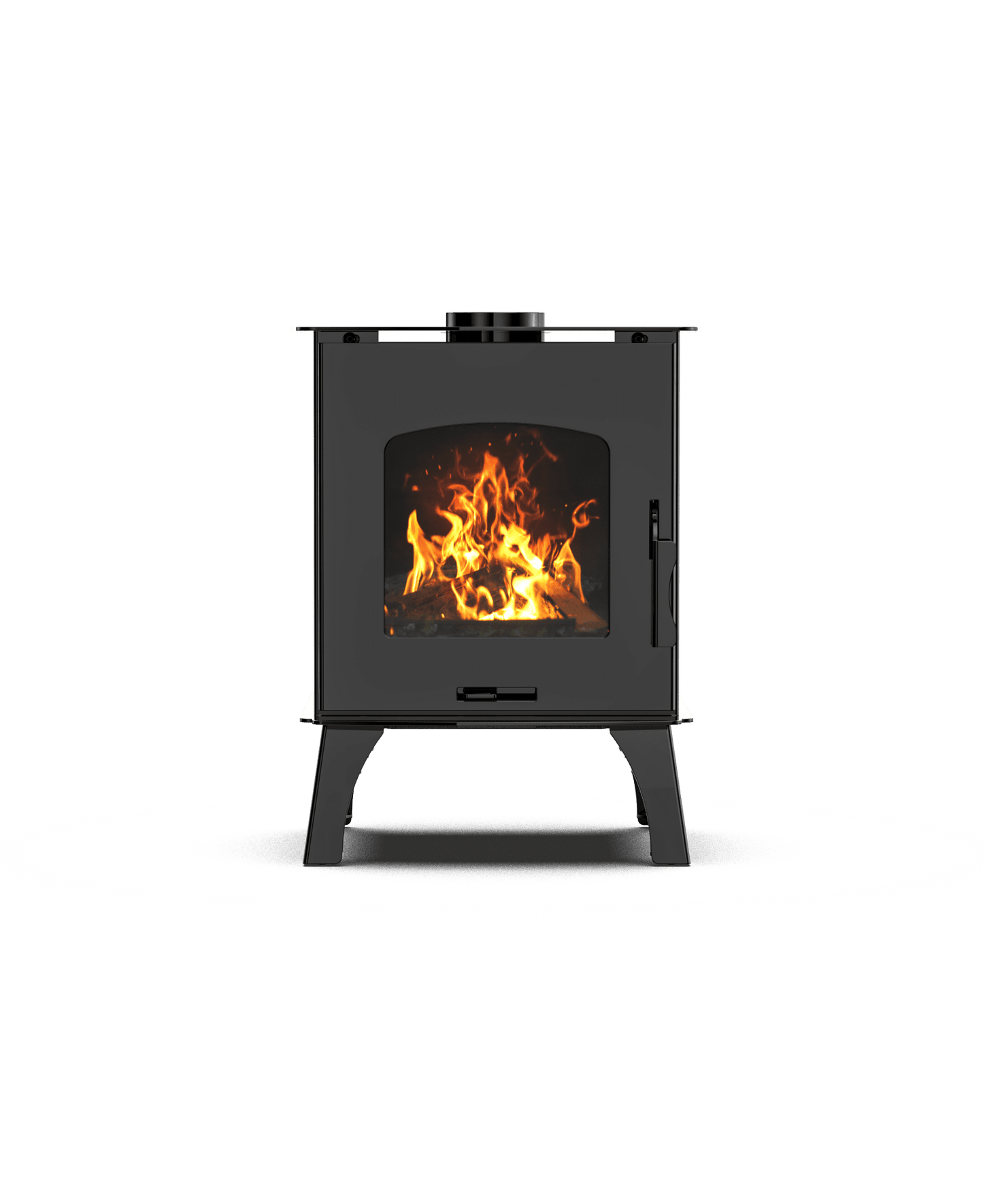

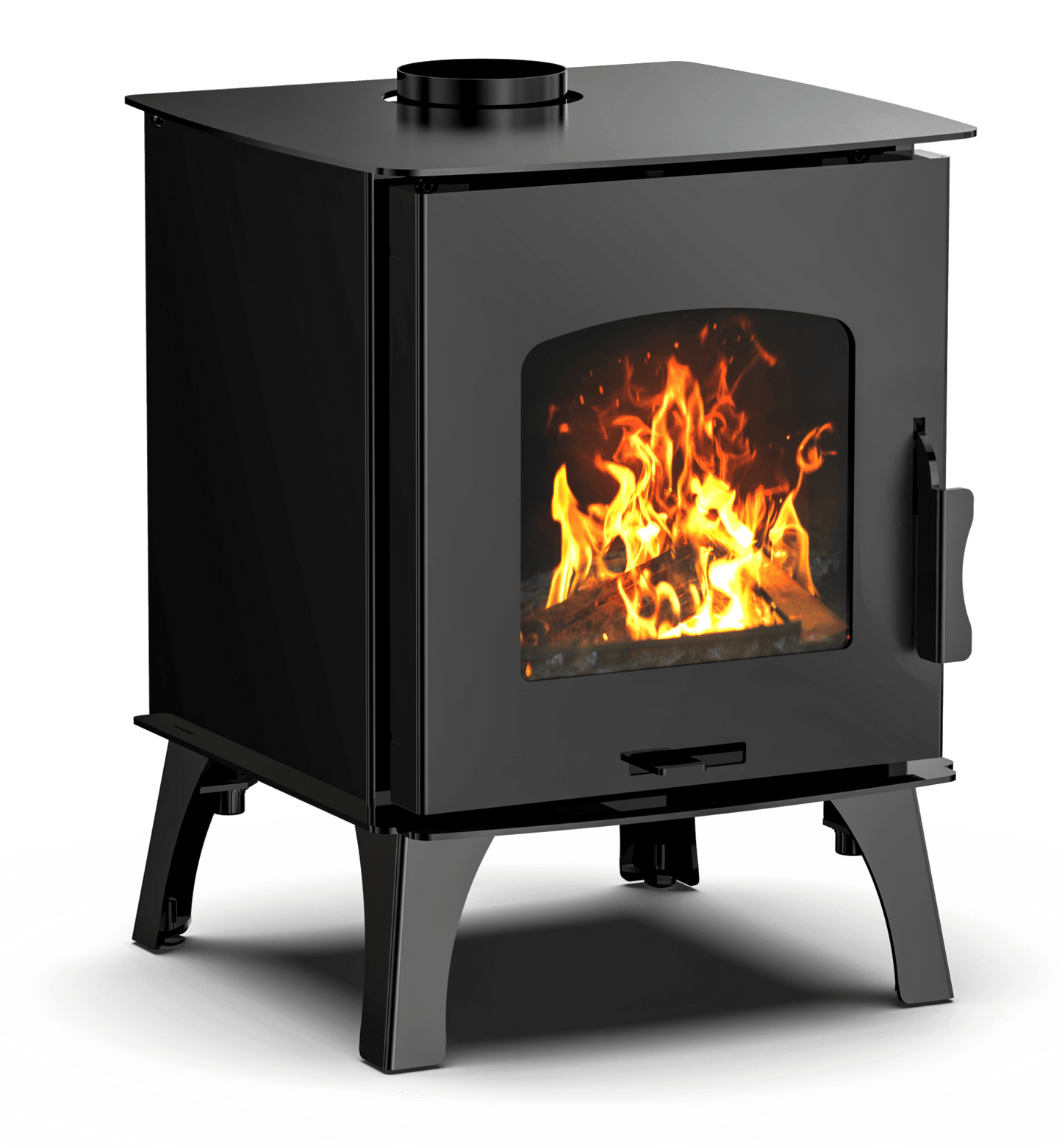

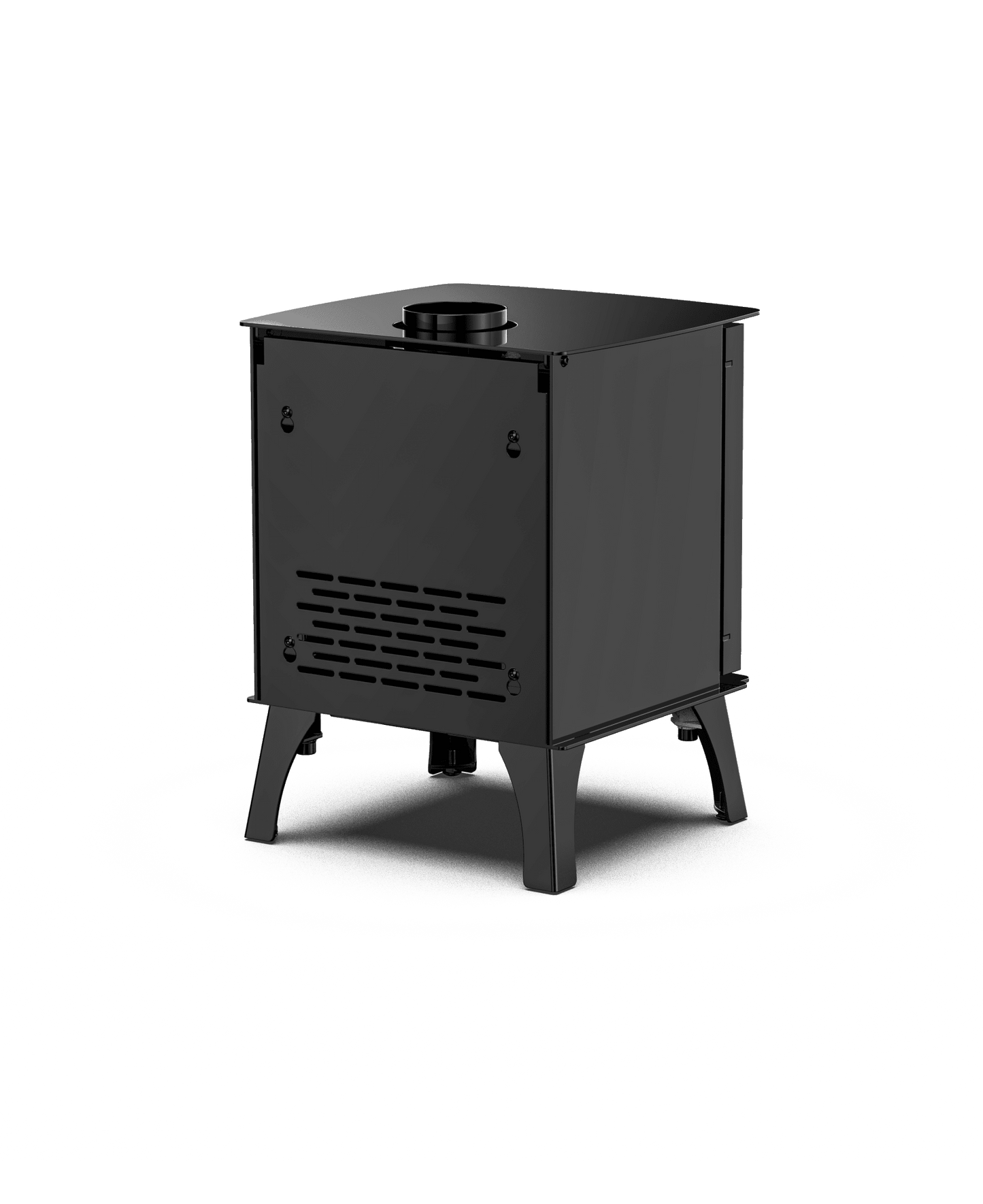

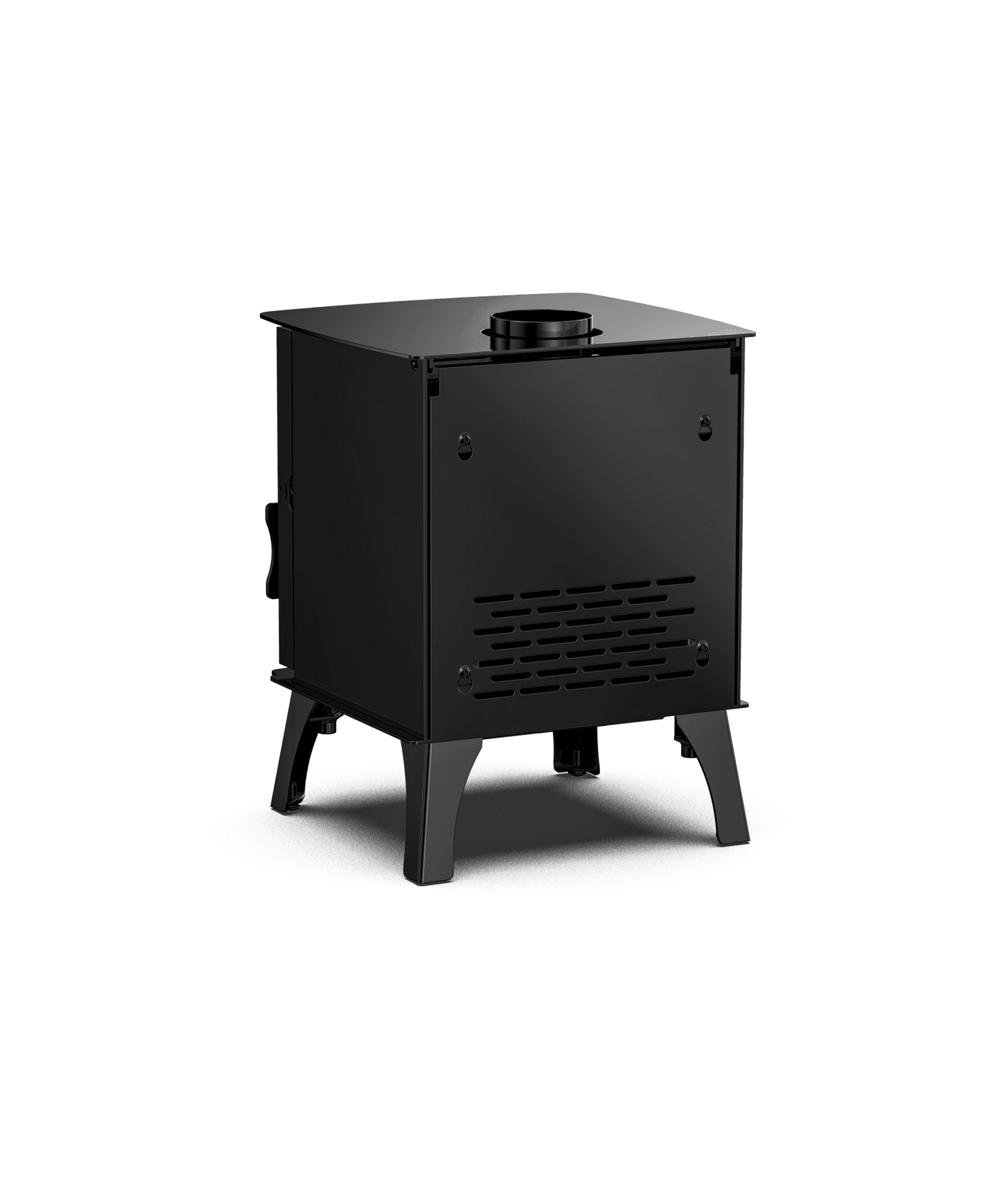

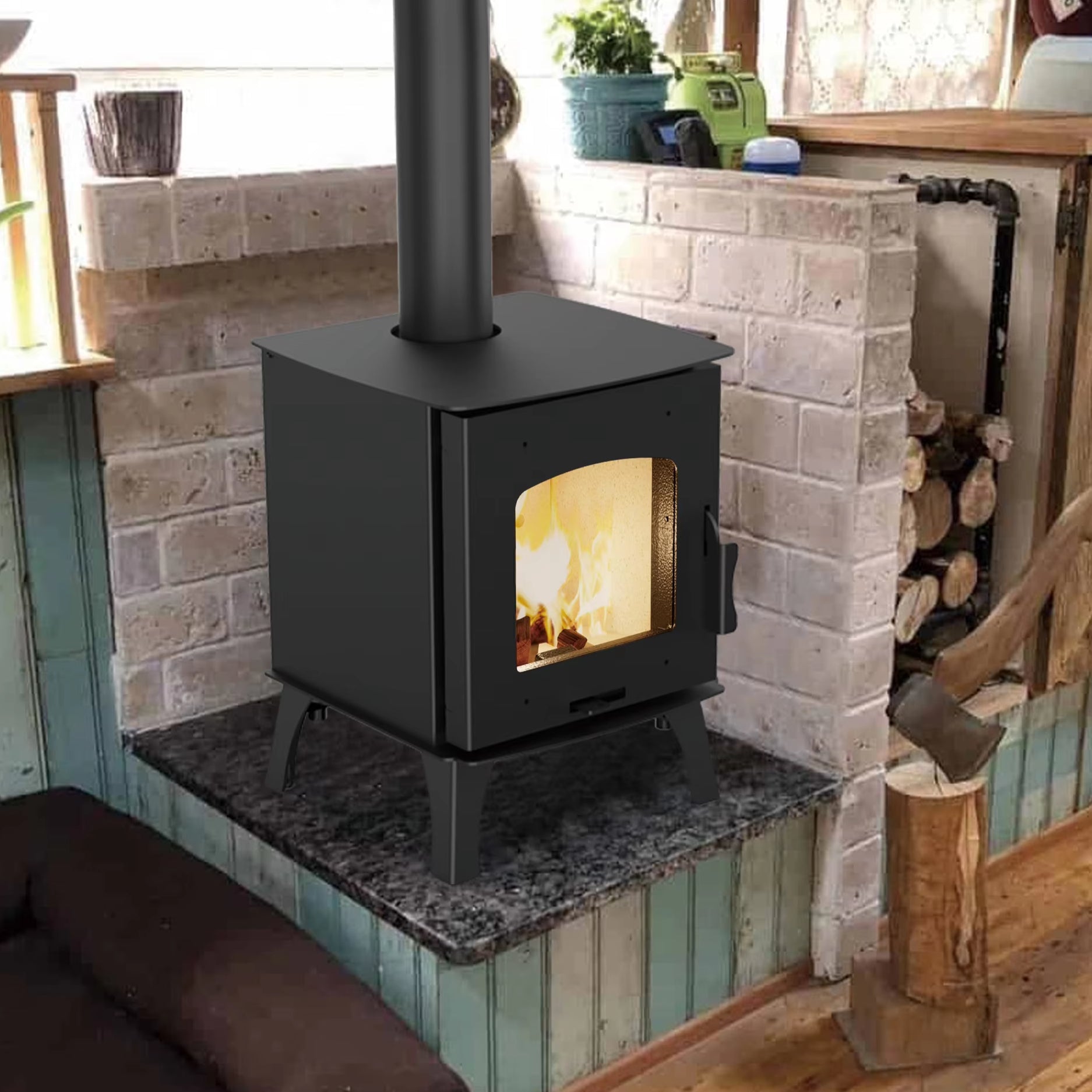

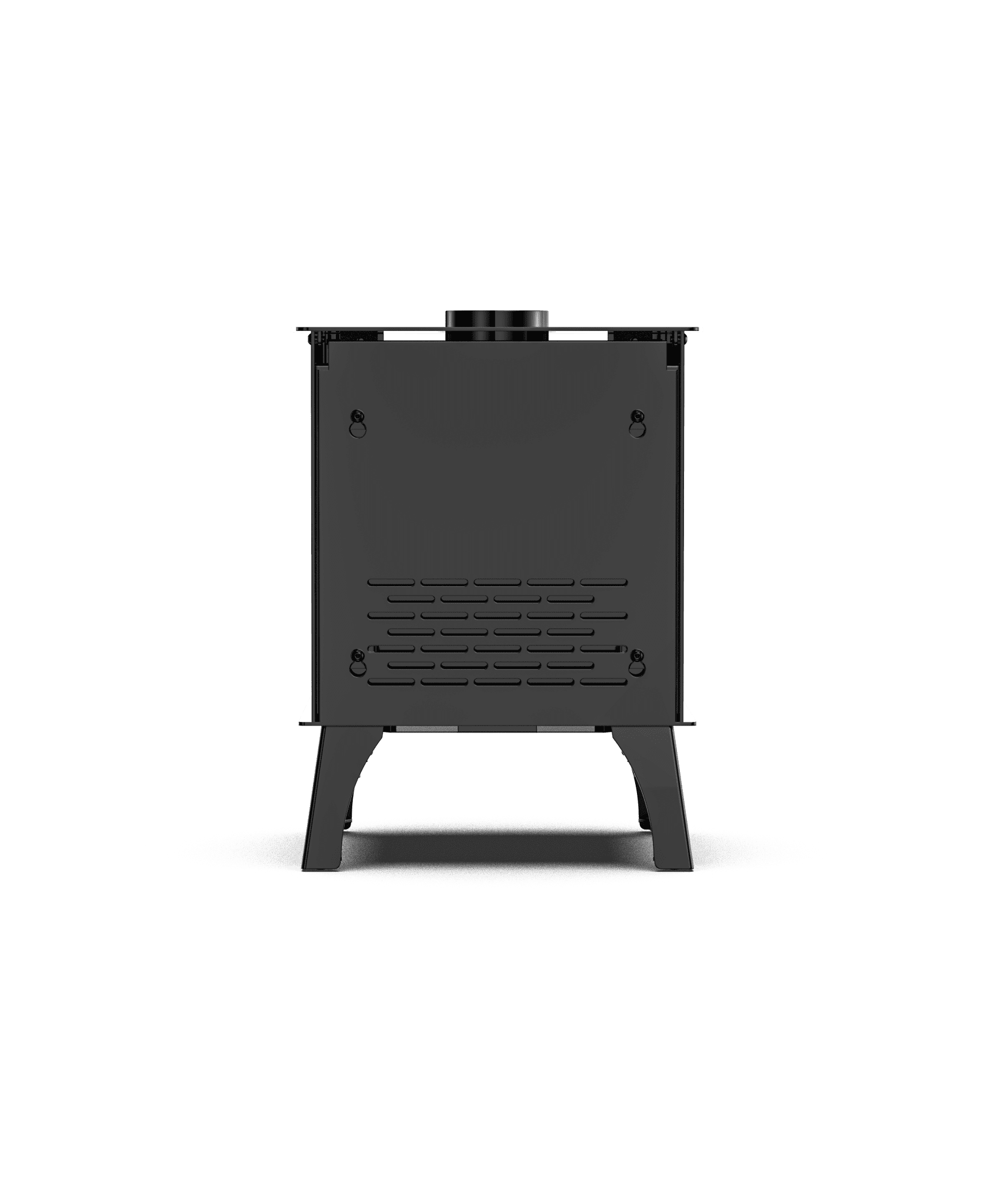

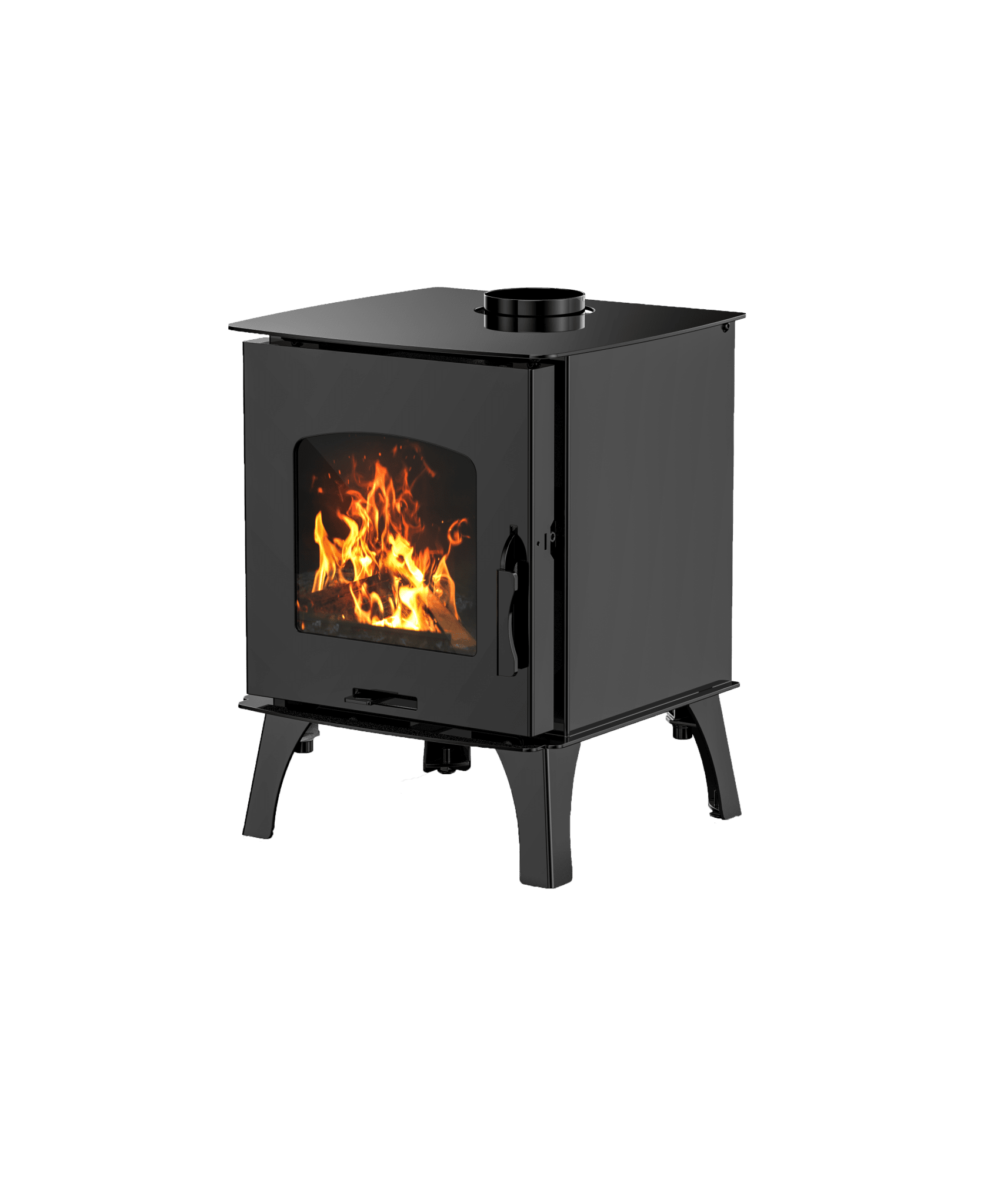

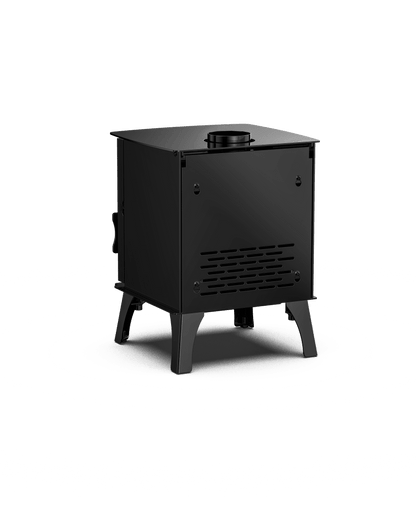

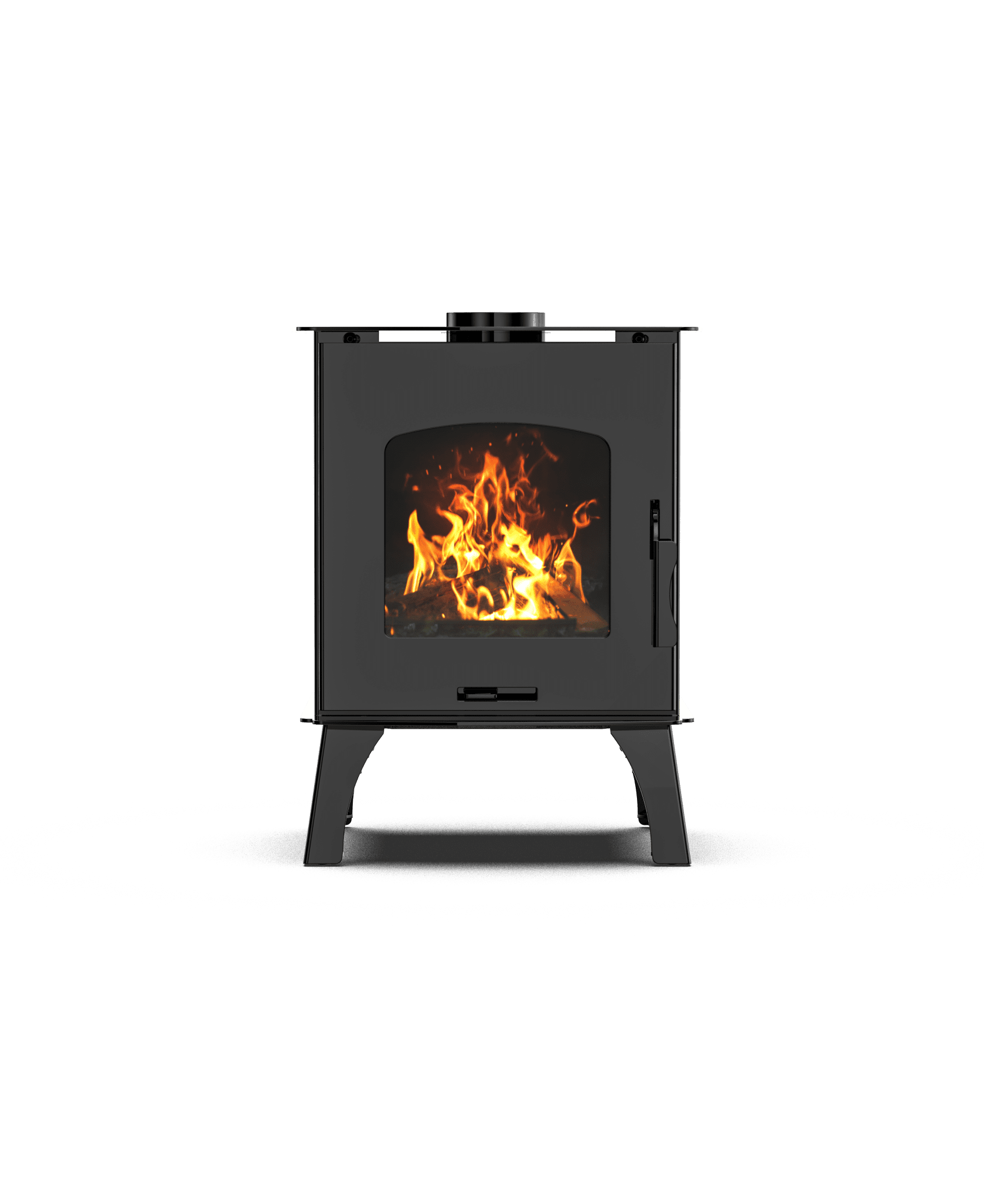

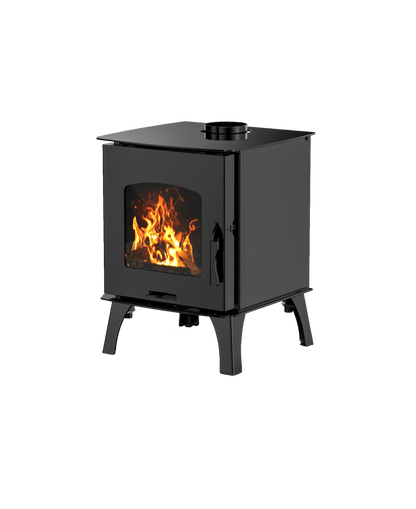

Compact Wood Stove with Firebox – 4kW Steel Wood-Burning Heater R0401A

The R0401A Compact Wood Stove is designed for efficient heating in small cabins, sheds, workshops, and off-grid spaces. Built from heavy-duty steel and lined with vermiculite fireboard, this compact stove delivers reliable heat, clean burning performance, and long service life — all in a small footprint ideal for limited spaces.

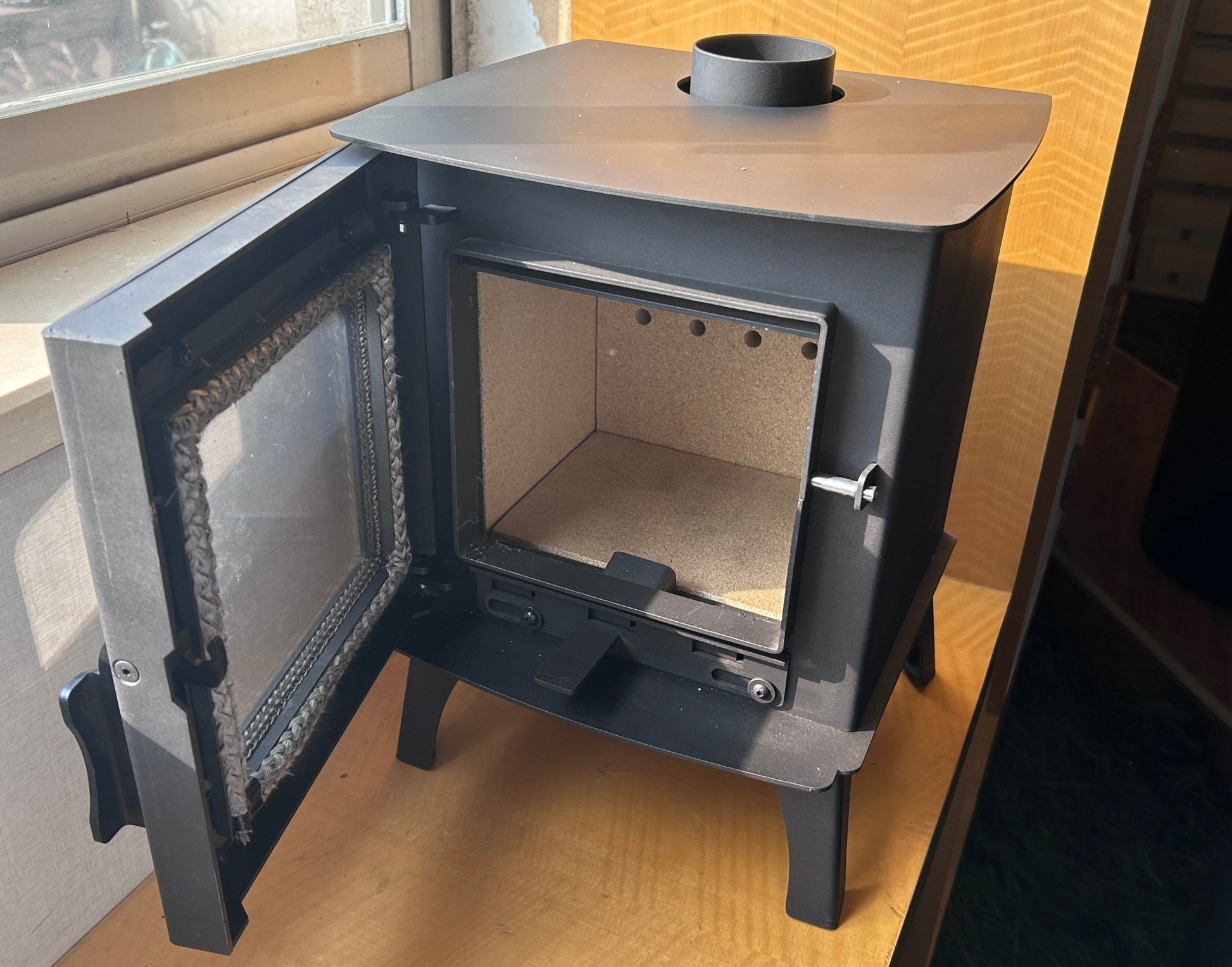

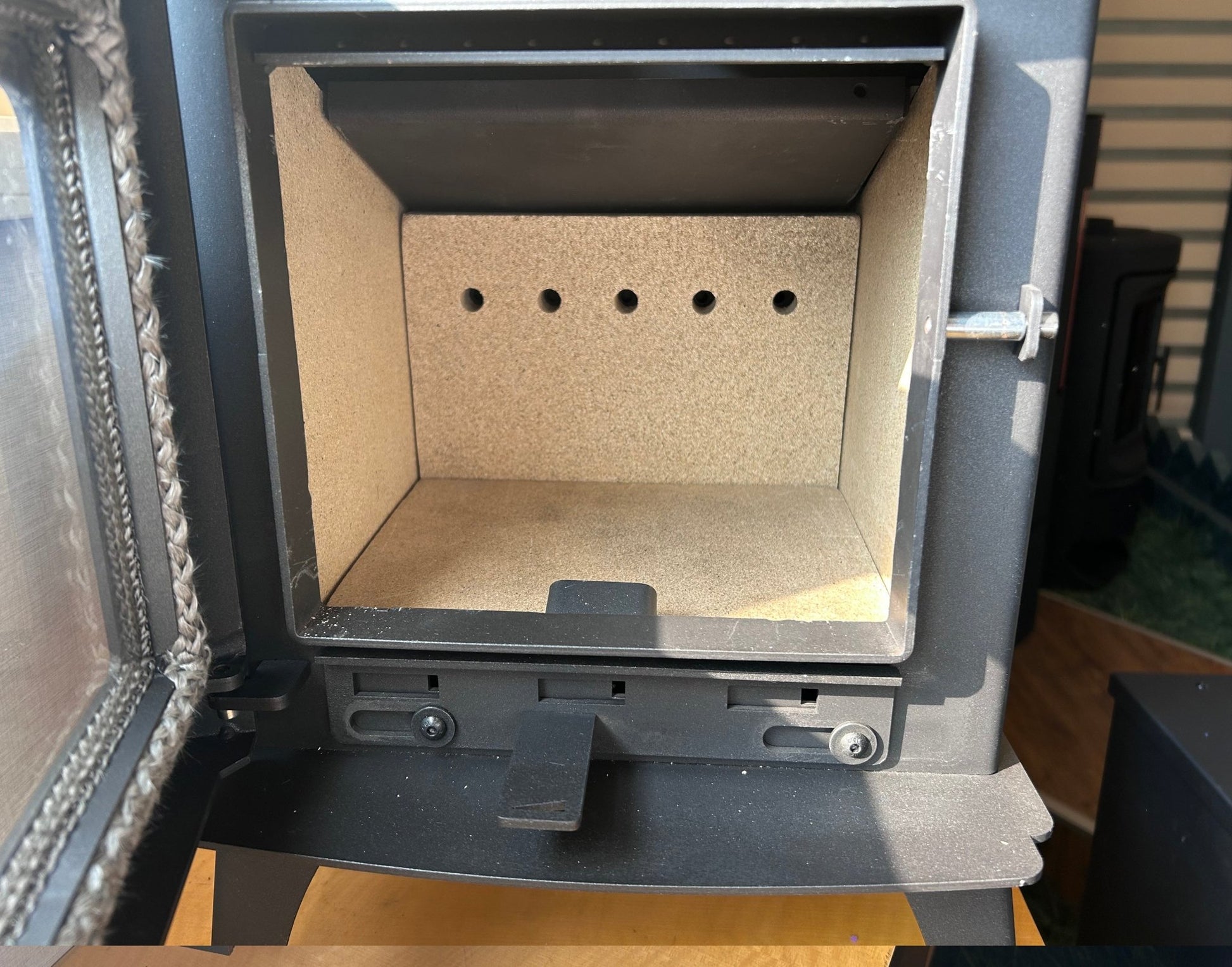

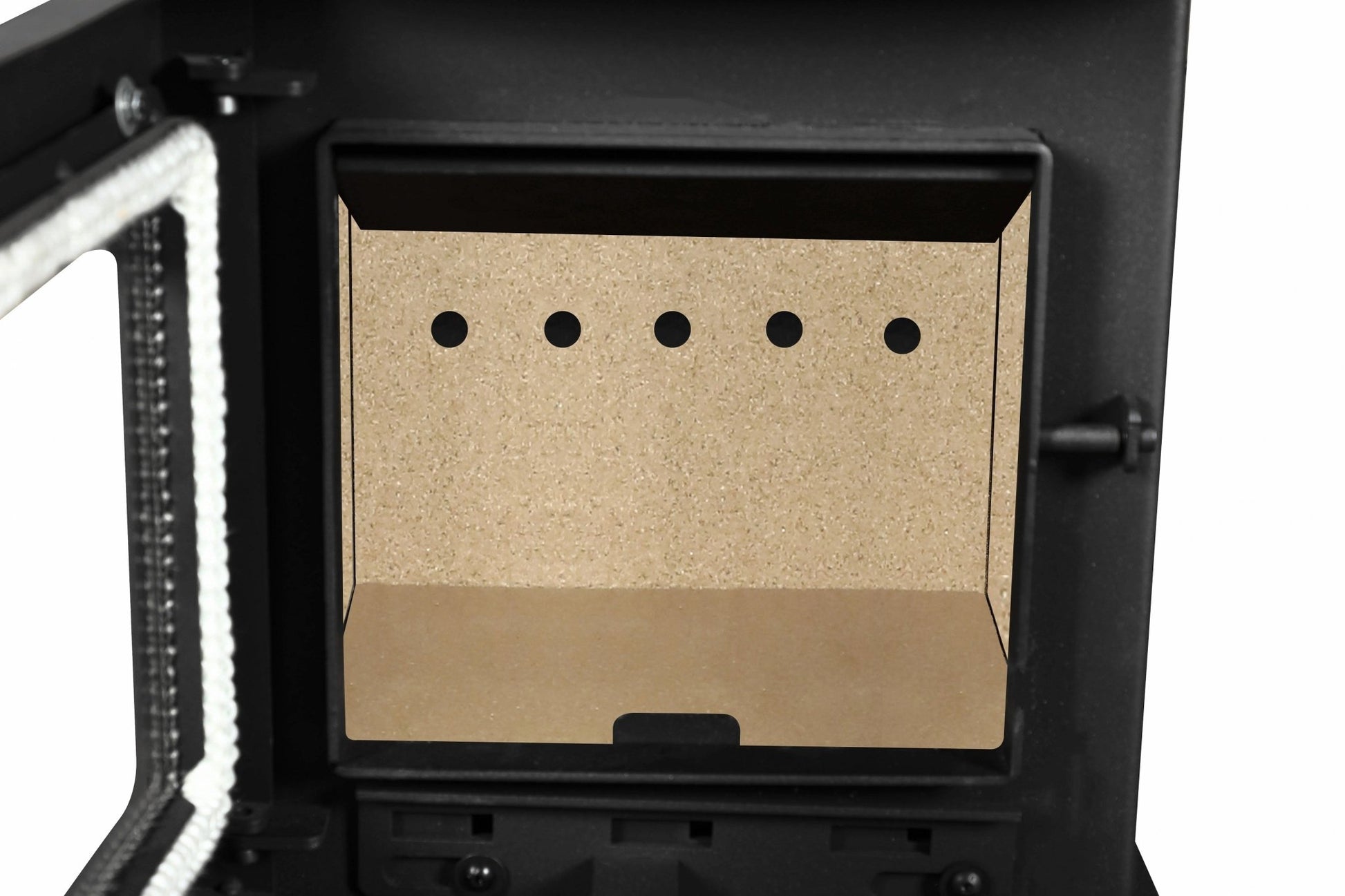

Vermiculite Firebox Lining

The firebox is lined with approximately 3/4" thick vermiculite board, providing excellent insulation, improved heat retention, and protection for the steel body. This lining boosts efficiency while extending the stove’s lifespan.

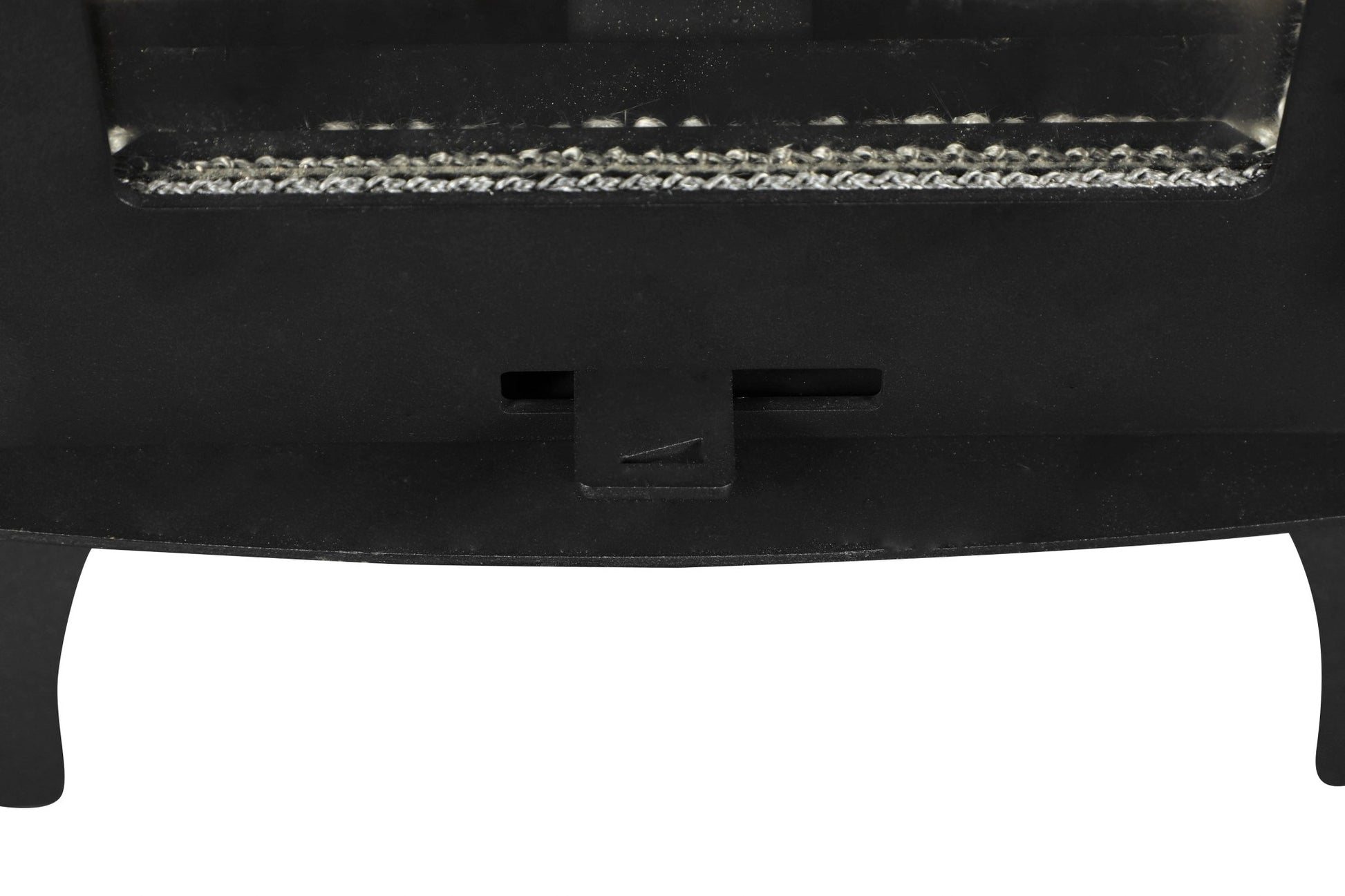

Adjustable Air Inlet

A side-mounted sliding air control lever allows precise adjustment of airflow, giving you full control over burn rate — from slow, extended burns to hotter, faster fires.

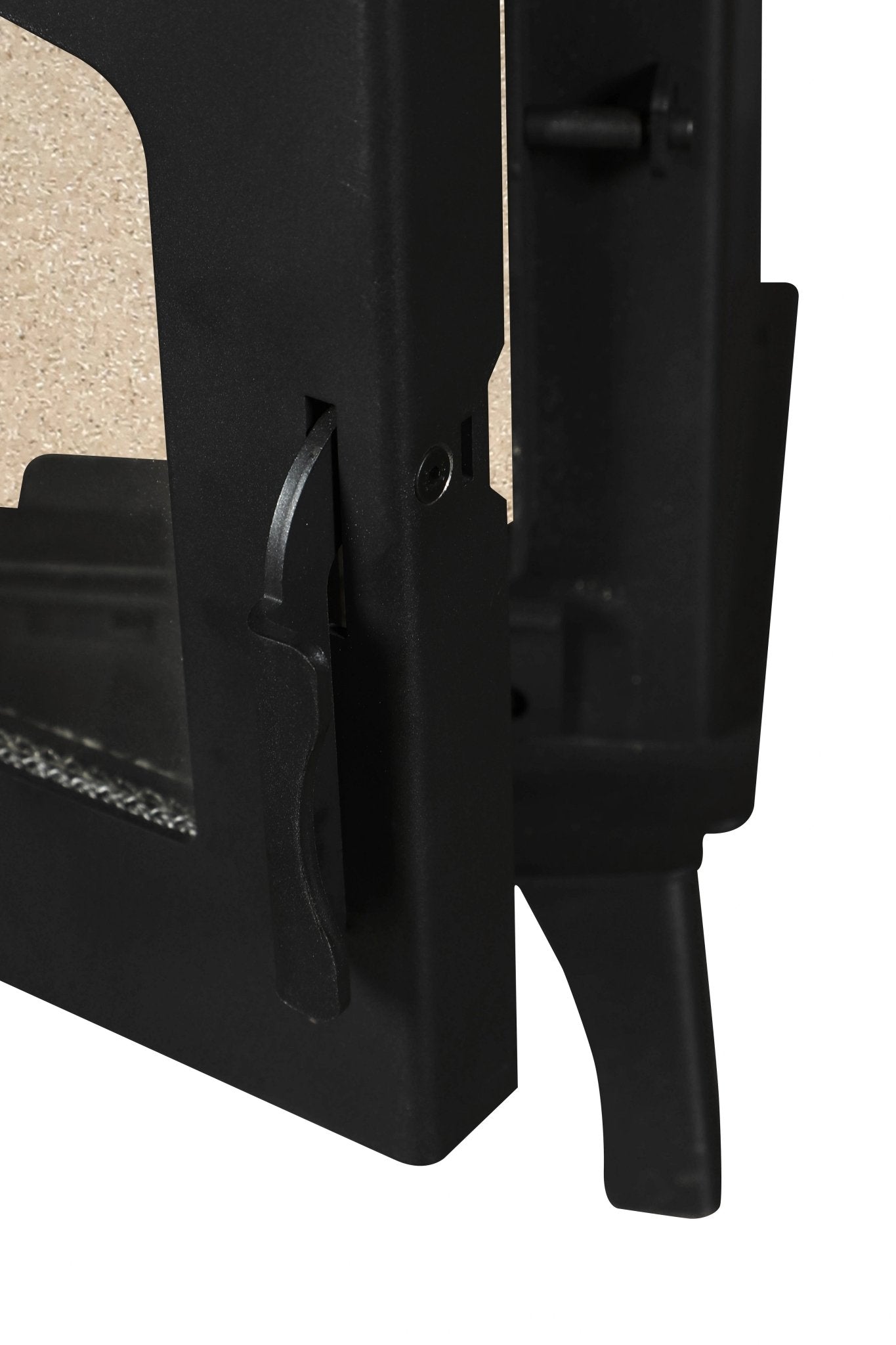

Durable Steel Door Handle

The curved steel door handle is designed for strength and comfort, allowing easy opening and closing even when the stove is hot.

High-Temperature Door Seal

A glass fiber gasket around the door frame ensures a tight seal, improving heat efficiency while offering excellent heat resistance, corrosion resistance, and noise reduction.

Key Features

• Compact wood-burning stove for small spaces

• Heavy-duty steel construction

• Vermiculite-lined firebox for insulation and durability

• Adjustable air intake for burn control

• High-temperature glass fiber door gasket

• Curved steel door handle for safe operation

• Efficient, clean-burning performance

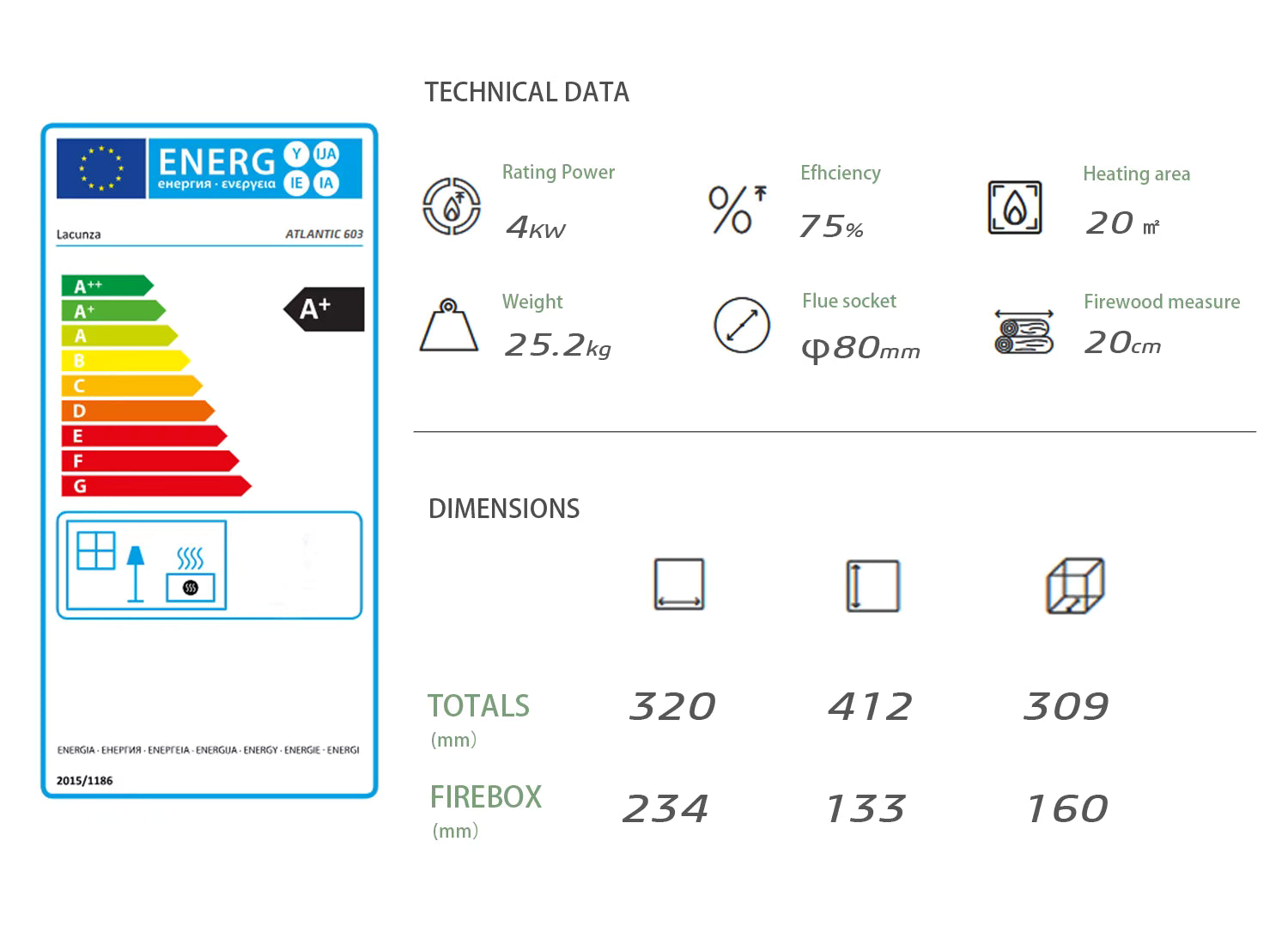

Specifications

• Model: R0401A

• Fuel Type: Wood

• Material: Steel
• Overall Dimensions (W × D × H): 320 × 309 × 412 mm (12 5/8" × 12 3/16" × 16 1/4")
• Firebox Interior Dimensions (W × D × H): 234 × 160 × 133 mm (9 3/16" × 6 5/16" × 5 1/4")
• Exhaust Outlet: 80 mm (3 1/8") flue diameter
• Wood Capacity: Up to 200 mm long × Ø30 mm (Approx. 7 7/8" long × 1 3/16" diameter)

Performance:

• Rated Power: 4 kW (≈ 13,650 BTU/h)

• Heating Area: Up to 20 m² (≈ 215 sq ft)

• Efficiency: 75%

• Burn Time per Load: Approx. 2 hours

Construction Thickness:

• Side Plates: 3.0 mm (≈ 1/8")

• Top Plate: 3.0 mm (≈ 1/8")

• Vermiculite Lining: 20 mm (≈ 13/16")

Weight:

• 25.2 kg (≈ 56 lb)

Ideal For

• Small cabins and off-grid homes

• Sheds and workshops

• Tiny houses

• Emergency or supplemental heating
