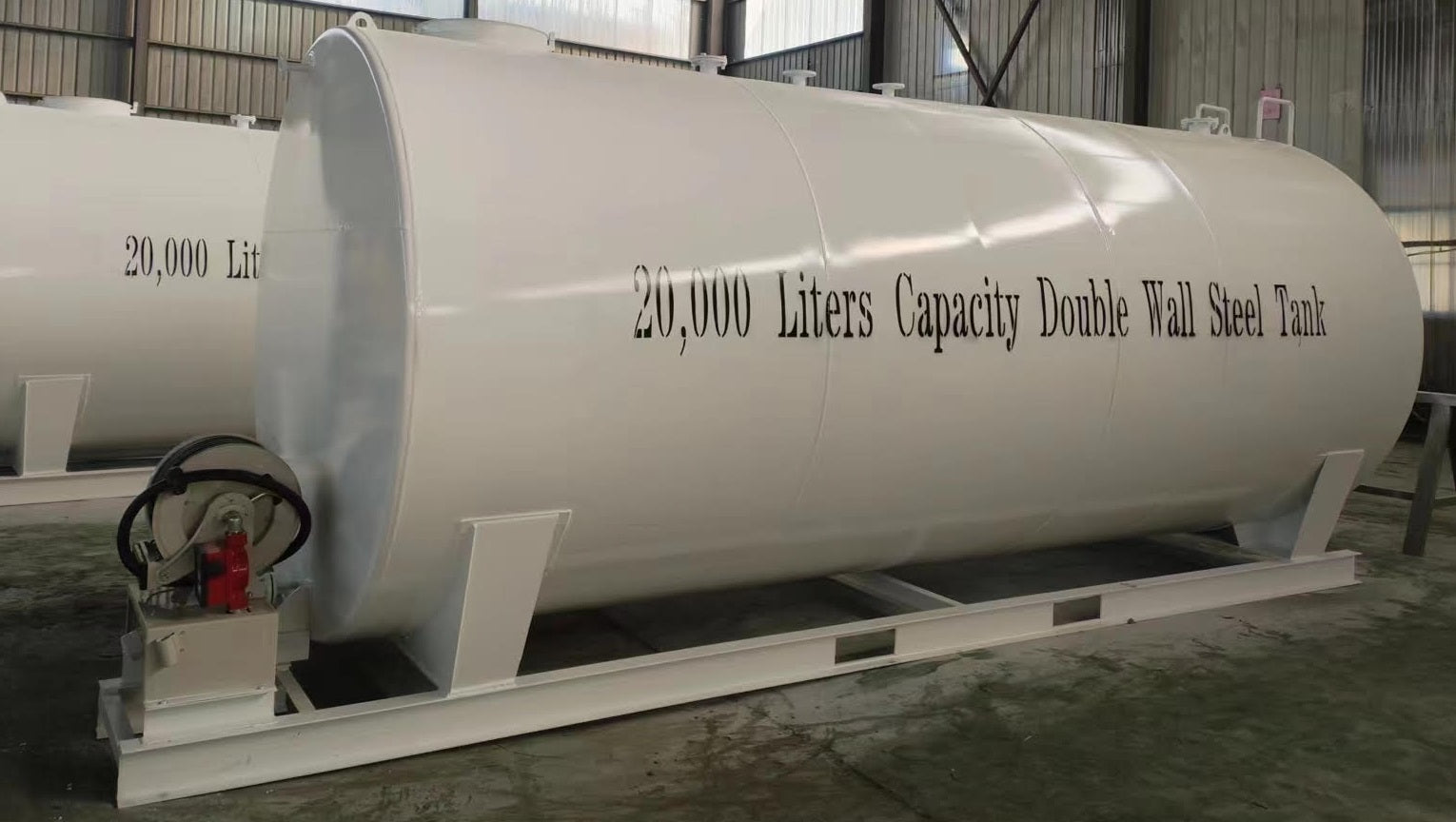

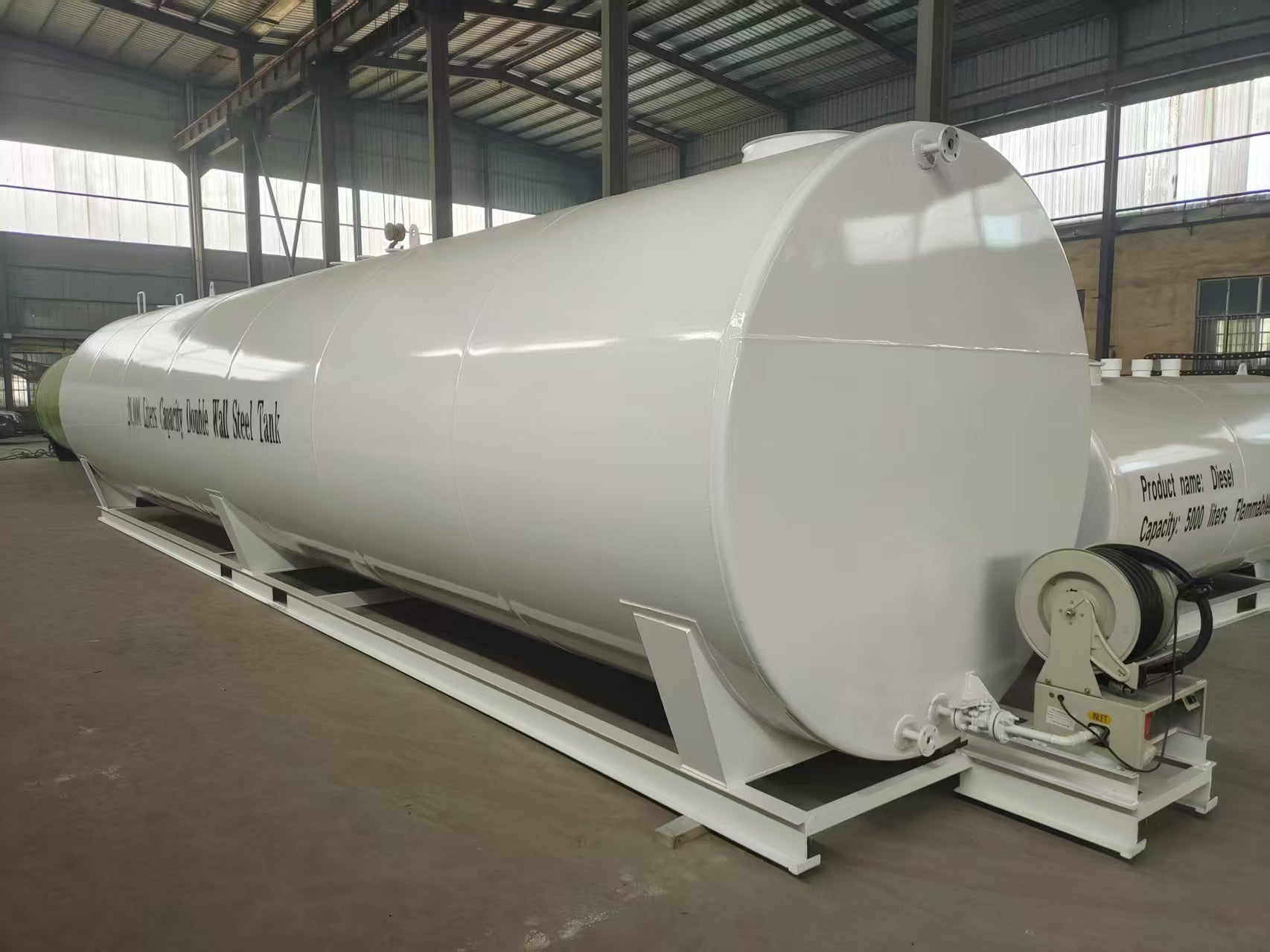

20,000L & 40,000L Skidded Double-Wall Fuel Storage Tanks with 110V Pump System
OVERVIEW
Establish a high-capacity, mobile refueling station with our Heavy-Duty Skidded Double-Wall Fuel Tanks. Available in 20,000L (5,283 gal) and 40,000L (10,566 gal) capacities, these tanks are engineered for industrial, agricultural, and construction site applications. The double-wall construction provides critical environmental protection and leak containment, while the integrated skid mount allows for easier relocation on-site. Each unit comes fully equipped with a professional 110V transfer pump system, a 15-meter hose reel, and advanced monitoring tools, offering a complete "plug-and-play" fueling solution.
TANK & SAFETY FEATURES
-
Environmental Protection: Double-wall steel construction ensures secondary containment, meeting rigorous safety standards for fuel storage.
-
Integrated Monitoring: Features a side-mounted magnetic flap liquid level gauge for precise fuel tracking and a dedicated leakage detector for early warning safety.
-
Access & Maintenance: Equipped with a removable heavy-duty ladder and a quick-opening manhole for easy internal inspections and maintenance.
-
Safety Venting: Includes a fire-blocking air vent and specialized nozzle systems to prevent pressure buildup and fire hazards.
-
Skid-Mounted Base: The ruggedized skid frame provides structural integrity during transport and serves as a stable foundation on various terrain types.

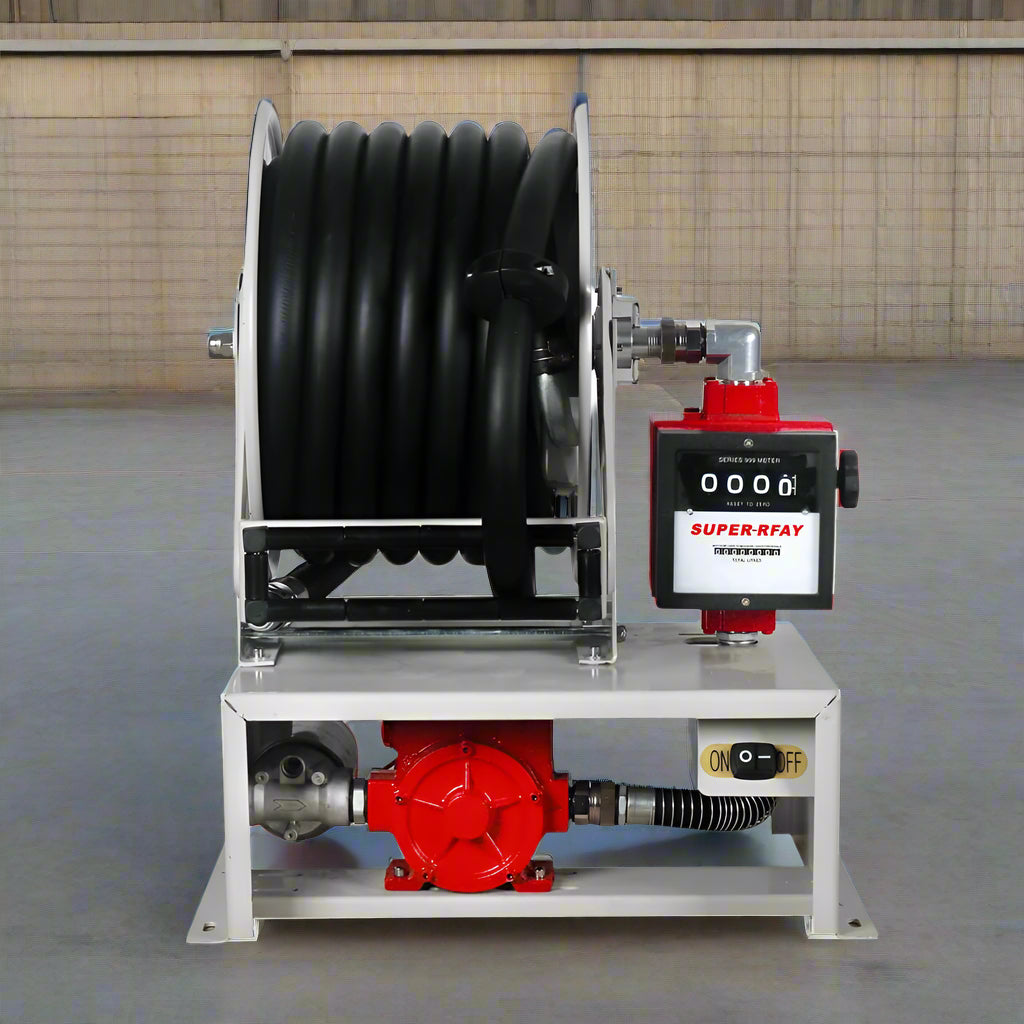

INTEGRATED PUMP SYSTEM (Model YNC Series)
-
High-Efficiency Transfer: 110V powered pump delivering a consistent flow rate of 55 L/min (14.5 G/min).
-
Heavy-Duty Hose Reel: Features a 15m (49.2 ft) industrial-grade 1-inch hose, rated for a working pressure of 1300 PSI and a burst pressure of 5200 PSI.
-
Precision Metering: Built-in flow meter with ±1% accuracy for reliable fuel accounting.
-
Extreme Temperature Rated: Designed to operate effectively in temperatures ranging from 20°C to +82°C (68°F to 180°F).
SPECIFICATIONS & DIMENSIONS

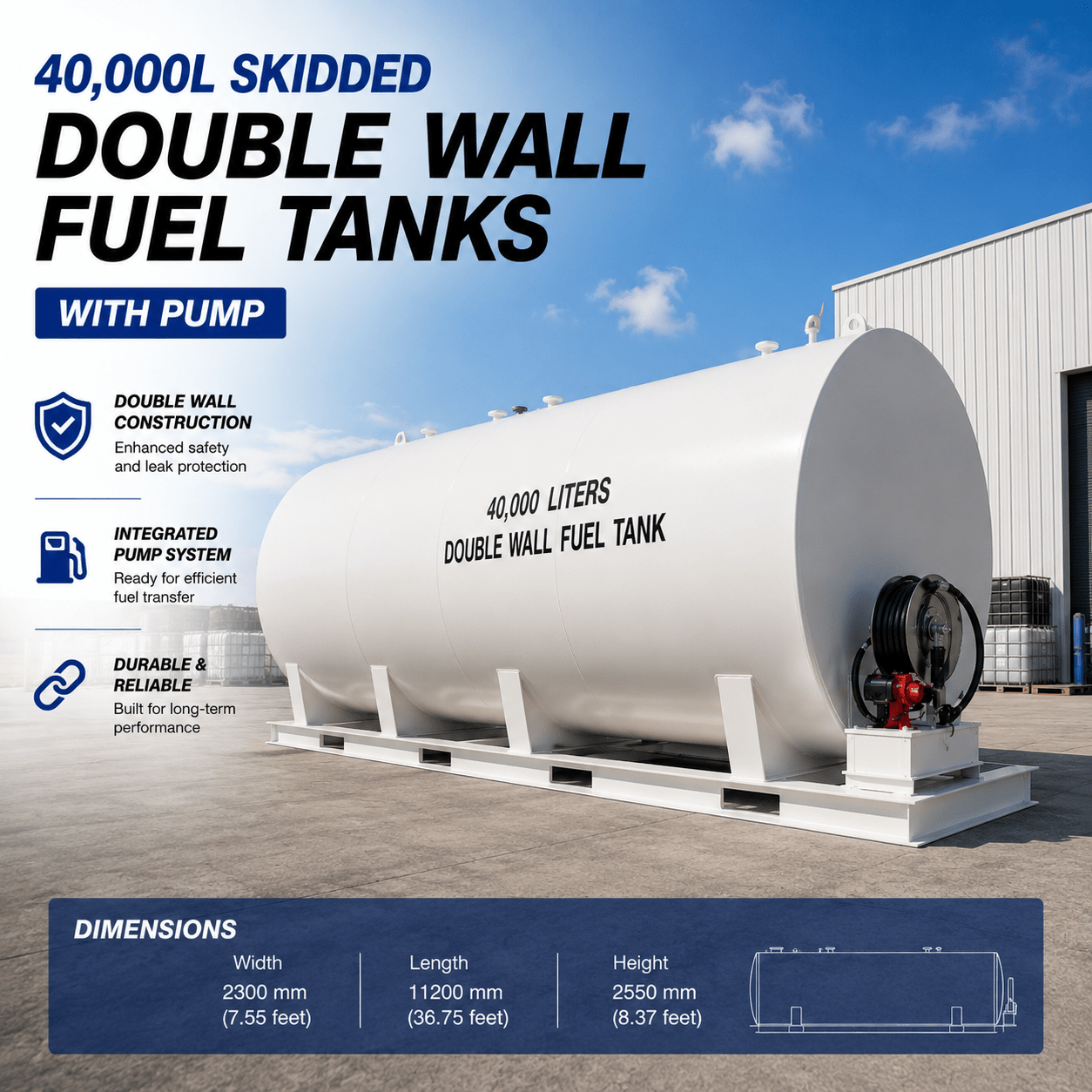

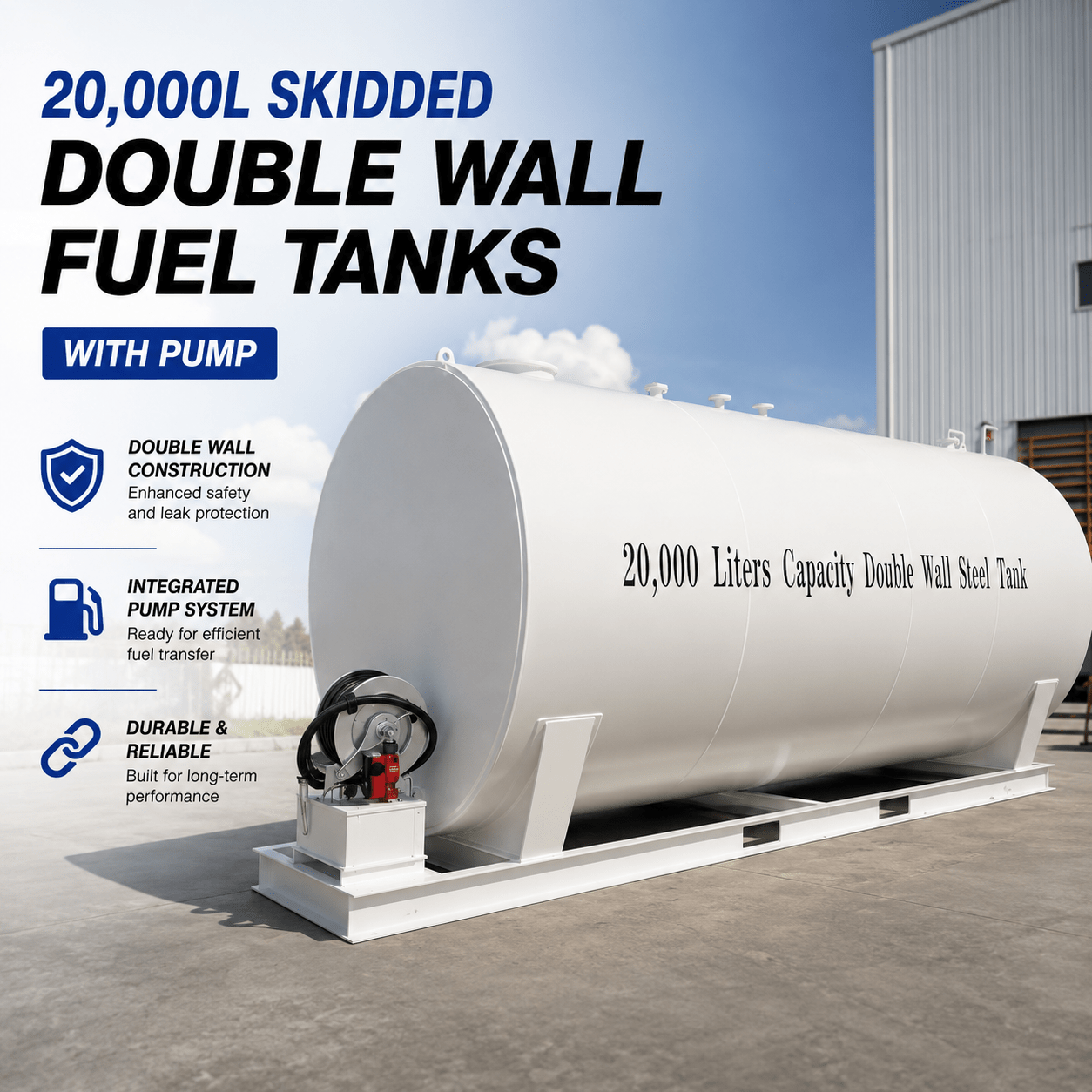

| Feature | 20,000L Model (SKU 122031) | 40,000L Model (SKU 122034) |
| Capacity | 20,000 Liters (5,283 gal) | 40,000 Liters (10,566 gal) |
| Length | 5950 mm (19.52 ft) | 11200 mm (36.75 ft) |
| Width | 2250 mm (7.38 ft) | 2300 mm (7.55 ft) |
| Height | 2550 mm (8.37 ft) | 2550 mm (8.37 ft) |
| Empty Weight | 4600 kg (10,141 lbs) | |
| Pump Power | 110V AC | 110V AC |
| Hose Specs | 15m (49.2 ft) x 1" | 15m (49.2 ft) x 1" |
LOGISTICS & FREIGHT INFORMATION
-
Free Freight Zones: Edmonton, Ponoka, Calgary, and Red Deer (to main warehouse/depot only).
-
Regional Surcharges: Alberta (5% of Sale Price) | Saskatchewan & Manitoba (10% of Sale Price).
-
Delivery Note: Freight covers transportation to warehouse/depot locations. Final delivery to the customer's specific job site is not included and must be arranged separately.
WARRANTY & SUPPORT
Includes a comprehensive manufacturer’s warranty covering defects in materials and workmanship. Free repair or replacement is provided for verified product quality issues. Damage resulting from misuse or external factors is not covered.
