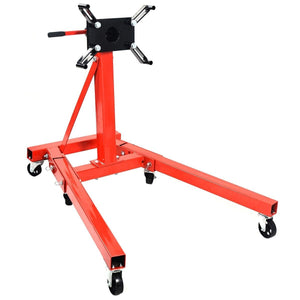

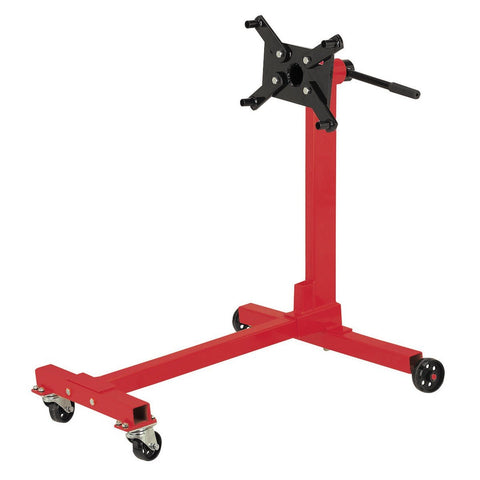

Engine Stand – 1000 & 2000 LBS Capacity with 360° Rotating Head

Professional Heavy-Duty Automotive Engine Stand

360-Degree Rotating Commercial Engine Hoist - 453.6 kg to 907.2 kg Capacities

OVERVIEW

Maximize your automotive workspace and safely execute complex engine rebuilds with our Professional Heavy-Duty Automotive Engine Stand. Engineered for commercial auto shops, professional mechanics, and serious home restoration projects, this rugged stand securely holds massive engine blocks for detailing, repair, and assembly. Available in two heavy-duty payload capacities—a 453.6 kg (1000 lb) model for standard car engines and a massive 907.2 kg (2000 lb) configuration for heavy-duty truck engines. Constructed from thick 3.0 mm (0.12") powder-coated steel tubing, it features a fully lockable 360-degree rotating head, allowing operators to effortlessly flip the engine upside down for complete access to the oil pan and crankshaft.

SYSTEM HIGHLIGHTS

• 360-Degree Lockable Rotation: The precision-machined rotating head allows mechanics to easily spin heavy engine blocks a full 360 degrees and lock them securely at multiple angles for safe, ergonomic access to all components.

• Massive Load Capacities: Choose between the 1000 lb and 2000 lb configurations to perfectly match your garage's specific rebuilding needs, ensuring absolute structural safety when suspending iron V8 blocks.

• Heavy-Duty Steel Architecture: Forged from high-strength steel with a 3.0 mm tube thickness and treated with an industrial red powder-coated finish to resist highly corrosive shop fluids and impact damage.

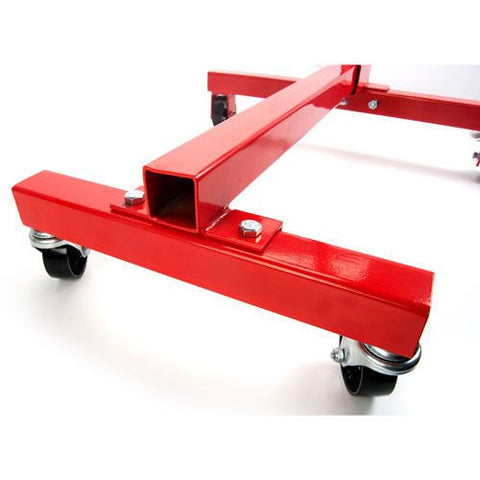

• High-Mobility Swivel Casters: The wide, ultra-stable base is equipped with smooth-rolling casters (88.9 mm / 3.5" front and 83.8 mm / 3.3" rear), allowing operators to easily maneuver the suspended engine across the shop floor.

• Ergonomic Working Clearances: Designed with an optimized middle height of 850.9 mm (33.5") to reduce lower back strain while torquing cylinder heads or installing timing chains.

SPECIFICATIONS BY VARIANT

TECHNICAL DATA

• Maximum Capacities: 453.6 kg (1000 lbs) / 907.2 kg (2000 lbs)

• Head Rotation: 360 Degrees (with Mechanical Lock)

• Tube Wall Thickness: 3.0 mm (0.12")

• Hanger Assembly Size: 241.3 x 139.7 x 139.7 mm (9.5" x 5.5" x 5.5")

• Middle Working Height: 850.9 mm (33.5")

• Front Caster Diameter: 88.9 mm (3.5")

• Rear Caster Diameter: 83.8 mm (3.3")

• Material Construction: Powder-Coated Steel

IDEAL APPLICATIONS

• Automotive Rebuilders & Mechanics: Providing a safe, highly stable platform for tearing down, cleaning, and completely rebuilding internal combustion engines.

• Home Restoration Projects: Equipping serious DIY enthusiasts with commercial-grade safety equipment for classic car restorations and engine swaps.

• Custom Fabrication Shops: Allowing fabricators to easily access all sides of the engine block when mocking up custom turbo manifolds and motor mounts.
