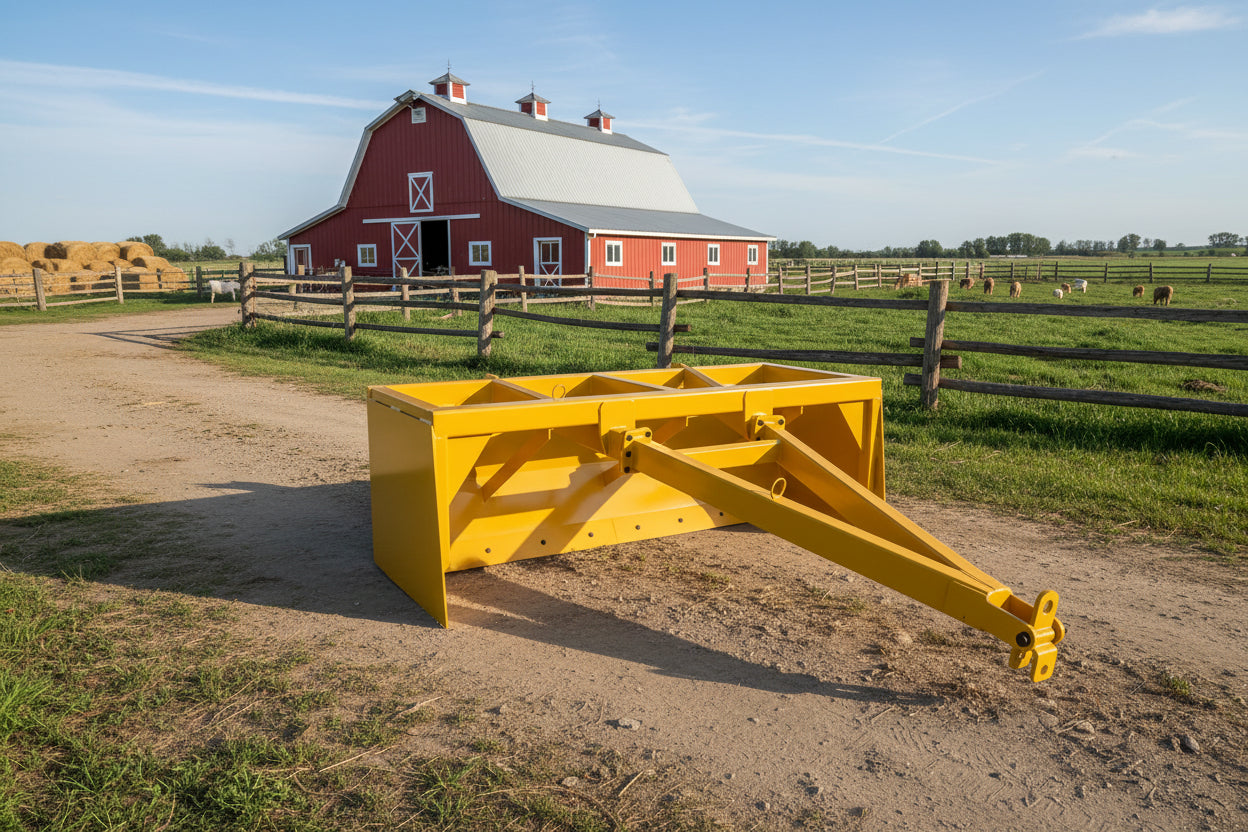

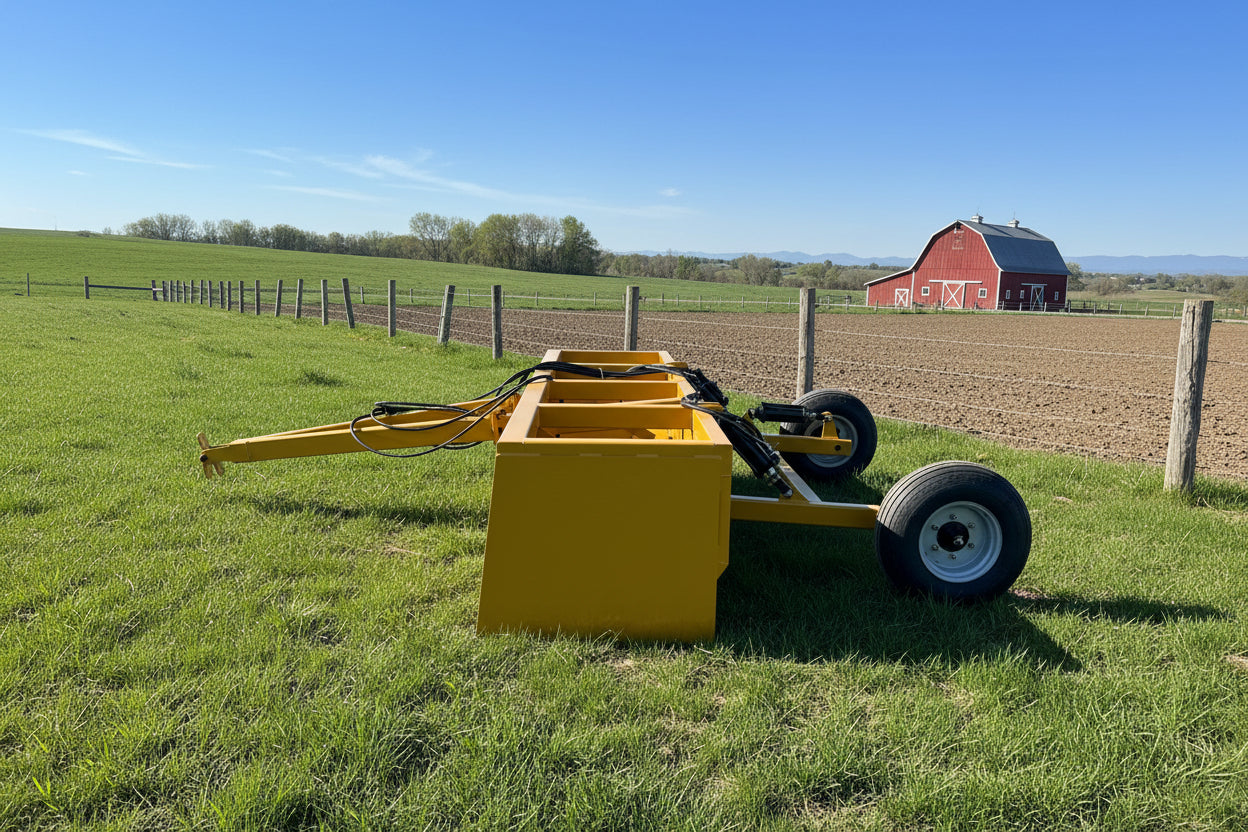

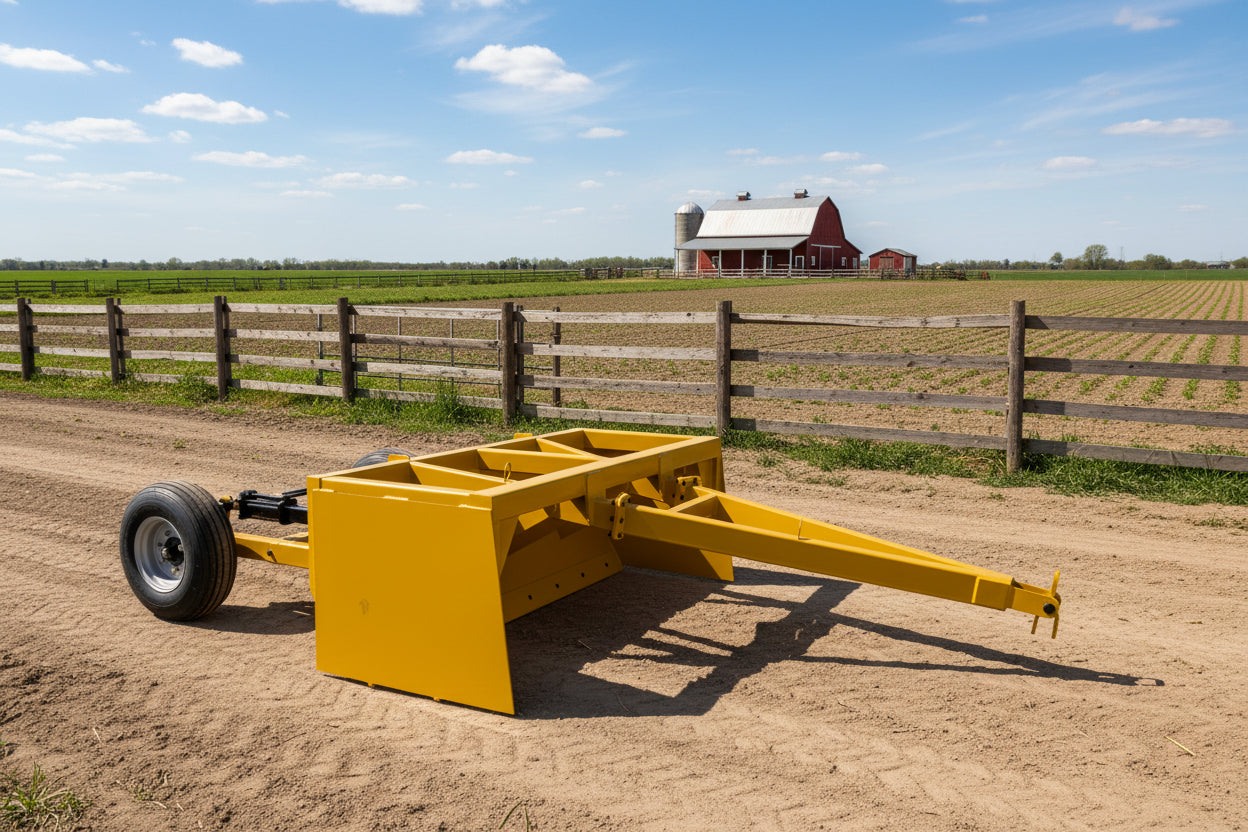

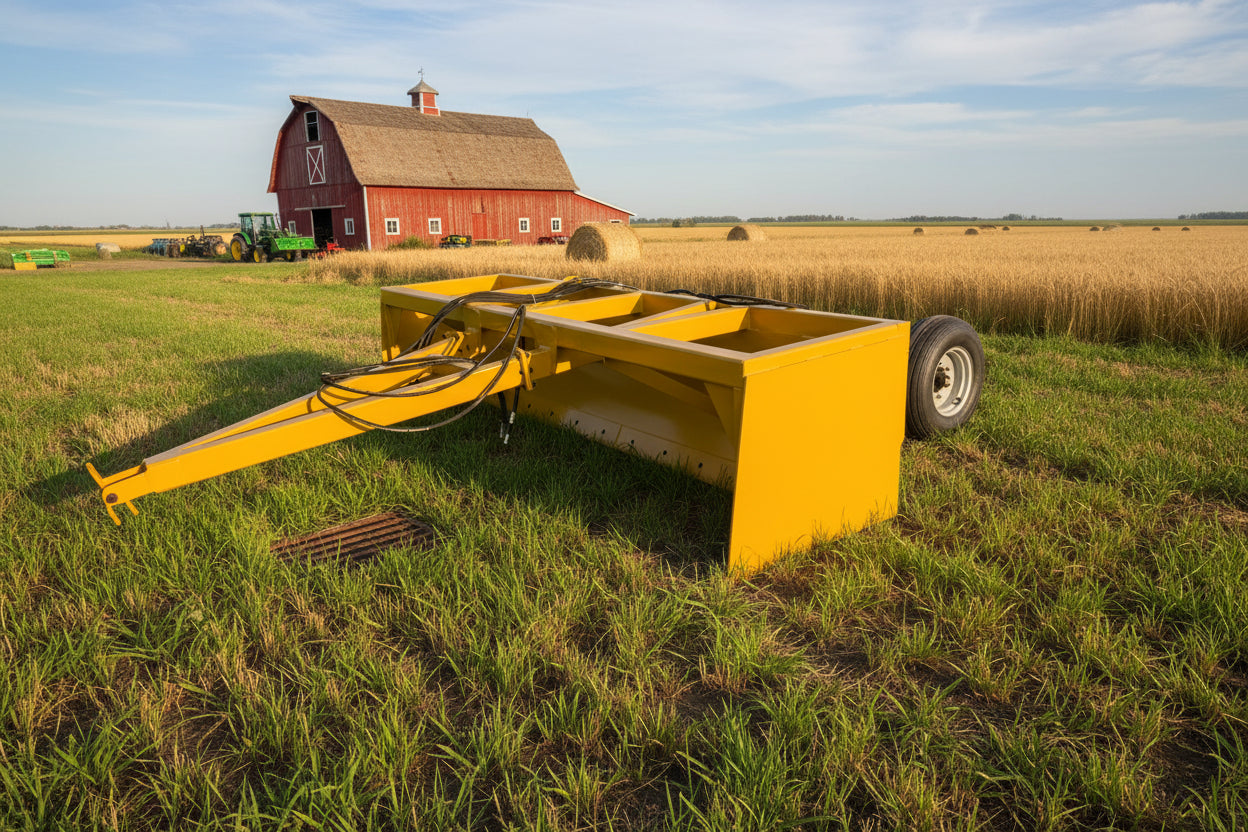

HD Box Scraper Tractor Hydraulic Tilt Land Leveler 8FT 10FT 12FT Heavy Duty BSHDTL

Upgrade your land leveling and grading performance with this heavy-duty hydraulic tilt box scraper, designed for high-horsepower tractors and demanding agricultural or construction applications. Built for precision and durability, this implement delivers powerful grading, leveling, and material distribution across large areas.

With hydraulic tilt functionality, operators gain enhanced control for angled grading, ditching, and contour work—making it ideal for professional land management.

Key Features

• Heavy-duty construction for demanding tractor applications

• Hydraulic tilt function for precision grading and angled work

• Wide working widths for efficient large-area coverage

• Designed for high-horsepower tractors (200–280 HP)

• Ideal for leveling, grading, and soil redistribution

• Durable steel frame for long-term performance

Specifications

8 FT Model (BSHD8TL)

• Working Width: 98.4" (2500 mm)

• Dimensions: 179.1" × 99.6" × 37.8" (4550 × 2530 × 960 mm)

• Matched Power: 200 HP

• Weight: 2355 lbs

10 FT Model (BSHD10TL)

• Working Width: 118.1" (3000 mm)

• Dimensions: 179.1" × 119.7" × 37.8" (4550 × 3040 × 960 mm)

• Matched Power: 240 HP

• Weight: 2524 lbs

12 FT Model (BSHD12TL)

• Working Width: 141.7" (3600 mm)

• Dimensions: 179.1" × 142.9" × 37.8" (4550 × 3630 × 960 mm)

• Matched Power: 280 HP

• Weight: 2740 lbs

What’s Included

• 1 × Hydraulic Tilt Box Scraper (Selected Size)
