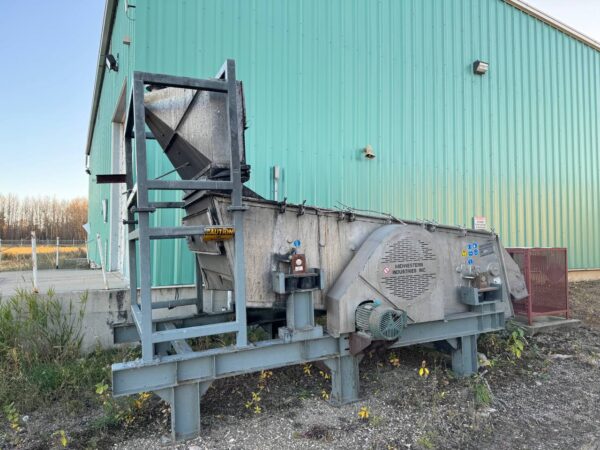

MEV High-Frequency Rectangular Screener – 5' x 10' Deck System MEV510

The MEV High-Frequency Screener is a robust rectangular screening solution designed for maximum efficiency and versatility in material processing. With a 5′ x 10′ deck size and the ability to configure from one to five screening decks, this screener is built to handle a wide range of applications.

Its unique parallel-arc elliptical motion conveys material smoothly across the screening surface, retaining material at the feed end for optimal separation before gently sloping it toward discharge. This results in high throughput, improved accuracy, and efficient production flow.

Status: Was in daily use until removed

✅ Key Features

• Large 5′ × 10′ Screening Decks – Multiple deck configurations (1–5) for versatile screening needs.

• Elliptical Motion Design – Retains material at the feed end longer, improving stratification and separation.

• Parallel-Arc Configuration – Gently slopes material to the discharge end for smoother flow into production.

• Flat Screening Surface – Crossbar-supported, end-tensioned screens maximize screening area and efficiency.

• Quick Screen Changes – End-tensioned panels with spring-loaded drawbar allow changes in just 10–15 minutes.

• Flexible Screen Options – Compatible with both square-opening and slotted screen panels.

📐 Specifications

• Deck Size: 5′ × 10′

• Deck Options: 1 to 5 decks available

• Screening Method: High-frequency, elliptical motion

• Screen Tensioning: End-tensioned with spring-loaded drawbar

• Applications: Fine particle separation, precision screening, industrial material processing

⚡ The MEV High-Frequency Screener combines efficiency, durability, and ease of maintenance—making it an ideal choice for industries needing high-capacity, accurate material screening.
