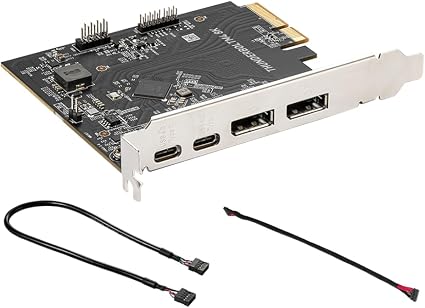

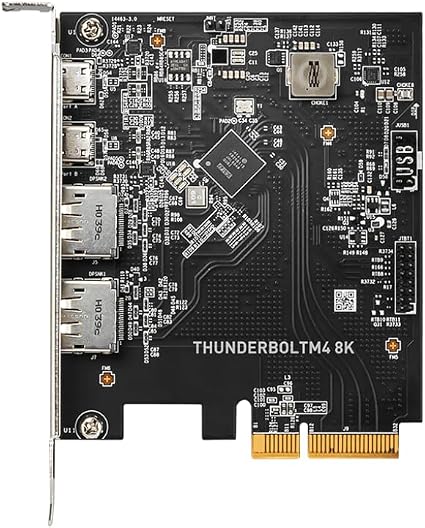

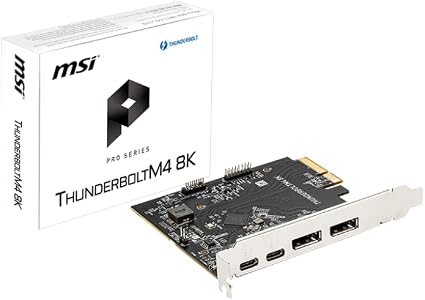

MSI THUNDERBOLTM4 8K Thunderbolt 4 PCIe Expansion Card – Dual USB-C Ports, 40Gbps, 8K Display Support

Product Description

MSI THUNDERBOLTM4 8K is a Thunderbolt 4 PCIe expansion card designed to add high-speed Thunderbolt connectivity to compatible desktop PCs and MSI motherboard systems.

Powered by the Intel JHL8540 Thunderbolt 4 controller, the card features two Thunderbolt 4 USB-C ports and two DisplayPort inputs. It supports data transfer speeds up to 40Gbps, high-resolution display connectivity up to 8K, and daisy-chain support for compatible Thunderbolt devices.

The PCIe 3.0 x4 add-in card is designed for users who need high-speed external storage, professional displays, Thunderbolt docks, compatible audio and video equipment, and other high-bandwidth peripherals.

Key Features

• MSI THUNDERBOLTM4 8K PCIe expansion card
• Adds Thunderbolt 4 connectivity to compatible desktop systems
• 2 Thunderbolt 4 USB-C ports
• 2 DisplayPort input ports
• Up to 40Gbps data transfer speed
• Supports up to 8K display output
• Intel JHL8540 Thunderbolt 4 controller
• Supports daisy chaining of compatible Thunderbolt devices
• USB4-compatible connectivity architecture
• PCI Express 3.0 x4 interface
• Includes internal Thunderbolt header and USB header cables

Specifications

Brand: MSI
Product Line: THUNDERBOLTM4 8K
Product Type: Thunderbolt 4 PCIe Expansion Card
Model Number: THUNDERBOLTM4
Controller: Intel JHL8540
PCIe Interface: PCI Express 3.0 x4
Thunderbolt Ports: 2 x Thunderbolt 4 USB-C
Display Inputs: 2 x DisplayPort Input
Maximum Data Transfer Rate: Up to 40Gbps
Maximum Display Support: Up to 8K
Daisy Chain Support: Yes
USB4 Support: Yes
Internal Connections: 16-Pin Thunderbolt Header and USB 2.0 Header
Included Cables: Thunderbolt Header Cable and USB Header Cable
Compatible Use: High-Speed Storage, Thunderbolt Docks, Professional Displays, Audio Equipment, Video Equipment and Workstation Peripherals
Condition: New
