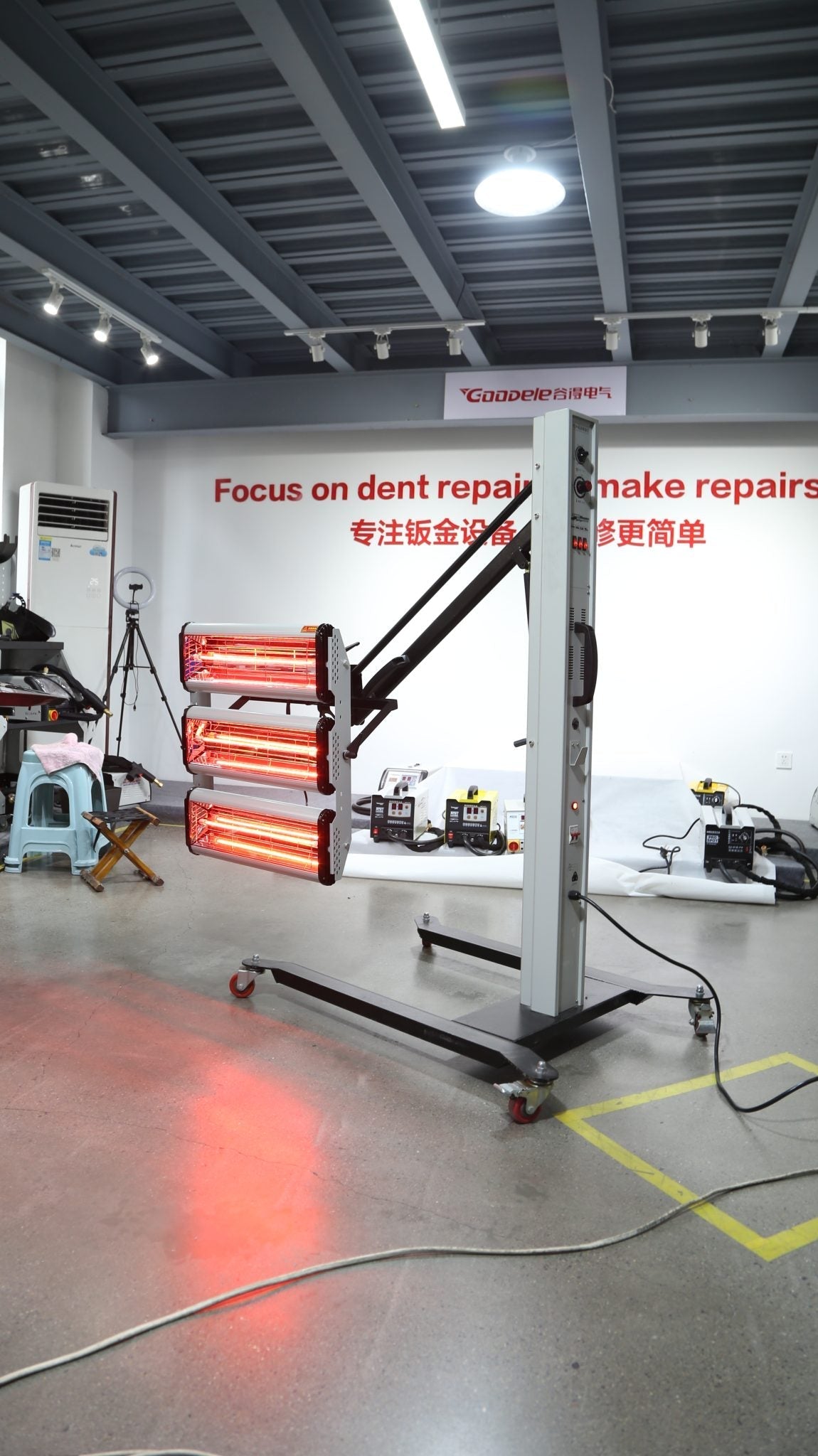

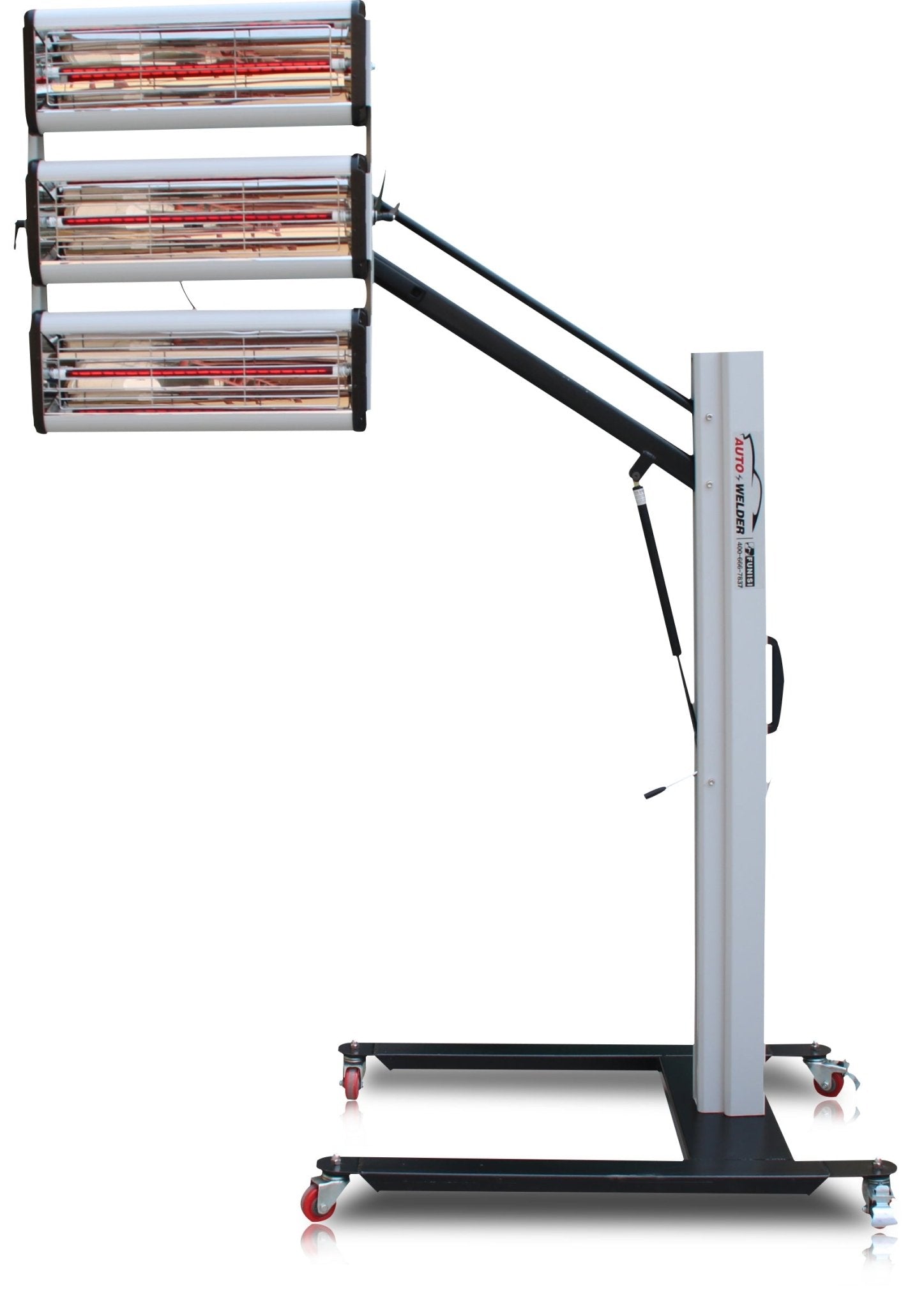

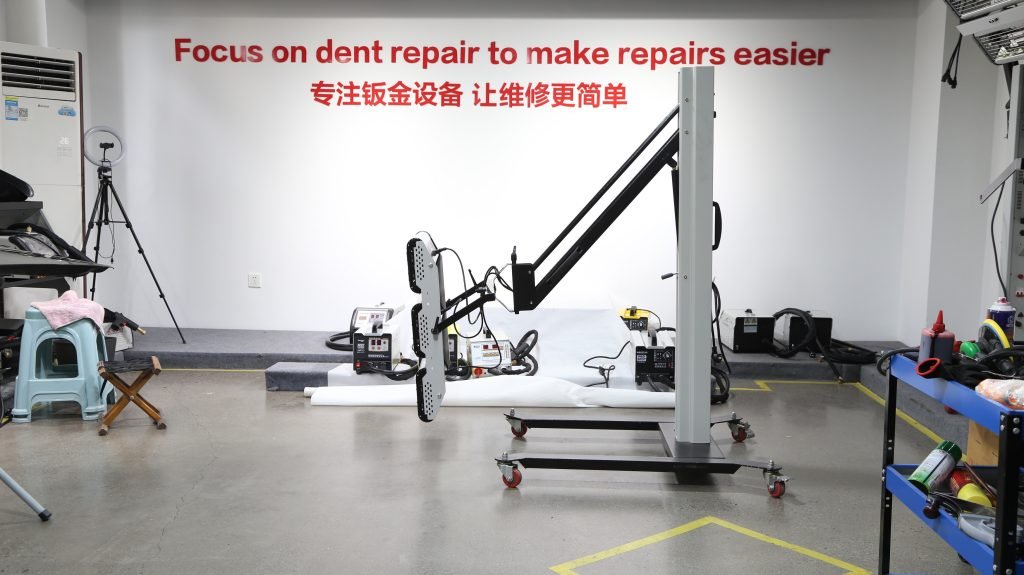

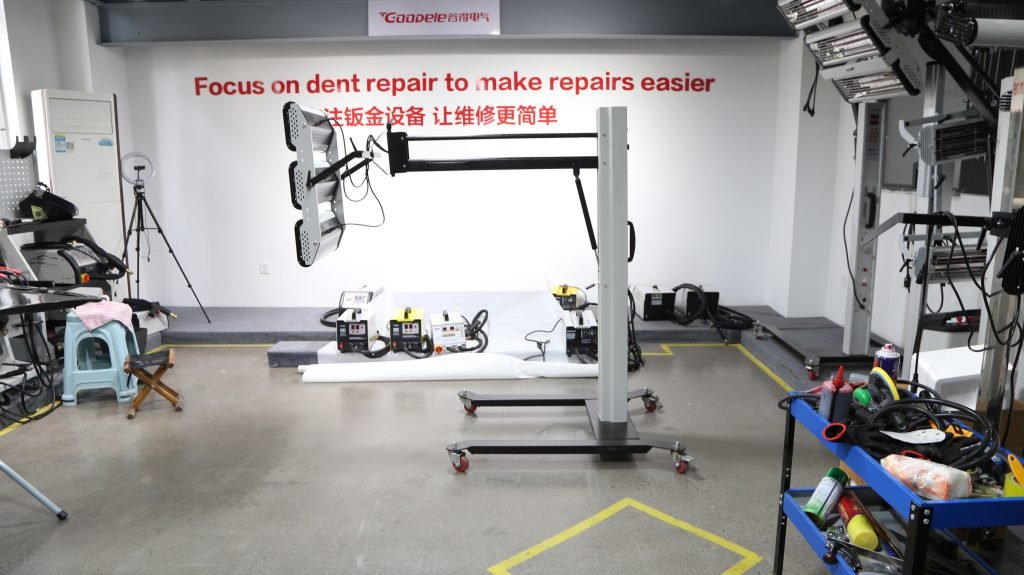

New 110V Infrared Paint Curing Lamp – Auto Body Baking Heater for Car Repair & Spray Booths F3A1226

This high-efficiency infrared paint curing lamp is designed to significantly reduce drying times for auto paint and coatings. Utilizing advanced far-infrared radiation heating technology, this unit offers rapid and targeted heat transfer, curing paint up to 60%–80% faster than conventional systems. It only heats objects within its infrared range—reducing wasted energy and improving overall efficiency.

Built with a durable aluminum alloy frame and a 304 stainless steel reflector, the lamp is engineered for long-term use in professional auto body shops, spray booths, and repair facilities.

Key Features:

• 🔥 Efficient Far Infrared Heating: Heats only the paint surface for faster, even drying with minimal energy loss

• 🌡️ Adjustable Temperature Control: Operating range of 140–158°F (60–70°C) for precision curing

• 📏 Large Drying Area: Covers 80×100 cm (approx. 31.5" x 39.4") to accommodate wide sections of the vehicle

• 🛡️ Safety & Environmental Protection: Includes automatic overload protection and emits no secondary pollution

• 🔧 Easy Operation & Installation: Manual height adjustment, rotating lamp head, and mobile wheeled base with brakes

• ⚡ Voltage: 110V compatible with standard U.S. outlets

• 📏 Adjustable Working Distance: 60–80 cm (approx. 23.6"–31.5") for optimal heat application

Specifications:

• Rated Power: 2000W

• Lamp Type: Short-wave infrared

• Heating Area: 80×100 cm (31.5" x 39.4")

• Preheating Time: 1–5 minutes

• Drying Time: 1–5 minutes

• Height Adjustment Range: 0.16–2.2 meters (manual)

• Working Distance: 0–800 mm

• Weight: 30 kg

• Voltage: 110V / 60Hz

• Current: 5A

Package Includes:

• 1 × Infrared Paint Curing Lamp Set

• 1 × Mobile Stand with Adjustable Height

• User Manual & Installation Hardware

This professional-grade auto body infrared curing heater is a must-have for any paint shop or repair technician looking to speed up workflows, ensure high-quality finishes, and reduce energy costs
