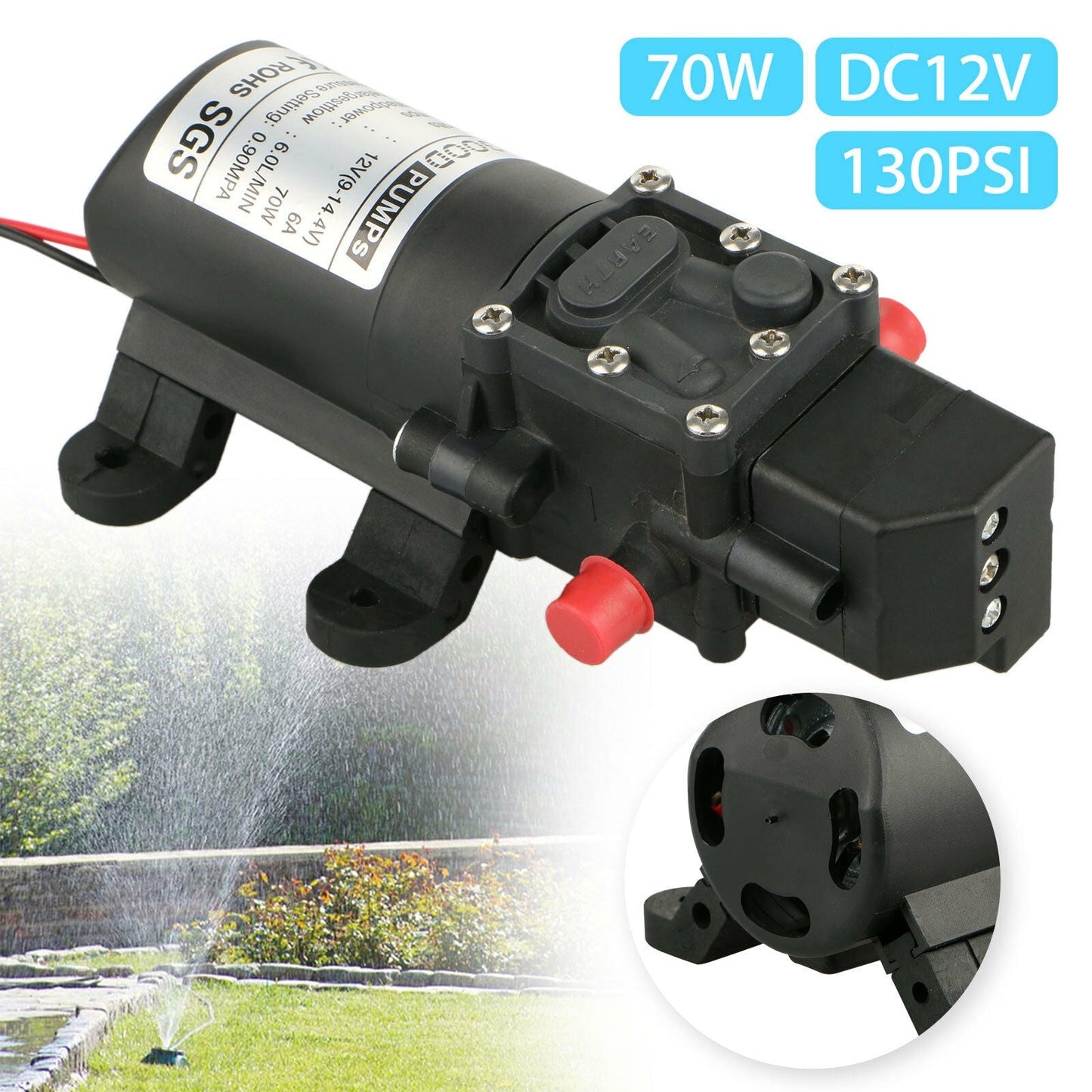

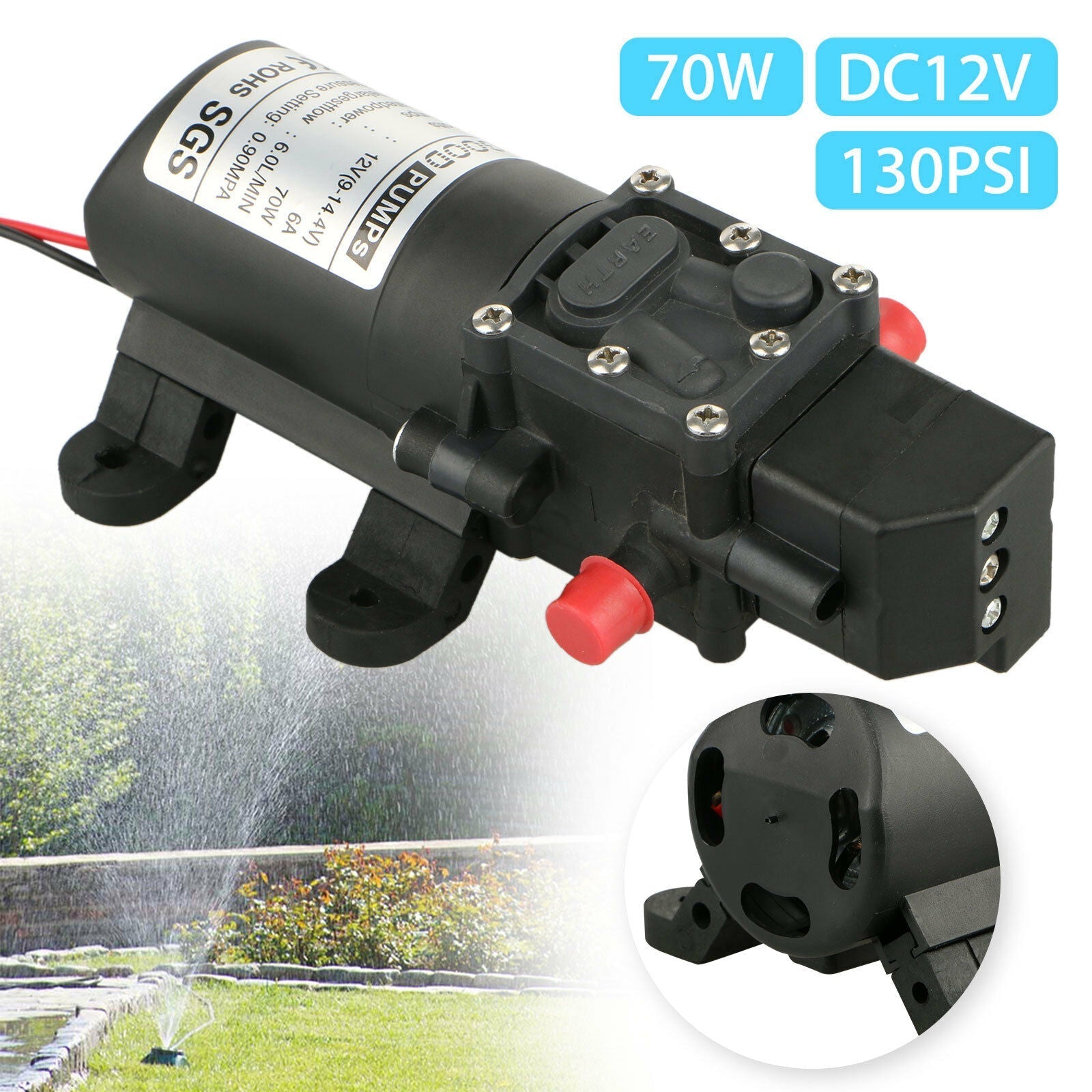

New 12V 70W High Pressure Diaphragm Water Pump – 130 PSI Self-Priming for Efficient Water Flow S1050

High-quality 12V DC micro diaphragm water pump with built-in pressure switch for automatic operation. The pump automatically stops when outlet pressure reaches 130 PSI and restarts when pressure drops, ensuring energy efficiency and frequent switching capability. Ideal for a wide range of applications including industrial equipment, medical devices, chemical systems, farming, vehicles, water purification, and more.

Features:

• Easy to install and connect

• Runs dry safely without damage

• Fully sealed design for stable pressure and silent operation

• Self-priming with low power consumption

• Durable motor with duty cycle dependent on load and ambient temperature

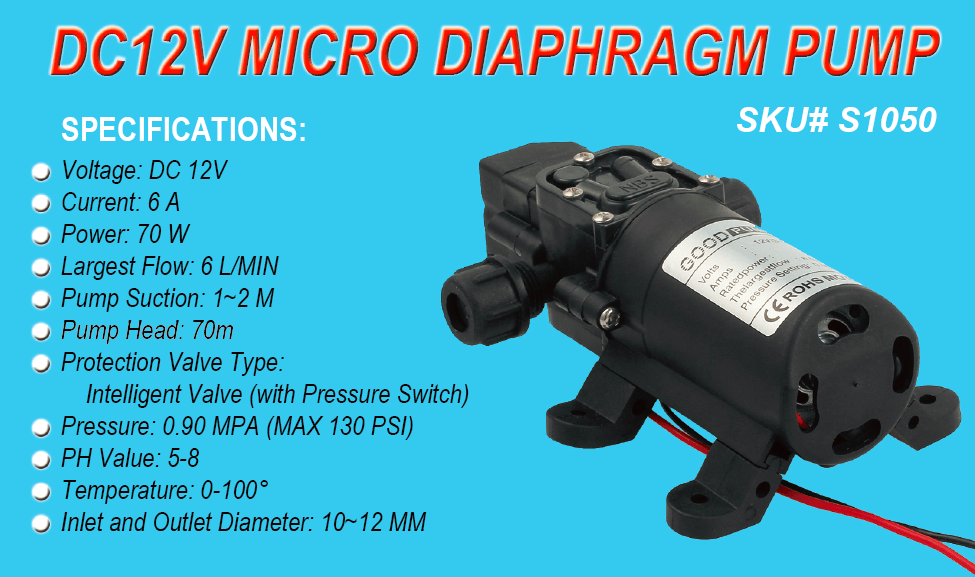

Specifications:

• Voltage: DC 12V

• Power: 70W max

• Input water pressure: 0.2 MPa

• Max output pressure: 0.9 MPa (130 PSI)

• Flow rate: 6 L/min

• Intelligent valve with pressure switch for automatic control

• Maximum suction height: 2.5 meters

• Maximum head height: 90 meters

• Range: 9 meters

• Dimensions: 16.5cm (L) x 9.6cm (W) x 6cm (H)

Applications:
Perfect for car washing machines, solar water systems, remote-controlled water equipment, frequent switch control systems, and energy-saving setups.
