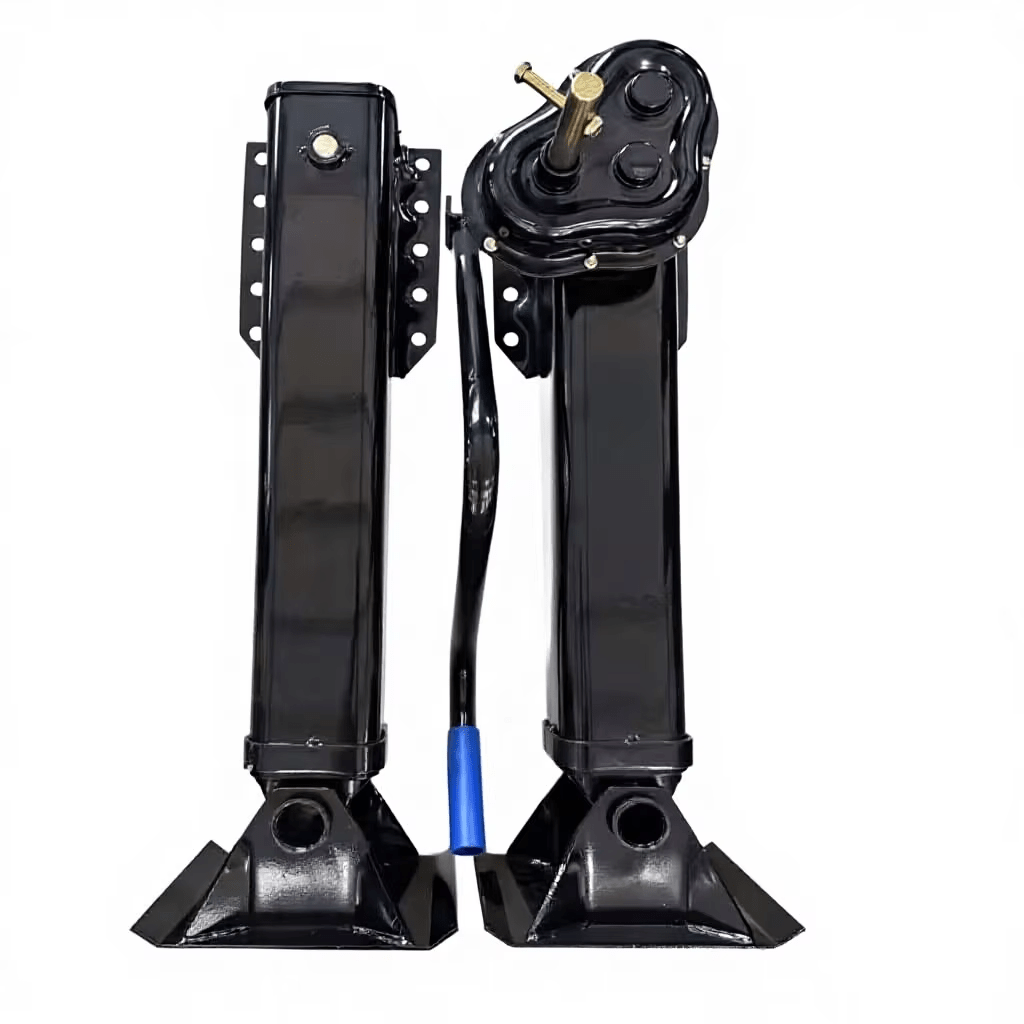

Semi Truck Trailer Landing Gear Set 35 Ton Outside Mount 51-1/2in Travel GN35T

Heavy-duty semi-truck trailer landing gear set designed for outside mounting applications. This complete dual-leg system includes both landing legs, cross shaft, crank handle, and base shoes, engineered to exceed TTMA standards. Built for commercial trailers requiring high load capacity, smooth operation, and long service life, with high-viscosity, high-lubricity grease pre-installed for durability in demanding conditions.

Key Features

• Heavy-duty 35-ton maximum static load capacity

• Complete dual-leg landing gear set (left & right legs)

• Outside mounting configuration for semi-trailers

• Includes cross shaft, crank handle, and shoes

• Exceeds TTMA standards

• High-viscosity, high-lubricity grease for smooth operation

• Rugged steel construction for commercial freight use

• Designed for long travel range and stable support when uncoupled

Specifications

• Extended Length: 51-1/2 in (1308 mm)

• Retracted Length: 19 in (483 mm)

• Travel Length: 19 in (483 mm)

• Shaft Length: 59-3/4 in (1518 mm)

• Mounting Style: Outside mounting

• Maximum Load Capacity: 35 ton

• Weight (per set): 95 kg (209 lb)

• Application: Semi-truck and trailer landing gear systems

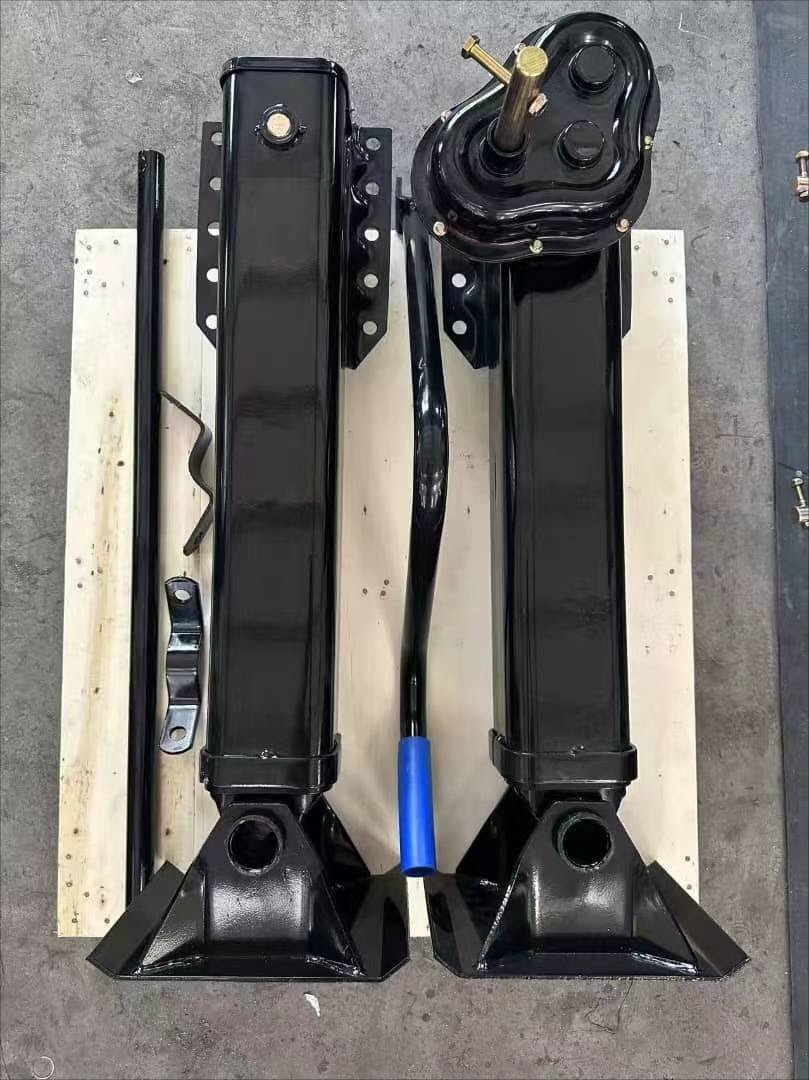

What’s Included

• 2 × Landing gear legs (left & right)

• 1 × Cross shaft

• 1 × Crank handle

• 2 × Base shoes
