Heavy-Duty Air & Hydraulic Shop Presses (30 to 200 Ton Models)
Ditch the cheap hand pump bottle jack presses that stall out on stubborn bearings. The SIEBEL line of heavy-duty pneumatic and hydraulic shop presses is engineered for industrial fabrication, heavy equipment repair, and high-volume automotive machine shops. Ranging from a compact 30 ton frame to a massive 200 ton industrial beast, these fully welded steel presses feature dual air and hydraulic operation for rapid ram travel, combined with precision manual control when you need exact pressing force. Equipped with heavy-duty winches for easy bed adjustment and liquid-filled gauges for accurate load monitoring, we stock these commercial-grade shop presses at wholesale prices to ensure you get real value for the dollar on your heavy fabrication equipment.
Key Features:
- Heavy-Duty Welded Frame: Constructed with a rigid, fully welded steel chassis that prevents dangerous flexing and structural twisting under maximum tonnage loads.

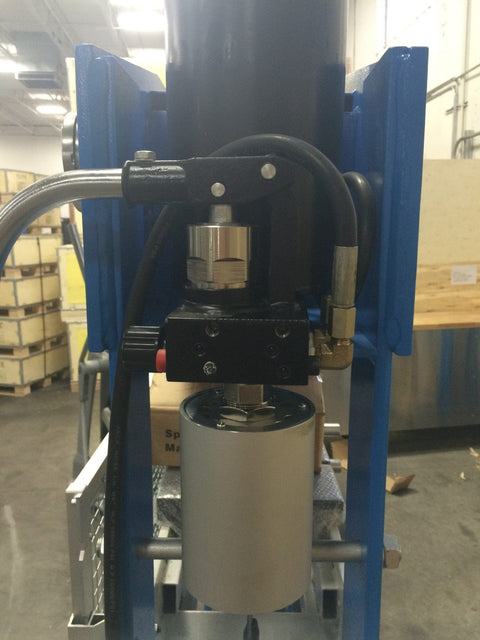

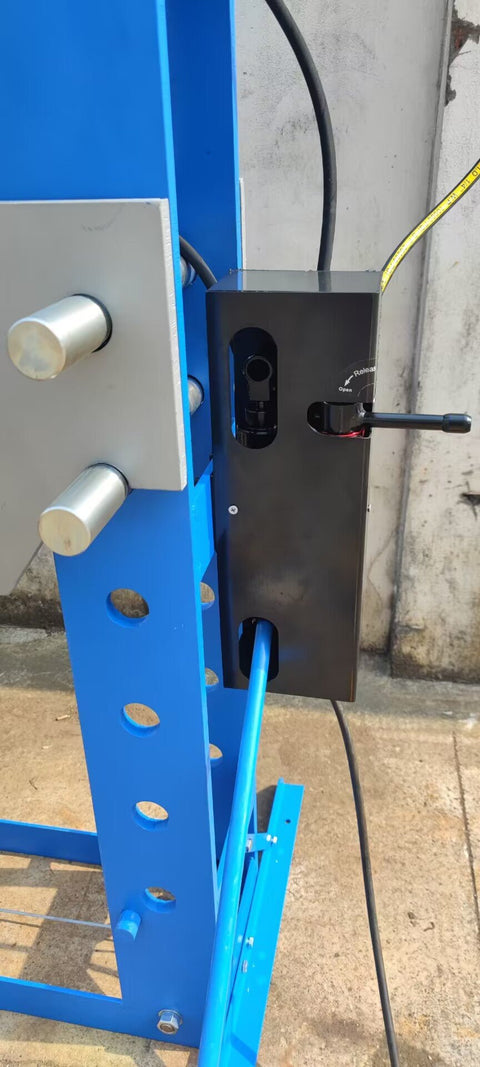

- Dual Air & Hydraulic Operation: Features a high-speed pneumatic air motor for rapid ram positioning, alongside a manual hydraulic pump for precision pressing control.

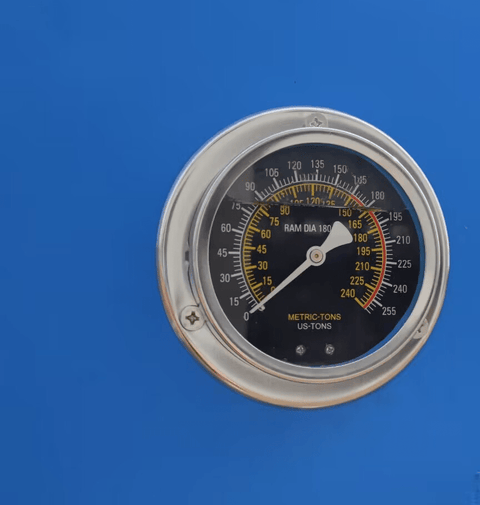

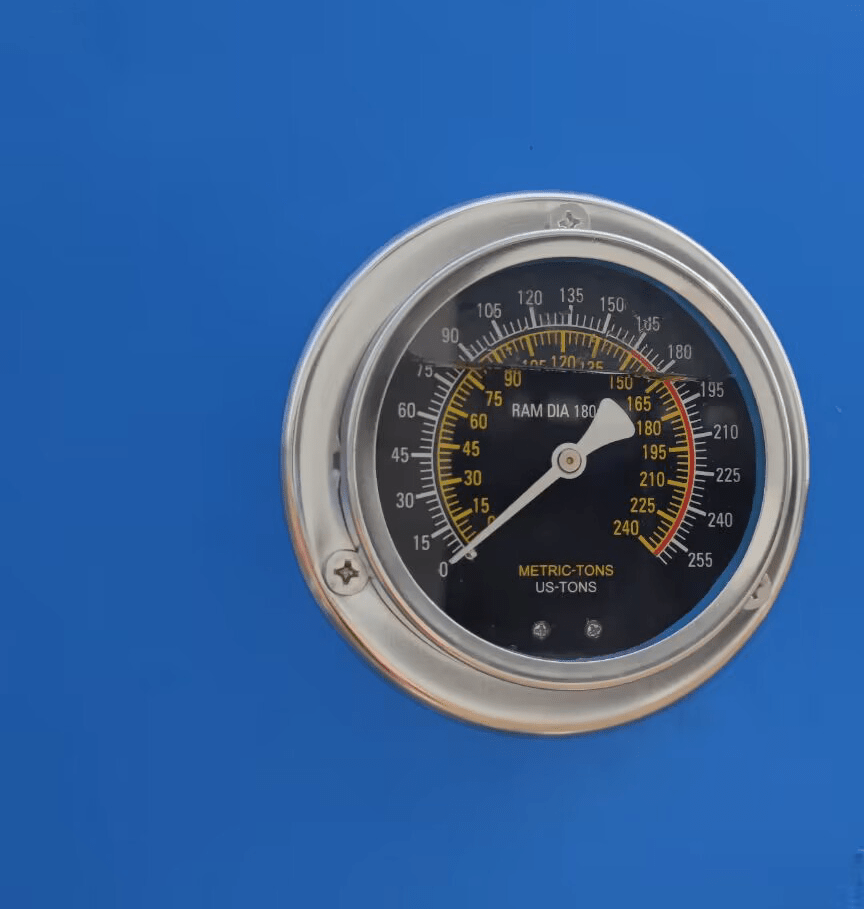

- Liquid-Filled Pressure Gauges: Equipped with oil or glycerin-filled gauges that absorb industrial vibration, providing dead-accurate pressure readings during sensitive operations.

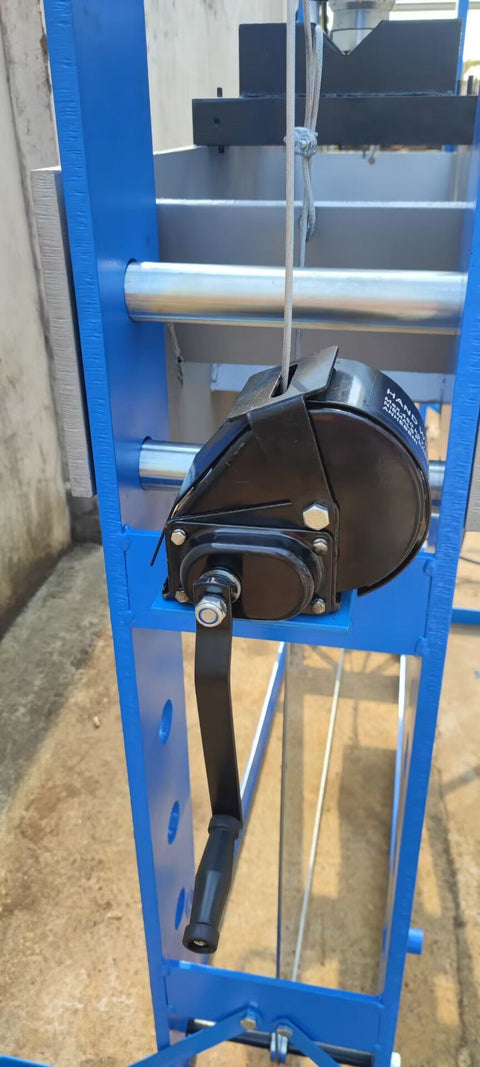

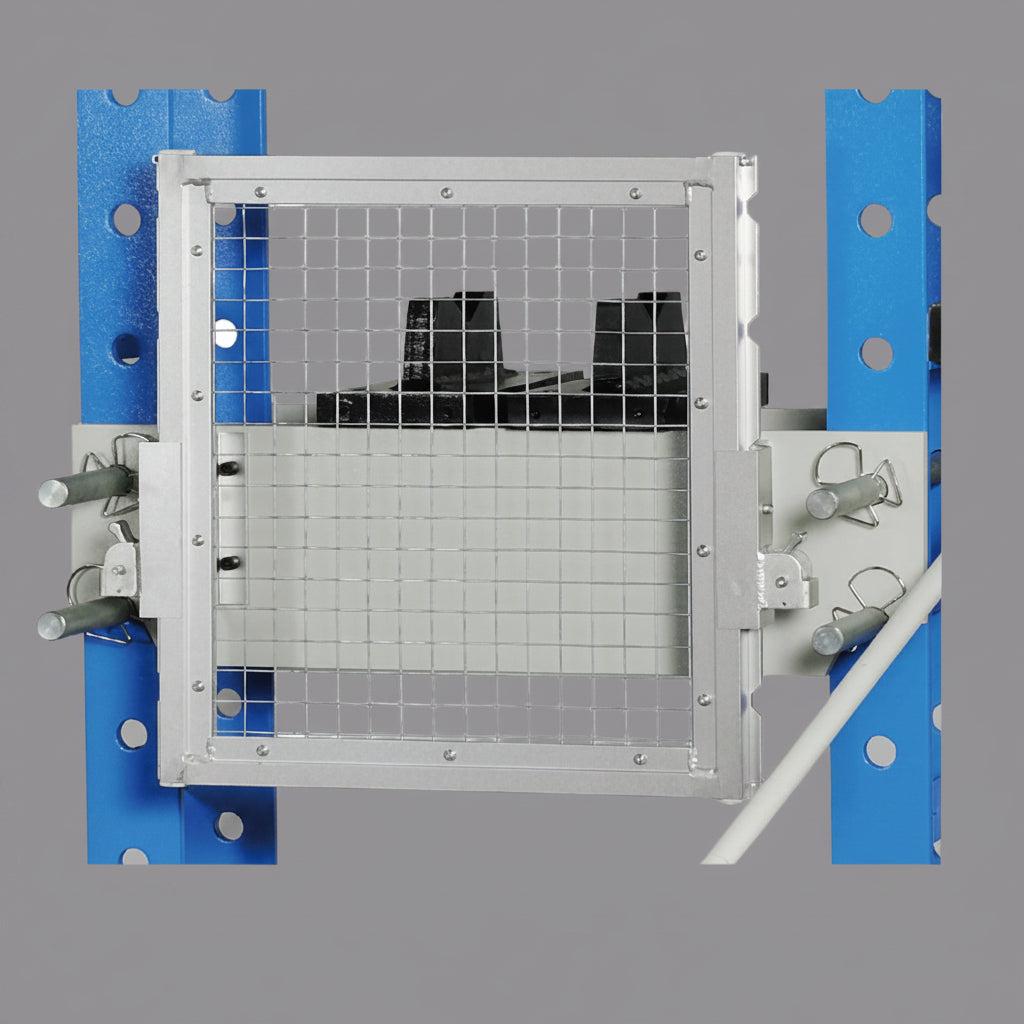

- Advanced Adjustability: Larger models feature a heavy-duty cable winch system for effortless multi-position bed height adjustments and lateral sliding rams for off-center pressing.
- Industrial Air Pressure: Operates consistently on standard shop air systems requiring 0.75 to 0.85 MPa (108.8 to 123.3 psi).
Available Models & SKUs:
| Capacity | SKU | Configuration |
| 30 Ton | SP30AH01 | Air/Hydraulic Shop Press |

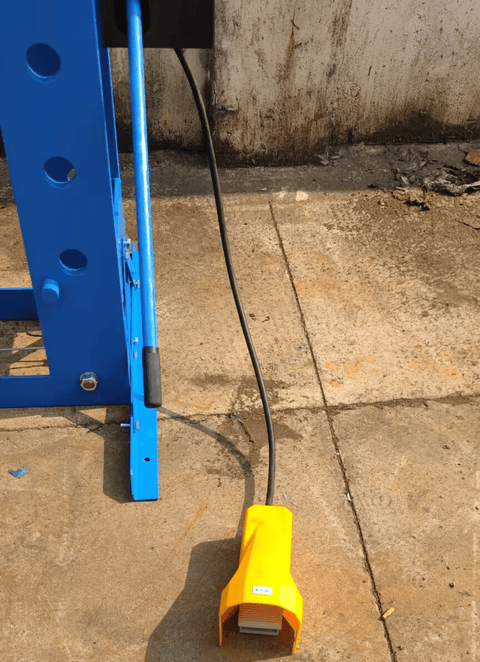

| 50 Ton | SP50AH01FP | Air/Hydraulic Shop Press (with Foot Pedal & Pin Press) |
| 75 Ton | SP75AH01 | Air/Hydraulic Shop Press |
| 100 Ton | SP100AH01 | Air/Hydraulic Shop Press |
| 150 Ton | SP150AH01 | Air/Hydraulic Shop Press |
| 200 Ton | SP200AH01 | Air/Hydraulic Shop Press |
Detailed Technical Specifications:
| Specification | Measurement / Details |

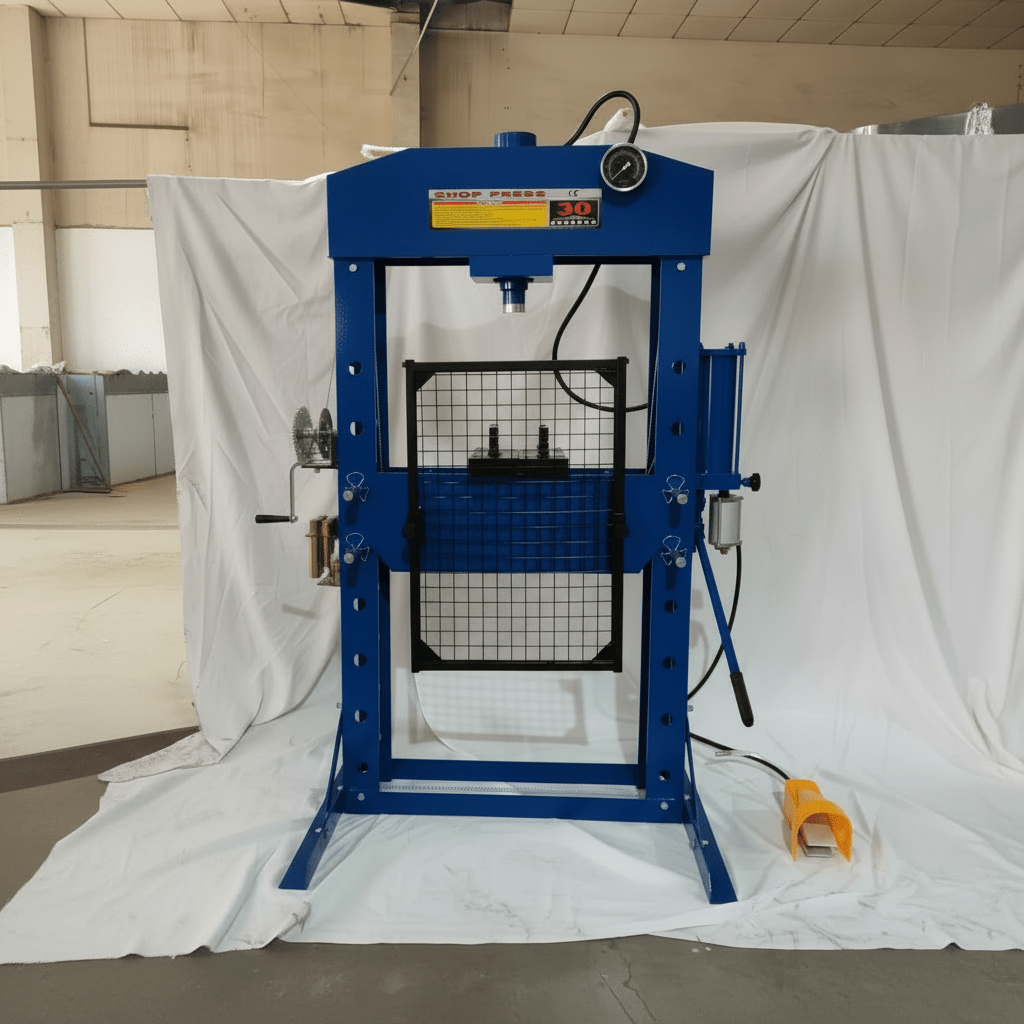

| 30 Ton Shop Press (SP30AH01) | |
| Working Height | 0 to 102.0 cm (0 to 40.2") |
| Working Width | 0 to 53.5 cm (0 to 21.1") |
| Middle Beam Width | 19.0 cm (7.5") |
| Overall Size (W x D x H) | 80.0 cm x 70.0 cm x 177.0 cm (31.5" x 27.6" x 69.7") |

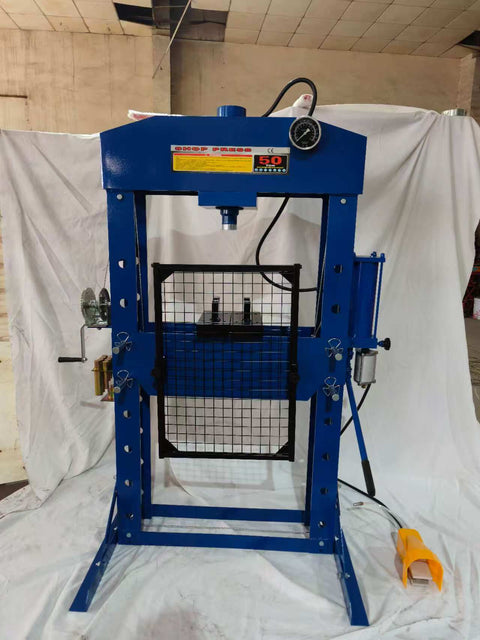

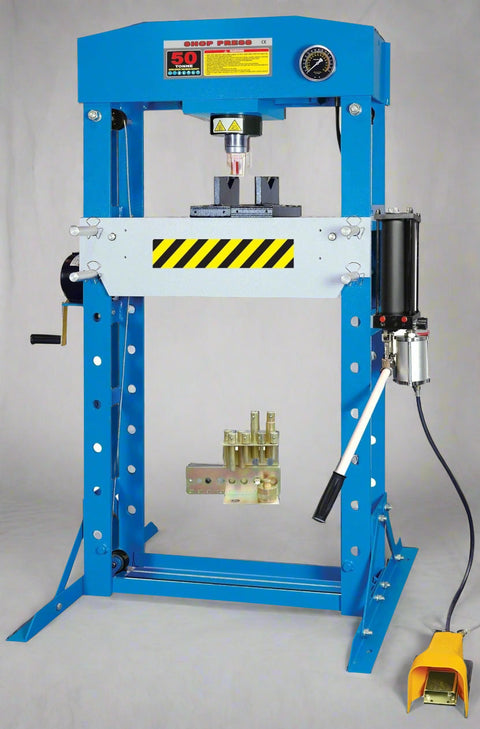

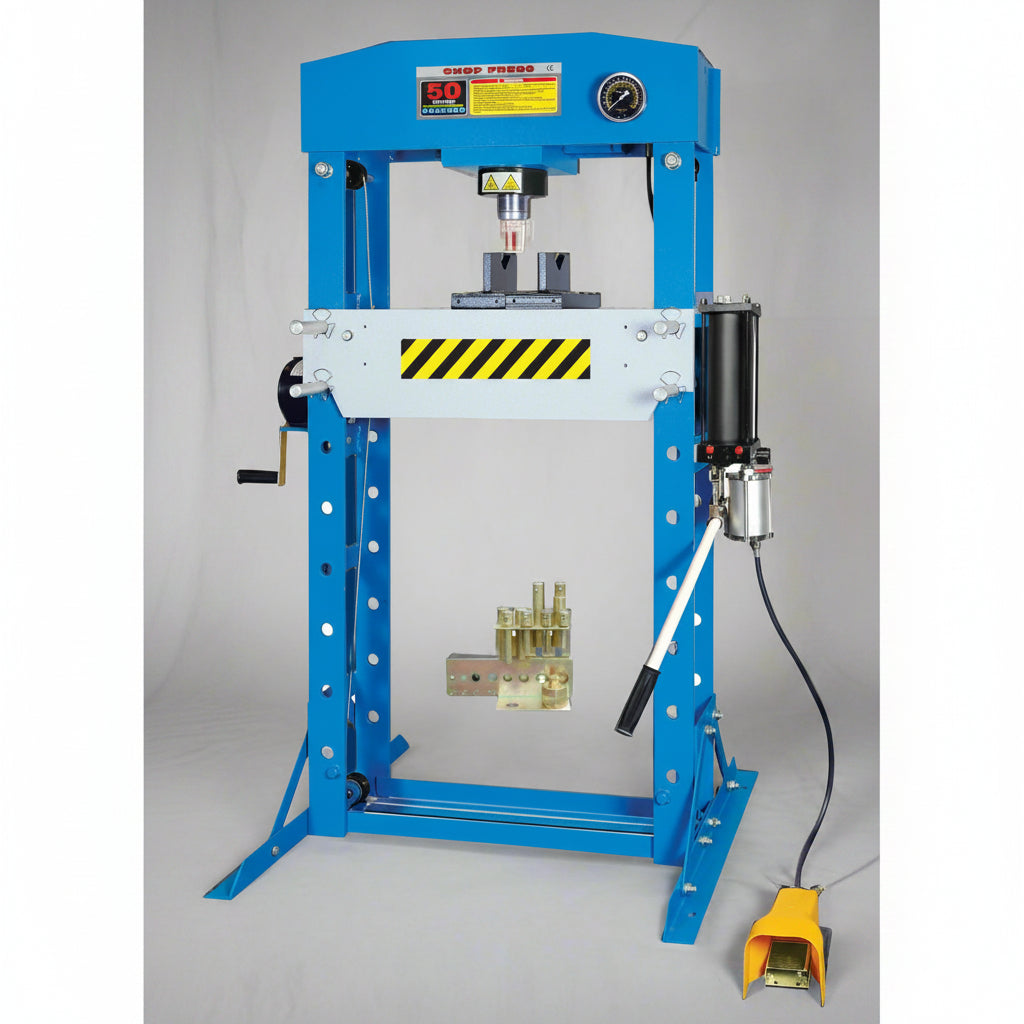

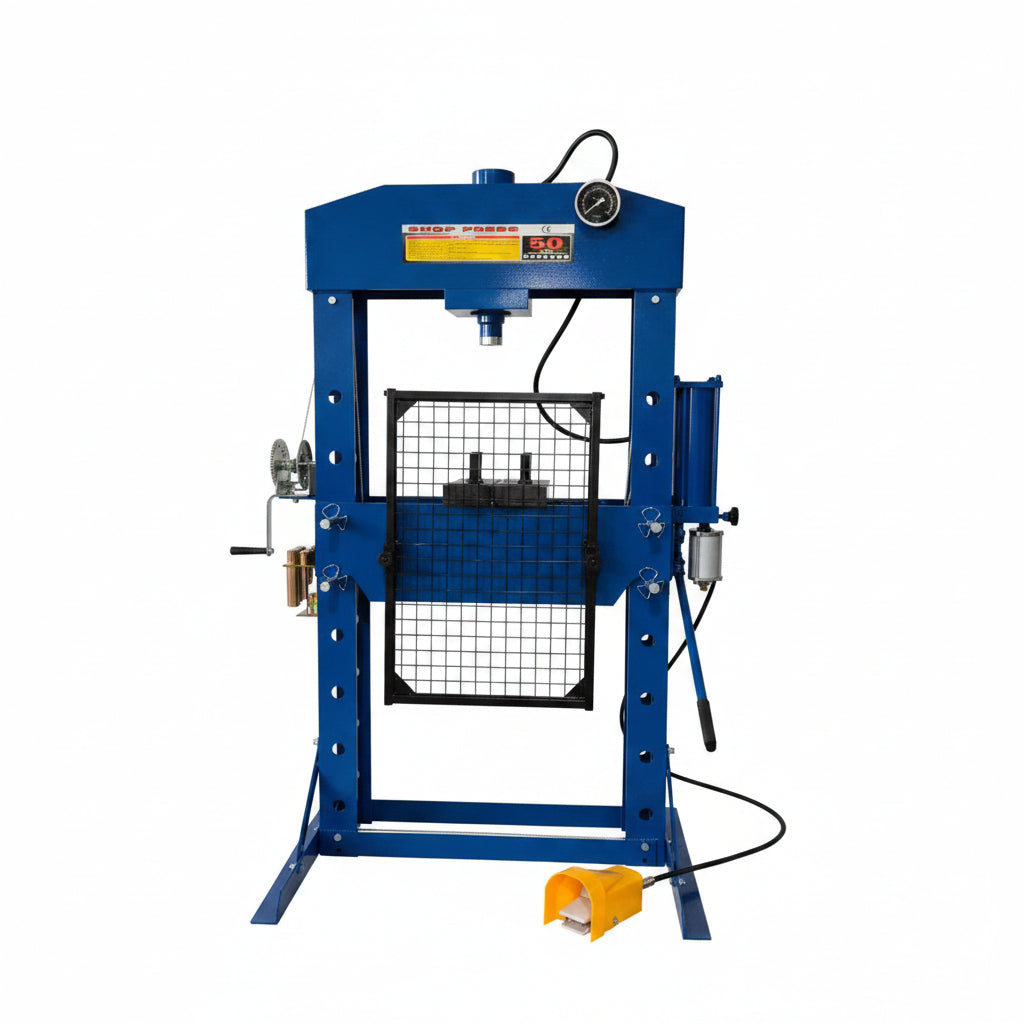

| 50 Ton Shop Press (SP50AH01FP) | |
| Working Width | 72.4 cm (28.5") |
| Distance Table to Ram | 6.9 to 104.8 cm (2.72" to 41.26") |
| Cylinder Stroke | 19.8 cm (7.8") |
| Cylinder / Piston Dia. | 15.2 cm (6") / 7.0 cm (2.75") |
| Dimensions (L x W x H) | 213.4 cm x 99.1 cm x 40.6 cm (84" x 39" x 16") |
| Shipping Weight | 364.2 kg (803 lbs) |

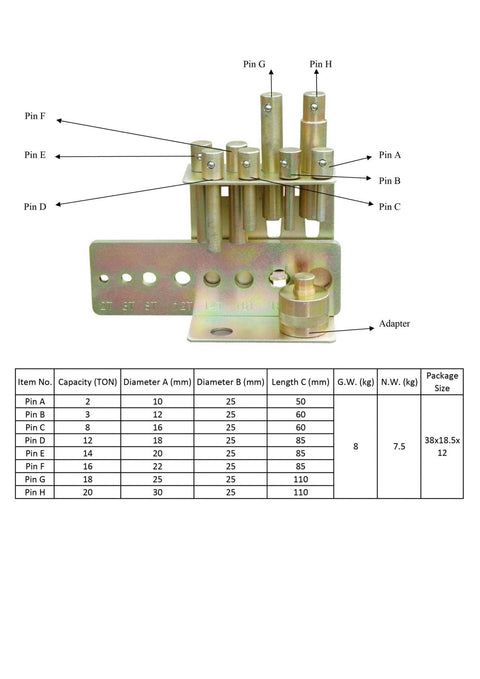

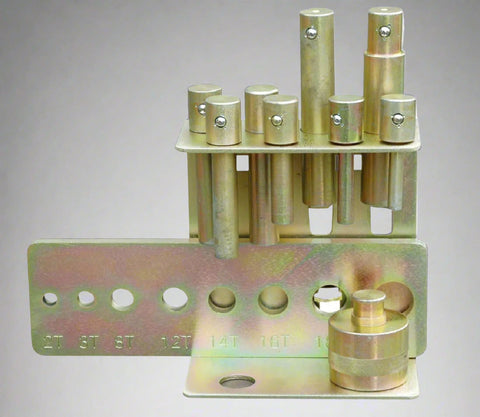

| Additional Features | Movable Cylinder, Foot Pedal & Pin Press |

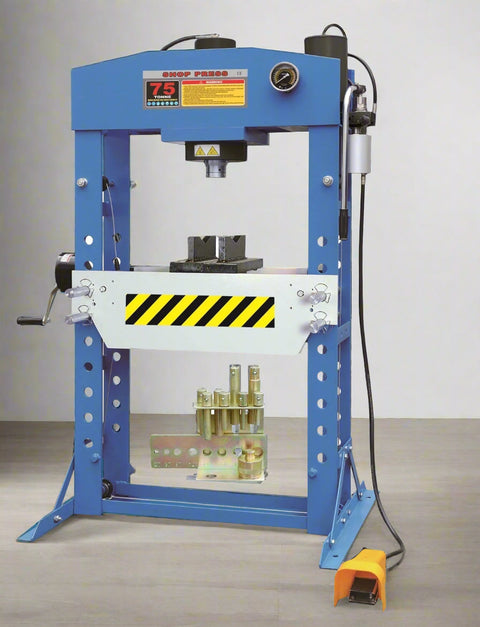

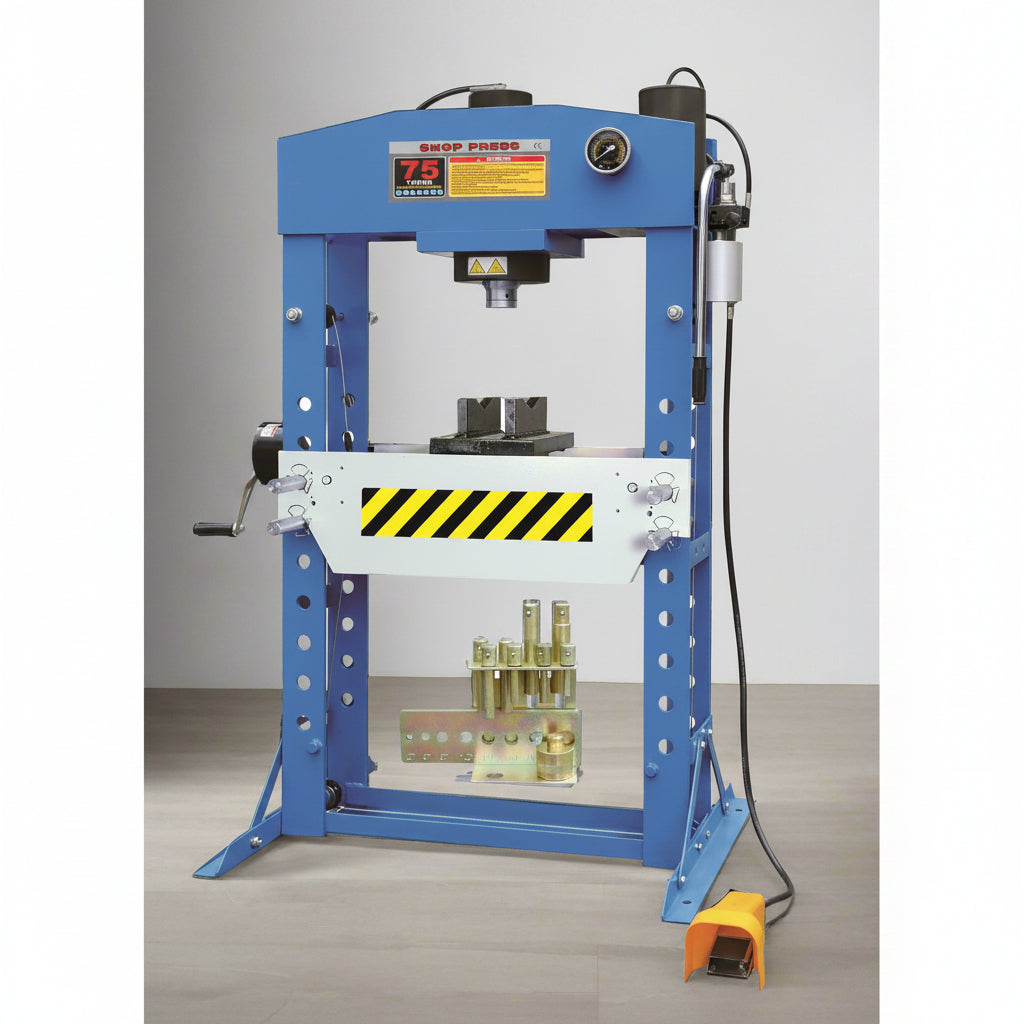

| 75 Ton Shop Press (SP75AH01) | |
| Working Height | 84.5 cm (33.25") |
| Ram Travel / Diameter | 30.5 cm (12") / 7.6 cm (3") |
| Base Dimensions (W x L) | 114.3 cm x 80.0 cm (45" x 31.5") |
| Overall Dimensions (W x H) | 134.6 cm x 179.4 cm (53" x 70.6") |
| Shipping Weight | 509.8 kg (1124 lbs) |
| Additional Features | Manual Sliding Ram, Oil-filled Gauge |

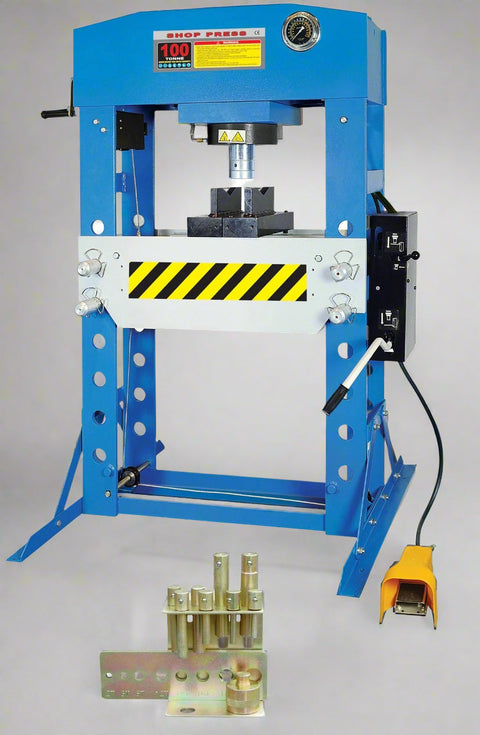

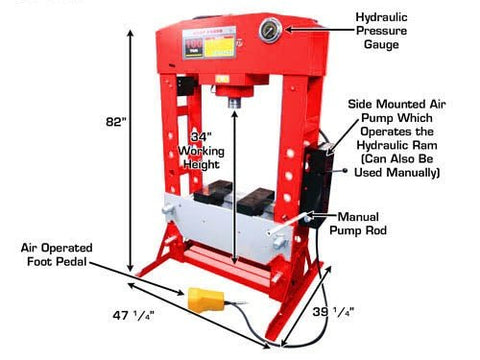

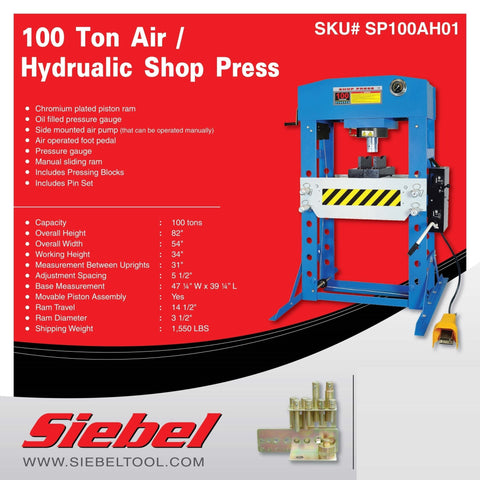

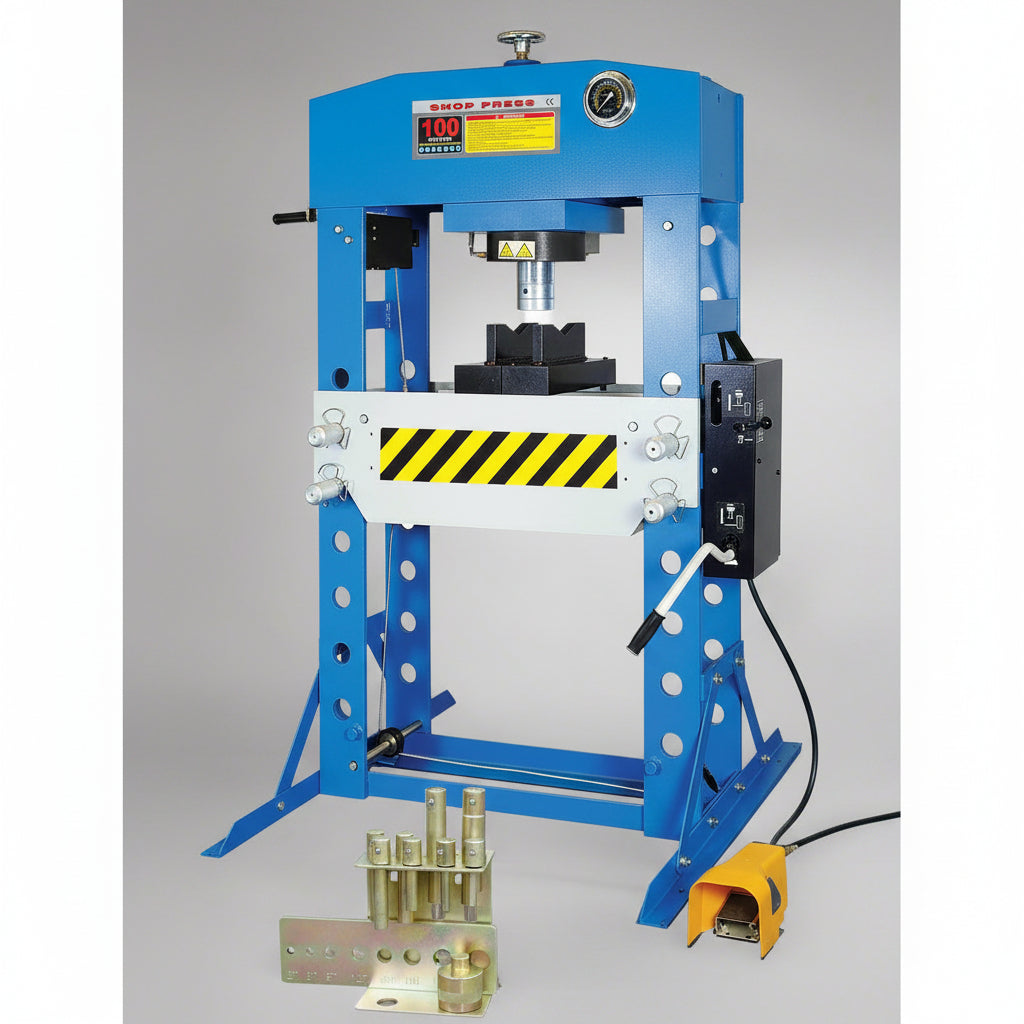

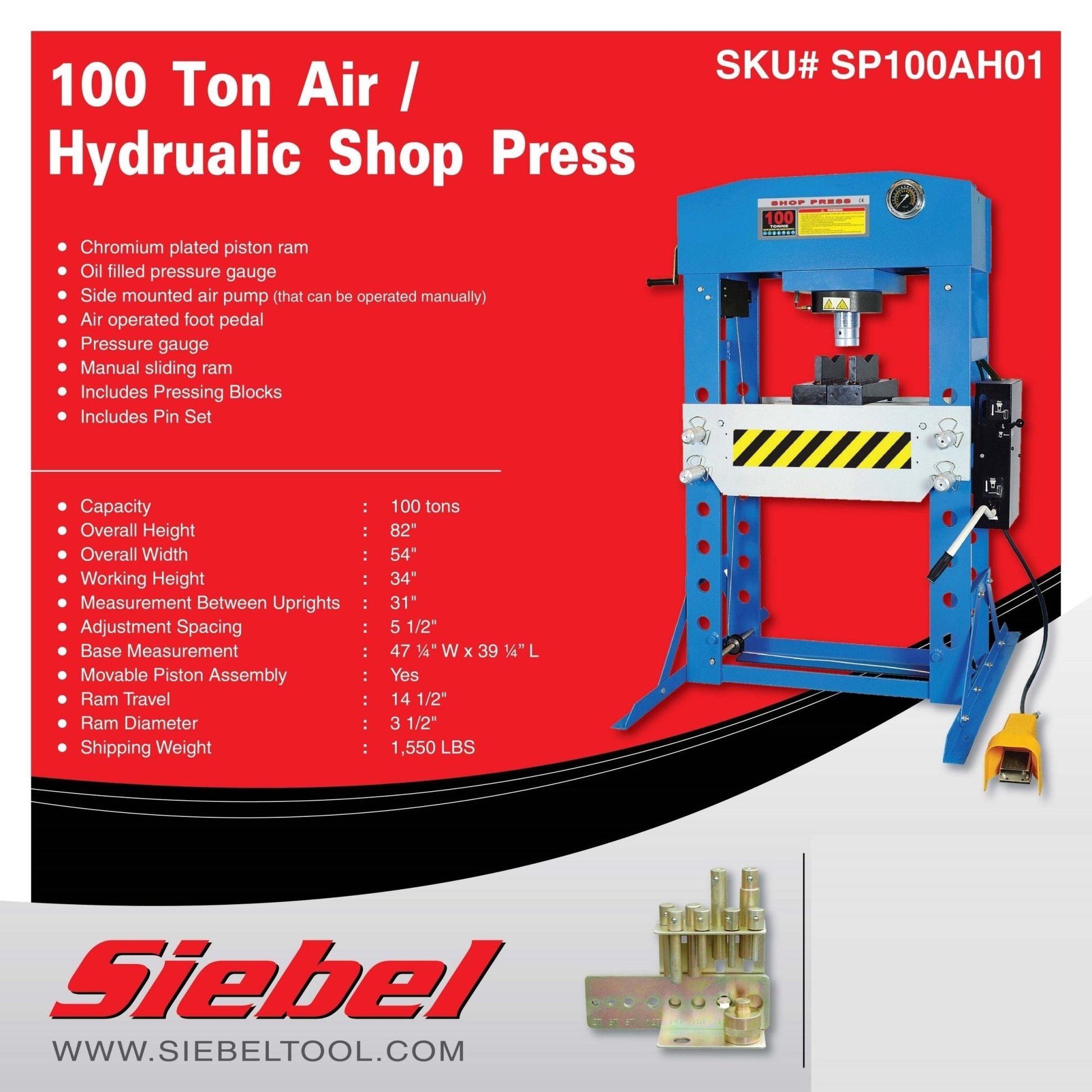

| 100 Ton Shop Press (SP100AH01) | |
| Working Height | 86.4 cm (34") |
| Ram Travel / Diameter | 36.8 cm (14.5") / 8.9 cm (3.5") |
| Base Dimensions (W x L) | 120.0 cm x 99.7 cm (47.25" x 39.25") |
| Overall Dimensions (W x H) | 137.2 cm x 208.3 cm (54" x 82") |
| Shipping Weight | 780.2 kg (1720 lbs) |
| Additional Features | Glycerin-filled Gauge |

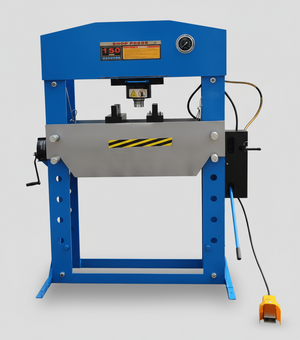

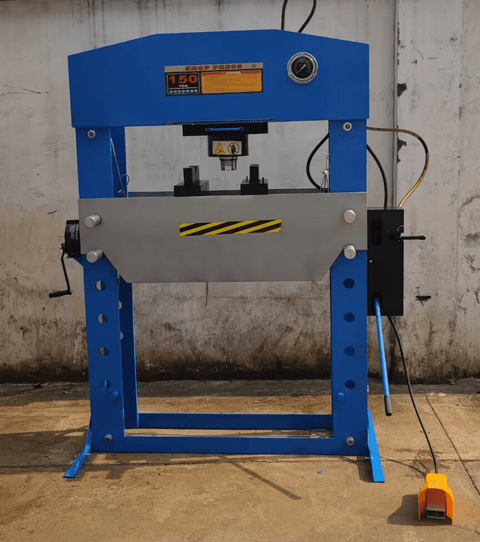

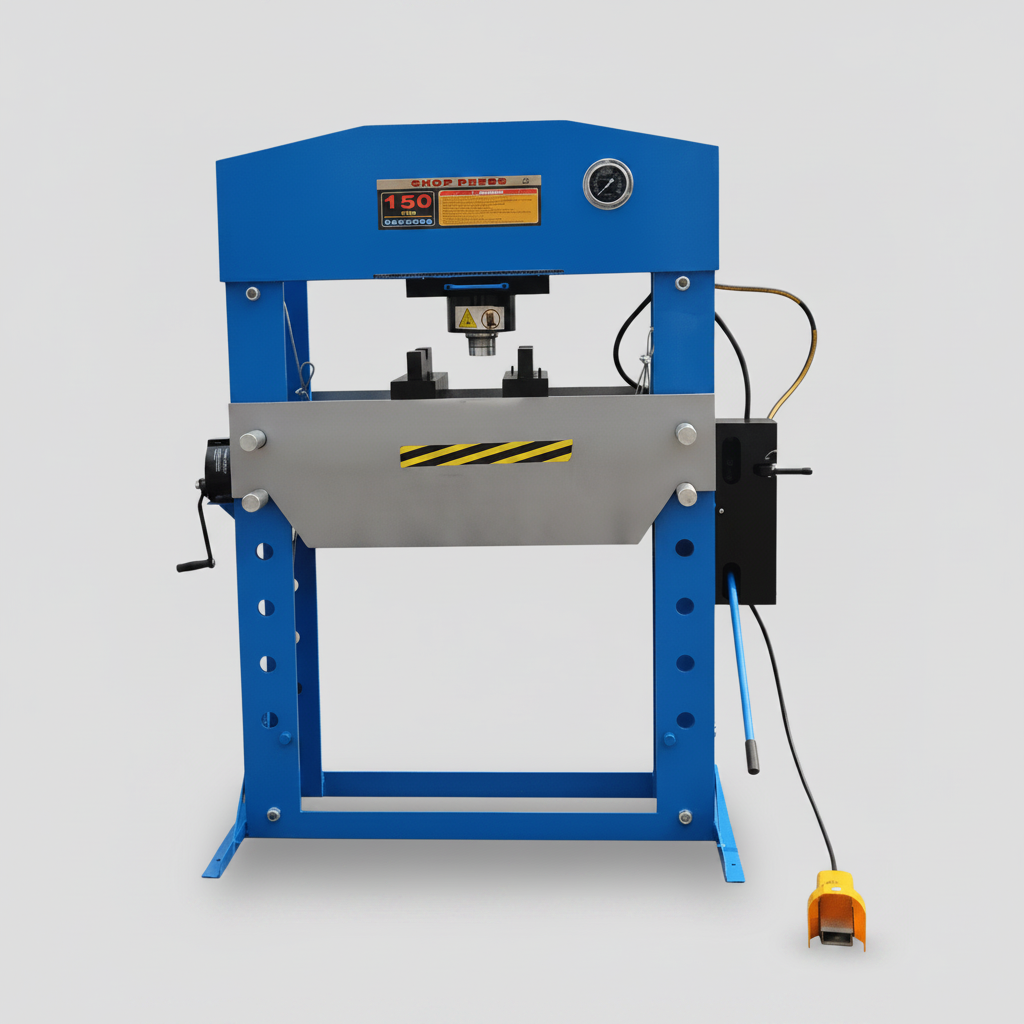

| 150 Ton Shop Press (SP150AH01) | |
| Working Height | 0 to 120.0 cm (0 to 47.2") |
| Working Width | 0 to 106.0 cm (0 to 41.7") |
| Ram Stroke | 30.0 cm (11.8") |
| Bed Dimensions (W x D) | 102.0 cm x 35.0 cm (40.16" x 13.78") |
| Overall Dimensions (W x H) | 110.0 cm x 210.0 cm (43.3" x 82.7") |
| 200 Ton Shop Press (SP200AH01) | |
| Bed Adjustability | 6-position adjustable bed height |
| Positioning Features | Lateral head adjuster for off-center pressing |
| Bed Movement | Heavy-duty cable winch system |
Perfect For:
- Pressing heavy-duty wheel bearings, U-joints, and machine bushings
- Industrial metal fabrication and structural steel bending
- Fleet maintenance facilities and heavy equipment repair shops
- Anyone needing a massive industrial hydraulic press at budget-friendly prices
