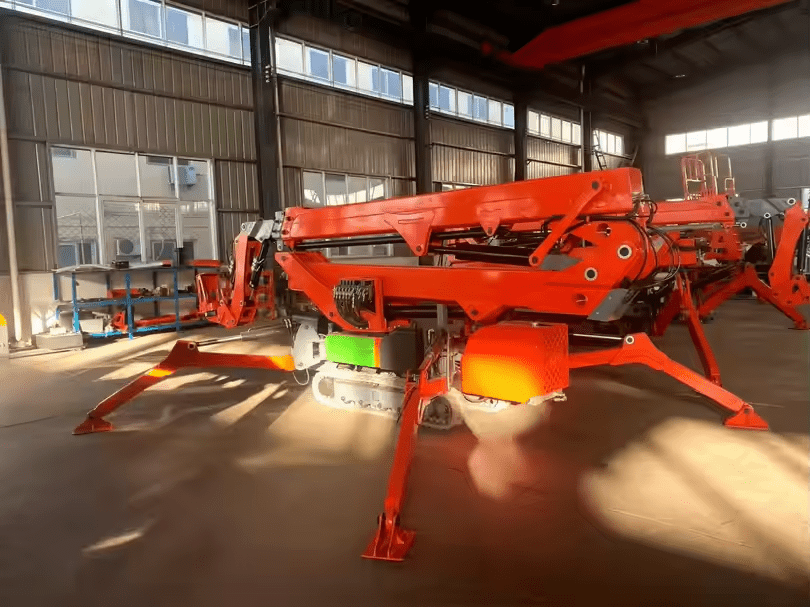

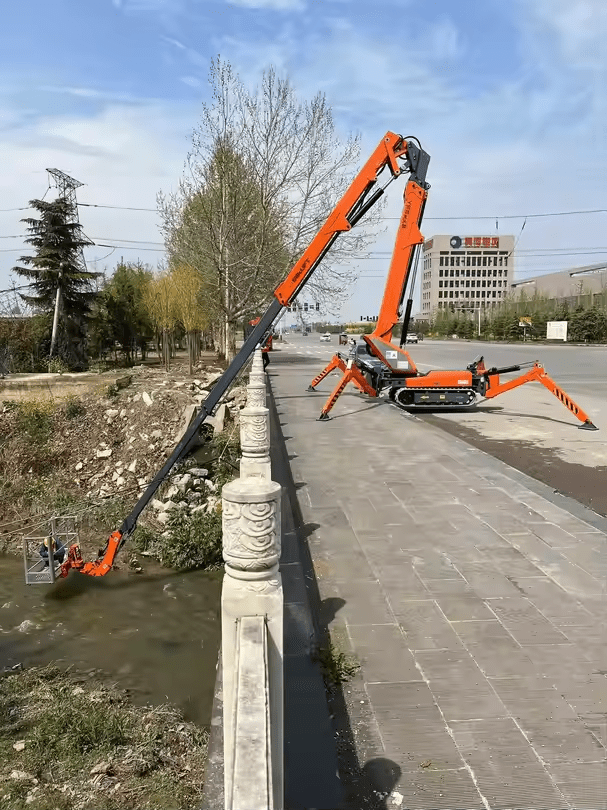

Spider Boom Lift 14.8 m Working Height Compact Track Aerial Platform THZ15

The THZ-15T compact tracked spider boom lift is built for high-reach access work in tight, uneven, or sensitive job sites. With a maximum working height of 48.6 ft / 14.8 m and a platform capacity of 507 lb / 230 kg, this machine is ideal for maintenance crews, municipalities, contractors, property managers, farms, warehouses, landscaping companies, and utility work.

Its tracked crawler base provides strong mobility over rough ground, while the hydraulic outriggers give the machine a stable working setup. The compact design allows it to access narrow areas where larger boom lifts or scissor lifts may not be practical.

Designed for precision elevated work, the THZ-15T is a strong choice for tree trimming, building maintenance, lighting repairs, signage work, facility maintenance, exterior cleaning, and confined-access projects.

Key Features

• Compact tracked spider boom lift
• 48.6 ft / 14.8 m maximum working height
• 42 ft / 12.8 m maximum platform height
• 29.5 ft / 9 m maximum horizontal outreach
• 507 lb / 230 kg standard platform load capacity
• Tracked crawler base for rough terrain and tight-access areas
• Hydraulic outriggers for stable elevated operation
• Compact footprint for transport, storage, and setup
• Suitable for indoor, outdoor, urban, municipal, commercial, and maintenance work
• Quiet battery-powered operation
• CE / ISO certification
• Operation manual and maintenance manual available

Specifications

• Model: THZ-15T
• Product Type: Tracked spider boom lift
• Maximum Working Height: 48.6 ft / 14.8 m
• Maximum Platform Height: 42 ft / 12.8 m
• Maximum Horizontal Extension: 29.5 ft / 9 m
• Platform Load Capacity: 507 lb / 230 kg
• Platform Basket Size: 55.1" L x 27.6" W x 43.3" H / 1400 x 700 x 1100 mm
• Machine Weight: 10,560 lb / 4,790 kg
• Wind Resistance Rating: 12.5 m/s
• Battery Voltage: 6V 225Ah x 4
• Charging Time: 6–8 hours
• Battery Life: Approximately 5–6 years
• Drive Type: Tracked crawler base
• Stabilization: Hydraulic outriggers
• Certification: CE / ISO
• Manuals Available: Operation manual and maintenance manual
• Electrical / Hydraulic Manual: Not fully available due to design confidentiality

What’s Included

• 1 x THZ-15T tracked spider boom lift

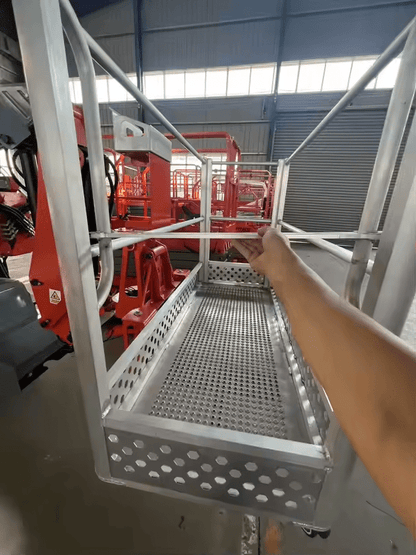

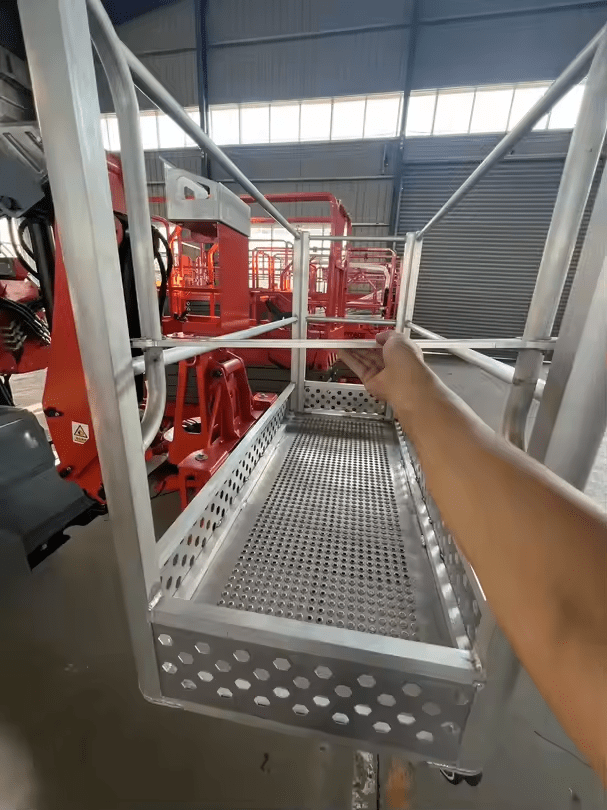

• Operator platform basket
• Battery power system
• Hydraulic outrigger stabilization system

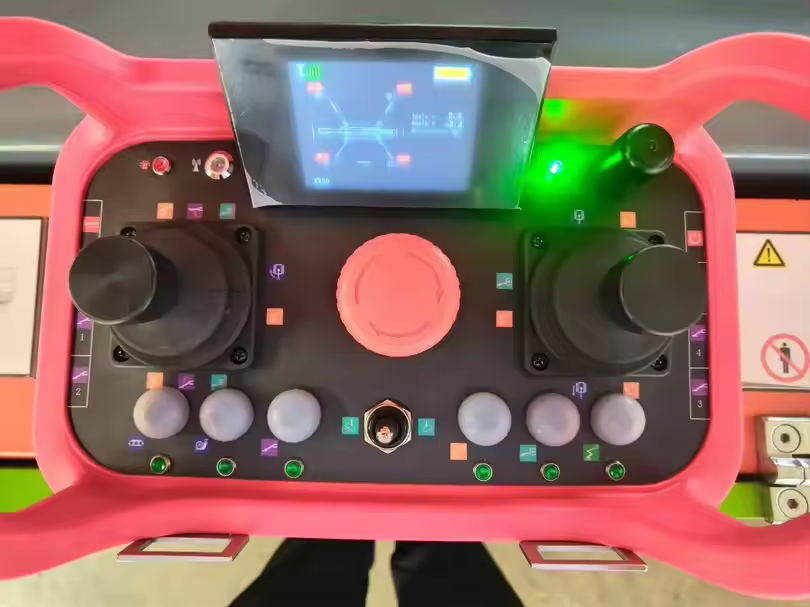

• Integrated control system
• Operation manual
• Maintenance manual
