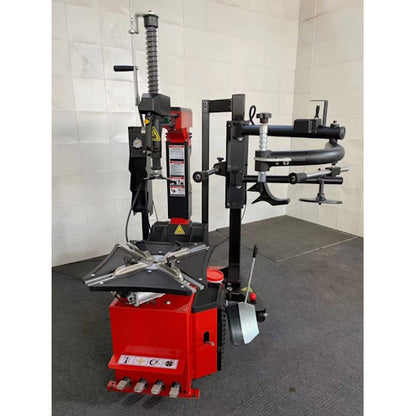

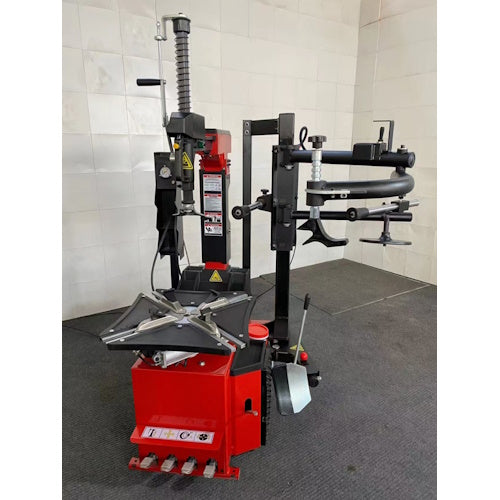

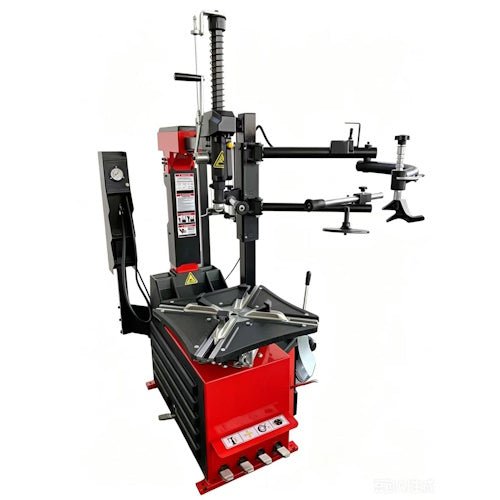

Tire Changer Machine with 110V Servo Motor, Pneumatic Bead Breaker, 10"–24" Wheel Range & 2500 kg Shovel Force FT600

Upgrade your tire service operation with the Professional Tire Changer Machine, engineered for demanding tire mounting and demounting applications in tire shops, automotive repair facilities, dealerships, garages, and commercial service bays. This heavy-duty machine is designed to handle standard wheels, reverse wheels, RSC wheels, and wheels without center holes.

Powered by a 110V 1.1kW servo motor, the FT600 delivers up to 1100 Nm of torque with dual rotation speeds of 7 and 14 rpm. Its pneumatic jaw clamping system provides secure wheel positioning, while the powerful pneumatic bead-breaking shovel delivers up to 2500 kg / 5512 lb of pressure for efficient tire removal. With support for wheels from 10" to 24" and tires up to 43.3" in diameter, this machine is built for high-output professional wheel service.

Key Features

• Professional Tire Changer: Heavy-duty machine designed for commercial tire mounting and demounting operations.
• Versatile Wheel Compatibility: Handles standard wheels, reverse wheels, RSC wheels, and wheels without center holes.
• Powerful Servo Motor: 110V 1.1kW servo motor delivers reliable performance and smooth operation.
• High Drive Torque: Provides up to 1100 Nm of torque for demanding tire service applications.
• Dual Rotation Speeds: Select between 7 or 14 rpm for controlled and efficient operation.
• Pneumatic Jaw Clamping: Securely holds wheels in place during tire mounting and removal.
• Wide Wheel Capacity: Supports outer clamping from 10"–22" and inner support from 12"–24".
• Large Tire Capacity: Handles tires up to 43.3" / 1100 mm in diameter and 4"–13" in width.
• Powerful Bead Breaker: Pneumatic shovel system delivers up to 2500 kg / 5512 lb of bead-breaking pressure.
• Low-Noise Operation: Designed to operate at ≤70 dB for a more comfortable shop environment.
• Heavy-Duty Construction: Robust 668 lb / 303 kg machine provides stability during demanding tire service work.
• Professional Shop Design: Built for tire shops, automotive repair facilities, dealerships, garages, and commercial service bays.

Specifications

• Model: FT600
• Product Type: Professional Tire Changer Machine
• Applicable Wheels: Standard Wheels, Reverse Wheels, RSC Wheels, Wheels Without Center Holes
• Fitting Method: Jaw Clamp
• Fixing Method: Jaw Clamp
• Clamping Method: Pneumatic
• Drive Method: Motor
• Servo Motor: 110V, 1.1kW
• Maximum Torque: 1100 Nm
• Rotation Speed: 7 / 14 rpm
• Gas Source Pressure: 8–10 bar
• Noise Level: ≤70 dB
• Machine Weight: 668 lb (303 kg)

Wheel Capacity

• Outer Clamp Wheel Diameter: 10"–22"
• Inner Support Wheel Diameter: 12"–24"
• Tire Width Range: 4"–13"
• Maximum Tire Diameter: 43.3" (1100 mm)

Bead Breaking System

• Bead Breaking Tool: Pneumatic Shovel
• Fixing Method: Manual
• Front Cut Mode: Pneumatic
• Maximum Working Size: 13" (330 mm)
• Bead Breaking Shovel Pressure: 5512 lb (2500 kg)

Dimensions

• Length: 44.5" (1130 mm)
• Maximum Length: 58.3" (1480 mm)
• Width: 32.7" (830 mm)
• Maximum Operating Width: 48.6" (1235 mm)
• Minimum Height: 63.4" (1610 mm)
• Maximum Height: 89" (2260 mm)

What's Included

• 1 × FT600 Professional Tire Changer Machine
• 1 × Built-In 110V 1.1kW Servo Motor
• 1 × Pneumatic Jaw Clamping System
• 1 × Pneumatic Bead Breaking Shovel System
• 1 × Work Plate / Jaw Clamp Assembly
• 1 × Tire Changing Operating System

Installation Notes

• Requires a 110V electrical supply.
• Requires an 8–10 bar compressed air supply.
• Install the machine on a solid, level shop floor.
• Provide sufficient clearance for the maximum operating width and height.
• Confirm electrical and compressed-air connections before operation.

Perfect For

• Tire shops
• Automotive repair shops
• Dealership service bays
• Professional garages
• Commercial tire service centers
• Wheel and tire installation
• Passenger vehicle tire service
• Light truck tire service
