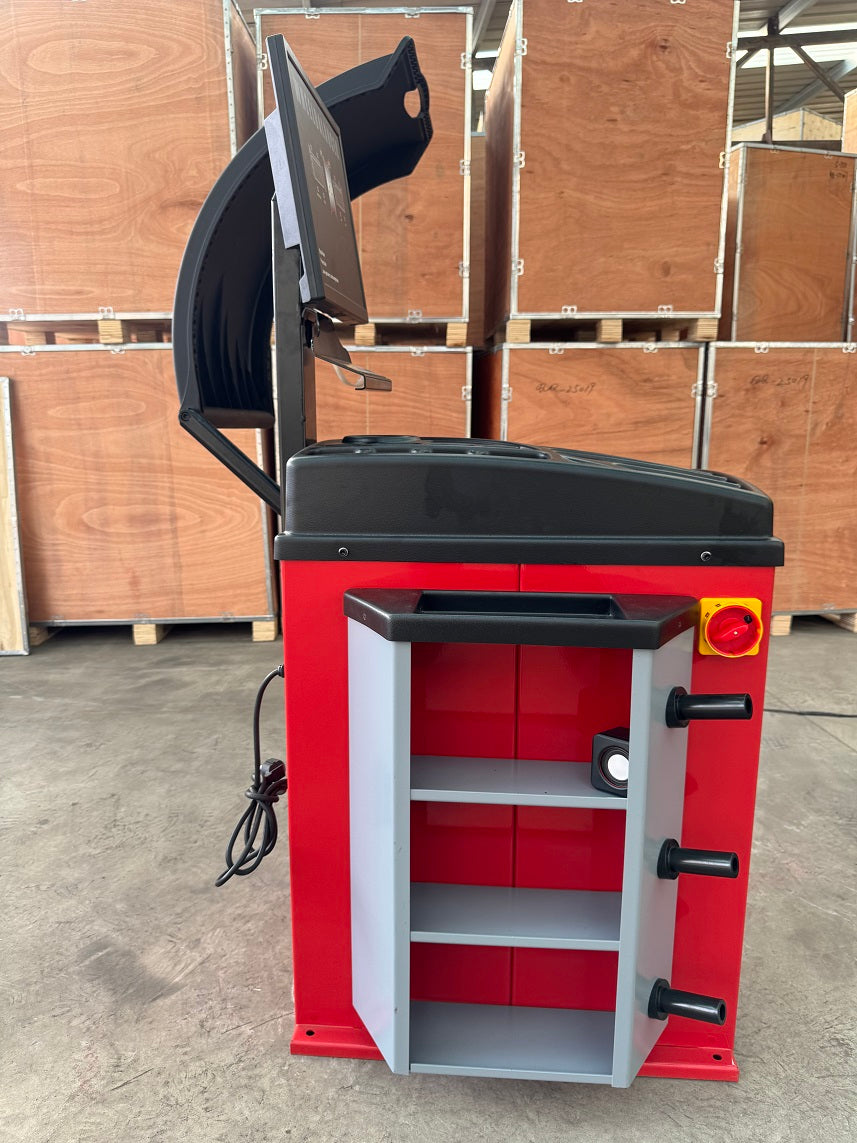

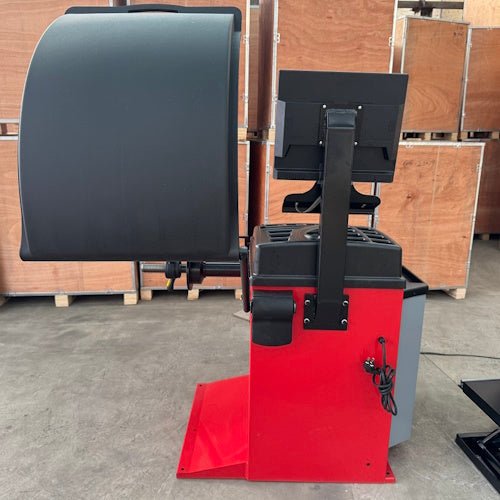

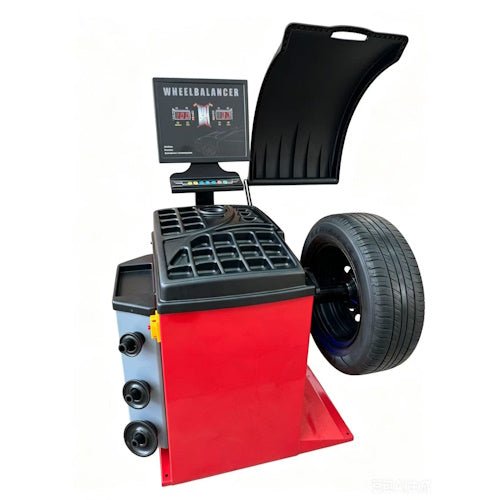

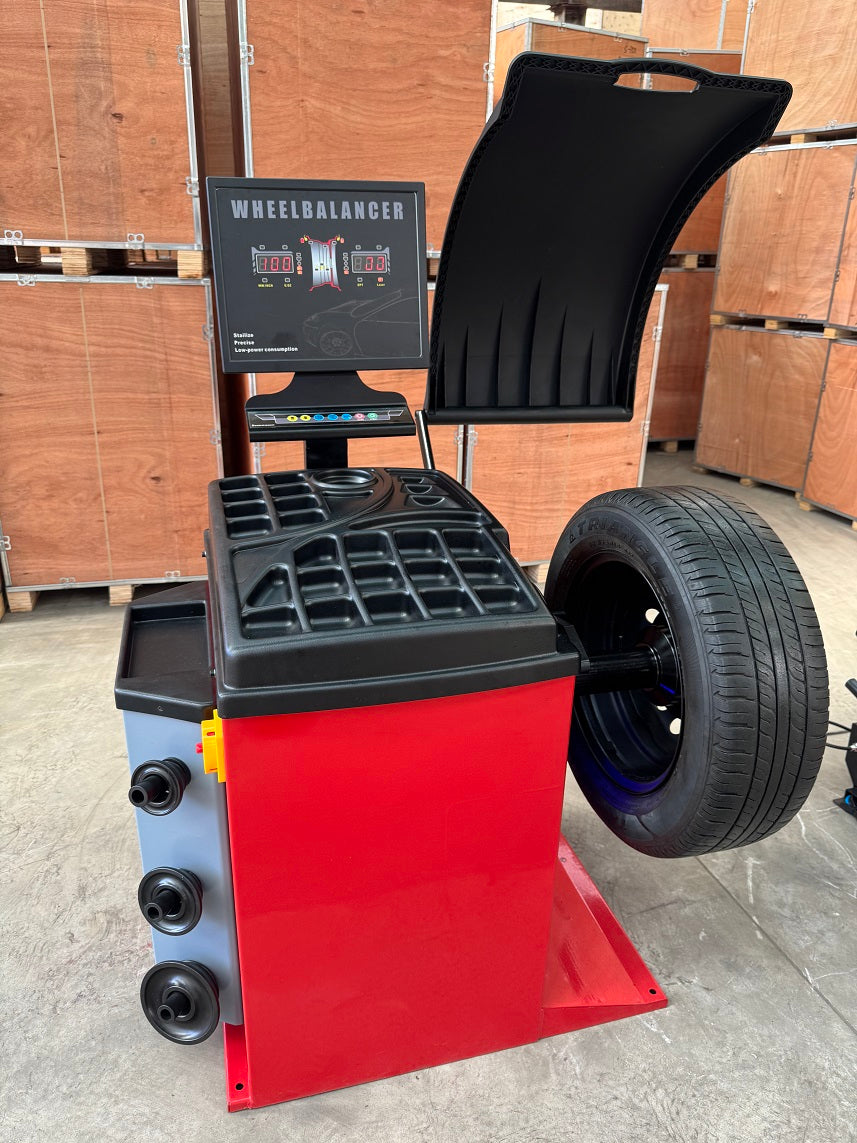

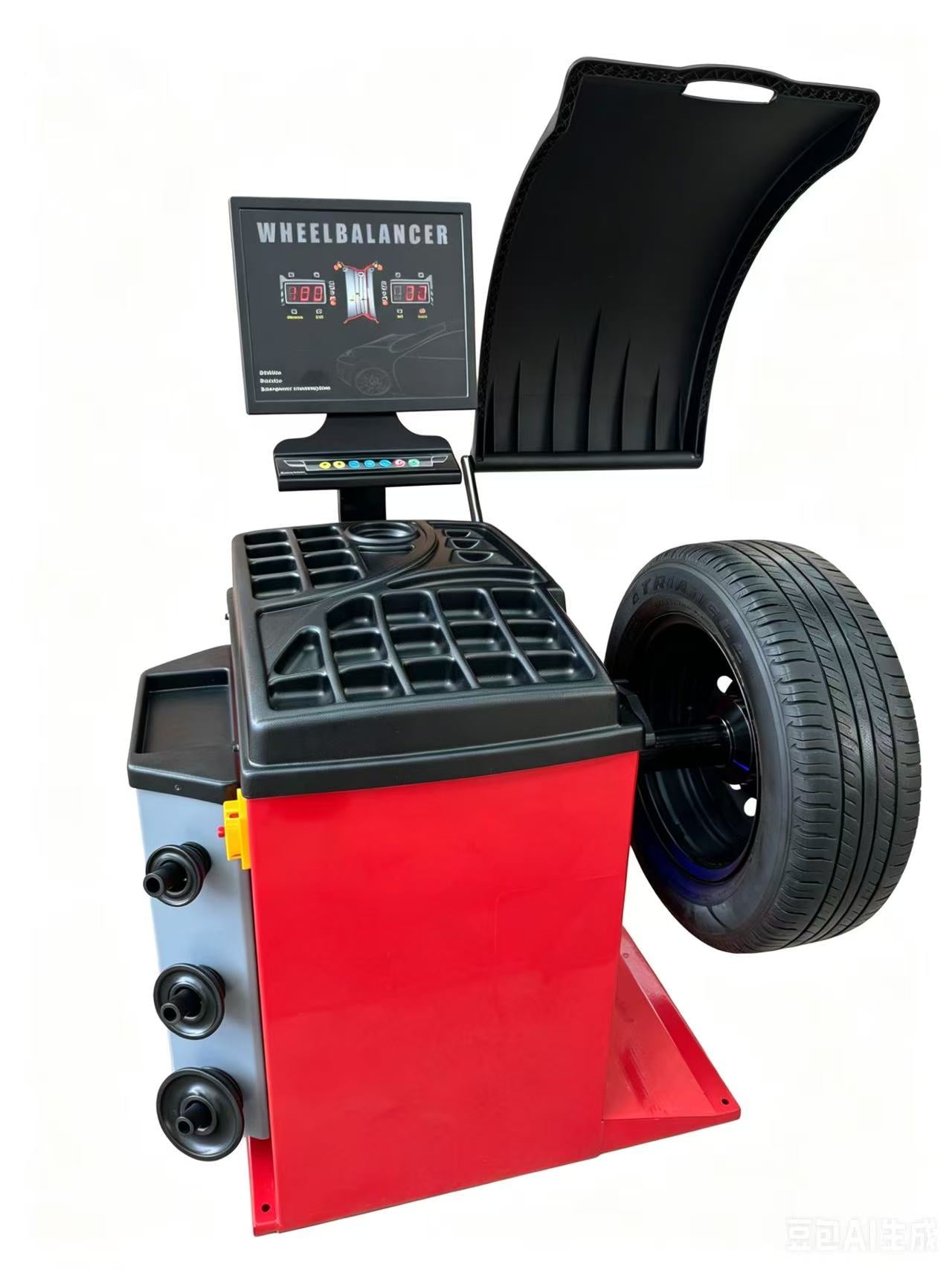

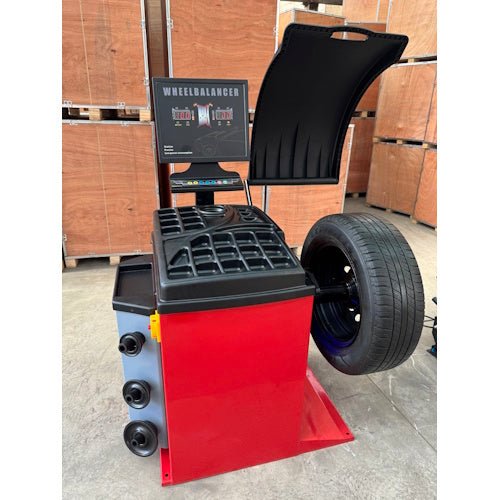

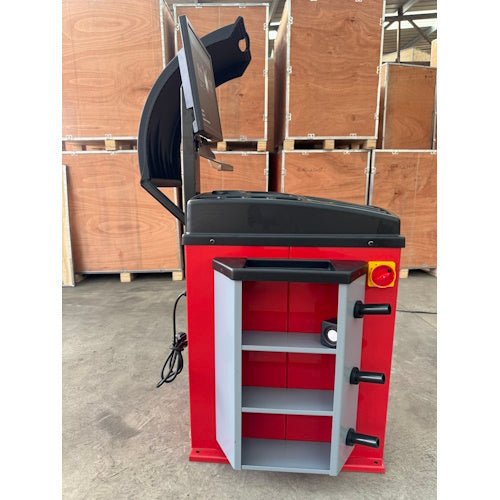

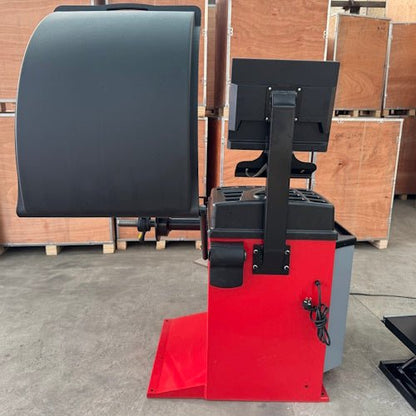

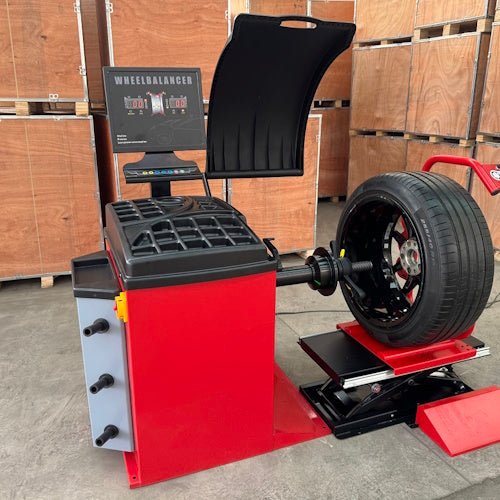

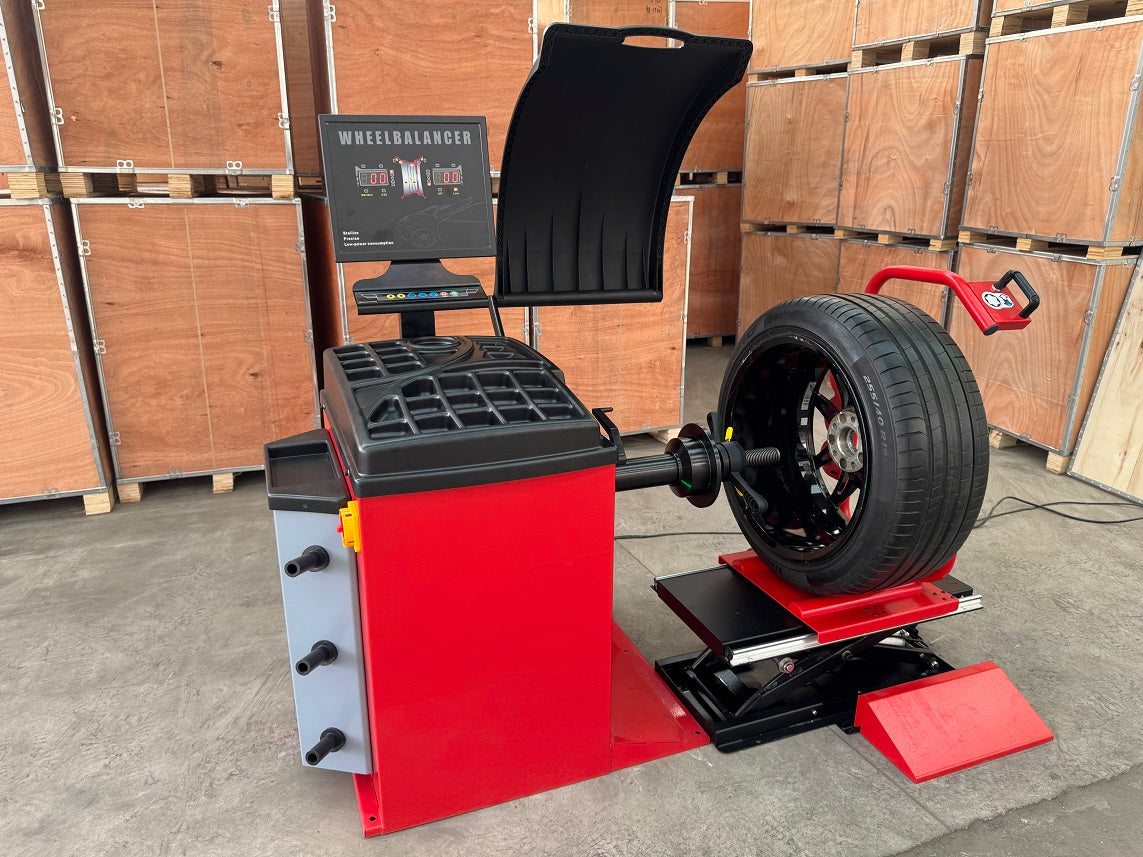

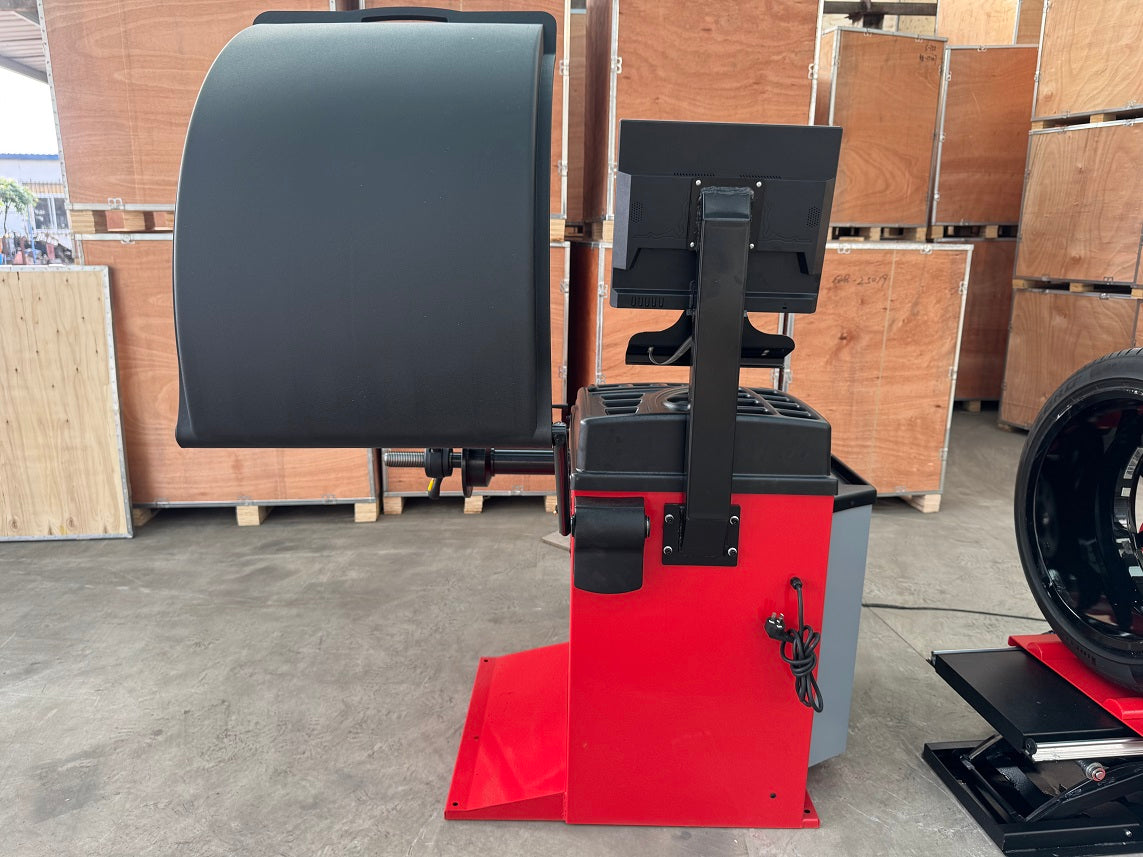

Wheel Balancer with Laser Positioning, 10"–24" Rim Capacity, Digital Display & 65 kg Wheel Capacity WB93

Improve wheel service efficiency with the WB93 Professional Wheel Balancer, designed for tire shops, automotive repair facilities, garages, dealerships, and professional service bays. This machine is suitable for balancing steel and alloy wheels with rim diameters from 10" to 24", making it a versatile solution for passenger cars, light trucks, and general wheel service applications.

The WB93 features laser positioning, digital display operation, multiple balancing modes, self-calibration, and self-diagnosis functions for convenient and precise operation. With a fast 8-second cycle time, 200 r/min rotating speed, and position precision of 2.81°, it is designed for efficient daily wheel balancing tasks.

The machine supports wheels weighing up to 143 lb / 65 kg when properly anchored, providing dependable capacity for professional automotive applications.

Key Features

• Professional Wheel Balancer: Designed for tire shops, garages, dealerships, and automotive repair facilities.

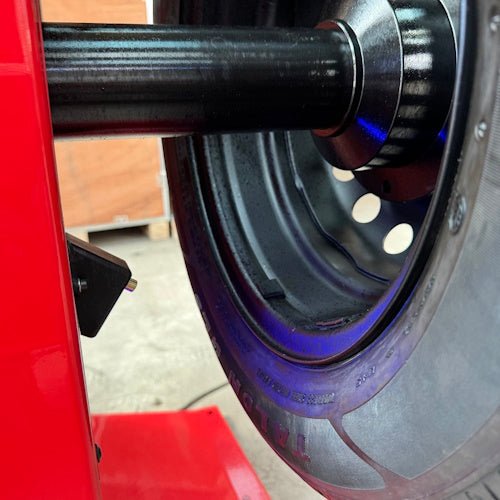

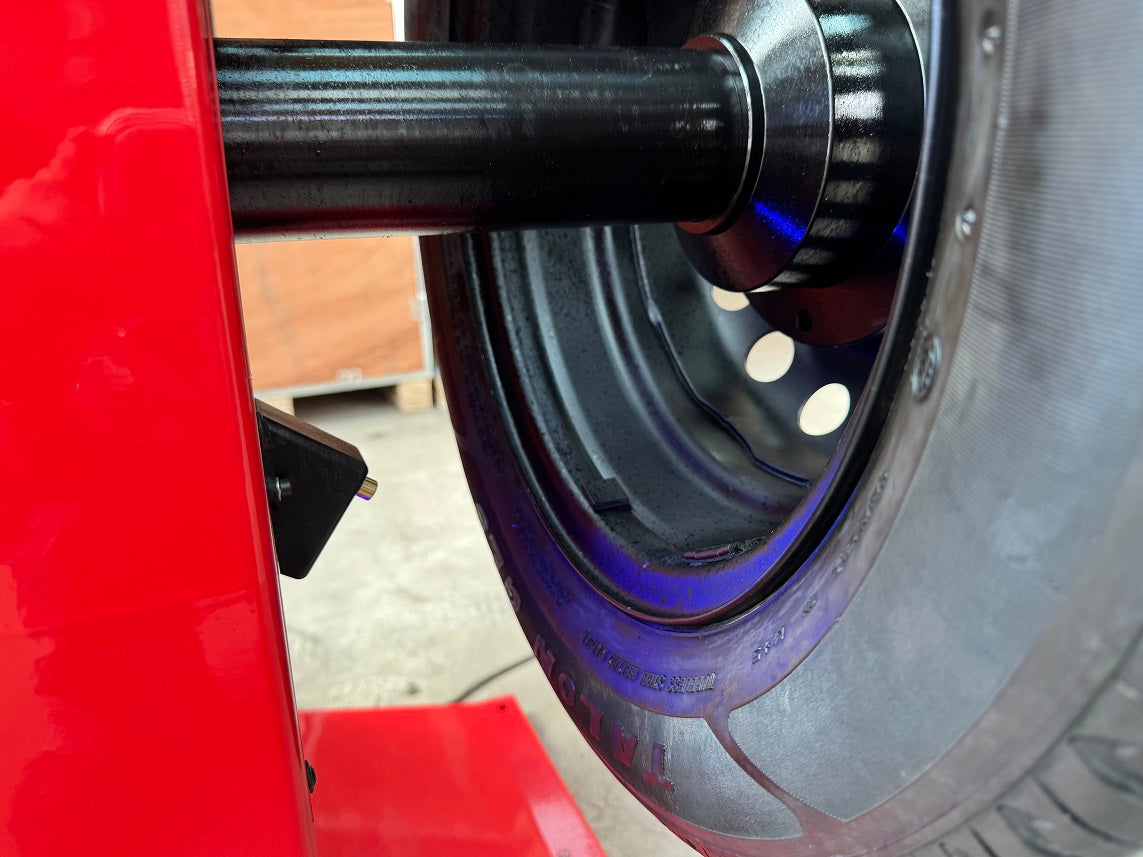

• Laser Positioning: Helps accurately identify the wheel position during balancing.
• 10"–24" Rim Capacity: Suitable for a wide range of passenger car and light truck wheels.
• 65 kg Wheel Capacity: Supports wheels up to 143 lb / 65 kg when anchor bolts are installed.
• Fast 8-Second Cycle: Helps improve productivity during busy wheel service operations.

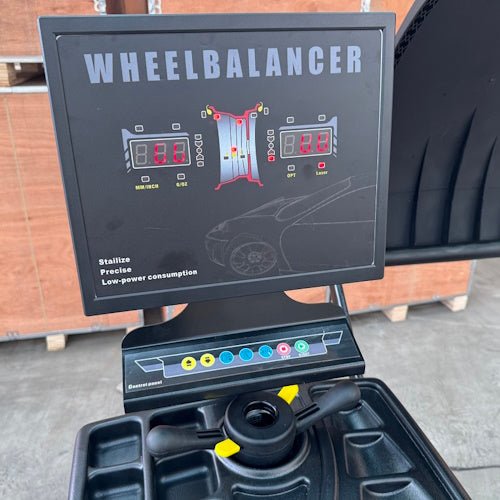

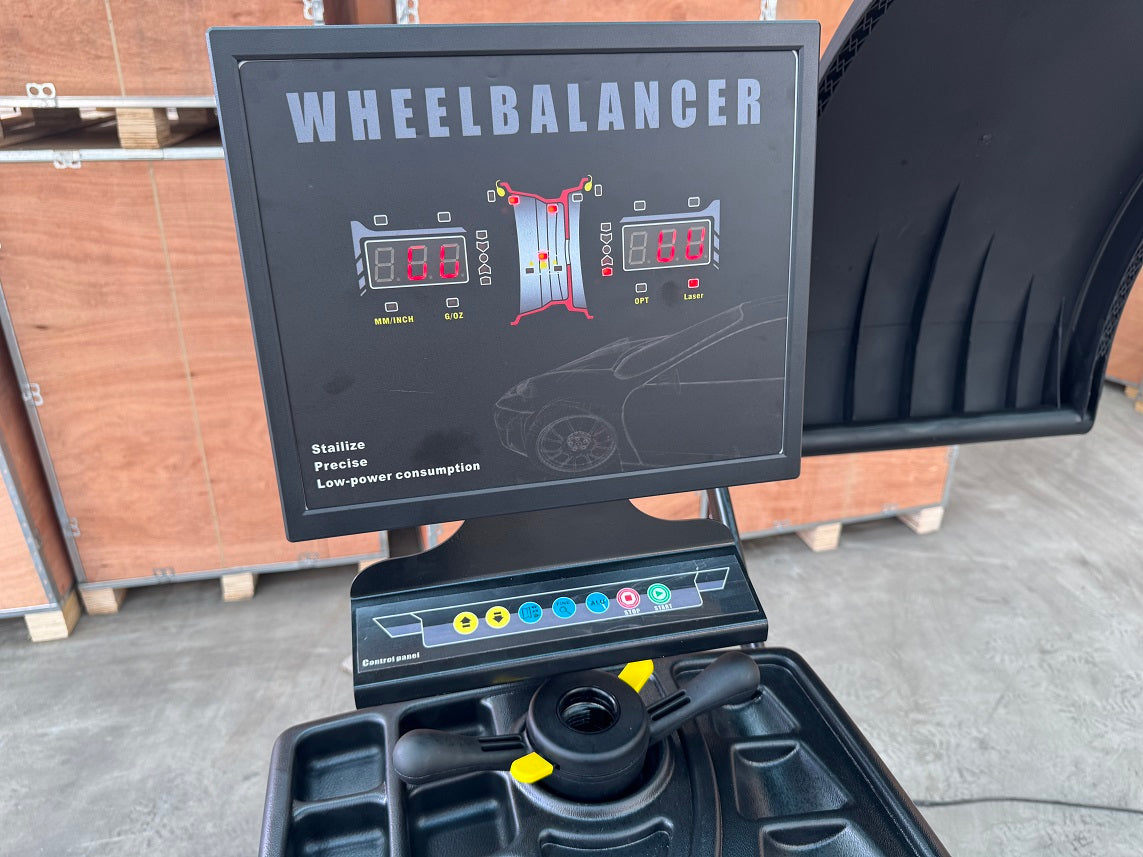

• Digital Display: Provides convenient operation and clear balancing information.
• Multiple Balance Modes: Supports different wheel and rim styles.
• Self-Calibration: Helps maintain accurate balancing performance.
• Self-Diagnosis & Protection: Built-in functions help simplify operation and maintenance.
• 2.81° Position Precision: Provides accurate wheel positioning.
• Low Operating Noise: Noise level remains below 70 dB.
• Suitable for Steel & Alloy Wheels: Versatile for common automotive wheel applications.

Specifications

• Type: Professional Wheel Balancer
• Maximum Wheel Weight: 143 lb / 65 kg with anchor bolts installed
• Motor Power: 180W
• Power Supply: 110V / 60Hz
• Rotating Speed: 200 r/min
• Position Precision: 2.81°
• Laser Positioning: Yes
• Cycle Time: 8 Seconds
• Rim Diameter Range: 10"–24" / 256–610 mm
• Back Spacing: Less than 7.5" / 190 mm
• Noise Level: Less than 70 dB
• Net Weight: 243 lb / 110 kg
• Dimensions: 37.4" W × 29.9" D × 44.5" H / 95 × 76 × 113 cm
• Wheel Compatibility: Steel and alloy wheels
• Application: Wheel balancing, tire shop service, automotive repair, and garage wheel service

What's Included

• 1 × WB93 Wheel Balancer
• Standard Wheel Balancing Accessories as Supplied
• Digital Display Control System
• Laser Positioning Function
• User Manual

Installation Notes

• Install the machine on solid concrete or a similarly stable surface.
• Install anchor bolts before balancing heavier wheels.
• Allow sufficient working space around the machine for safe operation.
• Confirm the electrical setup before use.
• Read the user manual carefully before operating the machine.

Ideal Applications

• Tire shops
• Automotive repair shops
• Dealership service bays
• Professional garages
• Wheel service centers
• Passenger vehicle wheel balancing
• Light truck wheel balancing
• Commercial tire service operations
